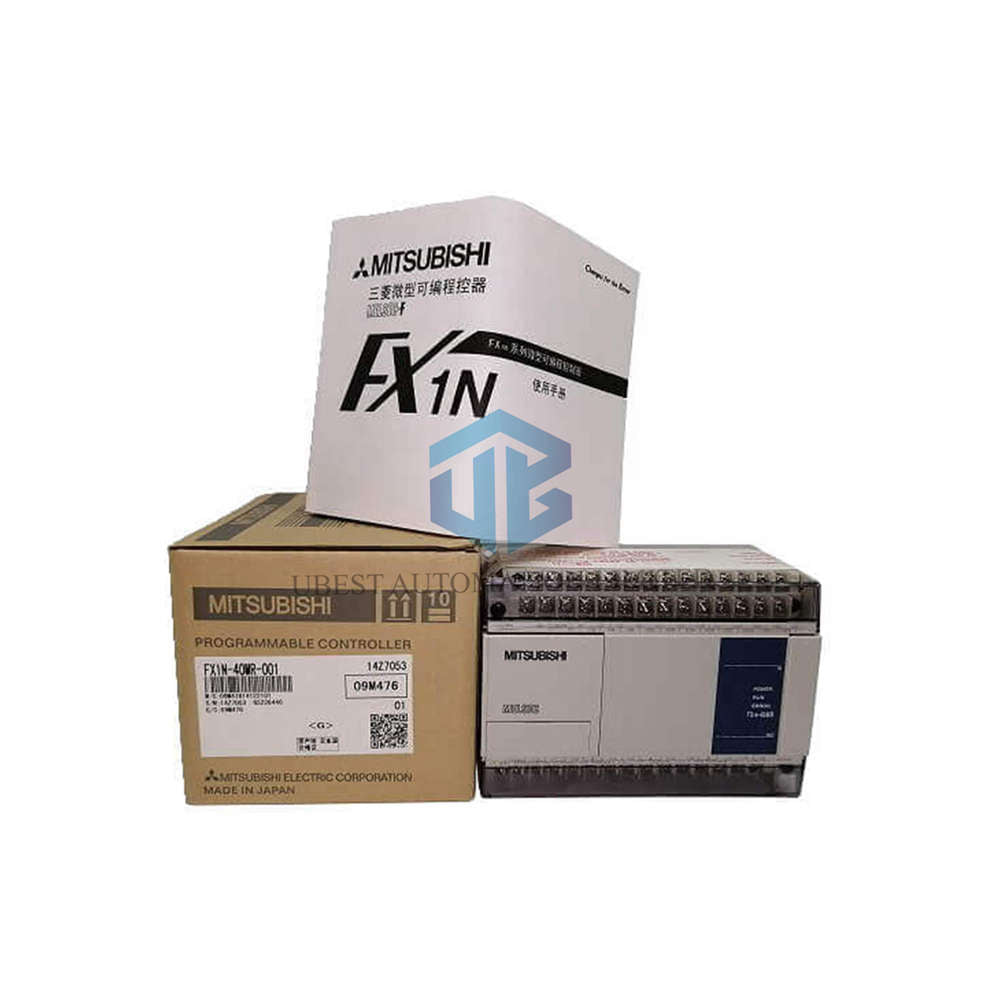

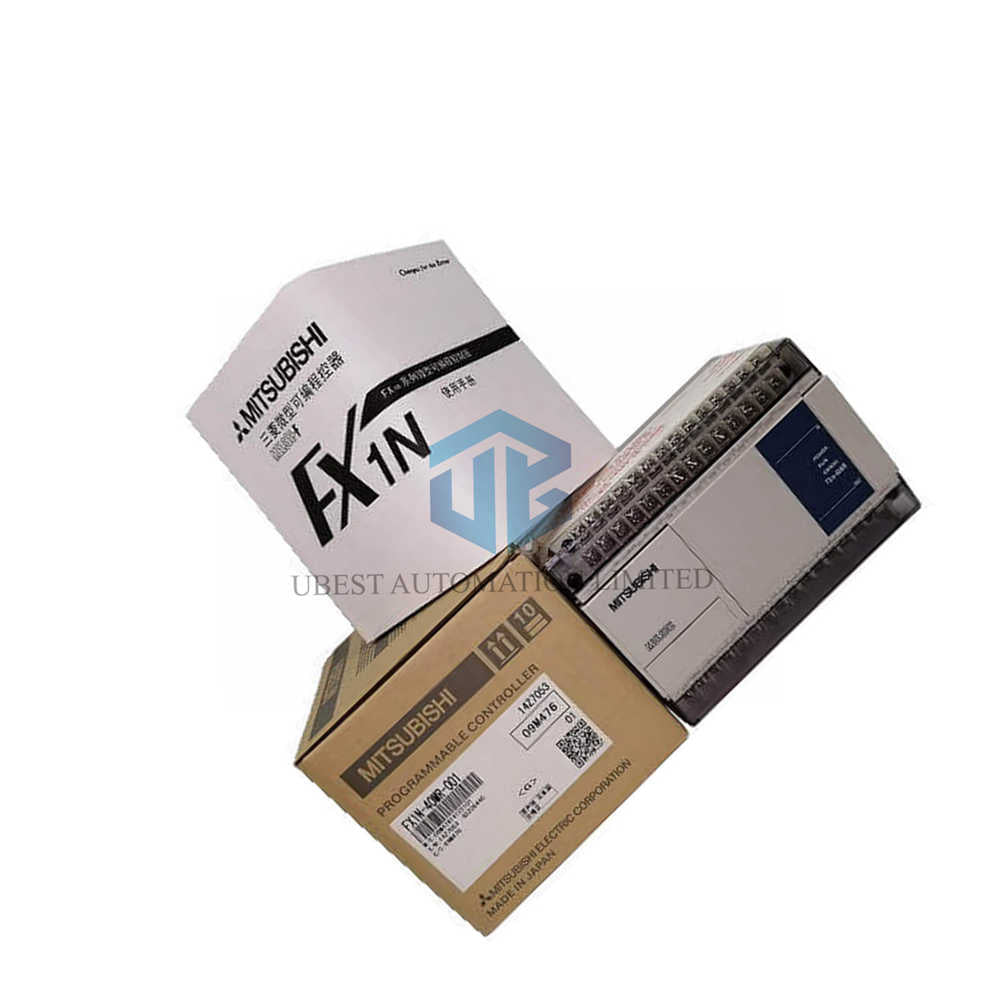

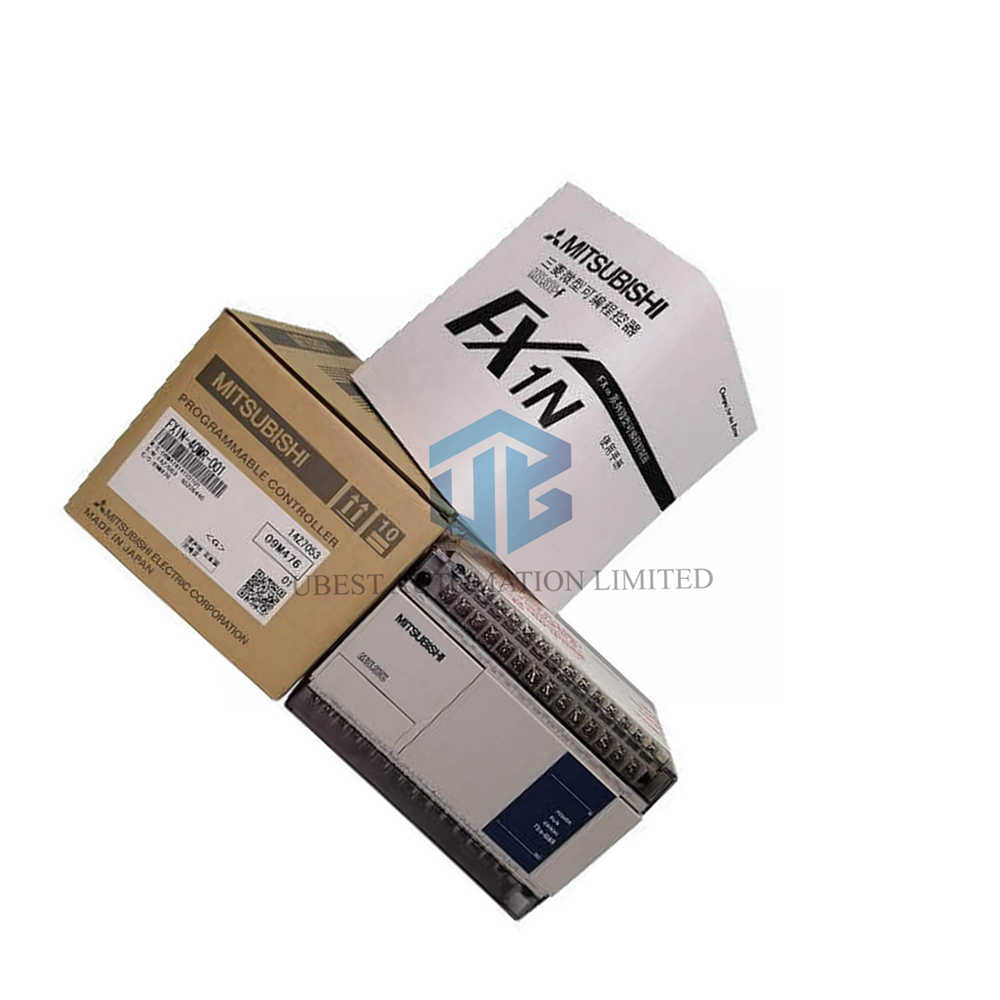

FX1N-40MT-001 – Compact PLC with High-Speed I/O and Positioning Control

Technical Specifications

• Manufacturer: Mitsubishi Electric
• Series: FX1N Series
• Model / Part Number: FX1N-40MT-001
• Product Type: Programmable Controller (PLC)
• I/O Points: 24 inputs / 16 transistor outputs (sink type)
• Total expansion capacity: Up to 128 I/O points
• Program memory: 8000 steps EEPROM (built-in)
• Basic instruction speed: 0.55µs to 0.7µs
• Application instruction speed: 3.7µs to 100µs
• Programming language: Relay symbol + ladder + SFC allowed
• Power supply: AC100~240V (85~264V range), 32W consumption
• DC24V service power: 400mA output
• Shipping weight: 1.65 kg

Built-in High-Speed Counter Features

• 1-phase 1-count input: up to 60kHz (C235, C236).
• 1-phase 2-count input: up to 60kHz (C246) or 10kHz (C247~C250).
• 2-phase 2-count input: up to 30kHz (C251) or 5kHz (C252~C255).
• Total frequency sum for high-speed counters: max 60kHz.
• Supports high-speed comparison SET/RESET usage.

Frequently Asked Questions (FAQ)

• Q: Does FX1N-40MT-001 require a backup battery for program retention?
  A: No. The program stores in built-in EEPROM. No battery needed.
• Q: What is the maximum expansion I/O for this PLC?
  A: Up to 128 total I/O points when combining with expansion units.
• Q: Can I use this unit for stepper motor control?
  A: Yes. The built-in 100kHz pulse output supports stepper drives directly.
• Q: What software programs this PLC?
  A: Use Mitsubishi GX Works2 or GX Developer (ladder logic).
• Q: How long does the capacitor keep data last?
  A: After 30 minutes of power-on, the capacitor holds data for 10 days.
