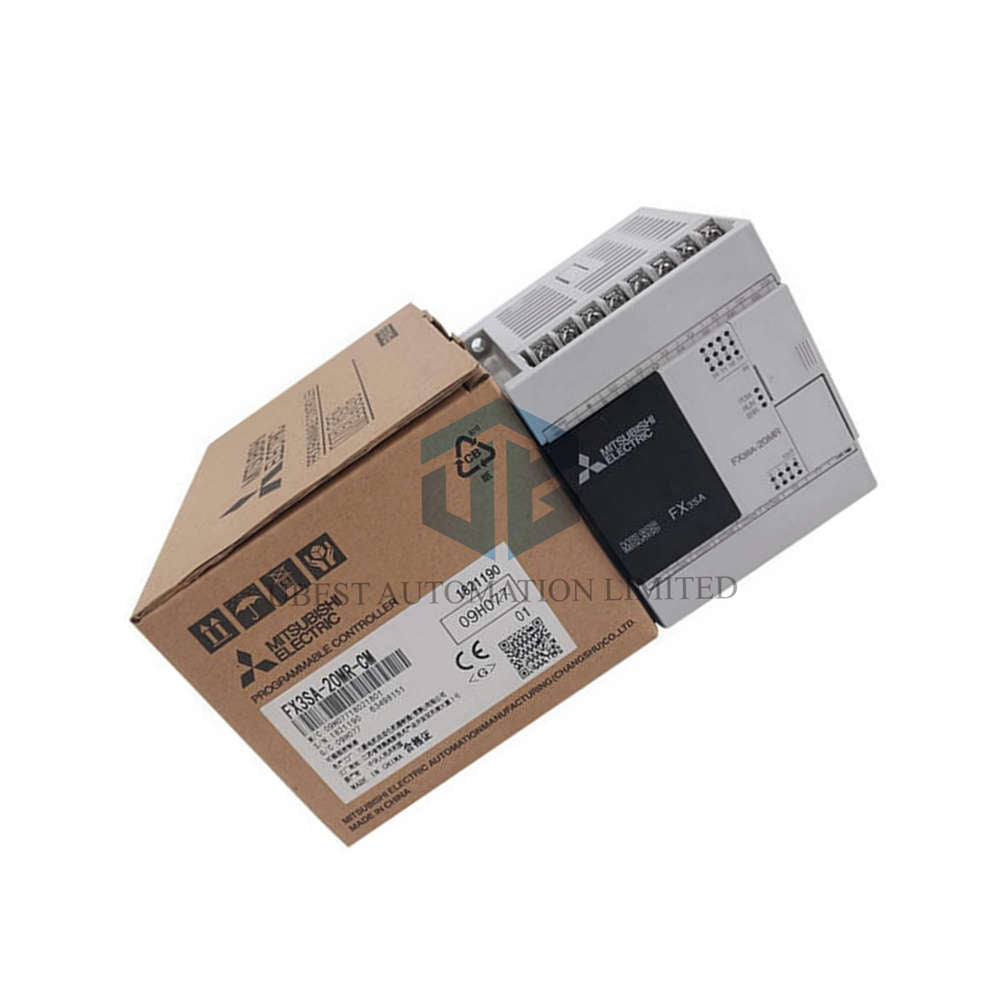

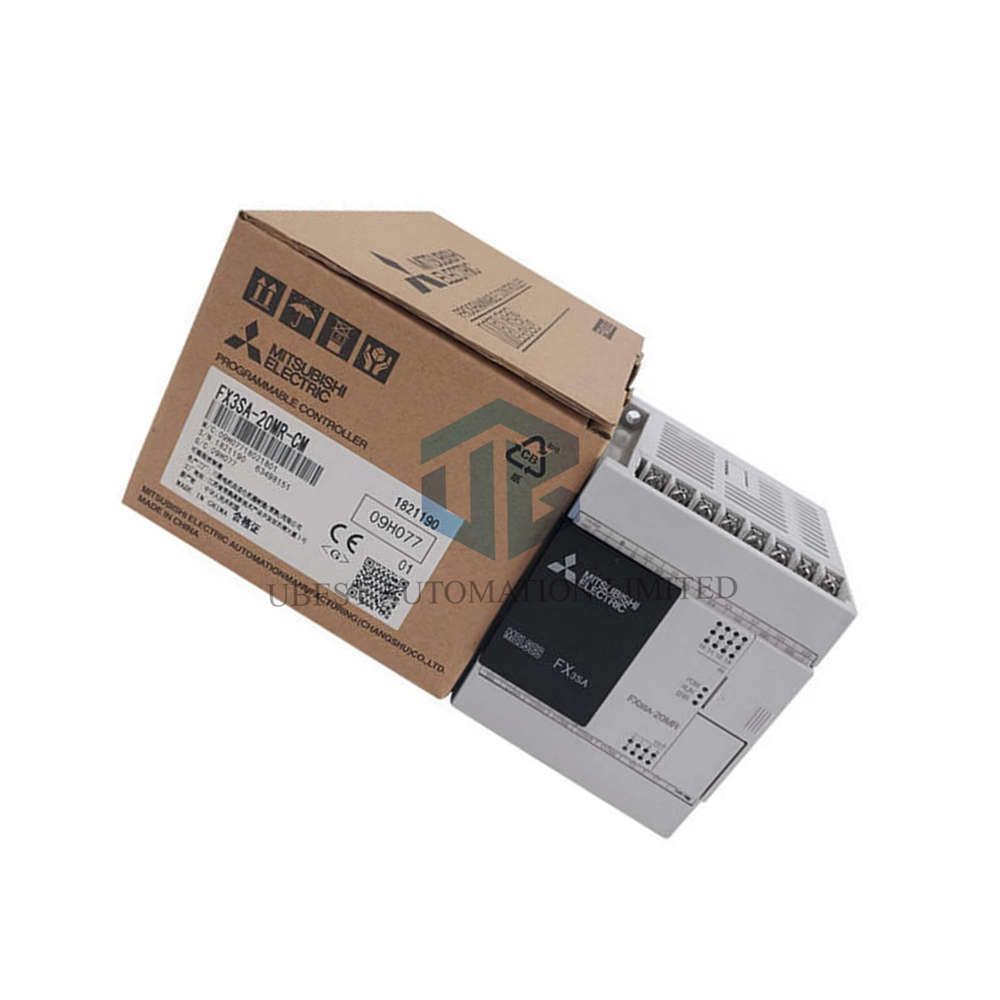

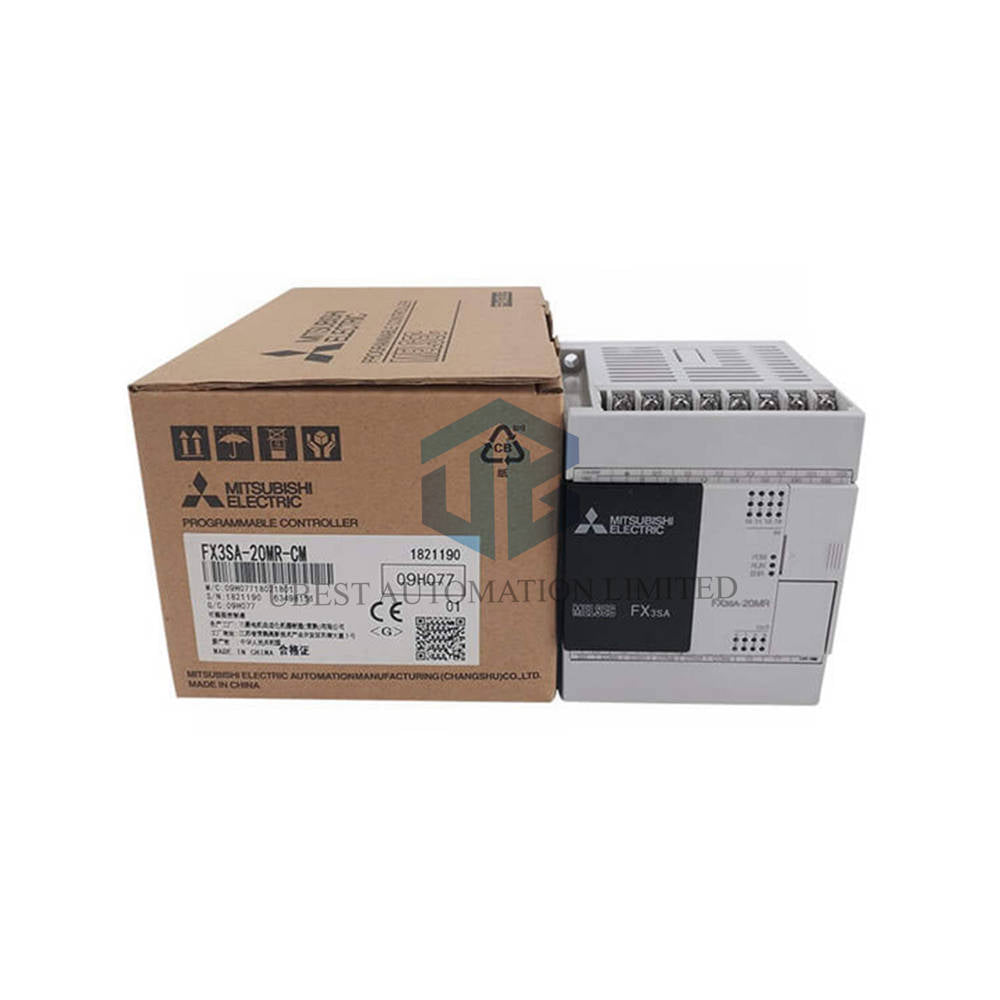

Mitsubishi Electric FX3SA-20MR-CM Programmable Logic Controller

Key Technical Specifications

• Brand: Mitsubishi Electric
• Model: FX3SA-20MR-CM
• Product Type: Programmable Logic Controller (PLC)
• Total I/O Points: 20 points (12 inputs, 8 outputs)
• Output Form: Relay output
• Power Supply: AC100-240V, 50-60 Hz
• Power Consumption: 20W
• Dimensions (W x H x D): 75 x 90 x 75 mm
• Weight: 0.4 kg
• Memory: 8000-step EPROM (no battery required, maintenance-free)
• Communication Support: MODBUS RTU, Ethernet-ready via expansion board
• High-Speed Counter: Built-in with adjustable digital filter (minimum 1ms response)
• Input Filter Adjustment: Smooth input signals for X000 to X017 with adjustable filter
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -20°C to 70°C
• Humidity Tolerance: 10% to 90% RH (non-condensing)
• Noise Immunity: Built-in anti-jitter filter and surge protection on inputs
• Clock Function: Built-in real-time clock standard
• Password Protection: 8-digit password secures your program

Performance & Core Features

• Compact yet powerful: The FX3SA-20MR-CM fits tight panels while providing 20 I/O points for small equipment control.
• Relay output durability: Handles inductive loads like motors, solenoids, and contactors with ease. Each relay supports up to 2A per point.
• Flexible expansion options: Connect FX2NC expansion modules directly without extra cables. You can expand I/O up to 60 points total.
• Built-in high-speed counter: Use simple programming for positioning or frequency measurement. The filter adjusts down to 1ms for precise input capture.
• Analog & communication ready: Support analog special adapters and MODBUS communication out of the box. Add Ethernet modules for network integration.
• Maintenance-free design: No battery backup required. EPROM memory retains programs reliably over years of operation.
• RUN/STOP switch: Operate the panel-mounted switch easily without software.
• Remote maintenance: Use modem communications for remote programming, monitoring, and program uploads or downloads.
• Continuous scanning function: Define operation cycles with continuous scan time for time-critical applications.
• Online program editor: Change programs without losing work hours or stopping production.
• Component annotation: Record notes in program registers for better documentation.

Frequently Asked Questions (FAQ)

• Q: Can I use analog modules with this PLC?
  A: Yes. The FX3SA-20MR-CM supports analog special adapters for applications needing temperature or pressure monitoring.
• Q: What software do I need to program it?
  A: Use Mitsubishi GX Works2 or GX Developer. Both support the FX3SA series with full instruction sets.
• Q: Does this model support MODBUS communication?
  A: Absolutely. The FX3SA-20MR-CM includes built-in MODBUS RTU capability. Add an Ethernet adapter for network connectivity.
• Q: How many I/O points can I expand to?
  A: You can reach up to 60 total I/O points when combining with FX2N expansion units and special adapters.
• Q: Is the unit battery-free?
  A: Yes. The 8000-step EPROM memory eliminates battery maintenance. Your program stays safe without periodic battery changes.
• Q: What shipping methods do you offer?
  A: We ship worldwide via FedEx, UPS, and DHL for fast and reliable delivery.
• Q: What is the environmental tolerance?
  A: The PLC operates from 0°C to 55°C with 10–90% humidity. Built-in noise filters ensure stable performance in industrial settings.
• Q: Does it have a real-time clock?
  A: Yes. The FX3SA-20MR-CM includes a built-in real-time clock standard for time-stamped operations and scheduling.
• Q: Can I protect my program with a password?
  A: Yes. Use an 8-digit password to secure your program from unauthorized access or modifications.
