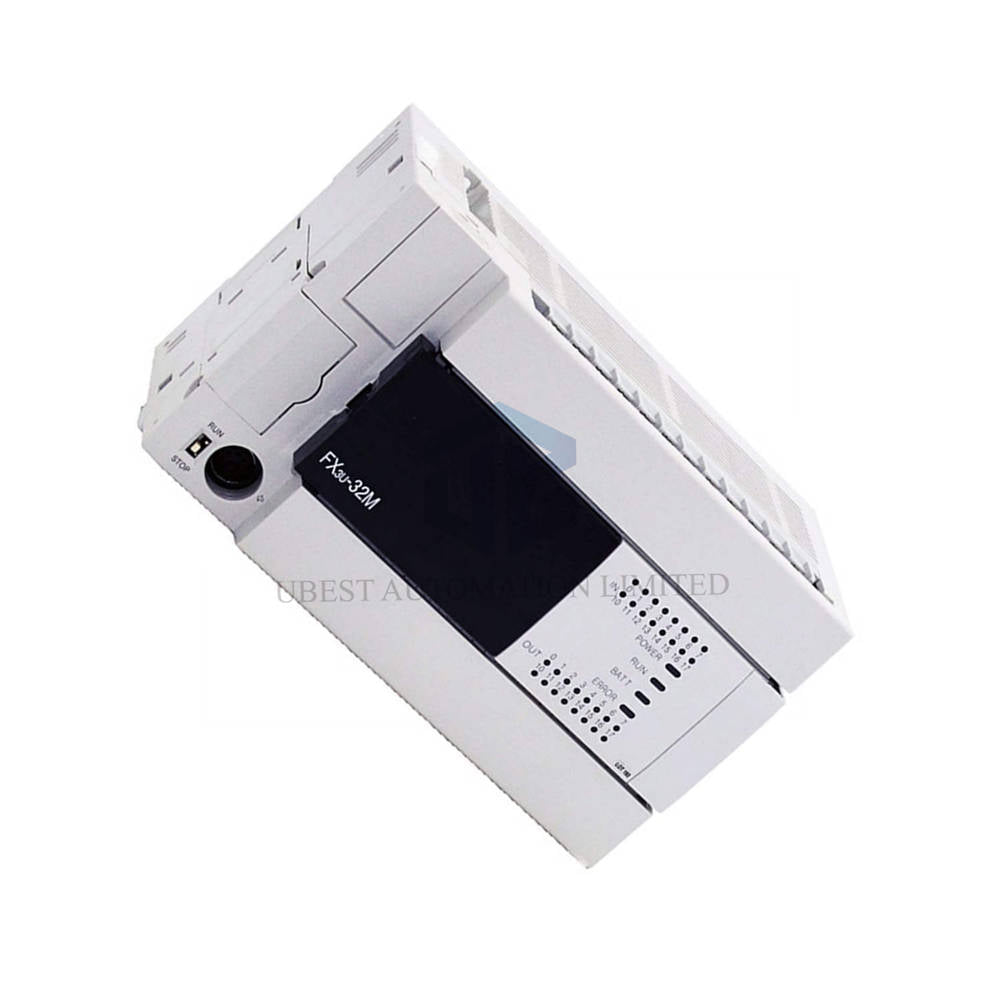

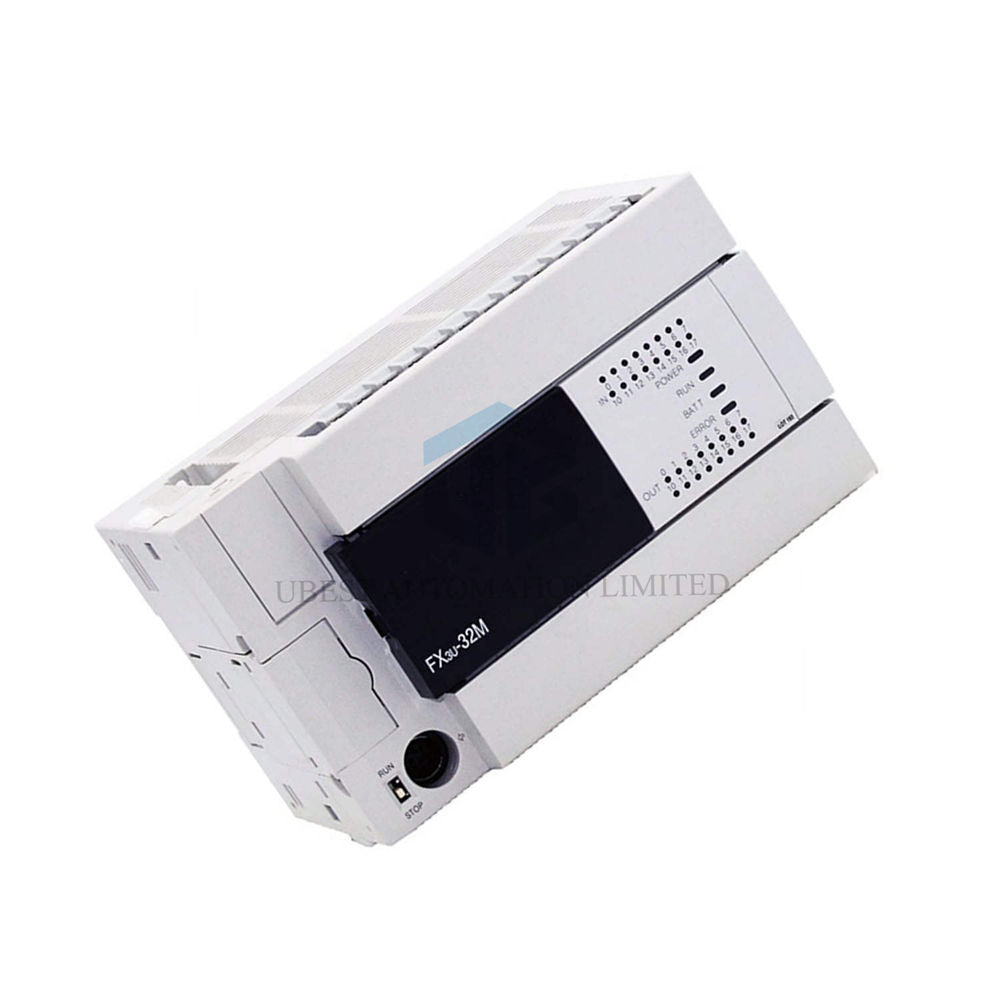

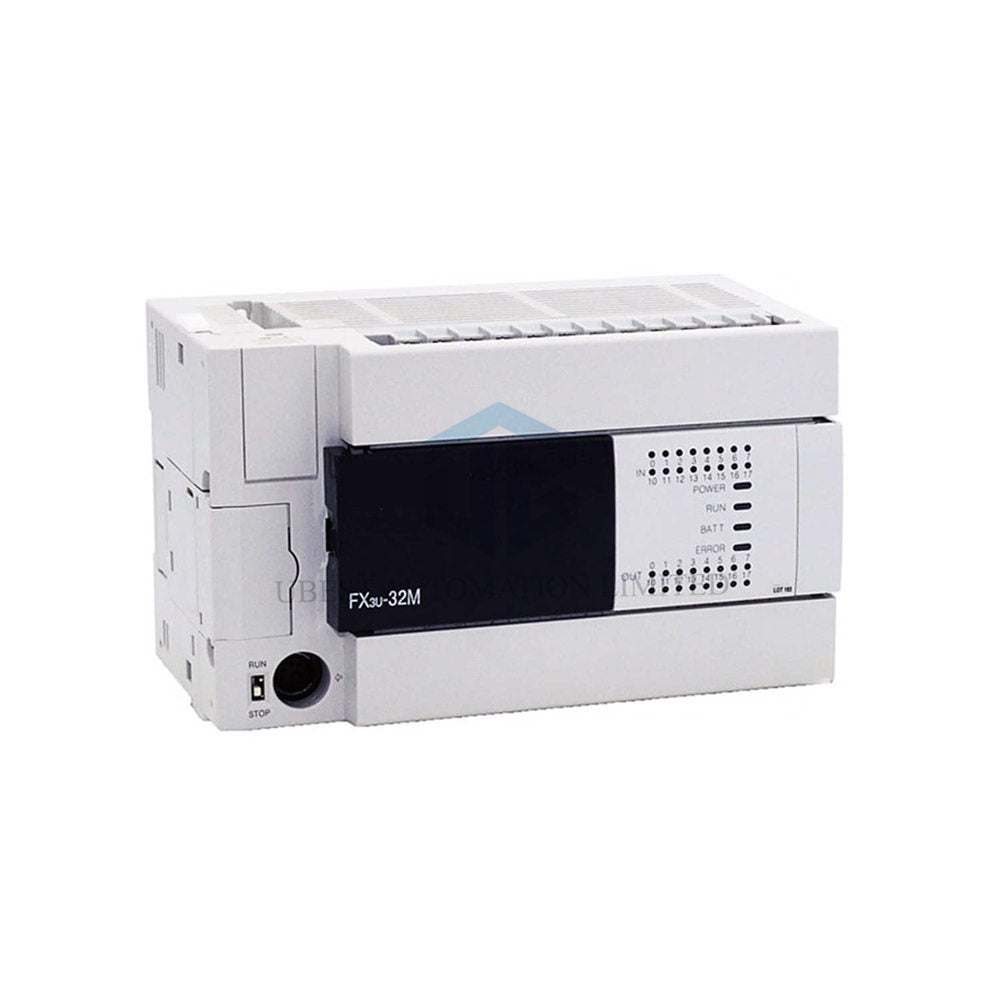

FX3U-32MR-ES-A Mitsubishi PLC 32 Points Relay Output
Manufacturer:
Mitsubishi
Product No.:
FX3U-32MR-ES-A
Condition:
In Stock
Product Type:
Logic Module
Product Origin:
JP
Weight:
2270g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Mitsubishi FX3U-32MR-ES-A – Logic Module, 32 Points, Relay Output
Key Technical Specifications
- Brand: Mitsubishi Electric
- Model: FX3U-32MR-ES-A
- Product Series: FX3U Series
- Max I/O Points: 32 points (standalone)
- Input Points: 16 points (DC input, drain/source)
- Output Points: 16 points (relay type)
- Supply Voltage: 100 - 240VAC
- Power Consumption: 35W
- Weight: 0.65 kg
- Dimensions (WxHxD): 150 x 90 x 86 mm
High-Speed Performance & Memory Capacity
- CPU Speed: 0.08 µs per basic instruction – very fast processing.
- Built-in RAM: 8K capacity, expandable up to 16K.
- Positioning Function: Built-in 2-axis independent positioning up to 20kHz (transistor output models).
- High-Speed Processing: Supports high-speed control and network communication.
- Data Recording: Built-in function for logging production data.
Network & Expansion Capabilities
- CC-Link Support: Connect to CC-Link including remote I/O modules.
- Max Control Points with CC-Link: Up to 384 I/O points.
- Standalone Max I/O: 256 points using expansion modules.
- Right Side Expansion: Connect input/output expansion modules and special function modules.
- Communication: Supports network communication and analog control.
- Advanced Positioning: Built-in high-speed positioning system.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between FX3U-32MR-ES-A and FX3U-32MT models?
A: The FX3U-32MR-ES-A uses relay outputs. MT models use transistor outputs for higher speed switching. -
Q: Can I expand this unit beyond 32 I/O points?
A: Yes, connect expansion modules to the right side. Maximum standalone I/O is 256 points. -
Q: Does this module support CC-Link communication?
A: Yes, the FX3U-32MR-ES-A supports CC-Link. With remote I/O, you can control up to 384 points. -
Q: What is the programming software for this PLC?
A: Use Mitsubishi GX Works2 or GX Developer software. -
Q: Is the terminal block removable?
A: Yes, it features a quick-disconnect terminal block for easy maintenance. -
Q: Can I use this in a 24VDC system?
A: No, this model requires 100-240VAC power supply. For DC power, choose the DC-powered version.
