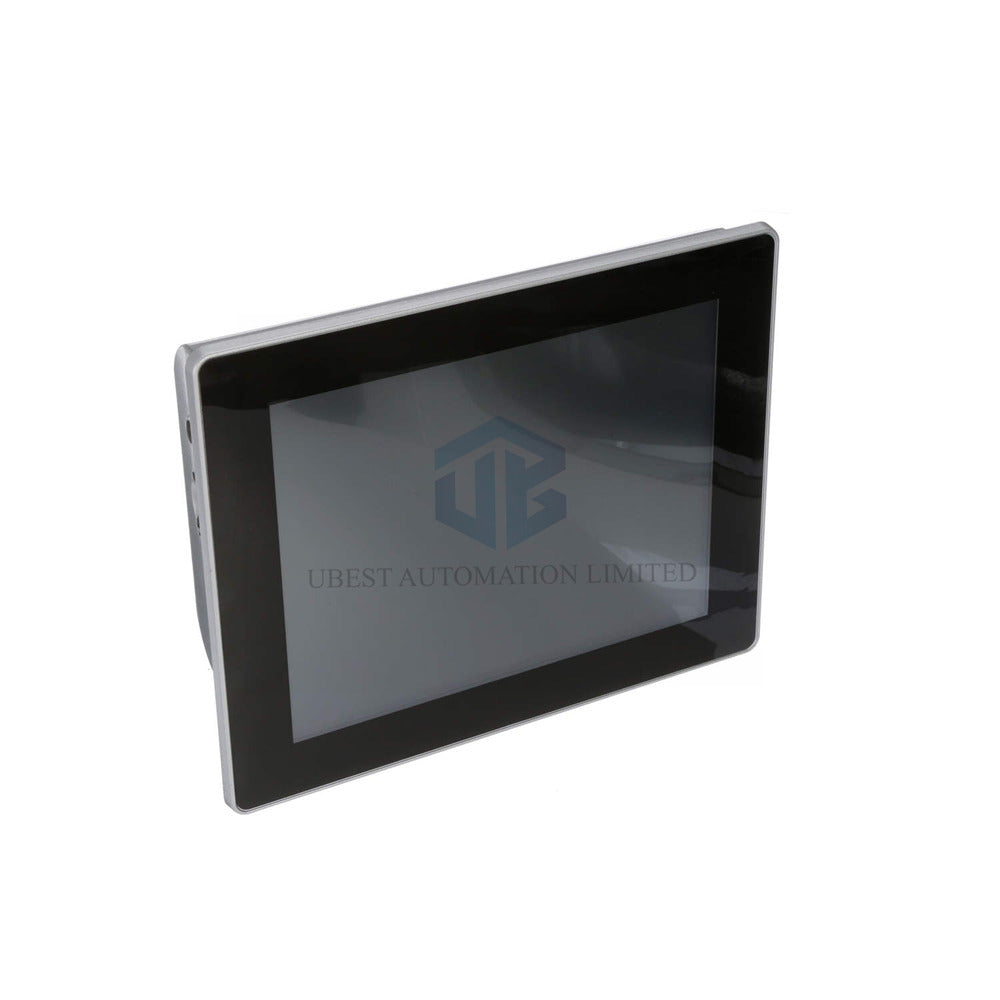

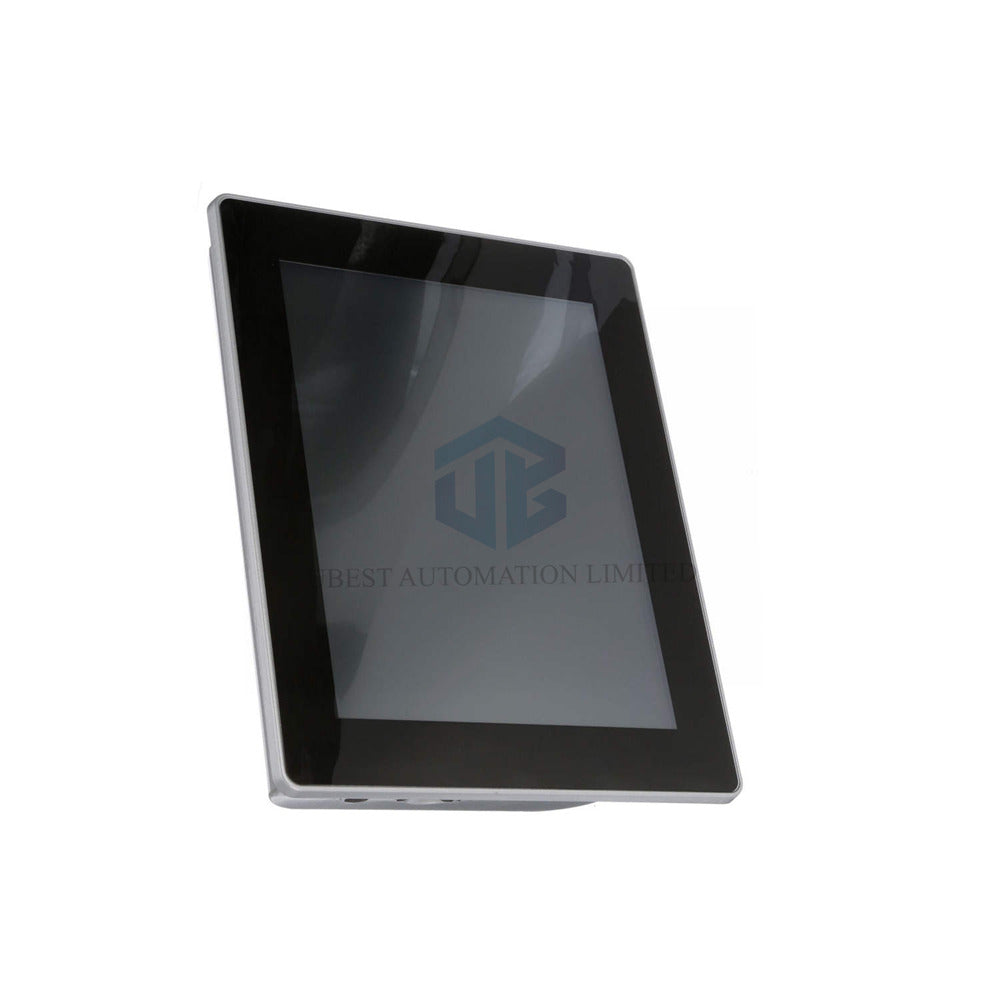

G10S0000 Touch Screen HMI: Rugged, Bright, and Ready for Outdoor Use

Key Technical Specifications

• Brand & Model: Red Lion G10S0000. Author: Ubest Automation provides this unit.
• Display Brightness & Life: 2500 cd/m² at 35,000 operating hours.
• Enclosure Rating: Type 4X Outdoor (Face) and IP20 (Rear). IP66 rating overall.
• Power Consumption (HMI Only): Ranges from 20W to 22W max.
• Operating Temperature: Works from -20°C to 60°C for reliable outdoor use.
• Communication Ports: Includes RS485, RS232, RS422, Ethernet, and 2 USB hosts.
• Built-in MQTT Connectors: Supports Sparkplug, AWS, Azure, Google Cloud, Ubidots, Ignition.
• Hazardous Area Certification: Holds ATEX and cULus approvals.

Frequently Asked Questions (FAQ)

• Q: Can I use the G10S0000 in direct sunlight?
  A: Yes. The 2500 cd/m² brightness ensures clear outdoor visibility.
• Q: Does this Graphite Series HMI support cloud platforms?
  A: Absolutely. It includes native MQTT connectors for AWS, Azure, and Google Cloud.
• Q: What is the storage temperature range?
  A: The G10S0000 can store safely between -20°C to 60°C.
• Q: How many plug-in slots does the Red Lion G10S0000 offer?
  A: It offers 1 SD slot plus 7 module slots for expansion.
