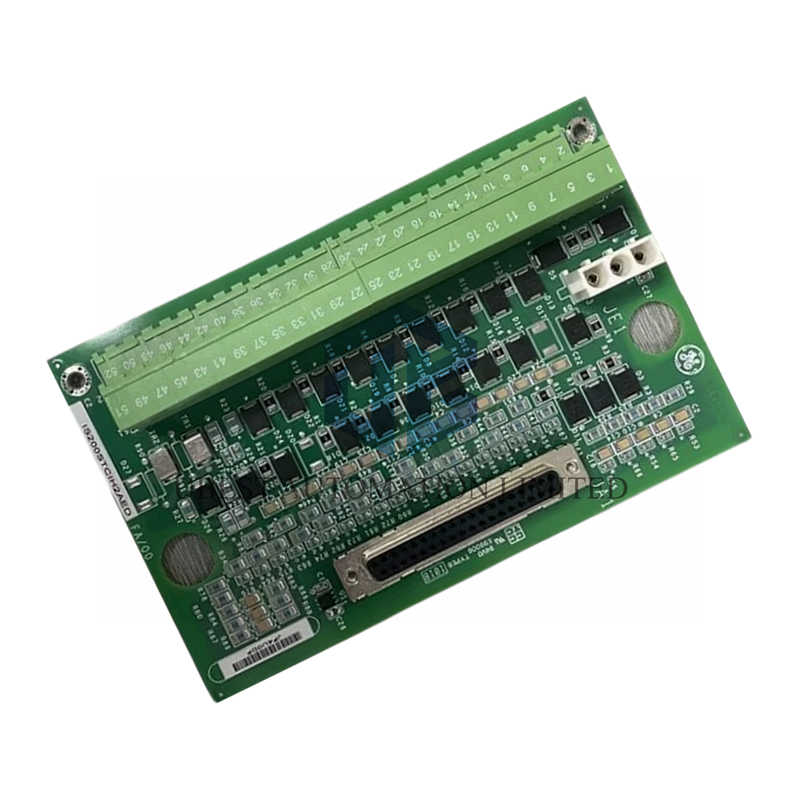

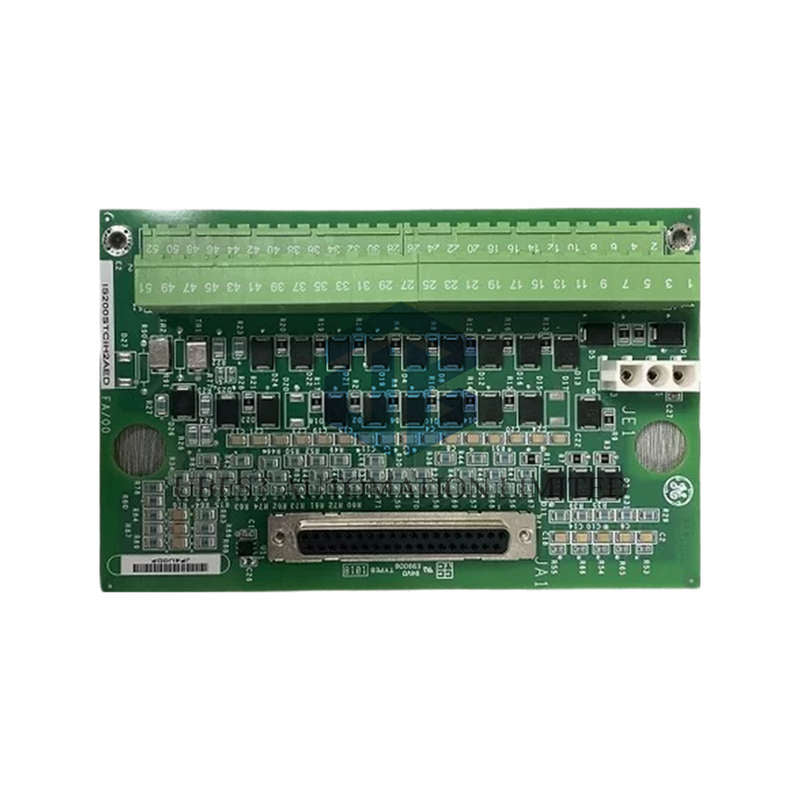

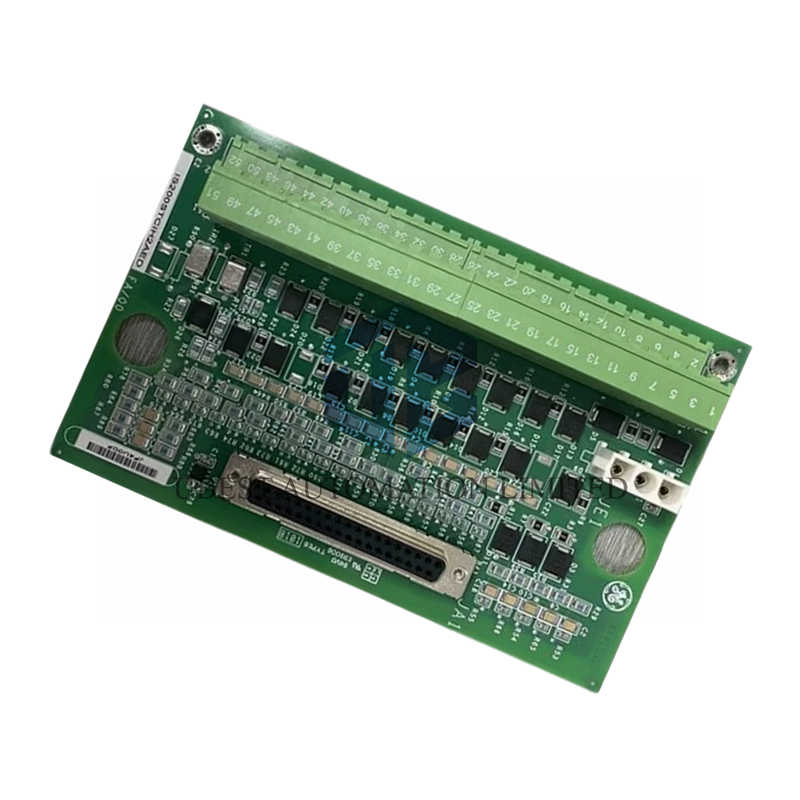

GE IS200STCIH2AED Simplex Contact Input Terminal Board for Mark VI Systems

The IS200STCIH2AED provides reliable contact input processing for General Electric's Mark VI control systems. This compact terminal board offers versatile mounting options and robust signal conditioning. It ensures accurate contact sensing with comprehensive noise protection for industrial environments.

Technical Specifications & Performance Data

• Manufacturer: General Electric
• Model Number: IS200STCIH2AED
• Product Type: Simplex Contact Input Terminal Board
• Control System Series: Mark VI
• Input Channels: 24 dry contact voltage inputs
• Excitation Voltages: 24V, 48V, 125V DC nominal
• Voltage Ranges: 16-32V, 32-64V, 100-145V DC
• Threshold Voltage: 50% of excitation voltage
• Current Consumption: 2.5mA (channels 1-21), 10mA (22-24)
• Power Supply: 24V DC with 0.5A current limiting
• Filter Response: 4ms hardware filtering
• Terminal Capacity: 52-position pluggable terminal block
• Wire Size: #18 AWG recommended
• Operating Temperature: -20°C to +70°C
• Isolation Rating: 1500V input-to-output

Contact Input Configuration & Excitation

• Twenty-four dry contact inputs support various voltage levels
• Three excitation voltage options provide application flexibility
• Automatic threshold detection at 50% of excitation voltage
• Differential current consumption optimizes power usage
• Reset-table polymer fuses provide overcurrent protection

Noise Suppression & Signal Protection

• Advanced filtering reduces high-frequency noise interference
• Surge suppression protects inputs from voltage transients
• Hardware filtering ensures stable 4ms response timing
• Shield termination brackets minimize electromagnetic interference
• Robust signal conditioning maintains data integrity

Mounting & Installation Options

• DIN-rail mounting provides quick industrial installation
• Flat surface mounting offers alternative installation method
• Sheet metal carrier ensures secure mechanical attachment
• Plastic insulator maintains proper electrical isolation
• Right-angle header accepts standard pluggable terminal blocks

Communication & System Integration

• Thirty-seven pin D-type connector interfaces with PAIC I/O packs
• Three-position female plug supports additional connections
• Ethernet communication enables controller data exchange
• Simplex system architecture ensures reliable operation
• Compatible with IS230STCI and IS230SNCI system components

Hardware Design & Components

• Fifty-two terminal positions accommodate comprehensive wiring
• Right-angle header design optimizes space utilization
• Over eighty resistors, capacitors, and diodes ensure signal integrity
• Integrated circuit provides sophisticated signal processing
• Dual round apertures facilitate secure mounting procedures
• Conformal coating protects against environmental contaminants

Installation & Wiring Procedures

• Mount the board on DIN rail using provided sheet metal carrier
• Install plastic insulator for proper electrical isolation
• Connect #18 AWG wires directly to terminal block positions
• Terminate shields on separate bracket for noise reduction
• Connect PAIC I/O pack to 37-pin D-type connector interface
• Verify excitation voltage matches application requirements
• Test all 24 contact inputs for proper response and threshold
• Validate noise suppression and filtering functionality

Fault Detection & Diagnostics

• Excitation voltage loss detection alerts to power issues
• Contact input response testing validates proper operation
• Current monitoring ensures within-specification performance
• Filter functionality verification maintains signal quality
• Continuous health monitoring provides operational assurance

Packaging & Shipping Information

• Factory-new IS200STCIH2AED terminal board
• Complete mounting hardware and installation accessories
• Professional documentation with wiring diagrams
• Global express shipping via FedEx, UPS, and DHL available
• Secure packaging ensures perfect condition upon arrival

Expert Technical Support

• What excitation voltage options does the terminal board support?
• The board accepts 24V DC (16-32V range), 48V DC (32-64V range), and 125V DC (100-145V range) excitation sources with automatic threshold detection at 50%
• How many contact inputs are available and what are their specifications?
• Twenty-four dry contact inputs include twenty-one circuits at 2.5mA and three circuits at 10mA current consumption with 4ms hardware filtering
• What mounting options are available for this terminal board?
• The board supports both DIN-rail mounting using a sheet metal carrier and flat surface mounting with plastic insulator for electrical isolation
• What noise protection features are incorporated?
• Advanced surge suppression, high-frequency noise filtering, and separate shield termination provide comprehensive protection against electrical interference
• Which I/O packs are compatible with this terminal board?
• The board interfaces with PAIC I/O packs through a 37-pin D-type connector and is compatible with IS230STCI and IS230SNCI system components
