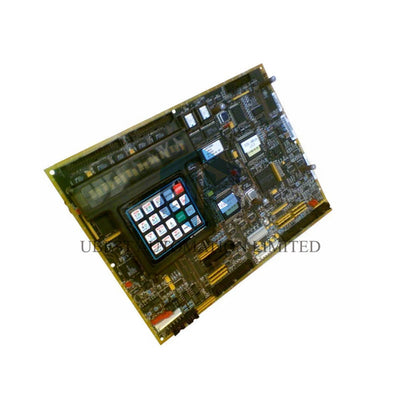

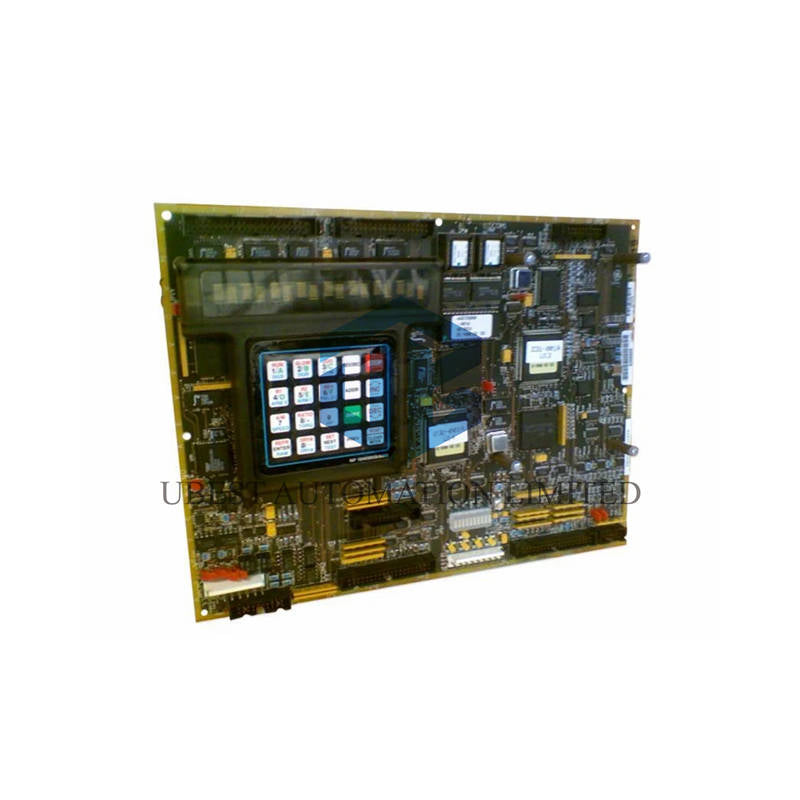

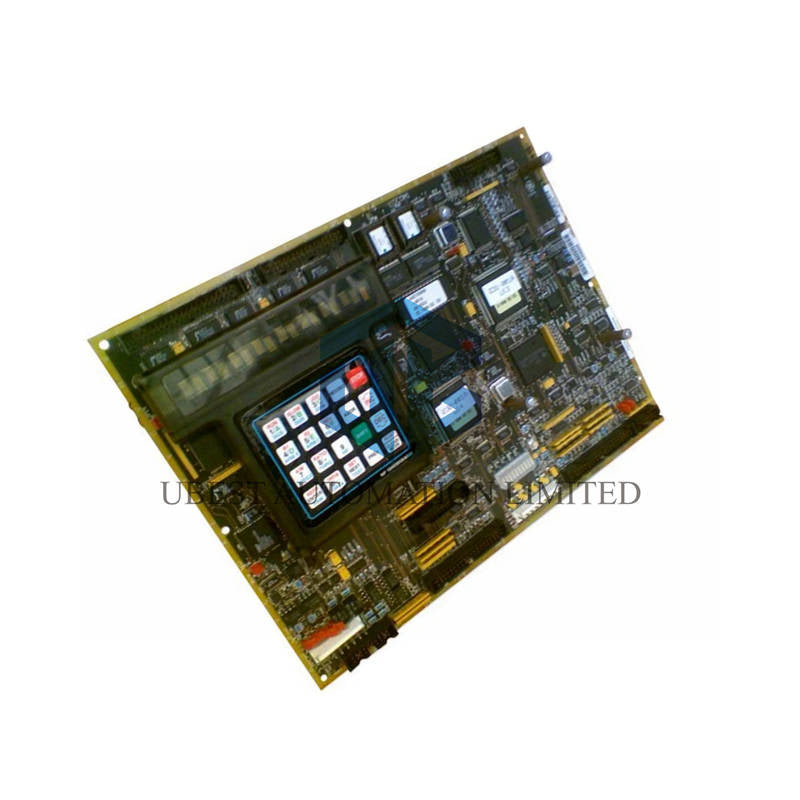

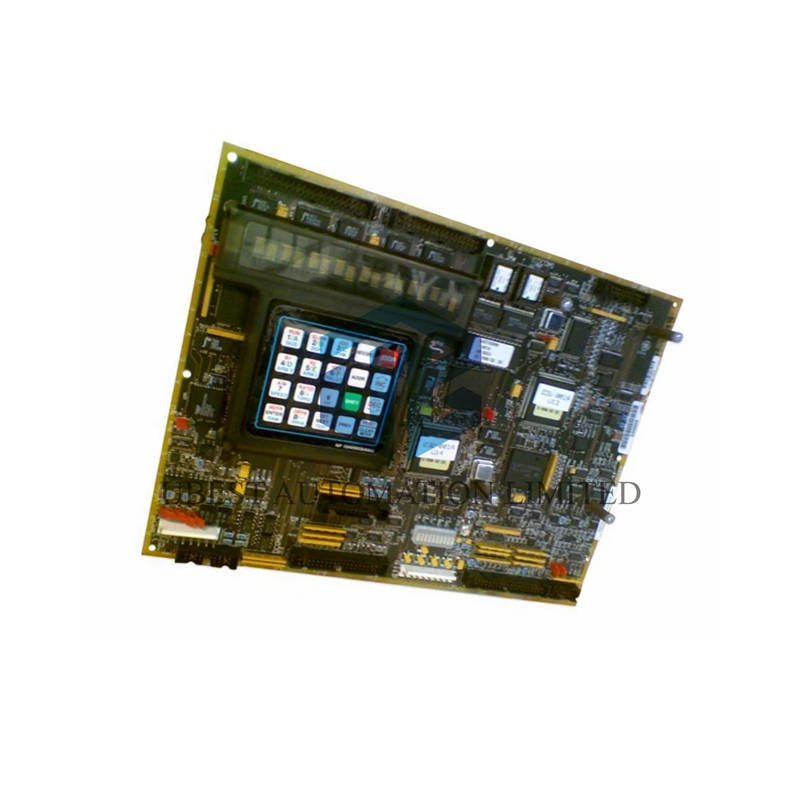

GE DS200LDCCH1A Drive Control & LAN Communication Board

The DS200LDCCH1A is a powerful control board for GE drive systems. This DS200LDCCH1A board handles motor control, LAN communication, and drive processing. It works with Mark V and EX2000 series drives. Perfect for industrial automation and control.

Key Features

• Four Microprocessors for advanced control
• Supports five different bus systems for flexibility
• Provides LAN communication for drive networks
• Includes operator interface for easy setup
• Handles motor and drive control functions

Technical Specifications

• Brand: General Electric

• Model: DS200LDCCH1A

• Series: Mark V, EX2000

• Product Type: Drive Control/LAN Communication Board

• Input Voltage: 125 V DC

• Operating Temperature: -30°C to +65°C

• Board Size: 33.0 cm x 17.8 cm

• Weight: 1 pound (0.45 kg)

• Inputs: 12 digital/analog inputs

• Technology: Surface Mount

• Processors: 4 (LCP, DCP, MCP, CMP)

• Bus Systems: DLAN+, DLAN, Genius® Bus

• Communication: LAN with isolation

• Control Functions: Speed, position, regulation loops

Processor Functions

LCP: LAN Control Processor handles 5 bus systems
DCP: Drive Control Processor manages I/O peripherals
MCP: Motor Control Processor controls motor circuits
CMP: Co-Motor Processor handles complex math calculations

Application & Compatibility

Works with DIRECTO-MATIC 2000 drives and exciters. Compatible with Mark V and EX2000 series. Can replace older LAN and drive control boards. Supports both isolated and non-isolated inputs.

Warranty & Shipping

All products include 12-month warranty coverage. We ship worldwide via FedEx, UPS, and DHL for fast delivery.

Frequently Asked Questions

• How many processors does this board have?
  It has four specialized microprocessors for different control functions.
• What bus systems does it support?
  It supports DLAN+, DLAN, and Genius® Bus systems for communication.
• What is the operating temperature range?
  It operates from -30°C to +65°C for industrial environments.
• Can this board replace older control boards?
  Yes, it can replace existing LAN and drive control boards in some systems.
• What power supply does it need?
  It requires 125 V DC power supply for operation.
