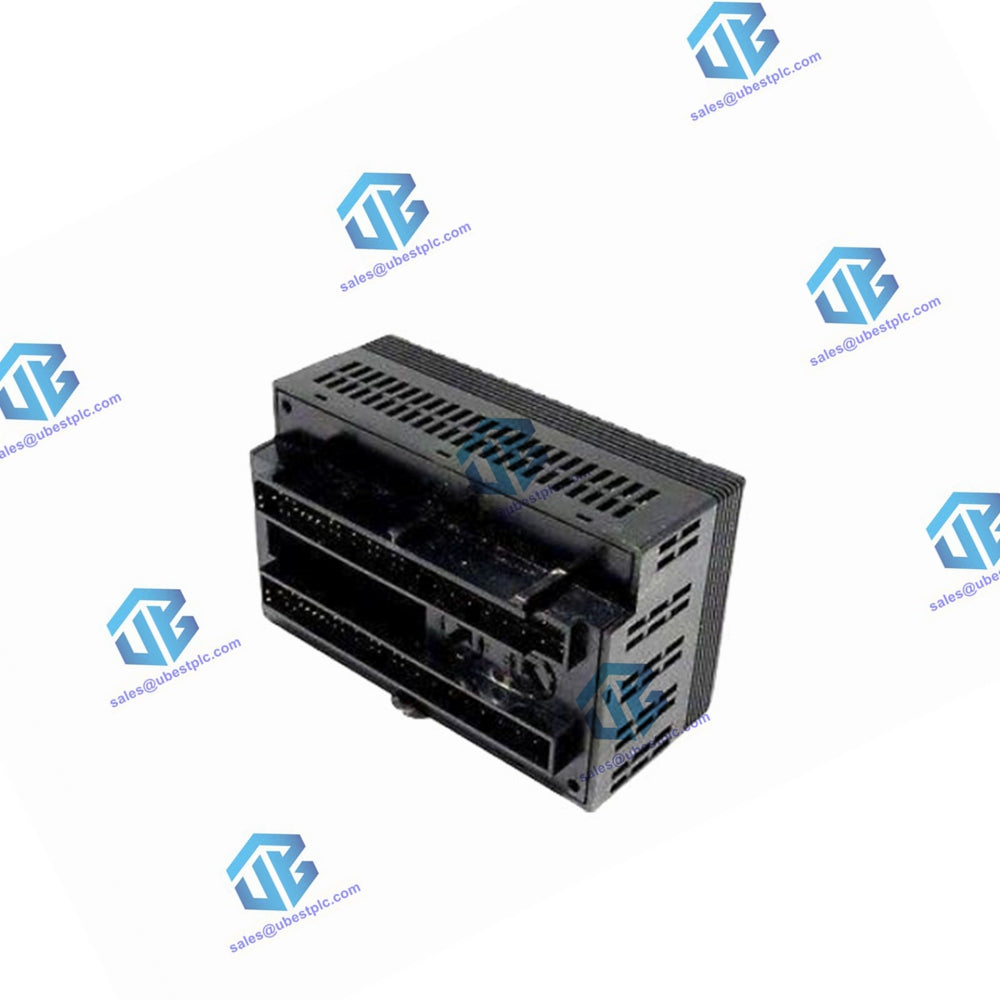

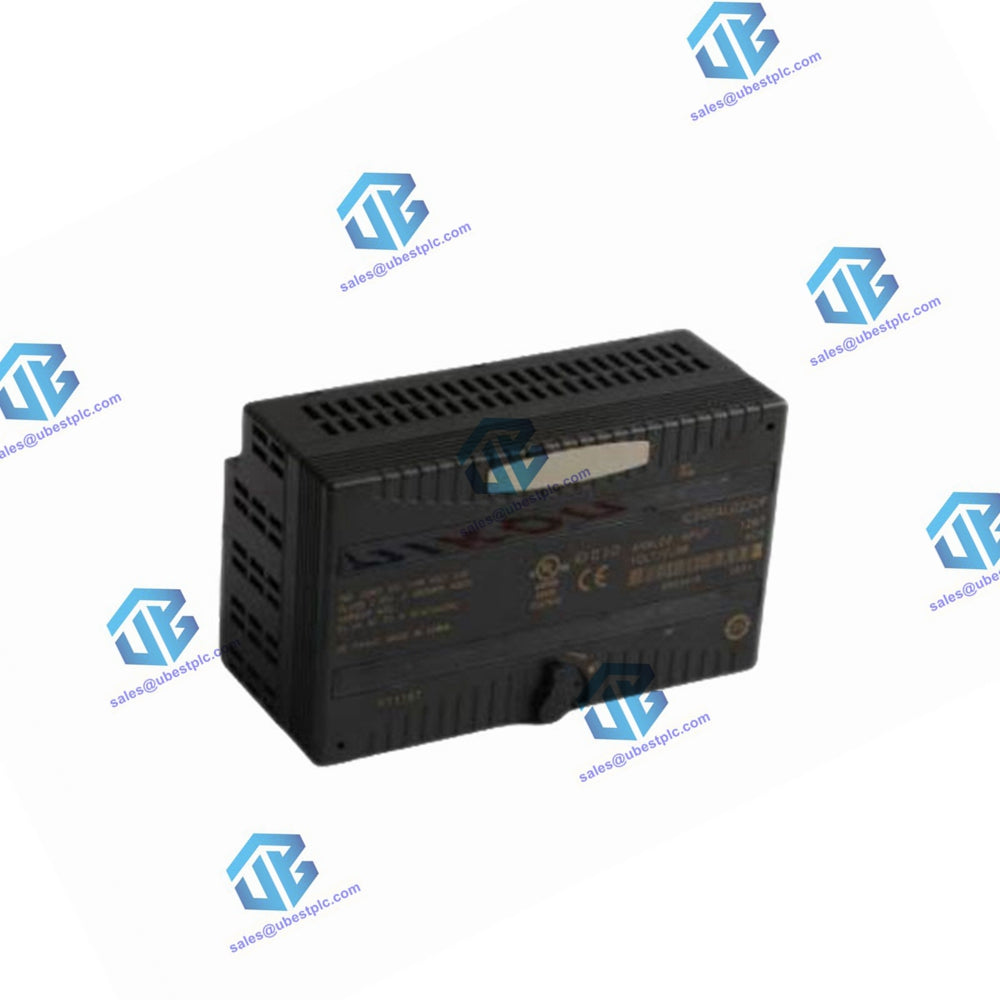

GE Fanuc IC200ALG230 VersaMax Analog Input Module
Product Overview
The GE Fanuc IC200ALG230 is a flexible analog input module for VersaMax systems. It features 4 configurable inputs for voltage or current signals. Easy setup with jumpers. Perfect for process control.
Key Benefits
4 analog inputs. 12-bit high resolution. Configurable for voltage or current. Fast response. LED status indicators. No external power needed.
Technical Specifications
Brand: GE Fanuc
Series: VersaMax
Model: IC200ALG230
Module Type: Analog Input Module
Input Channels: 4 (Single-Ended)
Resolution: 12 Bits
Voltage Input: ±10V DC (Bipolar) or 0-10V DC (Unipolar)
Current Input: 4-20 mA
Update Rate: 0.4 ms
Filter Response: 5.0 ms
Backplane Current: 125 mA at 5V DC
Isolation: 250V AC Continuous, 1500V AC for 1 min
Configuration: 2 Jumpers (Mode & Range)
LED Indicators: INT PWR, OK
Error Response: Hold Last State or Go to Default
Terminal Blocks: IC200TBM001, 002, 005
Carriers: IC200CHS001, 002, 005, 022, 025, 003
Package Contents
One (1) GE Fanuc IC200ALG230 analog input module. Installation guide.
Easy Installation
Install in VersaMax carrier. Use jumpers to configure voltage/current mode and unipolar/bipolar. Connect signals to terminal block.
Flexible Configuration
This IC200ALG230 module can be set for voltage (±10V or 0-10V) or current (4-20mA) inputs using two simple jumpers.
Frequently Asked Questions
-
What signals can it read?
It can read voltage signals (±10V or 0-10V) and current signals (4-20mA). -
How is it configured?
Configuration is done with two jumpers for mode (voltage/current) and range (unipolar/bipolar). -
Does it need external power?
No, it draws all needed power from the VersaMax backplane. -
What is the resolution?
It provides high 12-bit resolution for accurate analog measurements. -
What carriers does it work with?
It works with various VersaMax carriers including IC200CHS001, 002, 005, 022, 025, and 003.
Shipping & Warranty
Fast global shipping via FedEx, UPS, and DHL. Includes a 12-month warranty.
