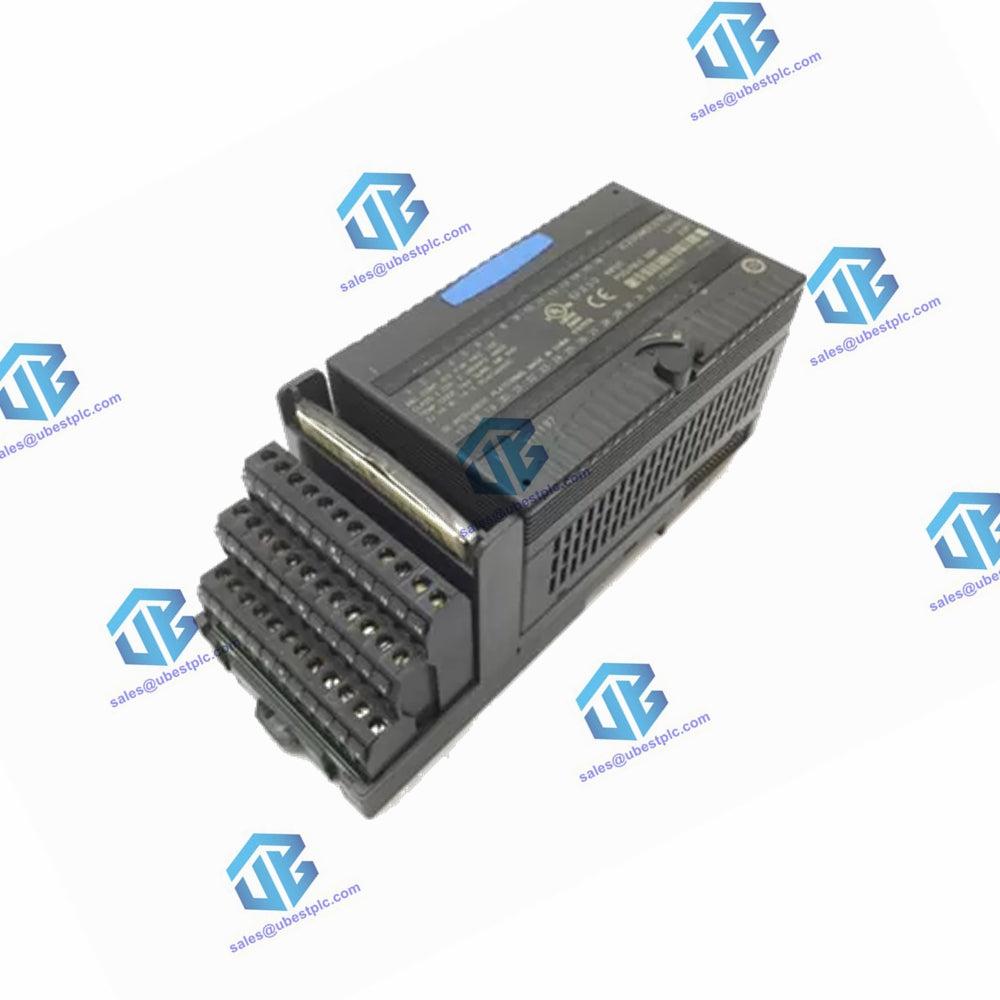

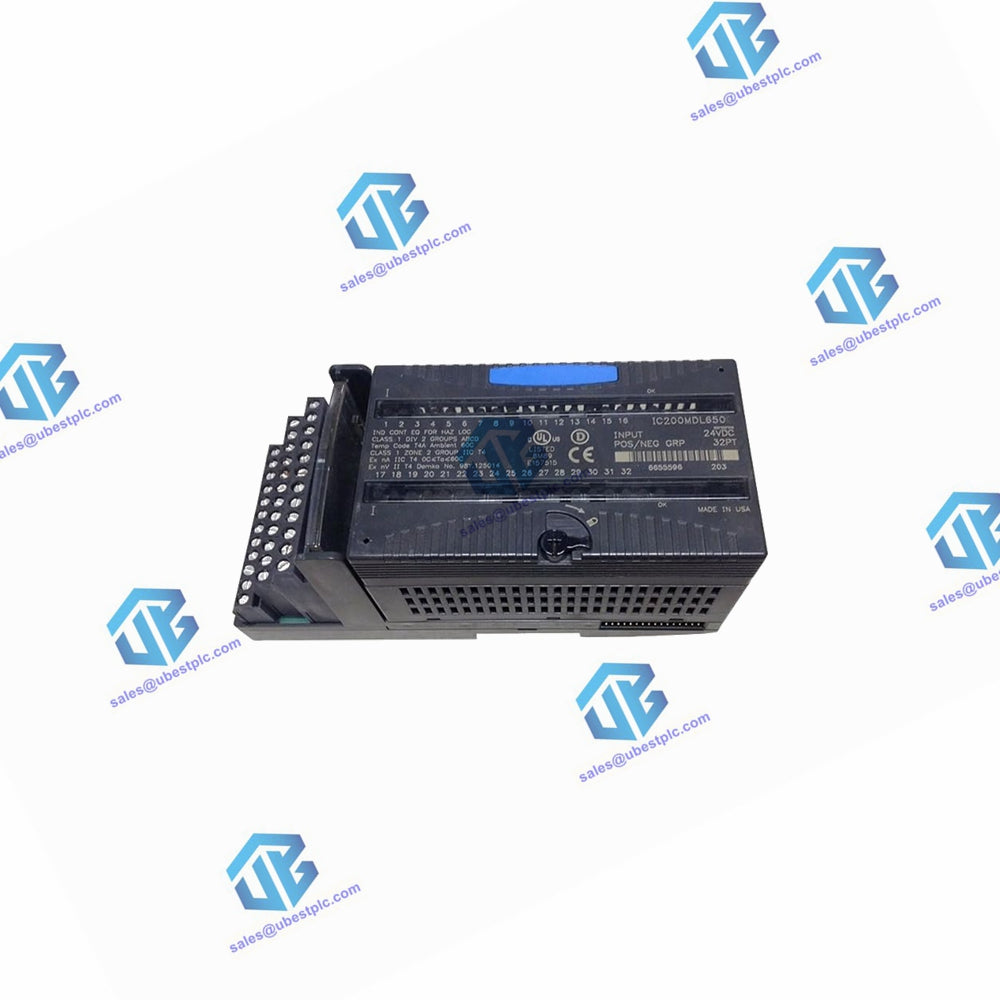

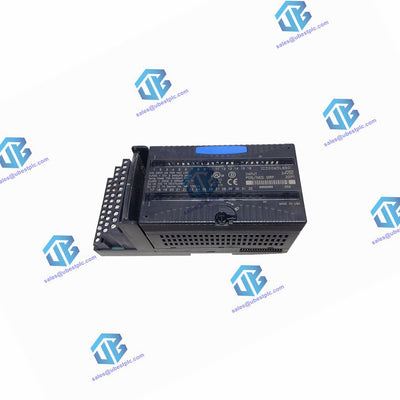

GE Fanuc IC200MDL742 VersaMax Output Module - 32-Point 24VDC

The IC200MDL742 delivers high-speed 32-point output control for VersaMax systems with 0.5ms switching and built-in protection.

Key Features

• 32 output points: 0.5A each (24VDC nominal)
• Ultra-fast response: 0.5ms ON/OFF times
• Robust protection: Short circuit and overcurrent safeguards
• Flexible grouping: 2 isolated banks of 16 points
• High inrush capacity: Handles 2A surges (100ms)

Technical Specifications

• Brand: GE Fanuc
• Model: IC200MDL742
• Type: VersaMax Discrete Output Module
• Voltage: 18-30VDC (24V nominal)
• Current per Point: 0.5A continuous
• Isolation: 250VAC continuous (1500VAC for 1min)
• Backplane Power: 150mA @5VDC max
• Dimensions: 110×66.8×50mm (4.3×2.63×1.96in)
• Weight: 1.5kg (3.3 lbs)

Protection Features

• Individual point short circuit protection
• Overcurrent limiting
• Free-wheeling diodes on all outputs
• Group isolation (2 banks of 16)

Wiring Configuration

• 2 commons (16 points per common)
• 24VDC field power required
• Maximum 0.5A per point
• 2A inrush capacity (100ms)

Frequently Asked Questions

• Q: Can I connect inductive loads?
  A: Yes, includes free-wheeling diodes for protection.
• Q: What's the total module current capacity?
  A: 16A max (32 points × 0.5A) - observe common grouping.
• Q: Is this suitable for solenoids?
  A: Yes, handles typical 24VDC solenoid loads.
• Q: LED indicators available?
  A: Yes, per-point status indicators.
• Q: Minimum load voltage?
  A: 18VDC for proper operation.
