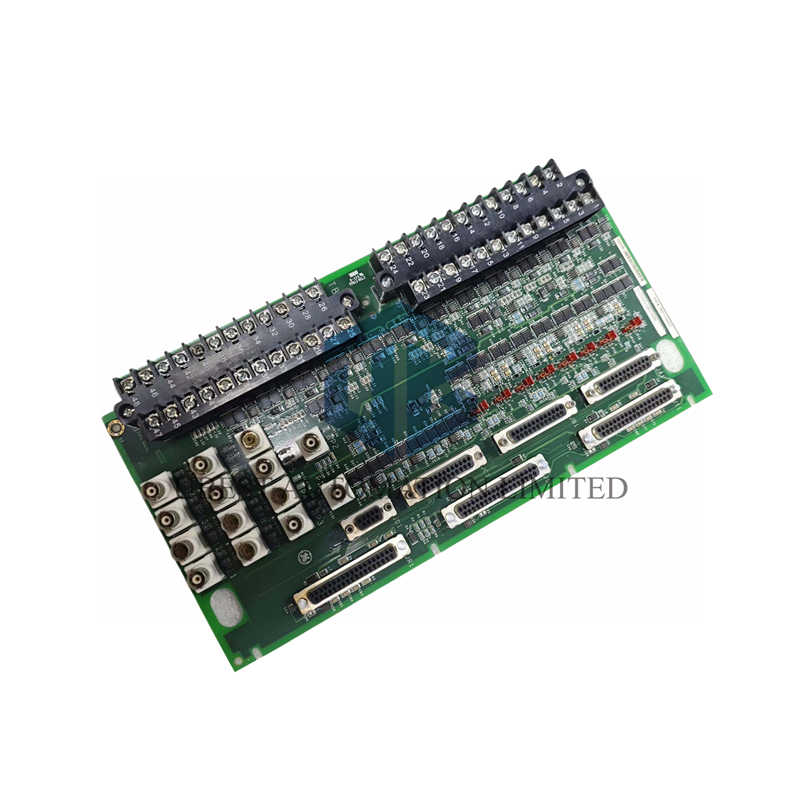

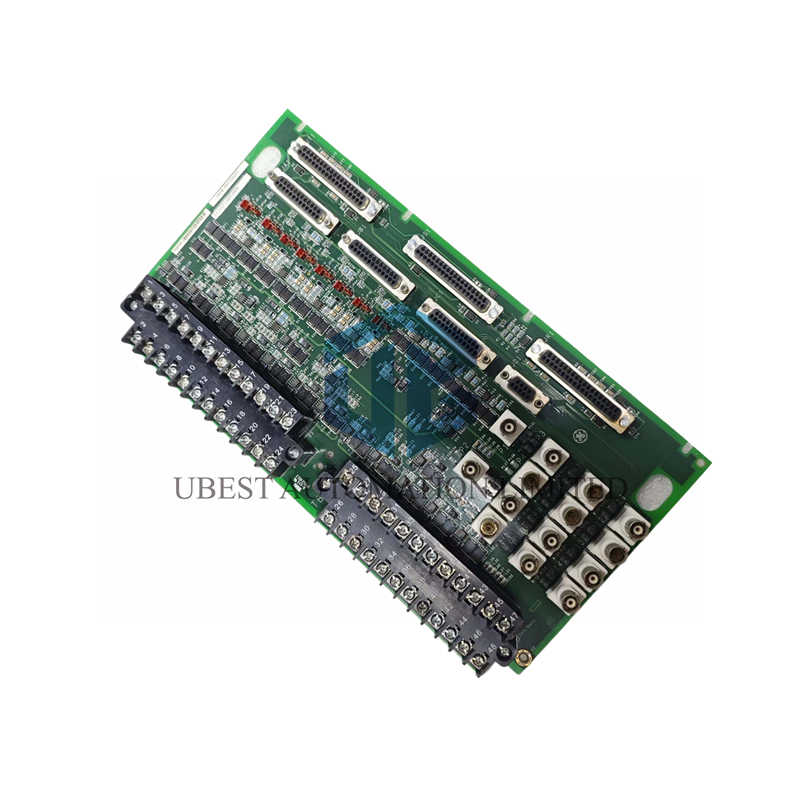

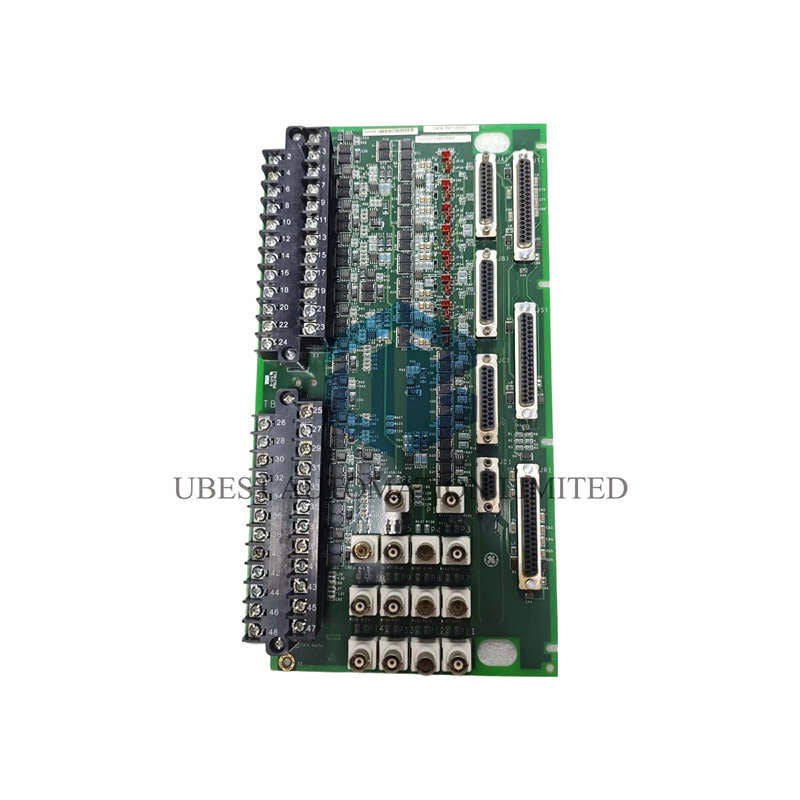

GE IS200TVIBH2BBB Vibration Terminal Board - Advanced Turbine Monitoring

General Electric's IS200TVIBH2BBB delivers professional vibration monitoring for Mark VI turbine systems. This terminal board ensures reliable machinery protection and predictive maintenance capabilities.

Technical Specifications

• Brand: General Electric
• Model: IS200TVIBH2BBB
• Product Type: Vibration Terminal Board
• Series: Mark VI Speedtronic
• Board Dimensions: 23.8 cm high x 8.6 cm wide
• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +85°C
• Probe Power Supply: -28 V DC nominal
• Excitation Voltage: -23 to -26 V DC regulated
• Maximum Probes: 14 Bently Nevada compatible

Vibration Monitoring Capabilities

• Proximity probes for distance measurement
• Velocity sensors for rate change monitoring
• Acceleration probes for vibration analysis
• Seismic sensors for ground vibration
• Phase reference probes available
• Two probes connectable to VVIB board
• High-speed signal sampling
• Real-time data processing

Electrical Characteristics

• Input voltage: -28 V DC standard
• Regulated output: -23 to -26 V DC
• Short circuit protection included
• Diode high-select for TMR systems
• Low noise signal transmission
• Ground isolation features
• EMI/RFI interference protection
• Stable power delivery

Installation & Setup

• Mount securely using provided hardware
• Connect up to 14 vibration probes
• Use BNC connectors for portable equipment
• Configure jumper settings as needed
• Verify all terminal connections
• Check ground connections properly
• Test each probe input separately
• Validate signal quality

Connection Interface

• Two large terminal blocks with screws
• Numbered screw connections
• Fourteen plug connectors available
• Female d-shell connectors included
• BNC connectors for data gathering
• Jumper switches for circuit routing
• Clear labeling for all ports
• Standard industrial wiring

System Integration

• Works with VVIB vibration input board
• Compatible with Mark VI control systems
• Supports simplex operation mode
• Triple Modular Redundancy ready
• VME bus communication capable
• Analog to digital conversion
• Real-time alarm generation
• Trip logic implementation

Package Contents

• One IS200TVIBH2BBB vibration board
• Mounting hardware package
• Terminal block accessories
• Installation guide document
• Protective packaging materials

Shipping Options

• FedEx express delivery available
• UPS worldwide shipping
• DHL international service
• Tracking information provided
• Secure packaging guaranteed
• Fast order processing

Warranty Coverage

• 12-month product warranty
• Technical support included
• Quality assurance guarantee
• Replacement service
• Customer assistance

Professional FAQ

• What vibration probes work with this board?
• The board supports Bently Nevada proximity, velocity, acceleration, seismic, and phase reference probes for comprehensive monitoring.
• How many probes can connect simultaneously?
• You can connect up to fourteen vibration probes directly to the terminal board for continuous monitoring.
• What power supply does the board require?
• The system uses -28 V DC power input with regulated -23 to -26 V DC outputs for probe excitation.
• Can I use portable monitoring equipment?
• Yes, BNC connectors allow connection of portable vibration data gathering equipment for predictive maintenance tasks.
• What systems is this board compatible with?
• The board integrates with GE Mark VI Speedtronic turbine control systems using VVIB processing boards.
