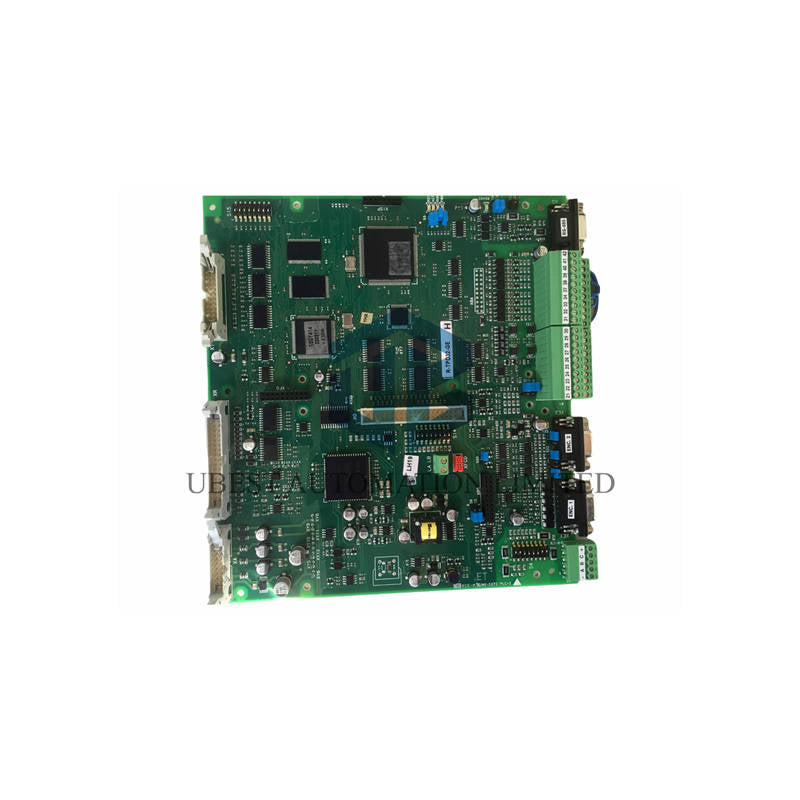

Turbine Emergency Trip Terminal Board for Critical Protection

The General Electric IS200TREAH2A provides essential safety functions for turbine operations. This TREA terminal board serves as a vital component in Mark VIe control systems. It delivers reliable emergency trip functionality with triple modular redundancy. The board ensures maximum protection for turbine equipment and personnel.

Product Identification & Overview

• Manufacturer: General Electric
• Model: IS200TREAH2A
• System: Mark VIe Control Platform
• Function: Turbine Emergency Trip Terminal Board

Technical Specifications

• Physical Dimensions: 33.0 cm H x 17.8 cm W
• Operating Temperature: -30 to +65°C range
• Speed Sensing: 9 passive pulse rate devices
• Input Terminals: 48 customer input points available
• Output Contacts: 24 VDC and 125 VDC sets
• Voltage Monitoring: 4 detection circuits (24-125 VDC)
• Redundancy: Triple Modular Redundancy (TMR)
• Mounting Technology: Surface mount components
• Terminal Types: Pluggable barrier and Euro-style
• Speed Inputs: 3 sections (X/Y/Z) with 3 devices each
• Relay Configuration: 6 form devices per voting set
• Voltage Sensors: 3 isolated general-purpose inputs
• Jumper Configuration: Speed input fanning capability
• Expansion: Daughterboard connectors for options
• Construction: Industrial-grade components

Key Safety Features

• TMR Voting: 2-out-of-3 controller voting logic
• Relay Monitoring: Continuous short circuit detection
• Voltage Sensing: Power supply and solenoid monitoring
• Speed Measurement: Toothed wheel sensing capability
• Trip String Monitoring: Complete circuit integrity check
• Alarm Generation: Automatic fault notification system
• Input Flexibility: Multiple terminal block options
• Expansion Ready: Future feature enhancement capability

Installation Requirements

• Mount in controlled environment enclosure
• Maintain specified temperature operating range
• Connect to PPRO turbine I/O packs properly
• Configure jumper blocks for speed input distribution
• Verify all terminal connections for secure fit
• Test voltage monitoring circuits after installation
• Validate TMR voting functionality completely
• Check relay short detection system operation

Package Contents

• One GE IS200TREAH2A terminal board
• Installation and configuration manual
• Terminal blocks and connection hardware
• Technical specification documentation

Warranty Coverage

• 12-month comprehensive product warranty
• Protection against manufacturing defects
• Performance guarantee commitment
• Technical support availability

Shipping Information

• FedEx international express service
• UPS worldwide delivery network
• DHL global freight options
• Complete shipment tracking provided

Technical Questions & Answers

• How does the TMR voting system work?
• Two of three controllers must simultaneously vote to close relays, creating conduction paths through six form devices for trip activation.
• What speed sensing capability does the board provide?
• Nine passive pulse devices sense toothed wheels, measuring turbine speed across three separate X/Y/Z sections for redundancy.
• What voltage levels do the output contacts support?
• The board provides two contact sets operating at 24 VDC and 125 VDC levels for different trip system requirements.
• How does the relay short detection system work?
• Sensing circuits monitor voltage across relays when commanded open, detecting shorts and generating alarm signals to PPRO packs.
• What expansion capabilities does the board offer?
• Daughterboard connectors allow optional feature expansion, while jumper blocks enable speed input distribution flexibility.
