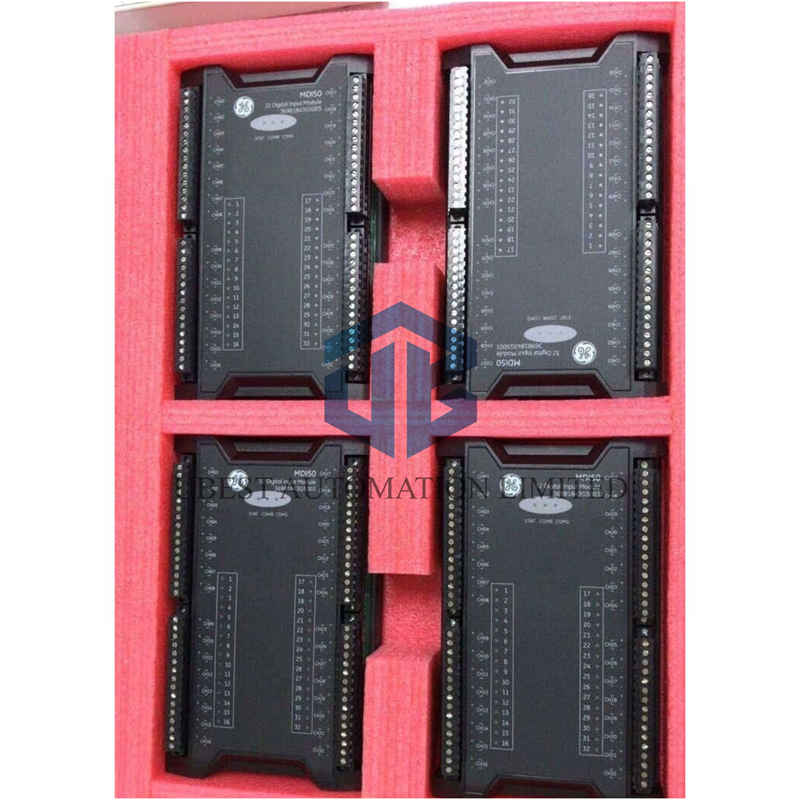

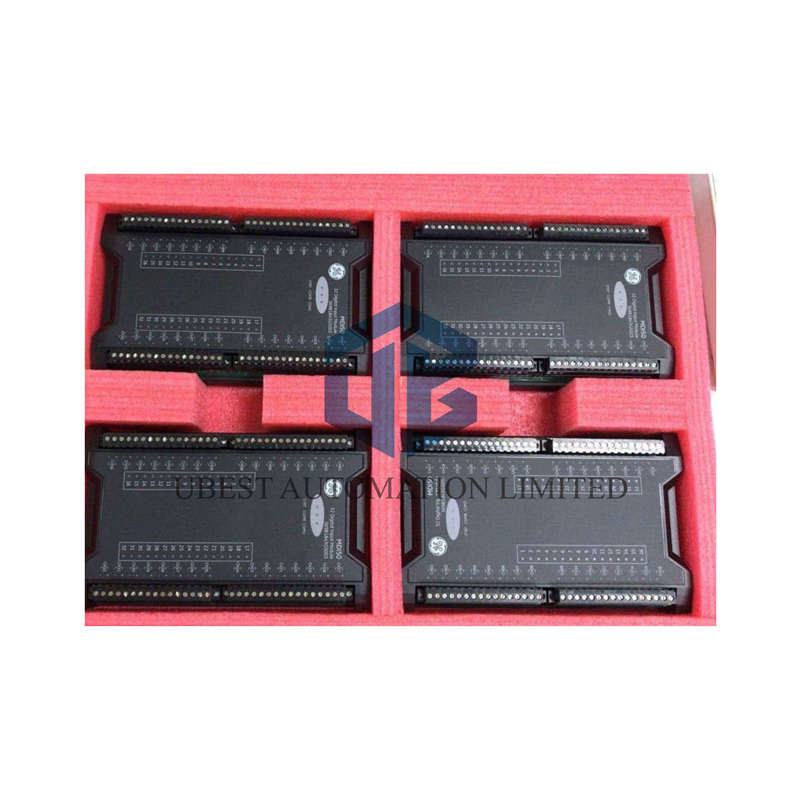

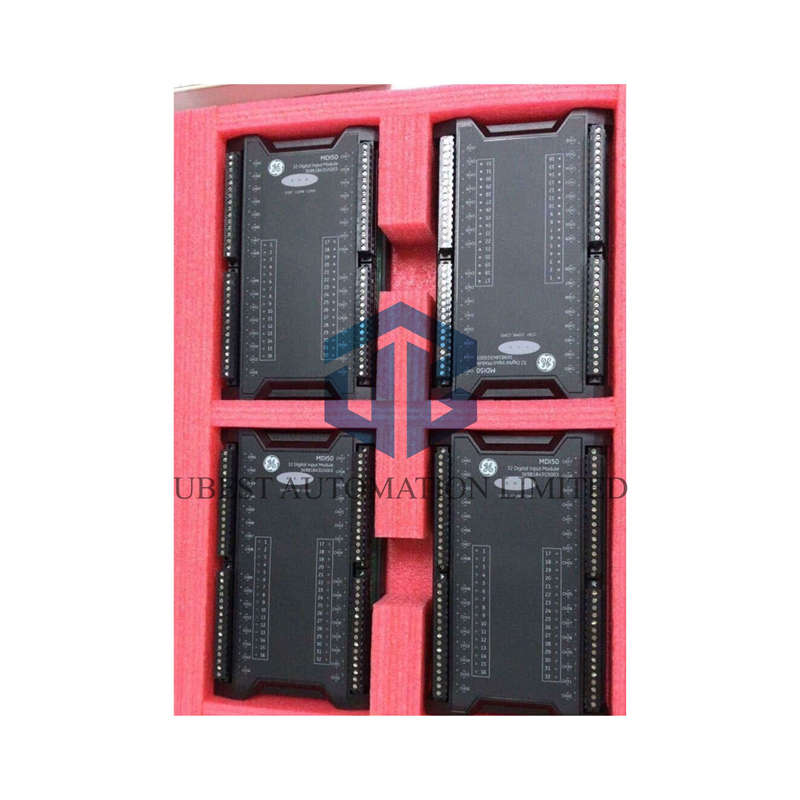

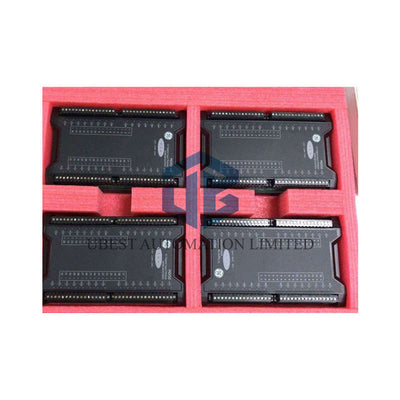

GE Nexus 369B1841G5006 MAI50 | 16-Channel Analog Input Module
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
GE Nexus 369B1841G5006: Precision 16-Channel Analog Input Module
- Get accurate sensor readings with 16 isolated channels
- Enjoy reliable operation with dual 24V DC power inputs
- Experience easy setup with screw mounting and removable terminals
- Trust in industrial-grade protection and safety certifications
Key Features
This GE Nexus 369B1841G5006 module handles 16 analog signals. It works with both 4-20mA and ±10V sensors. The module has high 16-bit resolution. It provides excellent noise rejection. Built-in LEDs show status and faults.
Technical Specifications
- Brand: GE Nexus
- Model: 369B1841G5006 MAI50
- Channels: 16 isolated inputs
- Signal Range: ±10V, ±5V, 0-20mA, 4-20mA
- Accuracy: Better than 0.1%
- Power Supply: 21.6-26.4V DC, 11W max
- Isolation: 1500V AC channel to system
- Operating Temp: 0°C to 60°C
- Communication: High-speed serial bus, 1Mbps
Installation Guide
Use screw mounting for secure installation. Connect wires to removable terminals. Maximum wire size: 2.5mm². Keep module in horizontal position. Allow space for air flow around unit.
Power Requirements
Dual 24V DC power inputs. They work as 1:1 redundancy. If one power fails, the other takes over. This ensures continuous operation.
Environmental Ratings
Works in tough conditions. Temperature range 0-60°C. Humidity 10-90% non-condensing. Resists vibration and dust.
Shipping & Warranty
We ship worldwide via FedEx, UPS, DHL. Your purchase includes 12-month product warranty. Contact us for support claims.
Frequently Asked Questions
What signals can this GE Nexus module read?
It accepts voltage signals ±10V, ±5V and current signals 0-20mA, 4-20mA from various sensors.
How many devices can I connect?
You can connect up to 16 sensors or transmitters simultaneously to this single module.
Is special software needed for configuration?
Standard GE programming tools work with this module for easy setup and calibration.
What happens during power failure?
The dual redundant power design maintains operation if one power source fails.
Can it handle noisy industrial environments?
Yes, with excellent noise rejection >120dB CMRR, it performs reliably in electrically noisy areas.
