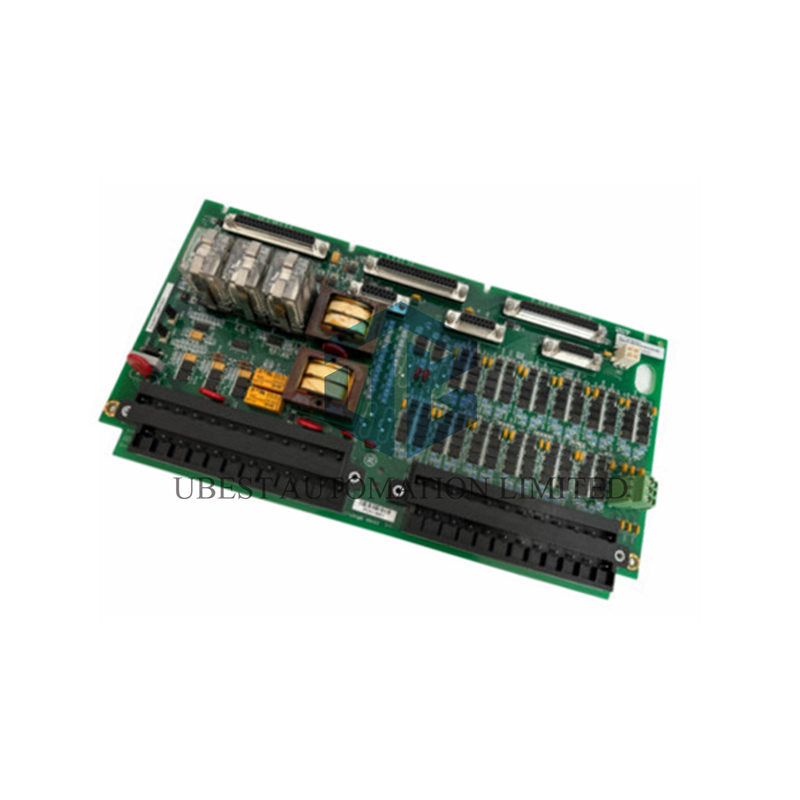

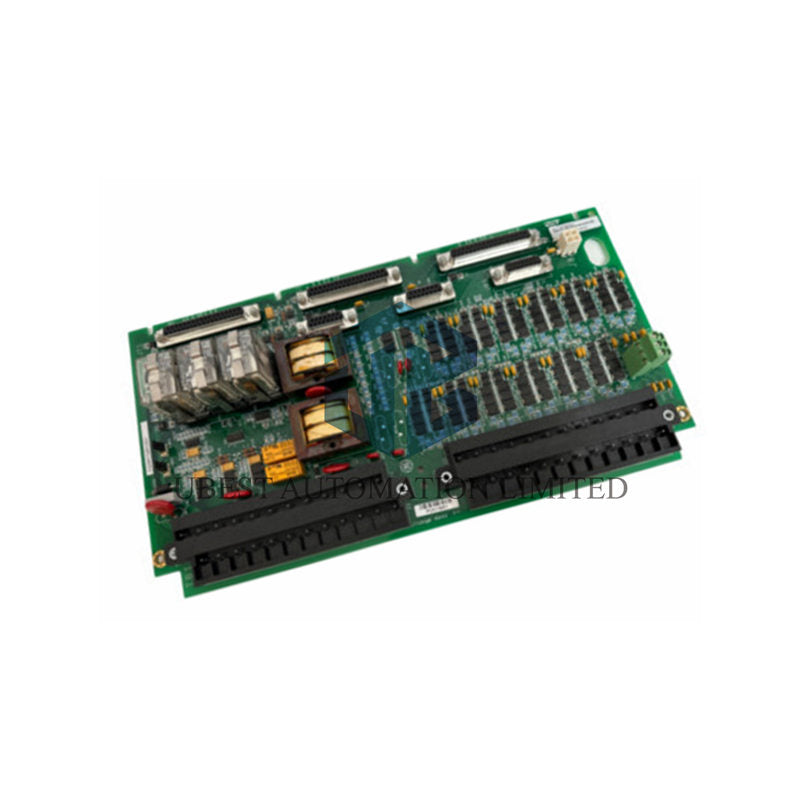

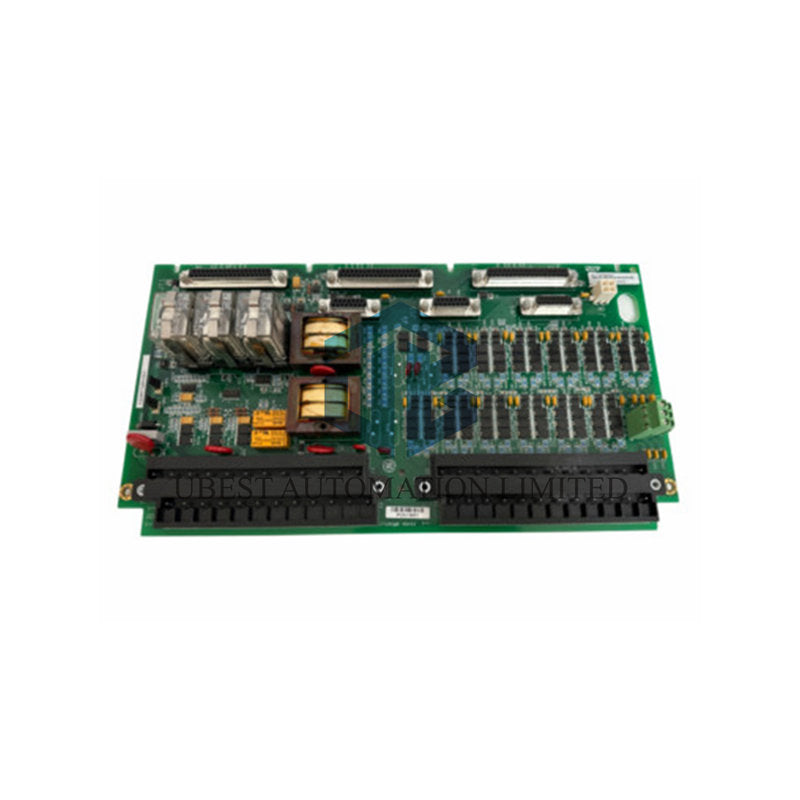

GE IS200TTURH1BEC Primary Protection Input Board for Turbine Control

The IS200TTURH1BEC represents General Electric's advanced turbine protection technology. This Primary Protection Input Board delivers critical monitoring and control functions for Mark VI turbine systems. It ensures reliable operation through comprehensive speed and voltage monitoring capabilities.

Technical Specifications & Performance Data

• Manufacturer: General Electric
• Model Number: IS200TTURH1BEC
• Product Type: Primary Protection Input Board
• Control System Series: Mark VI Speedtronic
• Board Dimensions: 10.16 cm width × 33.02 cm height
• Operating Temperature Range: -30°C to +65°C
• Manufacturing Technology: Surface-mount components
• Input Voltage Monitoring Range: 0-150V AC via potential transformers
• Breaker Control Output: 125V DC at 2A maximum current
• Speed Sensing Channels: 12 passive pulse rate inputs
• Signal Frequency Response: 1Hz to 20kHz for speed measurement
• Terminal Wire Capacity:
• Environmental Protection: IP20 equivalent for industrial settings

Turbine Speed Monitoring System

• Twelve passive pulse rate devices track turbine rotational speed accurately
• These sensors detect teeth on turbine wheels during rotation cycles
• The system generates electrical pulses for each tooth passage event
• Multiple sensors provide measurement redundancy and enhanced accuracy
• Speed data feeds directly into the turbine control system continuously

Voltage Signal Monitoring Capabilities

• The board monitors generator voltage output in real-time operation
• It simultaneously tracks bus voltage levels throughout the system
• Potential transformers scale high voltages to measurable levels safely
• Continuous oversight maintains electrical system stability and reliability
• Voltage deviations trigger immediate alerts for preventive actions

Protection Relay Control System

• Three coordinated relays (K25, K25P, K25A) control main breaker operations
• These relays supply 125V DC power to close the main 52G breaker
• Automatic generator synchronization occurs through this relay system
• Jumper settings select between SMX and TMR relay driver configurations
• The system ensures proper sequencing for safe breaker closure

Signal Connectivity & System Integration

• Speed signal cables connect through the JR5 connector interface
• Other critical signals route through the JR1 connector primarily
• TMR systems use six connectors for complete signal redundancy
• Terminal blocks TB1 and TB2 handle all I/O wiring connections
• Shield termination strips provide proper chassis grounding points

Installation & Configuration Guide

• Identify all magnetic pickups and shaft sensors before installation
• Secure terminal blocks TB1 and TB2 using two mounting screws each
• Set jumpers JP1 and JP2 for either SMX or TMR operation modes
• Use TB3 terminal block for optional TTL speed pickup connections
• Simplex systems require JR5 and JR1 connector configurations
• TMR systems need all six cable connectors for full functionality
• Verify all wiring against system specifications before power application
• Conduct comprehensive testing to ensure proper system operation

Packaging & Shipping Information

• Each IS200TTURH1BEC board ships in static-shield protective packaging
• Package includes the primary protection input board only
• We ship worldwide using FedEx, UPS, and DHL express services
• Orders typically dispatch within 24 hours of payment confirmation
• Tracking information provides real-time shipment status updates

Component Reliability & Construction

• Surface-mount technology ensures robust component attachment
• Multiple connector types include terminal strips and d-shell varieties
• Standardized voltage-limiting components protect against surges
• Resistors, capacitors, and diodes follow Mark VI series specifications
• Integrated circuits provide signal processing and control functions

Professional Frequently Asked Questions

• What is the maximum speed measurement capability of this board?
• The system accurately measures turbine speeds up to 20,000 RPM through its 12 pulse channels
• How does the board handle different system redundancy requirements?
• Configurable jumpers allow selection between simplex operation and triple modular redundancy modes
• What wire sizes can the terminal blocks accommodate?
• All terminal blocks accept wiring up to 12 AWG size for flexible installation options
• Can this board interface with active speed pickup sensors?
• Yes, terminal block TB3 provides connections for active sensors with external power capability
• What protection features prevent false breaker closure signals?
• Three independent relays must close simultaneously, ensuring coordinated operation only within safe parameters
