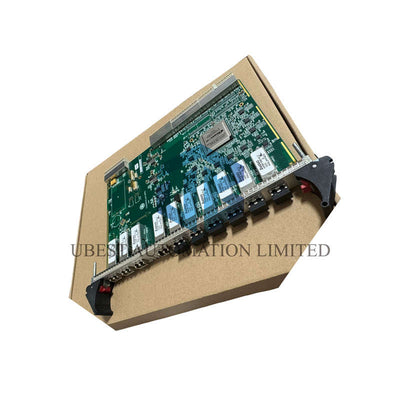

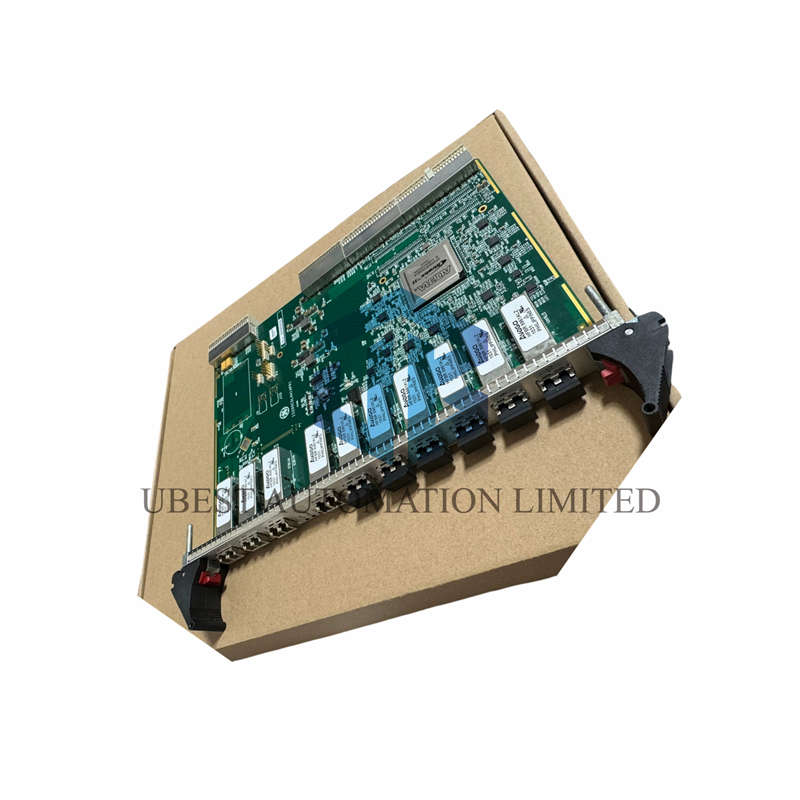

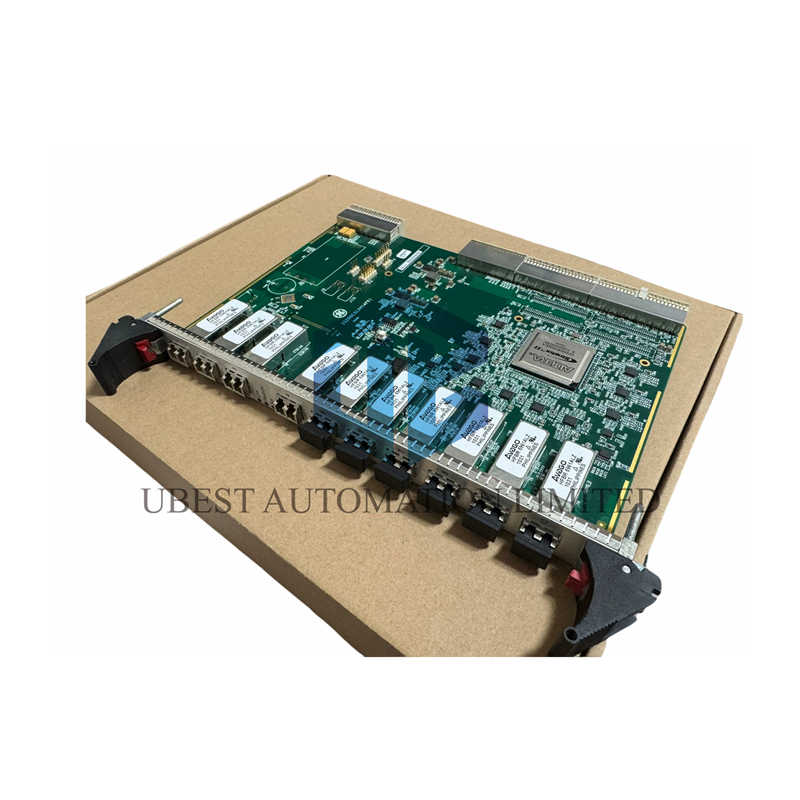

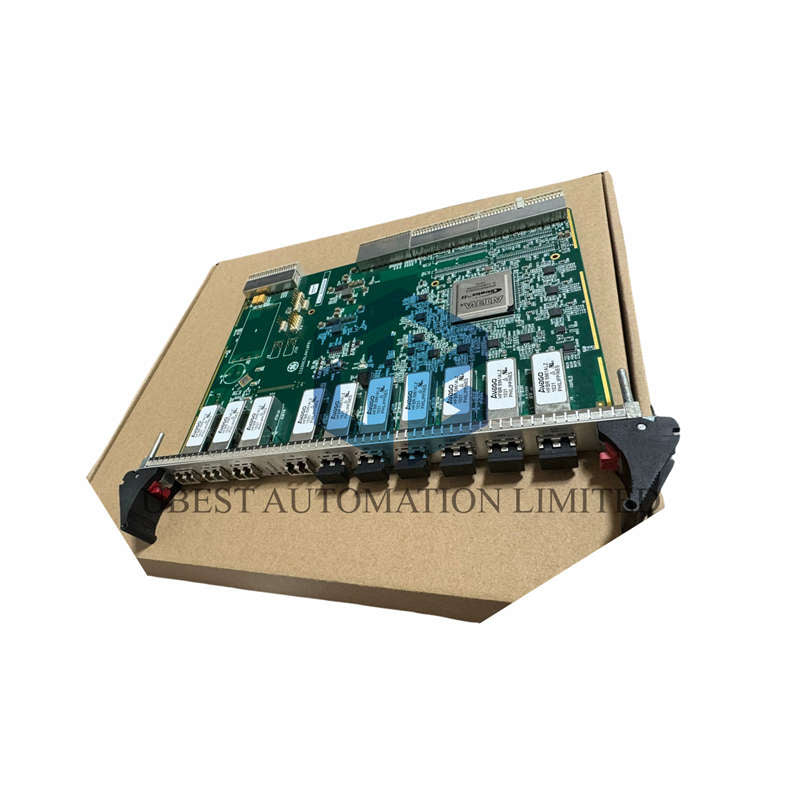

GE IS200CSLAH1A Compact PCI Serial Link Expansion Board

The IS200CSLAH1A enables high-speed communication in EX2100e control systems. This Compact PCI board from General Electric expands serial link capabilities for enhanced data transfer. It features advanced Avago transceivers for reliable signal transmission. The IS200CSLAH1A provides clear visual status indicators for immediate system monitoring.

Technical Specifications

• Manufacturer: General Electric
• Model Number: IS200CSLAH1A
• Product Type: Compact PCI Serial Link Expansion Board
• Compatible Series: EX2100e Excitation Control System
• Operating Temperature: -30°C to +65°C
• Communication Protocol: High-Speed Serial Link
• Transceiver Type: 10x HFBR-5961xxZ Avago Transceivers
• PCB Coating: Conformal Coating
• Data Transfer Rate: High-Speed Capability
• LED Indicators: RUN, STATUS, FAIL with Color Coding
• Country of Manufacture: United States

Visual Status Indicators

• RUN LED glows green during normal operation
• STATUS LED blinks yellow for detected fault conditions
• FAIL LED illuminates red for critical functional faults
• Provides immediate visual system status assessment
• Enables quick troubleshooting and maintenance response
• Supports proactive system monitoring and diagnostics

Installation & Operation

• Designed for integration with EX2100e control systems
• Features conformal coating for enhanced environmental protection
• Monitors LED indicators for immediate status verification
• Connects directly to main control processor board
• Requires proper mounting in designated system slot
• Ensures secure transceiver connections for optimal performance

Shipping & Packaging

• Product ships in secure anti-static packaging
• Available for immediate worldwide delivery
• We use FedEx, UPS, and DHL shipping carriers
• All items undergo functional testing before shipment

Frequently Asked Questions

• What is the main purpose of this board? It expands high-speed serial communication capabilities between the main processor and other EX2100e system components.
• How do the LED indicators help operators? The color-coded LEDs provide instant visual feedback about system status, faults, and critical errors for quick response.
• What type of transceivers does this board use? It features ten HFBR-5961xxZ Avago transceivers for reliable high-speed data transmission and reception.
• What temperature range can this board withstand? The board operates reliably in industrial environments from -30°C to +65°C.
• Which systems are compatible with this expansion board? It is specifically designed for General Electric EX2100e excitation control systems and related applications.
