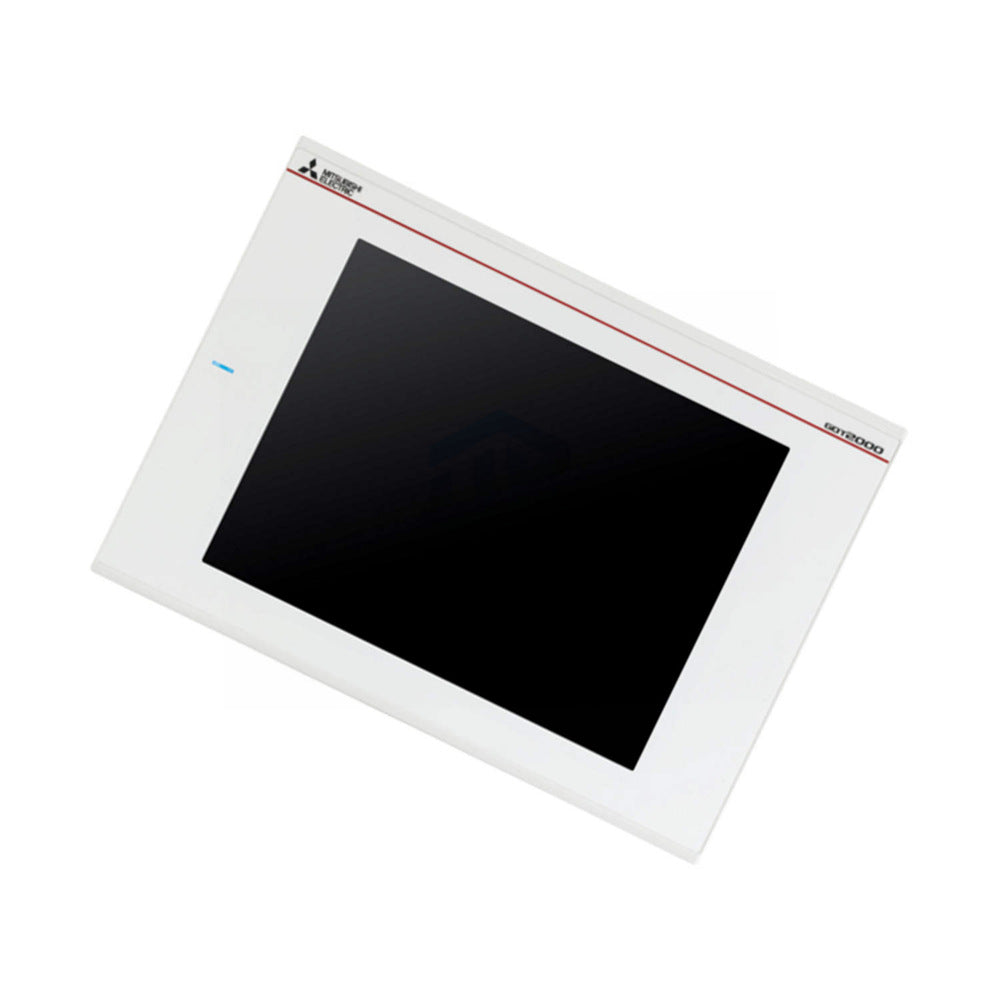

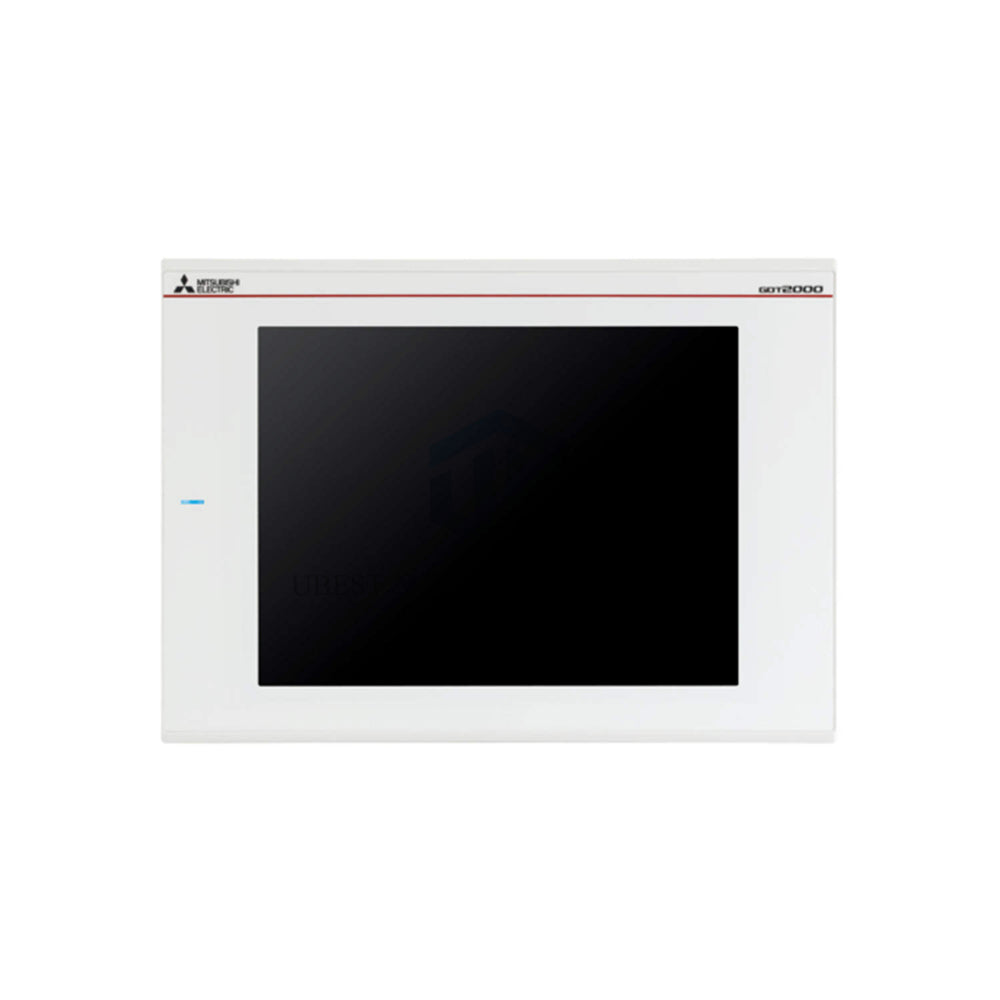

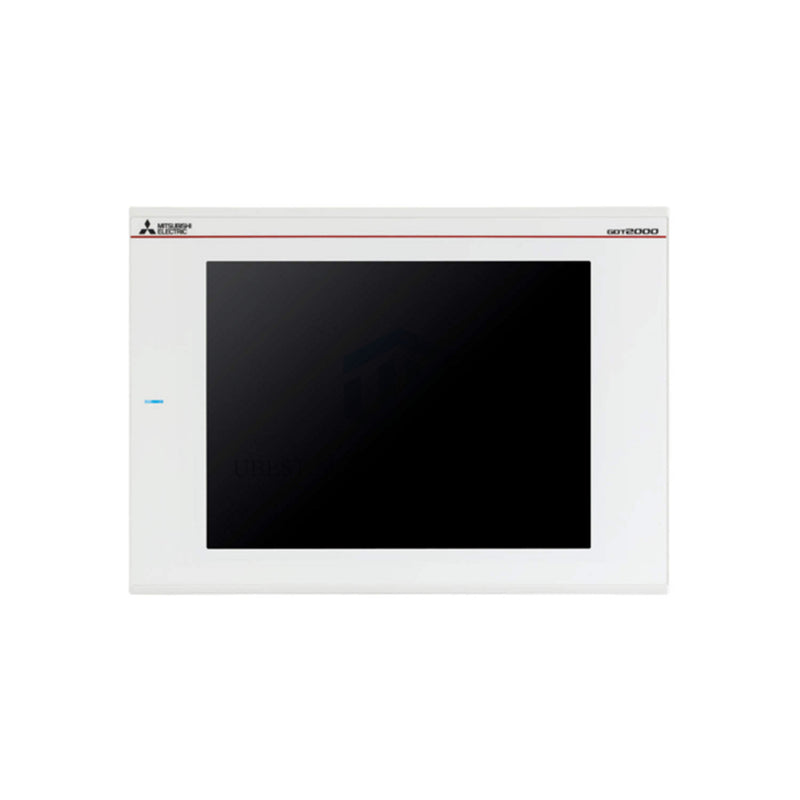

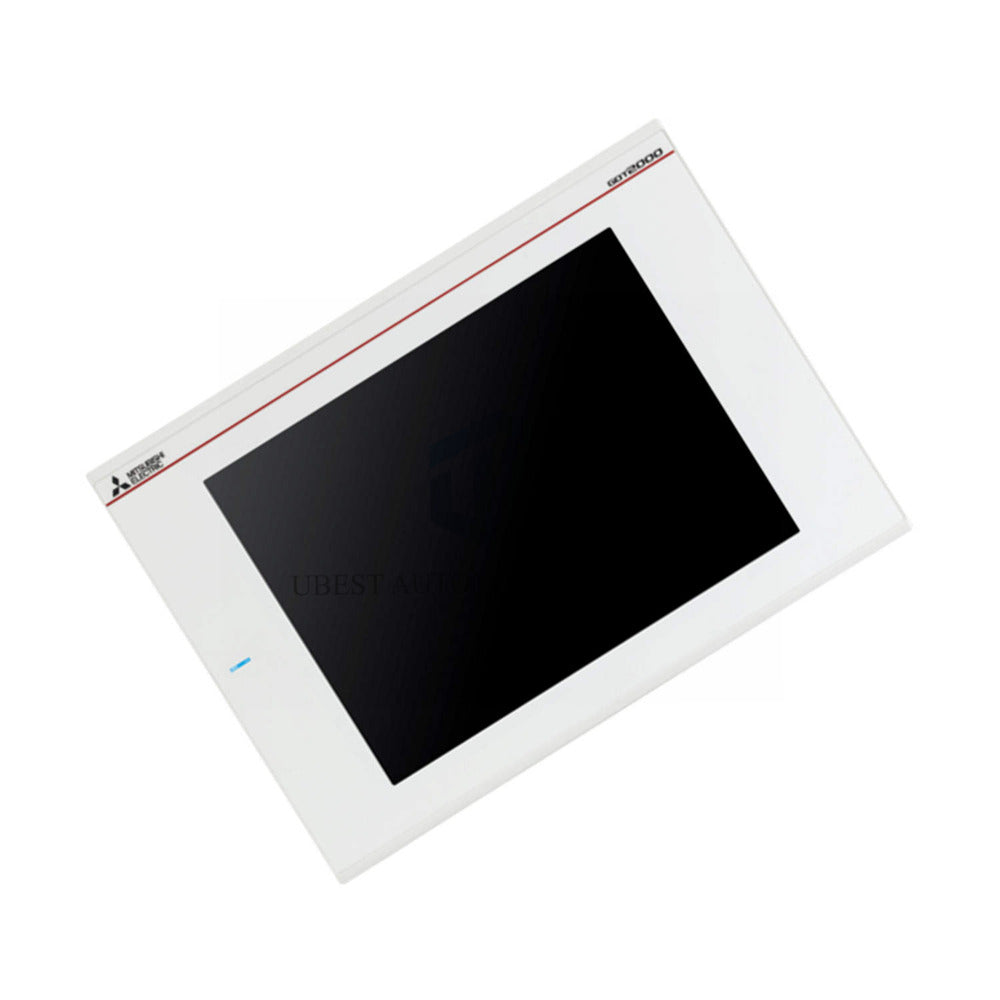

GT2508-VTWD: High-Performance 8.4-Inch HMI from Mitsubishi GOT2000 Series

Key Technical Specifications

• Display: 8.4-inch TFT color LCD, 640 x 480 (VGA), 65,536 colors
• Memory: 32 MB ROM for storage, 80 MB RAM for smooth operation
• Touch Panel: Analog resistive film, durable and responsive
• Backlight: Non-replaceable LED, 60,000 hours lifespan at 25°C
• Interfaces: RS-232, RS-422/485, Ethernet (100BASE-TX/10BASE-T)
• USB & SD Slot: USB Host (1 ch), USB Device (1 ch), SD card slot
• Power Supply: 24V DC (+25%, -20%), max 31W consumption
• Protection: Front IP67F, rear IP2X
• Temperature Range: 0°C to +55°C
• Dimensions (WxHxD): 241 x 194 x 52 mm
• Panel Cutout: 227 x 176 mm
• Weight: 1.5 kg (manageable for easy installation)

Frequently Asked Questions (FAQ)

• Q: Can I replace the backlight? No, the LED backlight is non-replaceable but lasts 60,000 hours.
• Q: Does GT2508-VTWD support Ethernet? Yes, it has 100BASE-TX/10BASE-T Ethernet.
• Q: What is the operating temperature? 0°C to +55°C.
• Q: Is programming software included? No, you need GT Works3 separately.
• Q: What power supply do I need? 24V DC with +25% / -20% tolerance.
