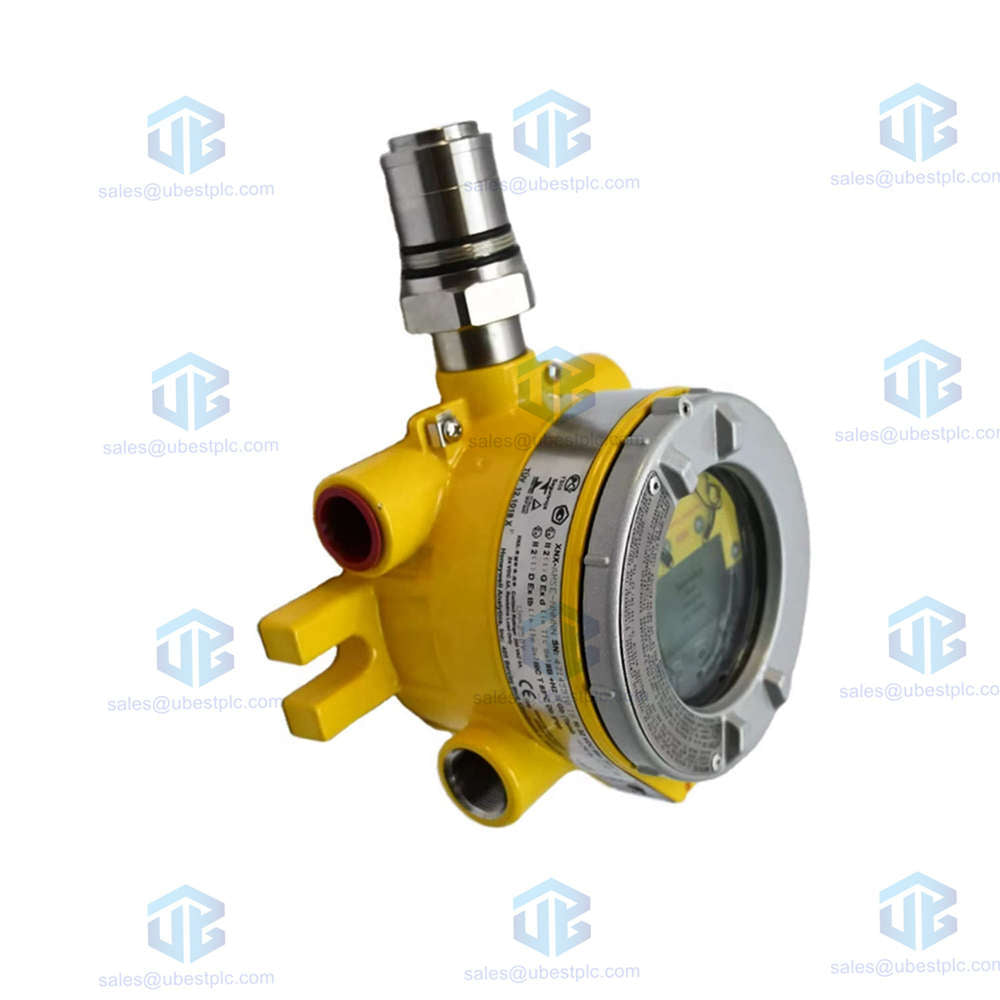

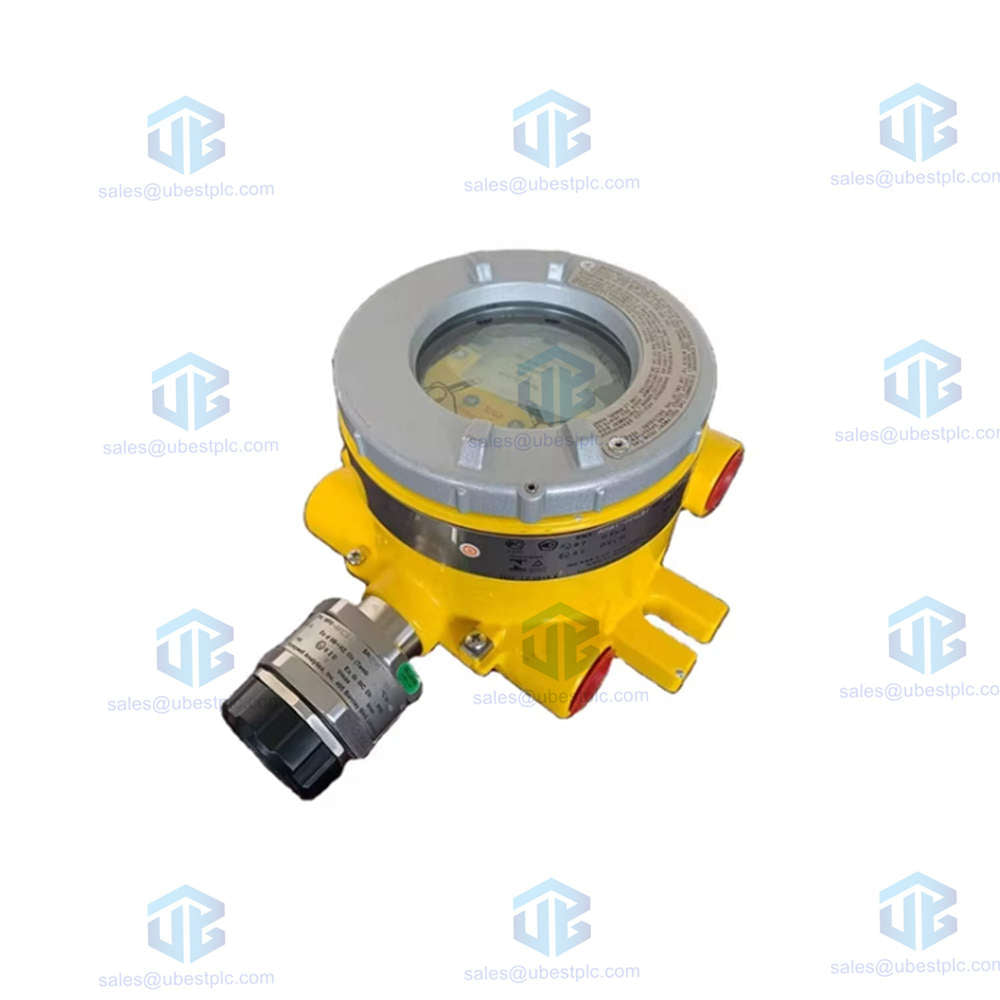

Honeywell XNX-AMSV-NNIV1 Universal Gas Transmitter Technical Overview

Engineers deploy industrial gas detection systems to secure hazardous industrial environments against catastrophic methane leaks.

• Brand: Honeywell
• Model: XNX-AMSV-NNIV1
• Product Type: Universal Gas Transmitter
• Series: XNX Series

Core Technical Specifications

Technical teams require precise metrics to evaluate sensor performance and environmental durability under extreme operational stresses.

• Measurement Range: Infrared 0-100% LEL or 0-5% Vol. Methane
• Signal Output: HART protocol over industry-standard 4-20mA current loop
• Sensor Compatibility: Dedicated mV version supporting MPD, Sensepoint, and Model 705 HT/PPM sensors
• Frequency Response: Fast response time under 5 seconds for immediate alarm activation
• Sensitivity and Linearity: High-precision infrared optics ensuring linear output across full scale
• Resolution: 1% LEL increment resolution for accurate gas concentration tracking
• Temperature Range: Operating safely between -40°C and +65°C ambient conditions
• Environmental Tolerance: Built for harsh industrial atmospheres with high humidity and dust resistance
• Electromagnetic Interference Resistance: Certified EMI/RFI immunity preventing false trips in noisy electrical plants

Detailed Configuration Breakdown

Field technicians configure modular hardware components to match exact plant safety requirements and hazardous area classifications.

• Approval Rating: ATEX/EC certified for explosive atmosphere deployment
• Cable Entry Type: Five rugged M25 conduit entries for secure cabling
• Housing Material: Painted 316 stainless steel providing superior corrosion resistance
• Personality Module: Milli-volt version optimized for infrared hydrocarbon sensing
• Optional Features: Base configuration with no secondary local options installed
• Local Communication: Standard direct wiring without optional local HART interfaces
• Physical Weight: Robust 6.8 kilograms structural weight

Installation Guide for Field Engineers

Installers mount the transmitter securely on vertical walls or structural pipes using heavy-duty mounting brackets.

• Position the unit away from direct water sprays and extreme vibration sources.
• Connect armored cables through the M25 entries and tighten waterproof glands properly.
• Wire the 4-20mA current loop and HART communication lines to the internal terminal blocks.
• Calibrate the infrared methane sensor using certified test gas before final system commissioning.

Standard Packaging Checklist

Warehouse personnel pack each system component securely to prevent transit damage during international shipping operations.

• Honeywell XNX-AMSV-NNIV1 Universal Transmitter Unit
• MPD Infrared Methane Hydrocarbon Sensor Assembly
• Factory Installation and Wiring Manual
• Rapid Shipping via FedEx, UPS, and DHL logistics networks

Frequently Asked Questions

Plant operators frequently ask critical questions regarding maintenance procedures and operational limits of the detection unit.

• Can technicians replace the internal sensor module without powering down the main control system? Yes, the modular plug-and-play design supports safe hot-swapping in non-hazardous zones.
• What power supply voltage does the transmitter require during normal operation? The unit operates reliably on standard 24V DC industrial power supplies.
• How often should maintenance engineers perform calibration checks on the infrared sensor? Operators should test and calibrate the sensor every six months for optimal safety assurance.

Summary

The Honeywell XNX-AMSV-NNIV1 delivers reliable infrared methane detection using advanced 4-20mA HART technology and durable stainless steel construction.
