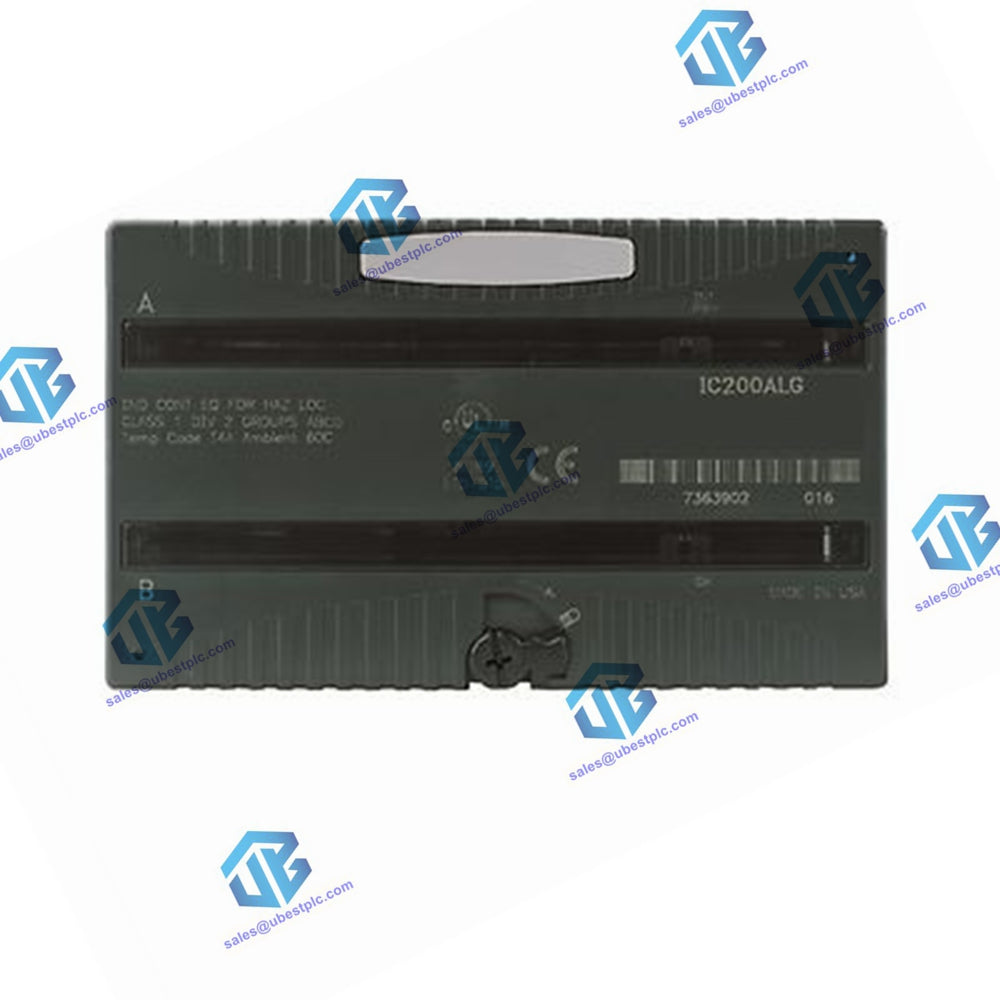

Module Characteristics:

• Channels: 4 single-ended, one group
• Module ID: FFFF9040
• Isolation:
  • User input to logic (optical) and to frame ground: 250VAC continuous, 1500VAC for 1 minute
  • Group to group: Not applicable
  • Channel to channel: None
• LED Indicators:
  • FLD PWR LED: Indicates field power is present
  • OK LED: Indicates backplane power is present

Backplane Current Consumption:

• 5V Output: 50mA maximum

Thermal Derating:

• None

Configuration Parameters:

• Output Default
• Diagnostics: Loss of User Side Power

External Power Supply Specifications:

• Recommended Voltage Range: +18 to +30VDC (including ripple)
• Current Consumption: 160mA max (including load current)
• 12V Operation Range: 9.6 to 15VDC, 12VDC nominal (including ripple)
• Current Consumption at 12V Range: 210mA max (including load current)

Output Characteristics:

• Output Voltage: 0 to 10.24VDC
• Load Characteristics:
  • Resistive: 5000 Ohms minimum
  • Capacitive: 1.0uF maximum
• Accuracy:
  • At 25°C: +/- 0.3% typical of full scale, +/- 0.5% max of full scale
  • At 0 to 60°C: +/-1% maximum of full scale
• Resolution: 2.5mV = 8 counts
• Update Rate Per Module: 0.3ms maximum
• Channel-to-Channel Crosstalk Rejection: 70dB minimum
• Output Default: Hold Last State (default, configurable)
