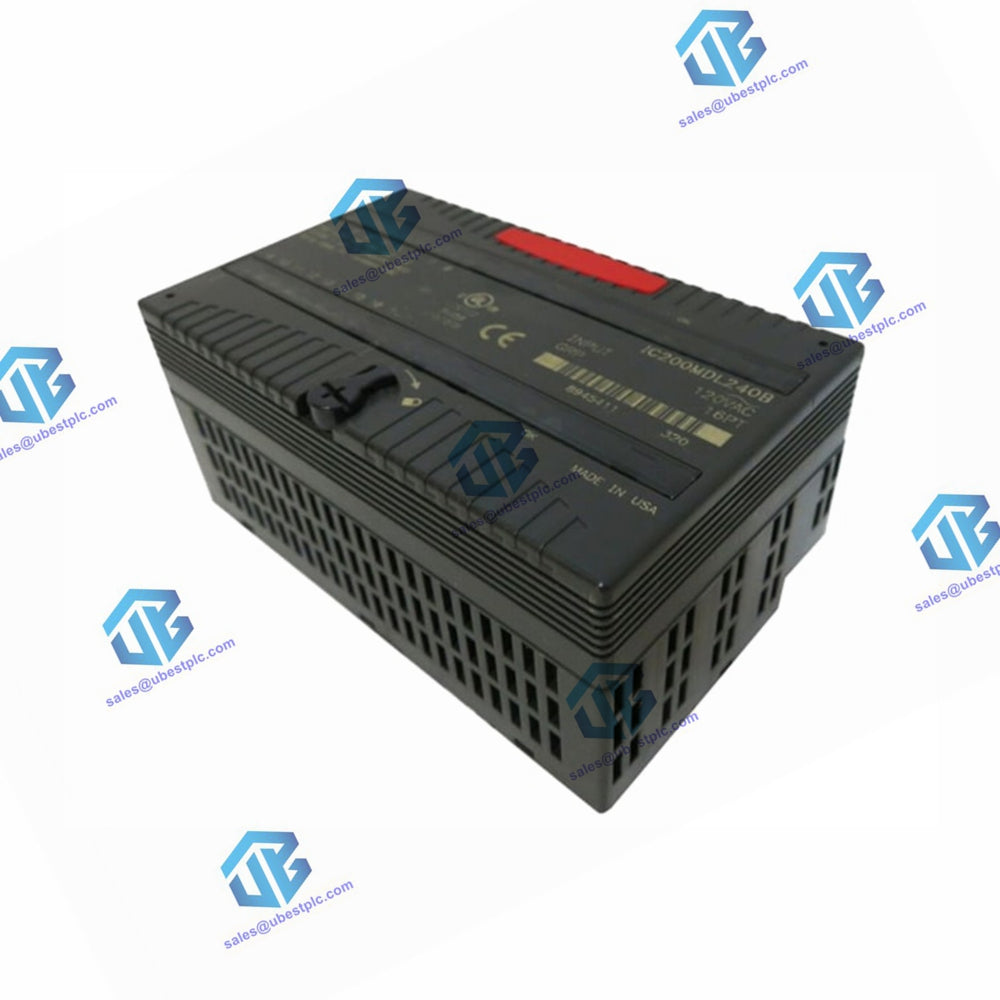

Module Characteristics

• Points

  • Two groups of 8 inputs

• Isolation

  • User input to logic (optical) and frame ground: 250VAC continuous; 1500VAC for 1 minute
  • Group to group: 250VAC continuous; 1500VAC for 1 minute
  • Point to point: None

• LED Indicators

  • One LED per point shows individual point ON/OFF status
  • OK LED indicates backplane power is present

Backplane Current Consumption

• 5V Output

  • 110mA maximum

• External Power Supply: None

Input Characteristics

• Input Voltage

  • 0 to 132VAC (47 to 63Hz), 120VAC nominal

• On State Voltage:

  • 70 to 132VAC

• Off State Voltage:

  • 0 to 20VAC

• On State Current:

  • 5mA minimum

• Off State Current:

  • 2.5mA maximum

• On Response Time:

  • 1 cycle maximum

• Off Response Time:

  • 2 cycles maximum

• Input Impedance:

  • 8.6kOhms (reactive) at 60Hz, typical
  • 10.32kOhms (reactive) at 50Hz, typical
