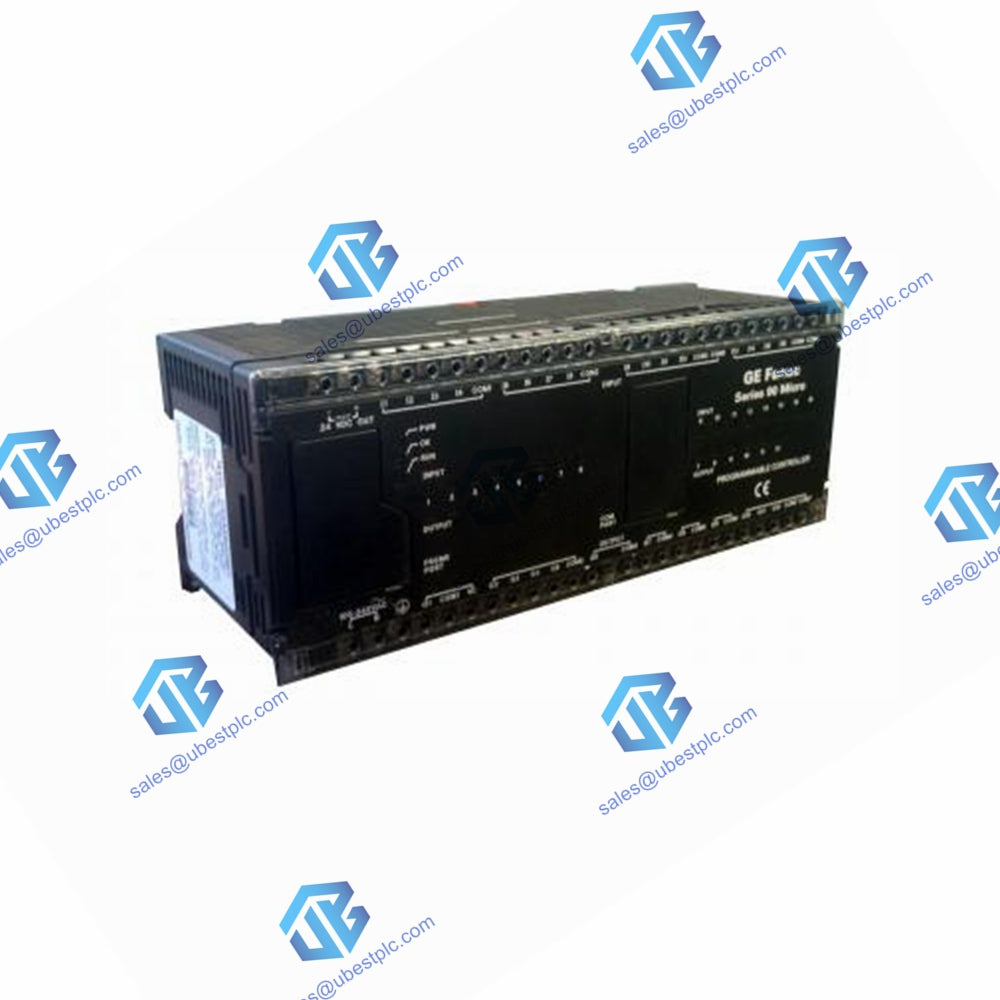

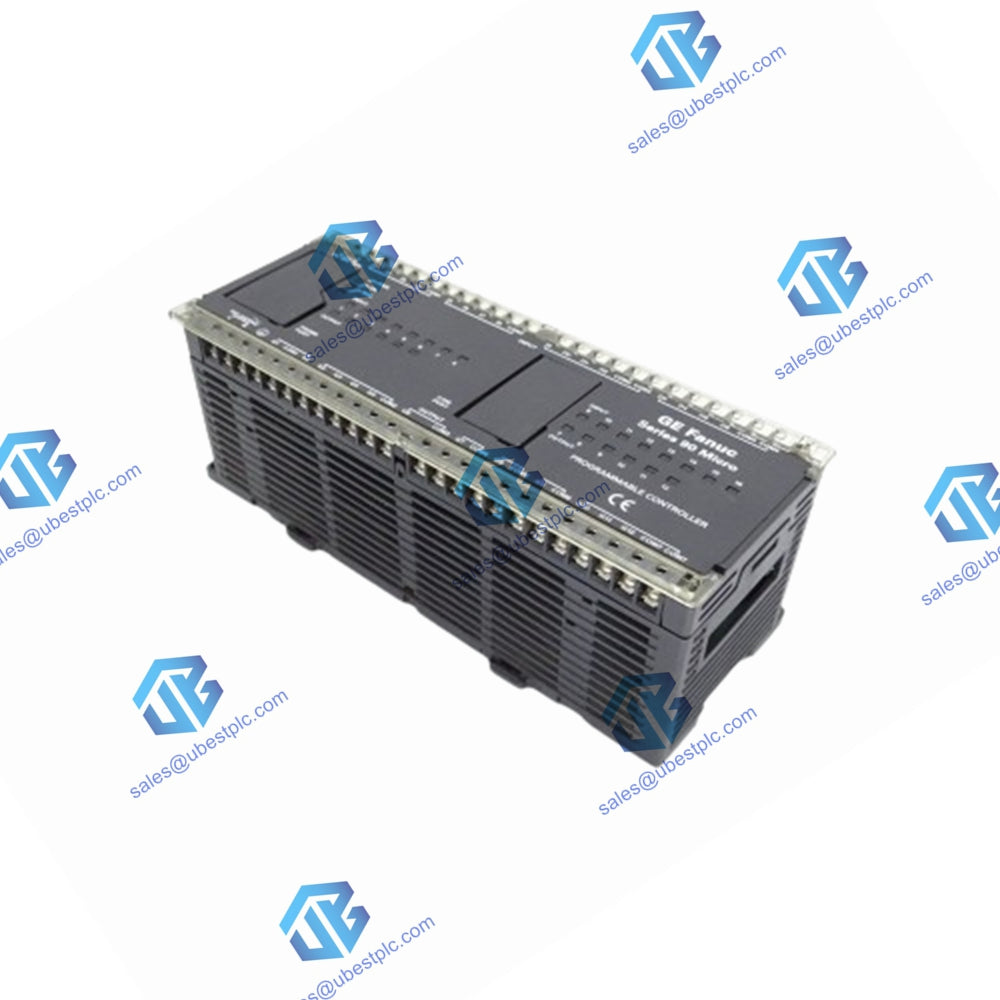

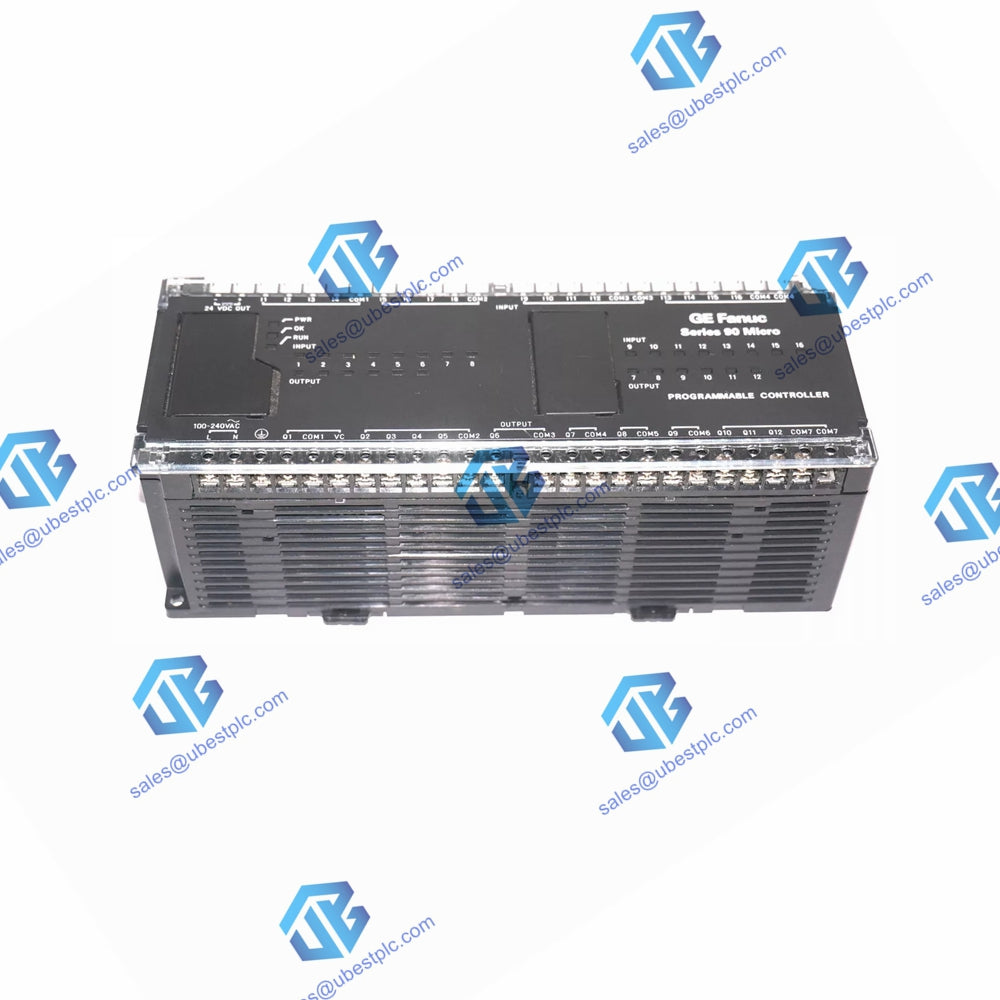

GE Fanuc IC693UDR005 Series 90-30 Hybrid I/O Module: 23-Point Universal Controller

Product Highlights

• Versatile 23-point hybrid I/O module for flexible control
• Combines 16 DC inputs + 11 relay outputs in single unit
• Universal 100-240VAC power supply for global compatibility
• Compact design with industrial plastic housing

Technical Specifications

• Brand: GE Fanuc
• Model: IC693UDR005
• Input Type: 24VDC Positive/Negative Logic
• Output Type: Relay contacts + 24VDC
• I/O Configuration:
  • 16 digital inputs (24VDC)
  • 11 relay outputs

Electrical Characteristics

• Input Current: 8mA max per point
• Power Supply: 100-240VAC auto-ranging
• System Requirements: 4MB disk space

Physical Details

• Dimensions: 21.6cm × 8.3cm × 7.6cm (8.5" × 3.3" × 3.0")
• Weight: 0.6kg (1.4lbs)
• Housing: Durable black plastic

Installation & Integration

• Direct plug-in for Series 90-30 systems
• LED indicators for channel status monitoring
• Tool-free mounting in compatible racks

Package & Support

• Includes: IC693UDR005 module
• 12-month warranty
• Global shipping via FedEx, UPS, DHL

FAQ

• Q: What's the total I/O capacity?
  A: Provides 23 total points (16 in + 11 out)
• Q: Can this handle both AC and DC loads?
  A: Relay outputs support both AC and DC loads
• Q: What power supply is required?
  A: Works with 100-240VAC (auto-ranging)
