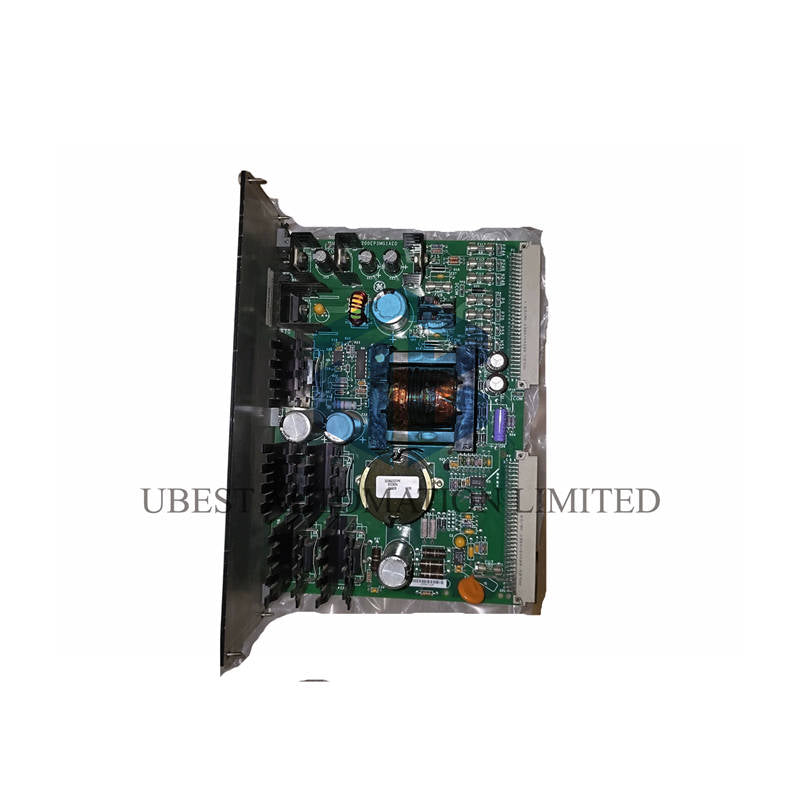

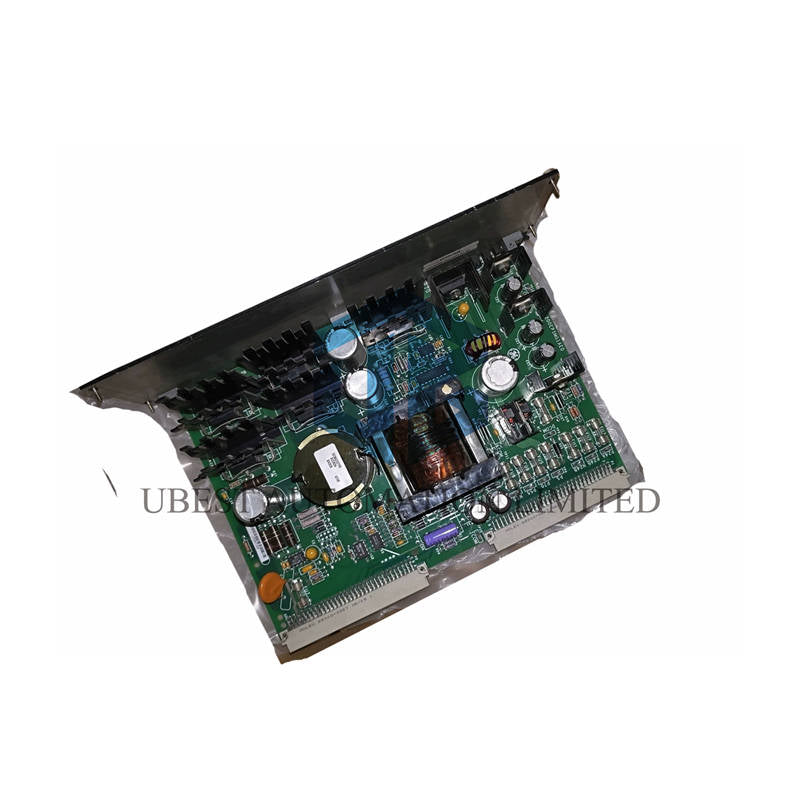

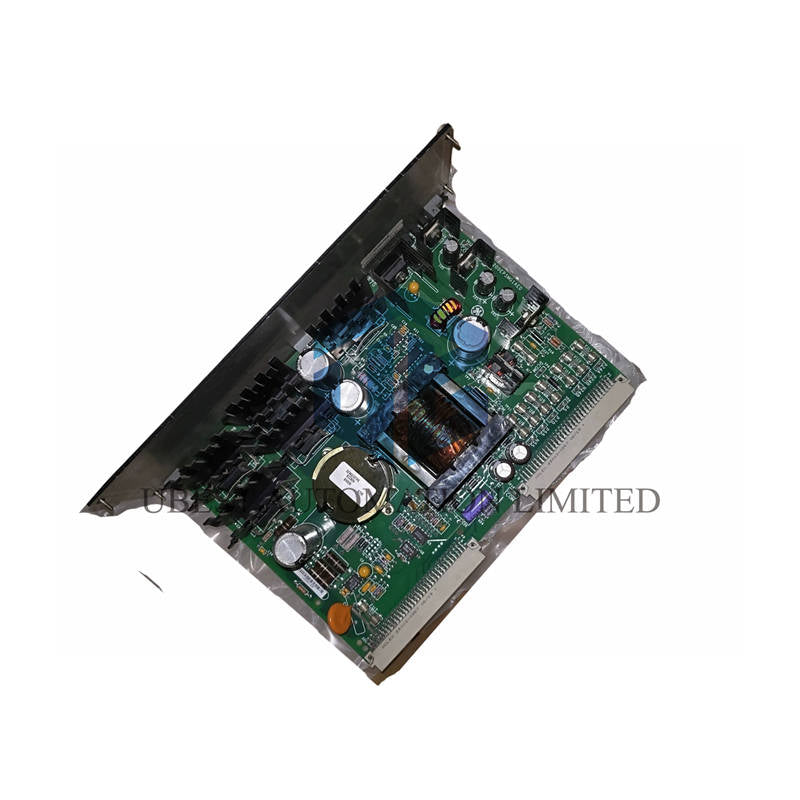

GE IS200EPSMG1A Exciter Power Supply Module
The IS200EPSMG1A provides reliable power for EX2100 excitation systems. This IS200EPSMG1A module converts 125V DC input to multiple output voltages. It powers controllers and external modules safely. Essential for turbine control system operation.
Powerful Features
- Converts 125V DC to multiple output voltages
- Provides isolated power for safe operation
- Powers M1, M2, and C controllers independently
- Supplies external modules like fans and detectors
- Includes over-voltage protection circuits
Technical Specifications
Brand: General Electric
Model: IS200EPSMG1A
Series: EX2100 Excitation Control
Product Type: Exciter Power Supply Module
Input Voltage: 125 V DC
Output Voltages: +5V, +15V, +24V, +70V DC
Mounting: EPBP Backplane
Weight: 1.5 pounds (680 grams)
Input Source: EPDM Power Distribution Module
Isolation: High-voltage transformer isolation
Efficiency: >85% typical
Protection: Over-current and over-voltage
Cooling: Natural convection
Application Details
Used in EX2100 excitation control systems. Three EPSMG1 modules power M1, M2, and C controllers. Mounts in EPBP backplane beneath EBKP. Provides clean power to control assembly.
External Power Distribution
24V DC powers fans, crowbar, and detection modules. Isolated 70V DC for contact wetting on terminal boards. Separate circuits prevent noise interference.
Warranty & Shipping
All products come with 12-month warranty coverage. We ship worldwide via FedEx, UPS, and DHL express services.
Frequently Asked Questions
What input voltage does this module need?
It requires 125 V DC input from the EPDM power distribution module.
How many output voltages does it provide?
It generates +5V, +15V, +24V, and isolated +70V DC outputs.
Where is this module installed?
It mounts in the EPBP backplane located beneath the EBKP in the control cabinet.
What external devices does it power?
It powers fans, crowbar modules, ground detectors, and contact terminal boards.
Is this module backward compatible?
No, as an "A" version board, it is not backward compatible with older systems.
