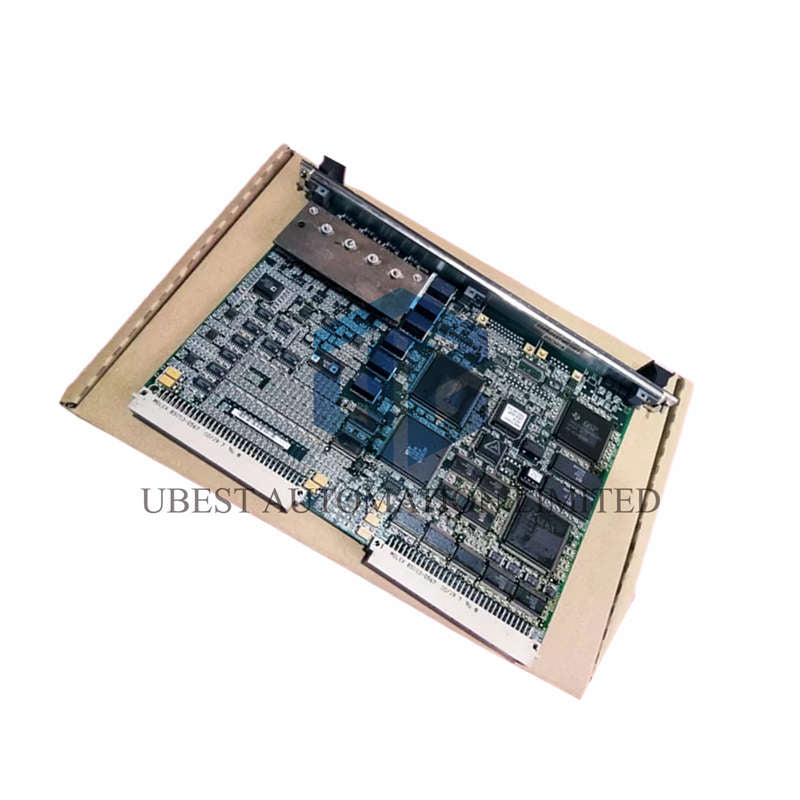

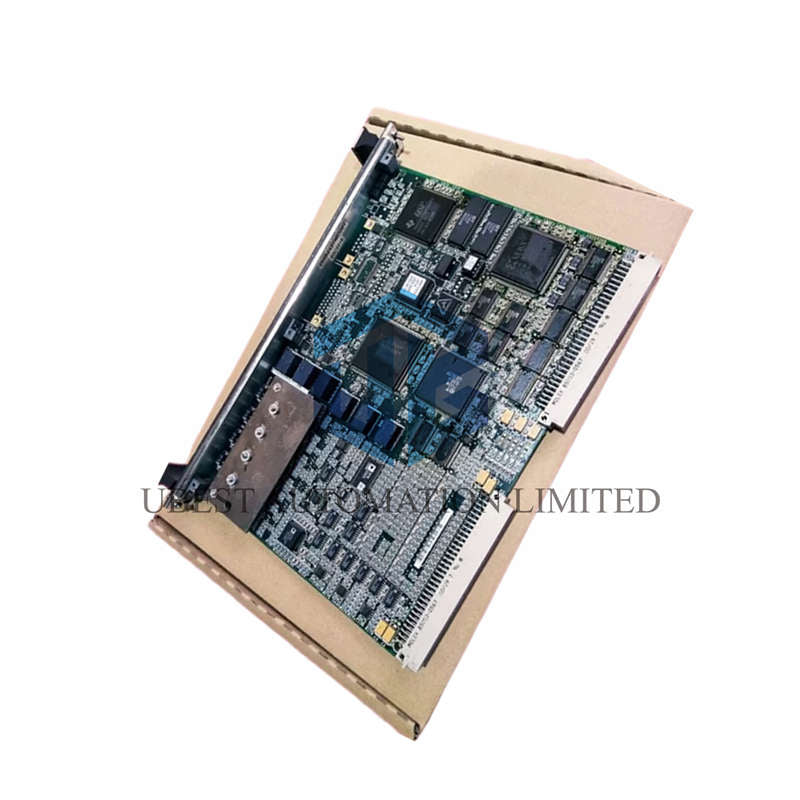

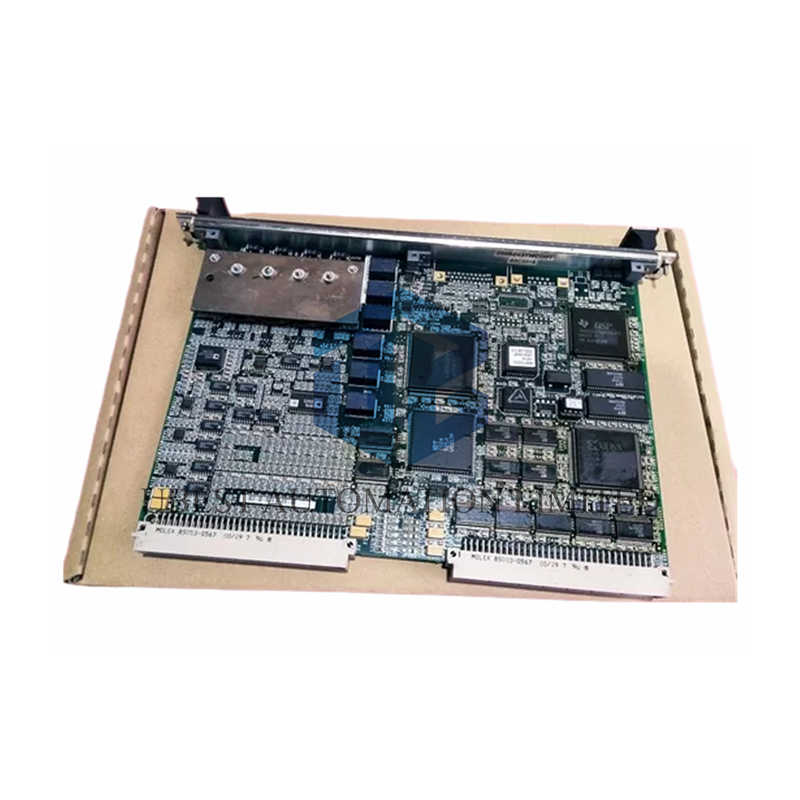

IS200VAICH1C VME Analog I/O Board for GE Mark VI Turbine Control
Advanced 24-channel analog interface board designed for industrial turbine control systems. This versatile VAIC processor handles both input and output signals in simplex and triple modular redundant configurations. Perfect for gas and steam turbine management applications.
Technical Specifications
- Brand: General Electric
- Model: IS200VAICH1C
- Series: Mark VI
- Product Type: Analog I/O Board
- Function: VAIC Processor Board
- Channels: 24 total (20 AI, 4 AO)
- Input Types: Voltage, 4-20 mA
- Output Types: 4-20 mA or 0-200 mA configurable
- Scan Rate: 200 Hz for stall detection
- Load Resistance: Up to 500Ω with 1000ft #18 wire
- Operating Range: Industrial temperature specifications
- Output Drive: Up to 18V available at terminal board
- Status Indicators: 3 LED front panel display
Installation Guide
- Power down the VME processor rack completely
- Slide board into slot carefully
- Push top and bottom levers to seat edge connectors
- Tighten captive screws on front panel
- Verify proper LED status indicators
Compatibility Information
First Generation VAIC Boards: Includes VAICH1C and earlier versions (VAICH1B). Compatible with TBAIH1B or earlier terminal boards. Works with all DTAI terminal board revisions.
Load Capacity: Supports up to 500Ω load resistance with 1000ft of #18 wire.
Newer Generation: VAICH1D and later versions support higher load resistance (800Ω) and require TBAIH1C or later terminal boards.
Package Includes
- IS200VAICH1C Analog I/O Board
- Installation documentation reference
- Compatibility guide
