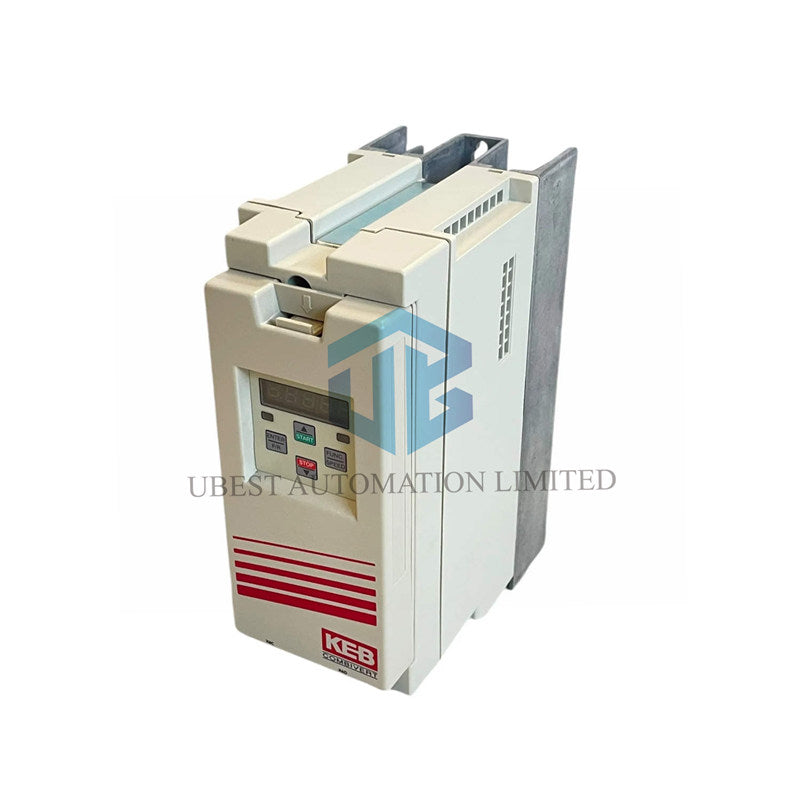

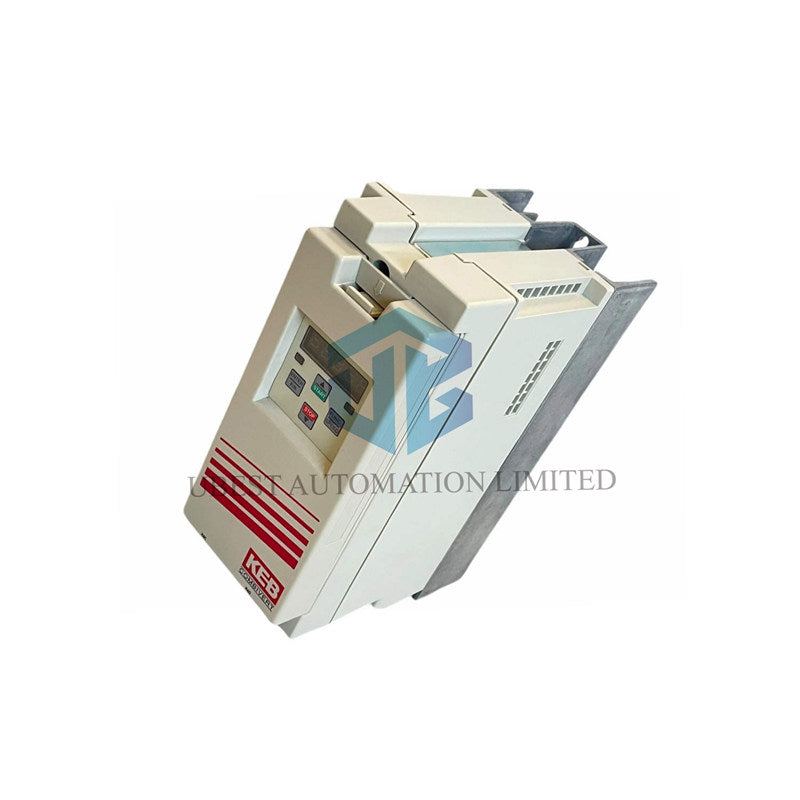

KEB Combivert F5 07F5C1B-3B0A AC Drive: Compact & Versatile
Reliable motor control in a small package. The KEB 07F5C1B-3B0A is a 0.75kW AC variable frequency drive. Perfect for pumps, fans, and conveyors, it offers sensorless vector control and flexible I/O on a 400V network.
Key Features
- Space-Saving Design: Compact F5 Series drive ideal for tight control panels.
- Advanced Control: Sensorless vector control for improved low-speed torque and speed regulation.
- Rich I/O: 8 digital inputs, 2 analog inputs, 2 analog outputs, and 2 relay outputs for easy integration.
- Wide Voltage Range: Operates from 305V to 440V AC, tolerating typical grid fluctuations.
- Integrated Connectivity: Built-in RS232/RS485 (Modbus RTU) port for communication and includes a digital keypad.
Complete Technical Specifications
Brand: KEB
Model: 07F5C1B-3B0A
Series: Combivert F5 Compact
Rated Power: 0.75 kW
Rated Output Current: 2.6 A
Apparent Power (kVA): 1.8 kVA
Input Voltage: 3-phase, 305-440V AC, 50/60 Hz
Input Current: 3.6 A
Output Voltage: 0-440V AC, 3-phase
Output Frequency Range: 0-800 Hz (1600 Hz max.)
Control Method: Sensorless Vector Control (SVC)
Digital Inputs: 8
Analog Inputs: 2
Analog Outputs: 2
Relay Outputs: 2
Communication: RS232/RS485 (Modbus RTU)
Included Operator: Digital Keypad (5-digit LED)
EMC Filter: Integrated (Built-in)
Enclosure Rating: IP20
Operating Temperature: -10°C to +45°C
Storage Temperature: -25°C to +70°C
Installation & Setup
Install the 07F5C1B-3B0A drive in a clean, dry enclosure rated at least IP54 for protection. Connect the three-phase 400V AC power supply (within 305-440V range). Wire your 3-phase motor to the output terminals. Use the digital and analog I/O for control signals, feedback, and alarms. The included digital keypad allows for local parameter setting, control, and monitoring. For network integration, connect via the RS485 port using Modbus RTU protocol.
Expert FAQs
What is sensorless vector control and why is it beneficial?
It provides better low-speed torque and speed holding compared to standard V/Hz control, without needing a feedback encoder. This improves performance for applications like mixers or conveyors under variable load.
Can this drive run a single-phase motor?
No. It is designed to control standard three-phase AC induction motors. Running a single-phase motor can damage both the motor and the drive.
What is the integrated EMC filter for?
It reduces electromagnetic interference generated by the drive, helping the system comply with emission standards and preventing noise from affecting nearby sensitive equipment.
Is the keypad removable?
Yes, the digital keypad operator is typically removable, allowing for remote mounting on the cabinet door for easy access while the drive is installed inside.
What's the most common application for this drive size?
The 0.75kW rating makes it ideal for small pumps, fans, light conveyor belts, and various material handling applications in industrial and commercial settings.
Package & Warranty
Package Includes:
1 x KEB 07F5C1B-3B0A AC Drive Unit
1 x Digital Keypad Operator (00.F5.060-1000)
1 x User Manual
Warranty: This product is covered by a 12-month warranty.
Shipping: We ship worldwide using FedEx, UPS, and DHL.
