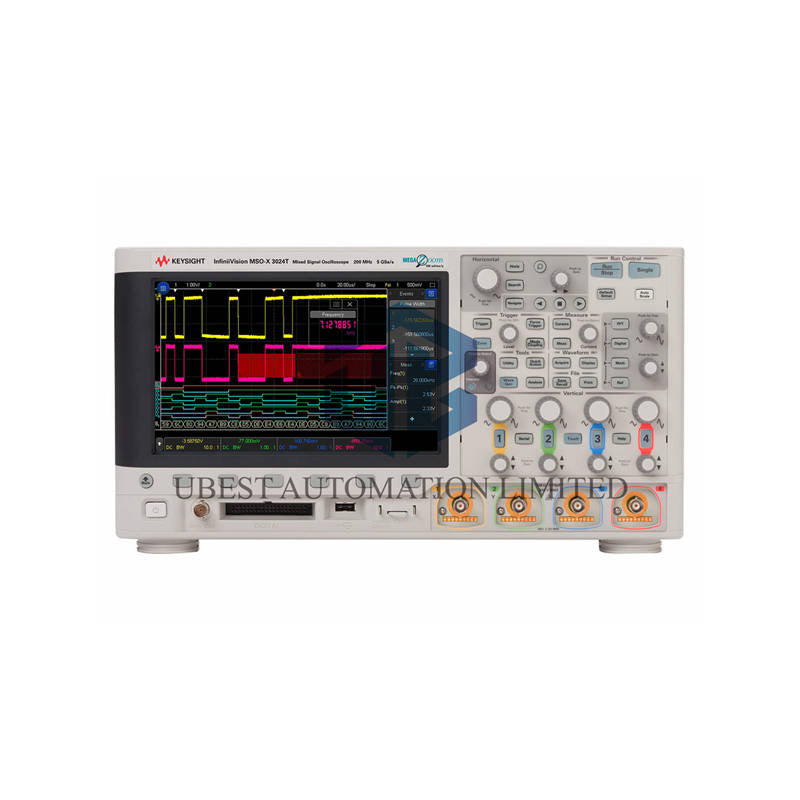

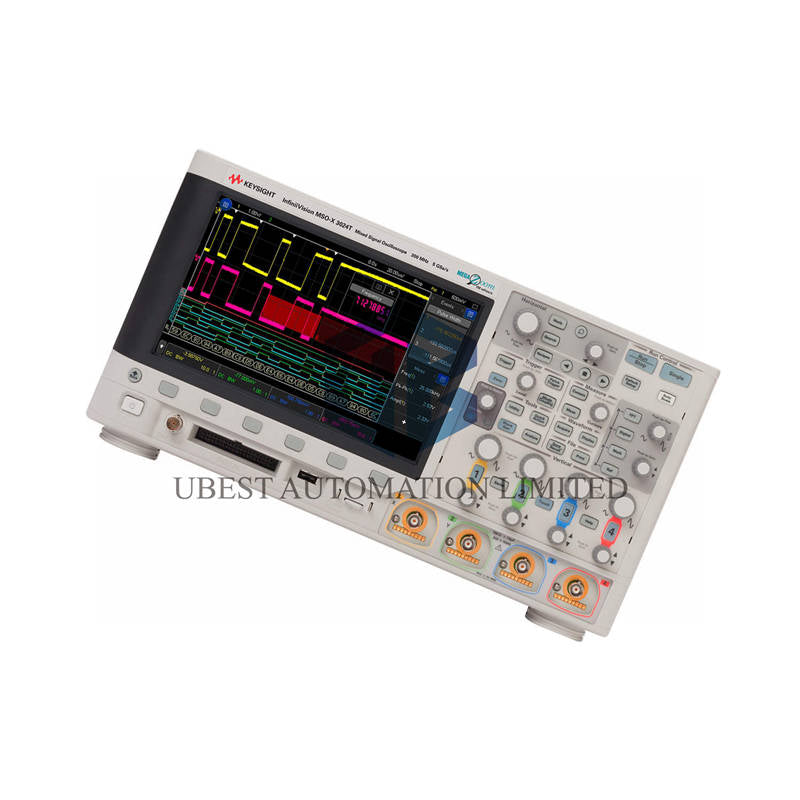

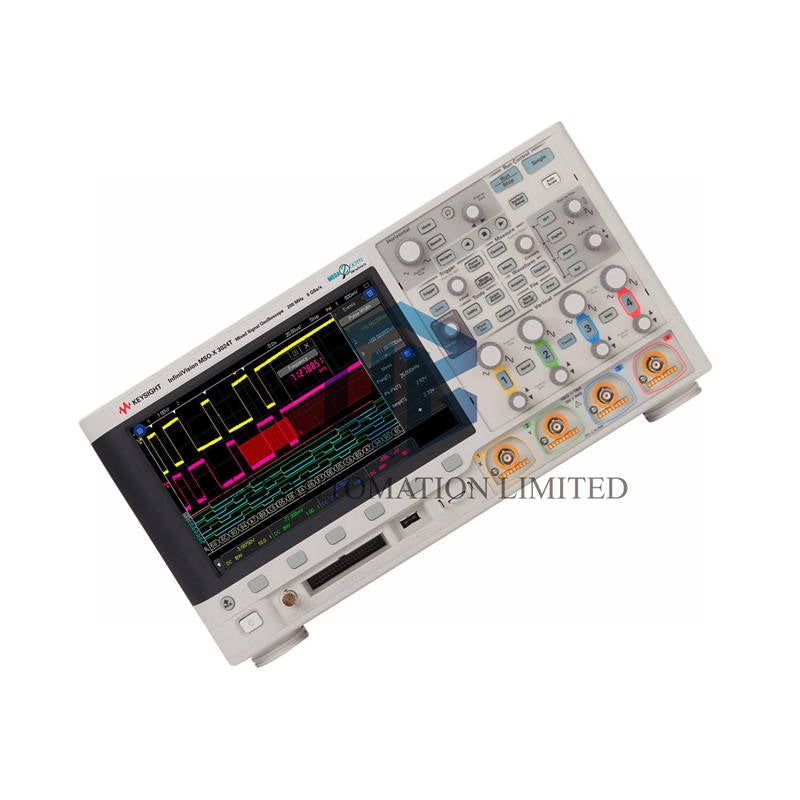

Keysight MSOX3024T: Intuitive Touchscreen Control Meets Mixed-Signal Analysis

Experience a faster, more intuitive workflow with the Keysight MSOX3024T mixed-signal oscilloscope. This 200 MHz instrument features a responsive 8.5-inch capacitive touch screen and exclusive zone touch triggering. It delivers powerful insight with 4 analog channels, 16 digital channels, and a blazing 1,000,000 waveforms per second update rate.

Transform Your Debugging Workflow

• Direct Touch Control: Navigate menus and adjust settings naturally on the large 8.5-inch capacitive touch screen.
• Instant Visual Triggering: Isolate complex events in seconds by simply drawing boxes around them with Zone Touch Trigger.
• Complete System Visibility: Monitor 4 analog and 16 digital signals concurrently for full digital/analog correlation.
• Capture Elusive Glitches: The extreme 1M wfms/s update rate reveals rare anomalies and signal details live.
• Grow with Your Needs: The instrument’s capabilities are fully upgradable with software licenses.

Comprehensive Technical Specifications

• Brand & Model: Keysight MSOX3024T
• Analog Channels & Bandwidth: 4 Channels, 200 MHz (-3 dB).
• Digital Channels: 16 Channels (MSO) with 100 ps typical timing resolution.
• Real-Time Sample Rate: 2 GSa/s on each analog channel.
• Standard Memory Depth: 4 Mpts across all channels.
• Waveform Capture Rate: >1,000,000 wfms/s (normal mode).
• Vertical Scale Range: 1 mV/div to 5 V/div (1 MΩ input).
• Vertical Resolution: 8 bits (enhanced to 12 bits with high-resolution mode).
• DC Vertical Accuracy: ± (1.5% of |reading| + 0.1 div + 1 mV).
• Display: 8.5-inch capacitive multi-touch LCD (800 x 480 pixels).
• Timebase Accuracy: ± 10 ppm.
• Standard Interfaces: USB 2.0 (host & device), LAN (LXI Core 2011).

What You Will Receive

• One (1) Keysight MSOX3024T Oscilloscope main unit with touchscreen.
• Four (4) N2843A 500 MHz, 10:1 attenuation passive voltage probes.
• One (1) N2756A 16-channel digital logic probe cable and pod.
• One (1) appropriate power cord for your country/region.
• Documentation CD containing user and programming guides.
• Quick start guide for immediate setup.

Warranty & Quality Commitment

• We provide a solid 12-month warranty on the Keysight MSOX3024T from your purchase date.
• This warranty guarantees the instrument is free from defects in materials and craftsmanship.
• Our technical team offers full support to ensure you maximize the instrument's potential.

Shipping & Logistics Information

• We dispatch orders promptly via global carriers: FedEx, UPS, or DHL.
• Each unit is carefully packed in its original protective factory packaging.
• A tracking number is provided immediately after your order leaves our facility.

Practical Insights & FAQs

How does Zone Touch Triggering actually speed up debugging?

Instead of navigating complex trigger menu settings, you draw a box around an abnormal pulse or noise spike directly on the screen. The scope automatically sets the correct voltage and time conditions to capture that specific anomaly repeatedly, cutting setup time from minutes to seconds.

Is the touchscreen practical in a noisy electrical lab environment?

Yes, the capacitive touchscreen is highly responsive and works well. For fine adjustments like horizontal delay, many engineers find the dedicated front-panel knobs faster. The touchscreen excels at navigation, zooming, and using advanced features like zone triggering.

What type of projects benefit most from the 16 digital channels?

This is ideal for embedded systems work. You can monitor an 8-bit data bus, several control lines (CS, RD, WR), and interrupt signals simultaneously while watching analog sensor inputs or power supply ripple. It shows the complete system interaction.

Can I upgrade the bandwidth later if my project requirements increase?

Absolutely. The Keysight MSOX3024T platform supports software bandwidth upgrades. You can purchase a license key to increase the analog channel bandwidth to 350 MHz or beyond, protecting your initial investment.

What's a best practice for using the high waveform update rate effectively?

First, ensure your timebase setting is fast enough to see the detail you need. Then, use the intensity grading on the display. The areas of the signal that occur most frequently will appear brighter, making it easy to visually separate typical operation from rare glitches or timing variations.
