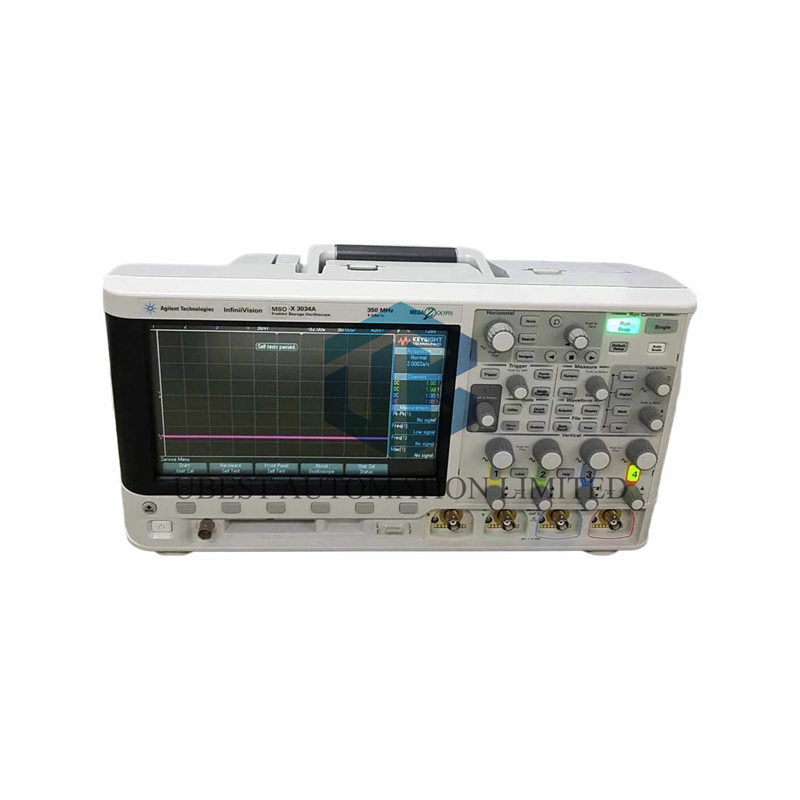

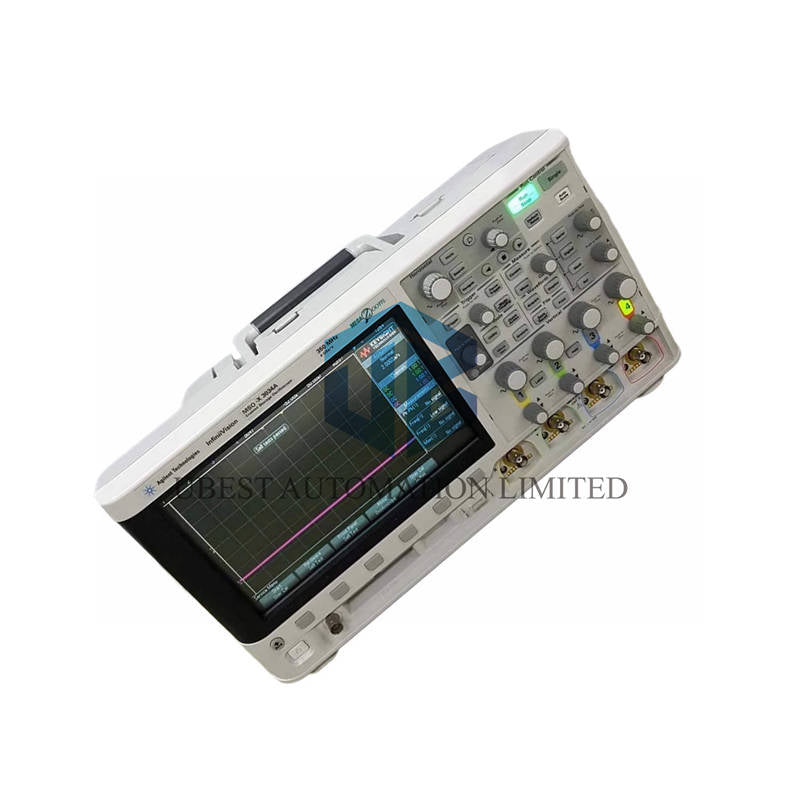

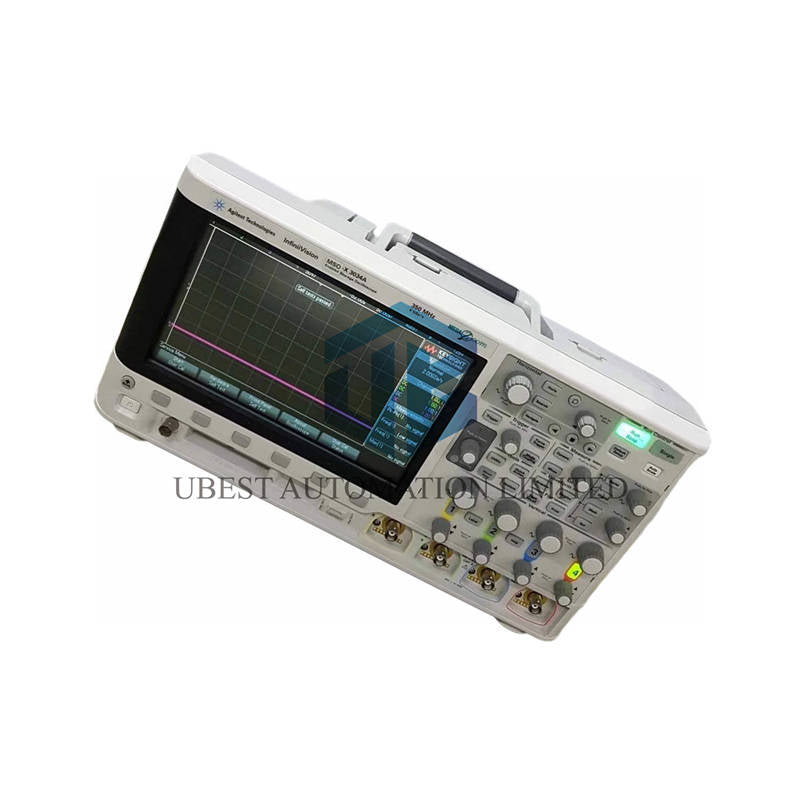

Keysight MSOX3034A: Your Complete Mixed-Signal Debugging Partner

Engineers trust the Keysight MSOX3034A for deep insight into complex circuits. This 350 MHz mixed-signal oscilloscope combines 4 analog and 16 digital channels in one instrument. It delivers a fast 1,000,000 waveforms/second update rate to capture elusive glitches and timing errors with ease.

Unmatched Visibility & Capture Performance

• Wide System View: Monitor 4 analog voltages and 16 digital lines simultaneously on one screen.
• Extreme Update Rate: The 1M wfms/s speed makes rare events and signal details appear instantly.
• Deep Capture Memory: Record long signal sequences with up to 4 Mpts of acquisition memory.
• Crisp Large Display: View complex waveforms clearly on the bright 8.5-inch WVGA display.
• Future-Proof Design: Upgrade bandwidth, add a waveform generator, or enable advanced analysis anytime.

Detailed Technical Specifications

• Brand & Model: Keysight MSOX3034A
• Analog Channels & Bandwidth: 4 Channels, 350 MHz.
• Digital Channels: 16 Channels (MSO) with pod interface.
• Real-Time Sample Rate: 4 GSa/s on each analog channel.
• Max Memory Depth: 4 Mpoints standard.
• Waveform Update Rate: >1,000,000 wfms/s.
• Vertical Resolution: 8 bits (enhanceable with Hi-Res mode).
• Analog Channel Sensitivity: 1 mV/div to 5 V/div.
• Input Impedance: 1 MΩ ±1% || 13 pF ±2 pF.
• Timebase Accuracy: ±10 ppm.
• Display: 8.5-inch diagonal WVGA (800 x 480) LCD.
• Standard Interfaces: USB, LAN (LXI Core compliant).

Package Contents (Ready-to-Use Kit)

• One (1) Keysight MSOX3034A Oscilloscope main unit.
• Four (4) N2890A 500 MHz Passive Probes (10:1, one per analog channel).
• One (1) N2756-60001 16-channel digital probe cable (MSO pod).
• One (1) localized power cord for your destination country.
• Quick start guide and necessary documentation.

Comprehensive Warranty Assurance

• This Keysight MSOX3034A comes with a full 12-month warranty from your purchase date.
• The warranty covers all material and manufacturing defects during normal operation.
• Our support team assists with any operational questions during the warranty period.

Fast & Secure Global Shipping

• We ship worldwide using trusted express services: FedEx, UPS, and DHL.
• All instruments are packed securely in their original protective materials.
• You receive full tracking information as soon as your order leaves our warehouse.

Expert Answers to Common Questions

How do the 16 digital channels compare to a logic analyzer?

The integrated MSO channels offer excellent timing correlation with analog waveforms. They are perfect for debugging parallel buses, state machines, and control signals. For deep, wide bus analysis with complex protocol decoding, a dedicated logic analyzer may still be preferable.

Is the 1M wfms/s update rate useful for power electronics work?

Absolutely. This high update rate is crucial for visualizing jitter in switch-mode power supply control signals. It helps you see pulse-width variations and catch intermittent switching anomalies that slower scopes might miss entirely.

What's the real benefit of the upgradable architecture?

It protects your investment. You can start with the base model for current projects. Later, you can add serial protocol analysis (like I2C, SPI) or a built-in 20 MHz function generator via software license. This avoids buying a completely new scope for new tasks.

Can I use the deep memory effectively without the scope slowing down?

Yes, but strategy matters. Capturing 4 Mpts at full sample rate creates huge data. Use the scope's segmented memory or zoom features to capture a long-time window but only store the relevant events. This keeps the display responsive during analysis.

What is a common mistake when setting up the 16 digital probes?

Neglecting ground lead management. Long ground leads on the MSO pod can cause crosstalk and noise on high-speed digital signals. Always keep the pod's ground connection as short and direct as possible to the device under test for clean acquisitions.
