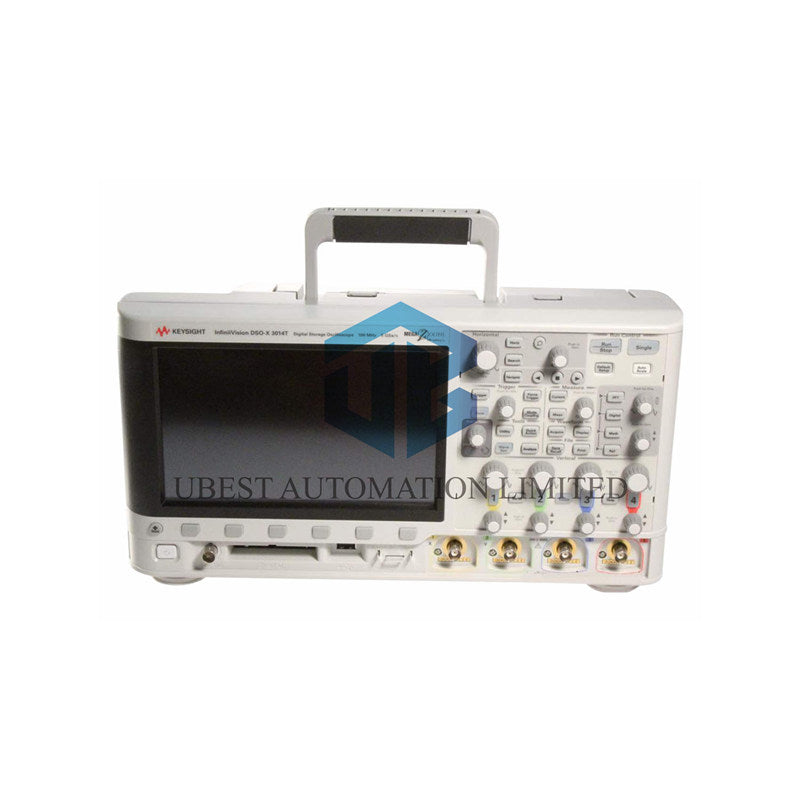

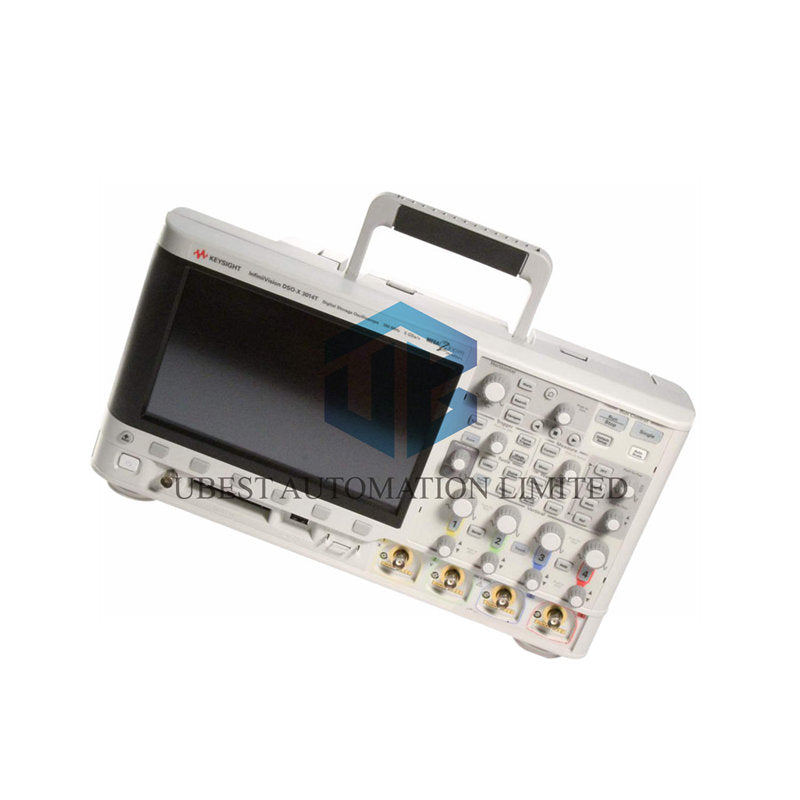

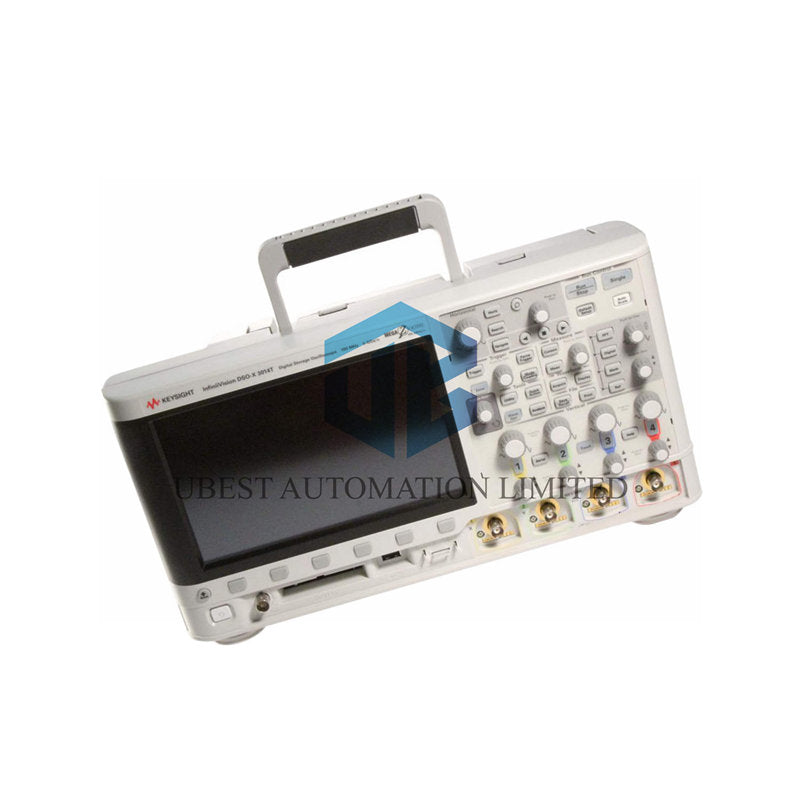

Keysight DSOX3014T Oscilloscope: 100 MHz, 4 Channels with Touch Screen

Meet the versatile Keysight DSOX3014T oscilloscope. It offers 100 MHz bandwidth and 4 analog channels. Capture signals easily on the large 8.5-inch touch screen. Experience fast waveform updates and smart triggering. A powerful tool for engineers and educators.

Why Choose This Oscilloscope?

• Large capacitive touch screen for intuitive operation.
• Very fast waveform update rate reveals signal details.
• Deep memory captures long data sequences.
• Easy-to-use zone trigger isolates events quickly.
• Fully upgradable to grow with your future needs.

Core Technical Specifications

• Brand & Model: Keysight DSOX3014T
• Bandwidth: 100 MHz
• Analog Channels: 4 channels
• Display: 8.5-inch capacitive touch screen
• Update Rate: 1,000,000 waveforms per second
• Memory Depth: Up to 4 Mpts standard
• Trigger Type: Standard Zone touch trigger
• Probes Included: 4x N2843A Passive Probes (500 MHz, 10:1)
• Interface Languages: Supports 15+ languages including English, Chinese, Japanese

Included Accessories & Support

Your purchase is a complete ready-to-use package. It includes everything you need to start measuring.

• Four N2843A 500 MHz passive probes (one per channel).
• Calibration certificate with a 3-year calibration interval.
• Multi-language user interface and documentation CD.
• Localized power cord and keyboard overlay.
• Secure erase feature for data protection.

Future-Proof Your Lab

The Keysight DSOX3014T is designed to grow. You can add options later. Expand bandwidth up to 1 GHz. Add 16 digital channels (MSO). Integrate a 20 MHz arbitrary waveform generator. Include serial protocol analysis and mask testing. Upgrade anytime to match new projects.

Our Service Promise

We provide fast worldwide shipping via FedEx, UPS, and DHL. This instrument is covered by our reliable 12-month warranty. We ensure quality and support for your purchase.

Expert Frequently Asked Questions

How does the 1 million wfms/s update rate help in practice?

It dramatically reduces "dead time" between captures. This makes it much easier to see rare or random glitches that slower scopes might miss.

What is Zone touch triggering and why is it useful?

You simply draw a box on the touchscreen. The scope triggers when a signal enters or leaves this zone. It's more intuitive than setting up complex voltage and time conditions.

Can I connect and control this scope from my computer?

Yes. It includes standard LAN (LXI) and USB ports for remote control and data transfer. Use Keysight's software or standard SCPI commands.

Is the 3-year calibration certificate valid worldwide?

The provided certificate is from Keysight. It is generally accepted. For critical compliance (e.g., ISO), check if your local quality auditor requires a traceable certificate from a specific regional lab.

From experience, what's the first thing to do after unboxing?

Immediately perform a self-calibration. Let the scope warm up for 20-30 minutes, then run the internal calibration routine. This ensures all channels and the ADC are optimized for accurate measurements from the start.
