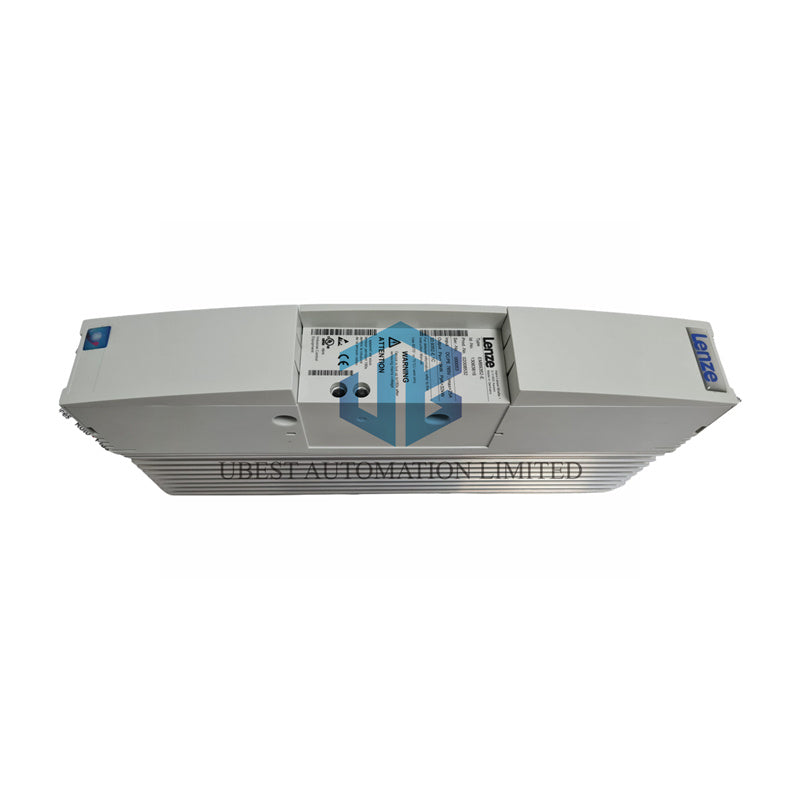

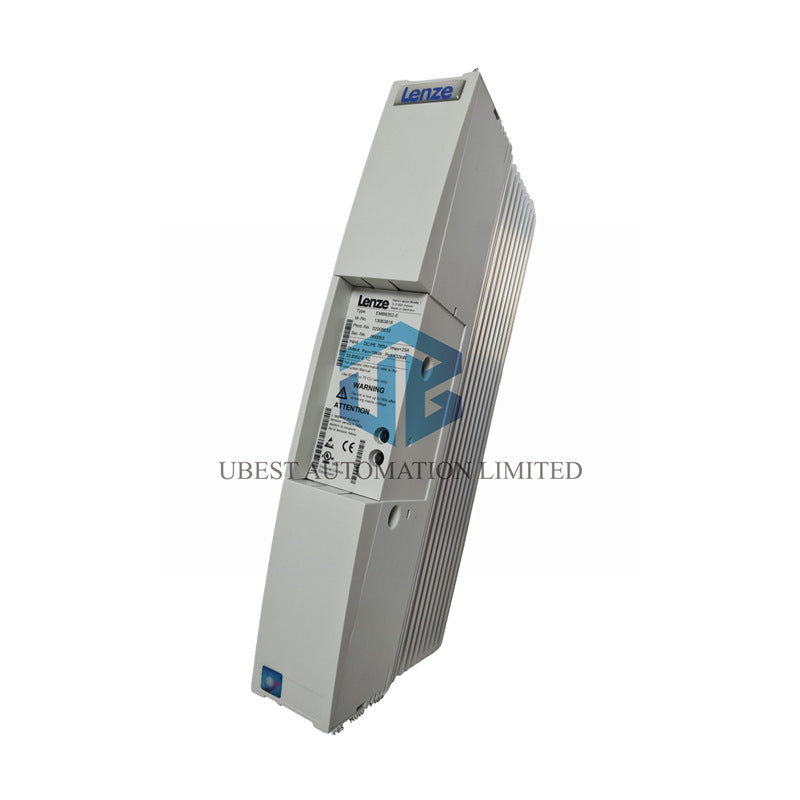

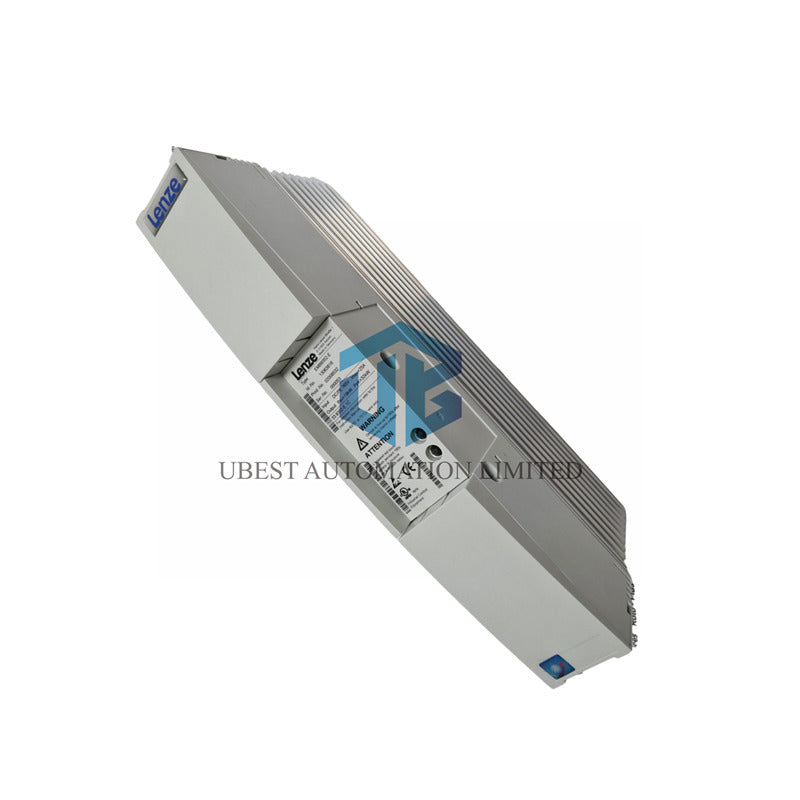

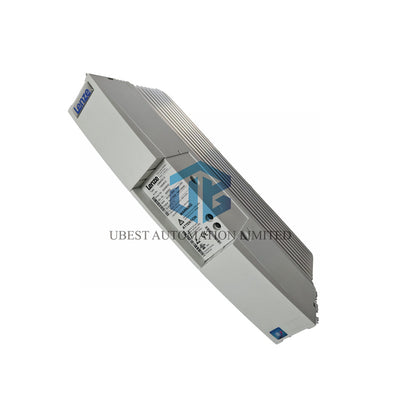

Lenze EMB9352-E Brake Unit: Reliable Motor Stopping Power
Professional brake control unit for industrial applications. Ensures safe and efficient motor braking in various systems.
Key Advantages
- Multiple Voltage Settings - Three preset braking thresholds
- High Power Handling - Up to 32kW peak braking power
- Compact Design - Space-saving installation
- Robust Performance - Built for demanding environments
Technical Specifications
Brand: Lenze
Model: EMB9352-E Brake Unit
Series: 9350 Standard Design
Supply Voltage: 270-775V DC
Braking Thresholds: 375V, 725V, 765V DC
Peak Current: 42A DC for 60 seconds
Continuous Current: 25A DC
Peak Braking Power: 15kW to 32kW
Continuous Power: 9kW to 19kW
Minimum Resistance: 9Ω to 18Ω ±10%
Dimensions: 52 x 350 x 186 mm
Weight: 2.2 kg
Cooling: Natural convection
Mounting: DIN rail compatible
Performance Features
Flexible Configuration: Three voltage thresholds for different applications
Energy Efficient: Manages braking energy effectively
Easy Installation: Standard mounting and wiring
Installation Notes
Mount on standard DIN rail. Ensure proper ventilation. Connect external brake resistor. Follow wiring diagram.
Shipping & Support
Quick delivery via FedEx, UPS, DHL. All units tested before shipment. Includes 12-month warranty for customer protection.
Frequently Asked Questions
What applications suit the EMB9352-E brake unit?
Ideal for conveyor systems, hoists, and CNC machinery where controlled braking is essential for safety and precision.
How do I select the right braking threshold?
Choose based on your system voltage. The unit offers three settings to match different operational requirements.
Can it handle frequent stop-start cycles?
Yes, designed for regular cycling with adequate cooling periods between operations.
What external resistor should I use?
Select resistors between 9-18 ohms depending on your voltage setting and power requirements.
Is technical documentation available?
Complete installation manuals and wiring diagrams provided with purchase for easy setup guidance.
