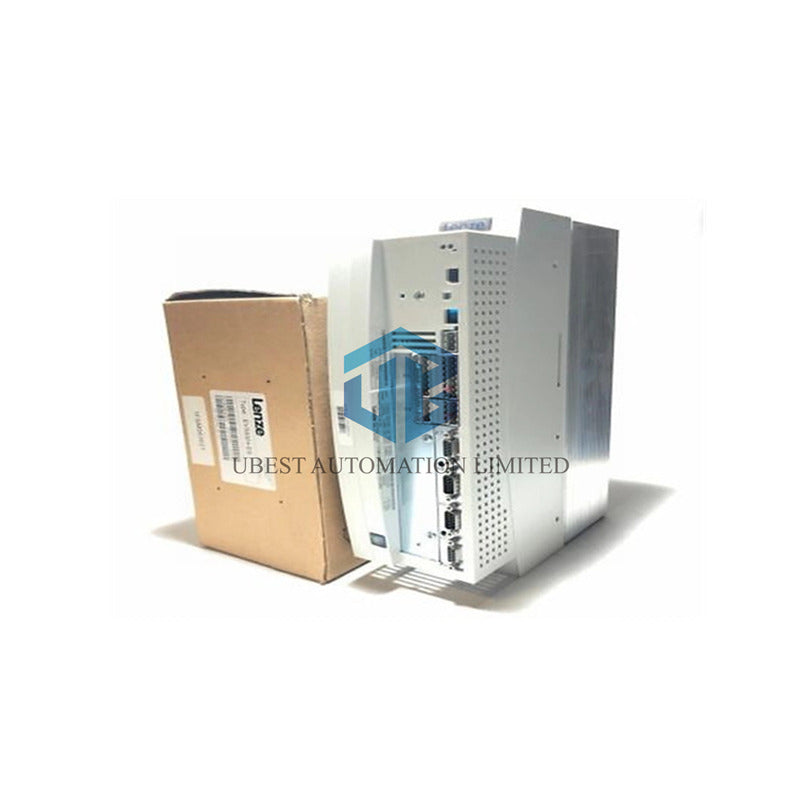

Lenze EVS9324-EP Servo Drive - 9300 Series 3kW Motor Controller
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Powerful Lenze EVS9324-EP Servo Inverter for Industrial Automation
- Ready to ship today
- Professional technical support available
- Easy installation guide included
Product Overview
The Lenze EVS9324-EP servo inverter delivers strong performance for your 3 kW motors. This axis module handles tough jobs with ease. Perfect for factory automation and machine control.
Key Specifications
Brand: Lenze
Model: EVS9324-EP Servo Inverter
Series: 9300
Motor Power: 3 kW
Motor Type: 4-pole asynchronous
Input Voltage: 320-528 V AC
DC Input: 460-740 V DC
Input Frequency: 45-65 Hz
Rated Current: 7.0 A at 8 kHz
High Speed Current: 5.2 A at 16 kHz
Max Current: 10.5 A at 8 kHz
Peak Current: 7.8 A at 16 kHz
Brake Power: 11 kW continuous
Peak Brake: 25 kW maximum
Brake Resistance: 27 Ω required
Power Loss: 200 W
Cable Length: 50 m shielded
Unit Weight: 5.0 kg
Dimensions: 350×97×250 mm
Powerful Braking System
The EVS9324-EP features heavy-duty braking. Continuous braking power of 11 kW handles frequent stops. Peak braking reaches 25 kW for emergency stops. Works with 27 ohm brake resistors.
Installation & Setup
Mount in vertical position. Keep 50mm space above and below for air flow. Use shielded motor cables up to 50 meters. Connect brake resistor for safety.
Shipping Information
We ship worldwide via FedEx, UPS, and DHL. Orders placed before 3 PM ship same day. Tracking number provided immediately.
Warranty Protection
All products include 12-month warranty. We cover parts and workmanship. Quick replacement for defective units.
Frequently Asked Questions
What motors work with this inverter?
It is designed for 3 kW, 4-pole asynchronous motors. Perfect for conveyor systems and rotating machines.
How long can the motor cables be?
You can use shielded cables up to 50 meters without signal loss.
What brake resistor should I use?
Use 27 ohm resistors rated for at least 11 kW continuous power.
Can it handle voltage fluctuations?
Yes, it works from 320 to 528 V AC and 460 to 740 V DC input.
Is technical support available?
Our experts provide free setup advice and troubleshooting help.
