Meggitt Vibro-Mete 111-412-000-013-A2-B1-E010-F0-G000-H05
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

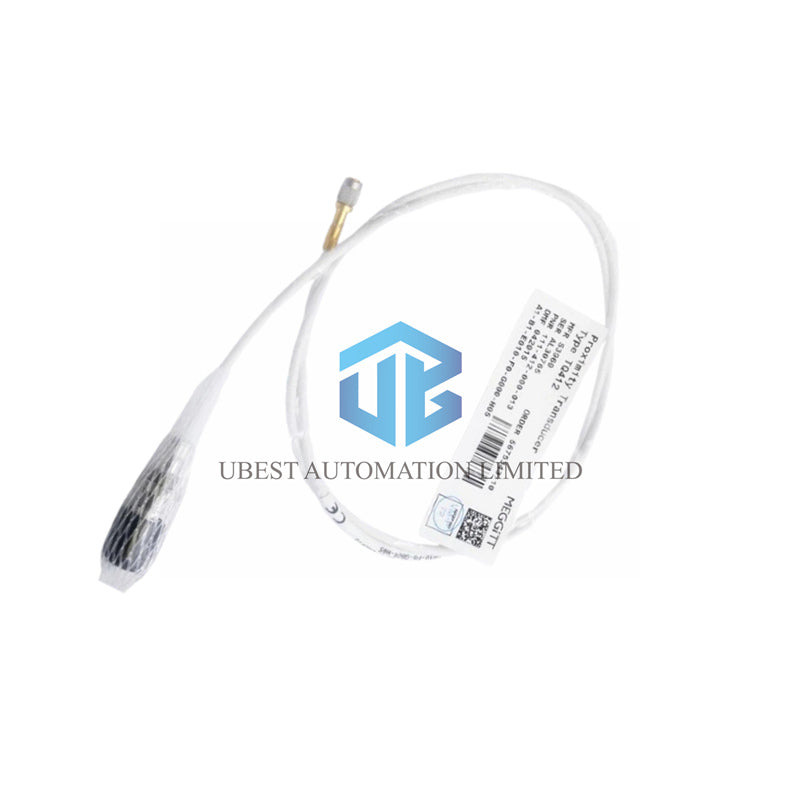

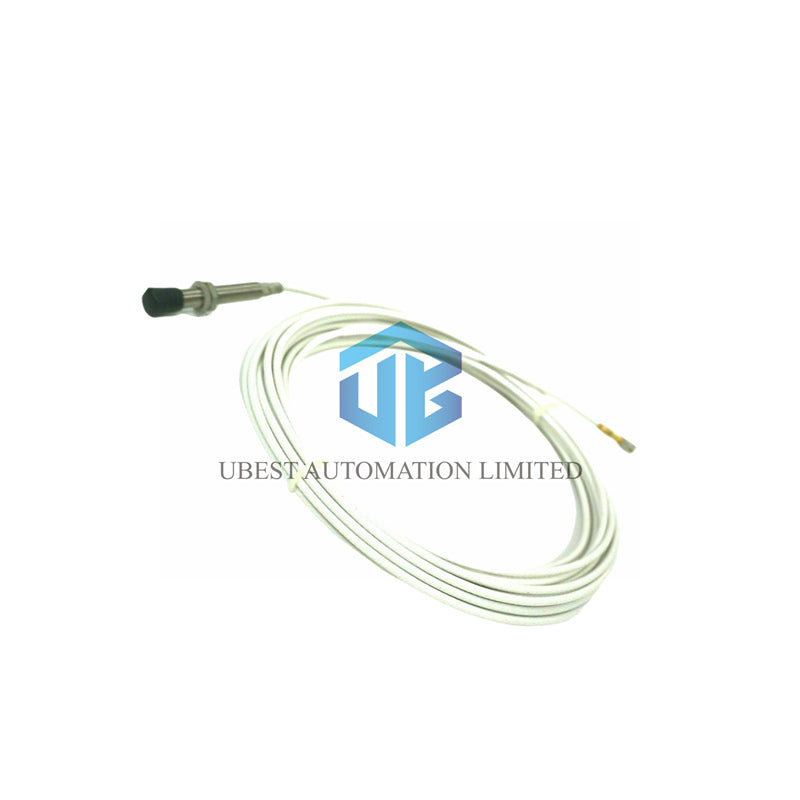

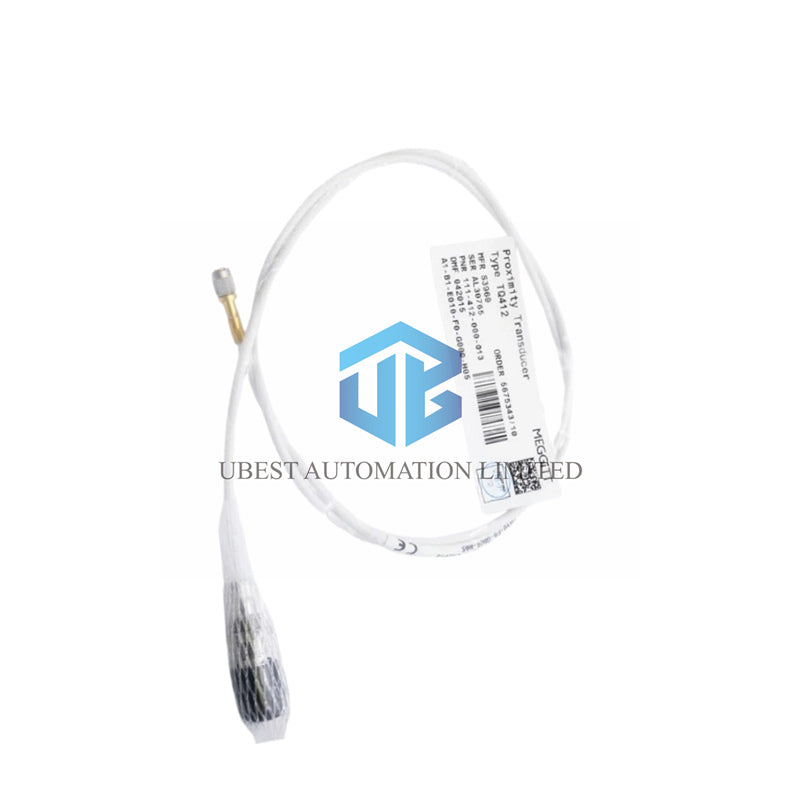

Meggitt Vibro-Meter Explosion-Proof Proximity Sensor - 5m System
- Explosion Proof - Certified for hazardous Ex i areas
- Complete 5m System - 1m integral + 4m extension cable
- M10 Thread Mount - Easy industrial installation
- Fast Delivery - Ships via FedEx, UPS, DHL worldwide
Product Overview
The Meggitt Vibro-Meter explosion-proof proximity system ensures safety in hazardous environments. This proximity measuring system features M10 threaded mounting and 5-meter total cable length. Designed for reliable operation in potentially explosive atmospheres.
Technical Specifications
- Full Part Number: 111-412-000-013-A2-B1-E010-F0-G000-H05
- Hazardous Rating: Ex i Explosion Proof
- Mounting Thread: M10 × 1 standard
- Integral Cable: 1.0 meter ±100 mm
- Total System Length: 5 meters complete
- Measurement Range: 2 mm or 4 mm options
- Frequency Response: DC to 20 kHz bandwidth
- Temperature Range: -40°C to +180°C
- IP Rating: IP68 waterproof
- Probe Diameter: 8 mm sensing head
- Cable Type: FEP coaxial, 70 ohm
- System Weight: 220 grams total
Safety Features
- Explosion-proof certified for hazardous areas
- Intrinsically safe design
- Short-circuit protected outputs
- Temperature-compensated accuracy
- API 670 standards compliant
- VM600 monitoring system compatible
Installation Guide
Thread into M10 mounting hole. Connect to IQS900 signal conditioner. Route 5m cable system safely. Hand-tighten all connectors until locked. Ensure proper grounding in hazardous areas.
Expert FAQ
What types of hazardous areas is this approved for?
Certified for Zone 0, 1, and 2 hazardous locations where explosive gases or dust may be present.
Can the cable be extended beyond 5 meters?
Maximum recommended total length is 10 meters to maintain signal integrity and safety certification.
What maintenance is required in explosive atmospheres?
Regular visual inspection of cables and connectors. No internal maintenance needed due to sealed construction.
How does the M10 thread compare to other mounts?
M10 threading provides secure mounting in standard industrial holes without additional brackets or adapters.
What documentation comes with explosion-proof units?
Full certification documents, installation manuals, and safety compliance paperwork included with each unit.
Quality Assurance
Includes 12-month performance warranty. Complete certification documentation provided. Fast international shipping available.
