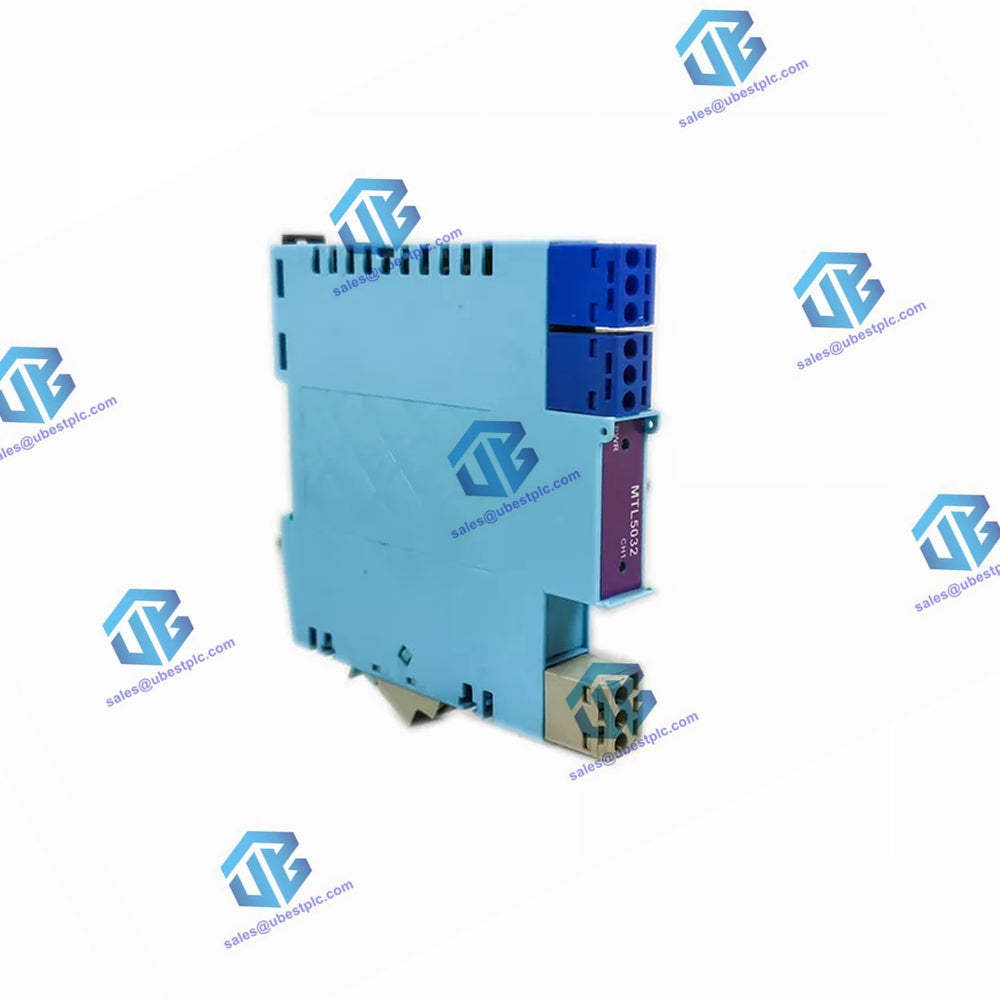

MTL5032 MTL | Pulse Isolator
Manufacturer:
MTL
Product No.:
MTL5032
Condition:
In Stock
Product Type:
Pulse Isolator
Product Origin:
USA
Weight:
200g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
MTL Technical specifications for MTL5032 Pulse Isolator
General Information
| Brand | MTL |
| Product Name | MTL5032 Pulse Isolator |
| Description | Isolates pulses from a switch, proximity detector, current pulse transmitter, or voltage pulse transmitter located in a hazardous area. |
Specification
| Number of Channels | One |
| Location of Switch | Zone 0, IIC, T6 hazardous area; Division 1, Group A hazardous location |
| Location of Proximity Detector or Transmitter | Zone 0, IIC, T4–6 hazardous area if suitably certified; Division 1, Group A hazardous location |
| Safe-Area Output | Maximum off-state values: V = 35V, I = 10µA Maximum on-state current: 50mA Voltage drop: [1 + (0.1 x current in mA)] V Output off if supply fails |
| Hazardous-Area Input | Switch: Output on (off) if switch closed (open) Proximity Detector: Meets NAMUR and DIN 19234 standards Pulse (I): Supply 16.5V dc at 20mA; Short-circuit current 24mA; Output on (off) > 8.9mA (< 6.8mA); Switching hysteresis: 0.5mA typical; Input impedance > 10kΩ; Switching point voltage (Vsp): 3, 6, or 12V (Selectable); Output on (off) if input >1.2 x Vsp (< 0.8 x Vsp); Switching hysteresis: 0.1 x Vsp typical |
| Pulse Width | High: 10µs minimum Low: 10µs minimum |
| Frequency Range | 0 to 50kHz |
Terminal Functions
| Terminal | Function |
| 1 | Common -ve |
| 2 | Proximity detector +ve |
| 3 | Current +ve |
| 4 | Transmitter +ve |
| 5 | Voltage +ve |
| 6 | Output -ve |
| 11 | Output +ve |
| 12 | Supply -ve |
| 13 | Supply +ve |
| 14 | Supply +ve |
LED Indicators
| Green | Power indication |
| Yellow | Status |
Power and Safety
| Supply Voltage | 20 to 35V DC |
| Maximum Current Consumption | 65mA at 24V DC 70mA at 20V DC 55mA at 35V DC |
| Maximum Power Dissipation within Unit | 1.35W at 24V 1.75W at 35V |
Safety Description
| Terminals 2 to 1 | 10.5V, 800Ω, 14mA |
| Terminals 5 to 4 and 1 | 28V, 94mA, 0.65W |
| Terminals 4 to 3 and 1 | 28V, 300Ω, 93mA |
| Non-energy-storing apparatus ≤1.2V, ≤0.1A, ≤20µJ and ≤25mW; can be connected without further certification into any IS loop with an open-circuit voltage <28V |
