Description and Features

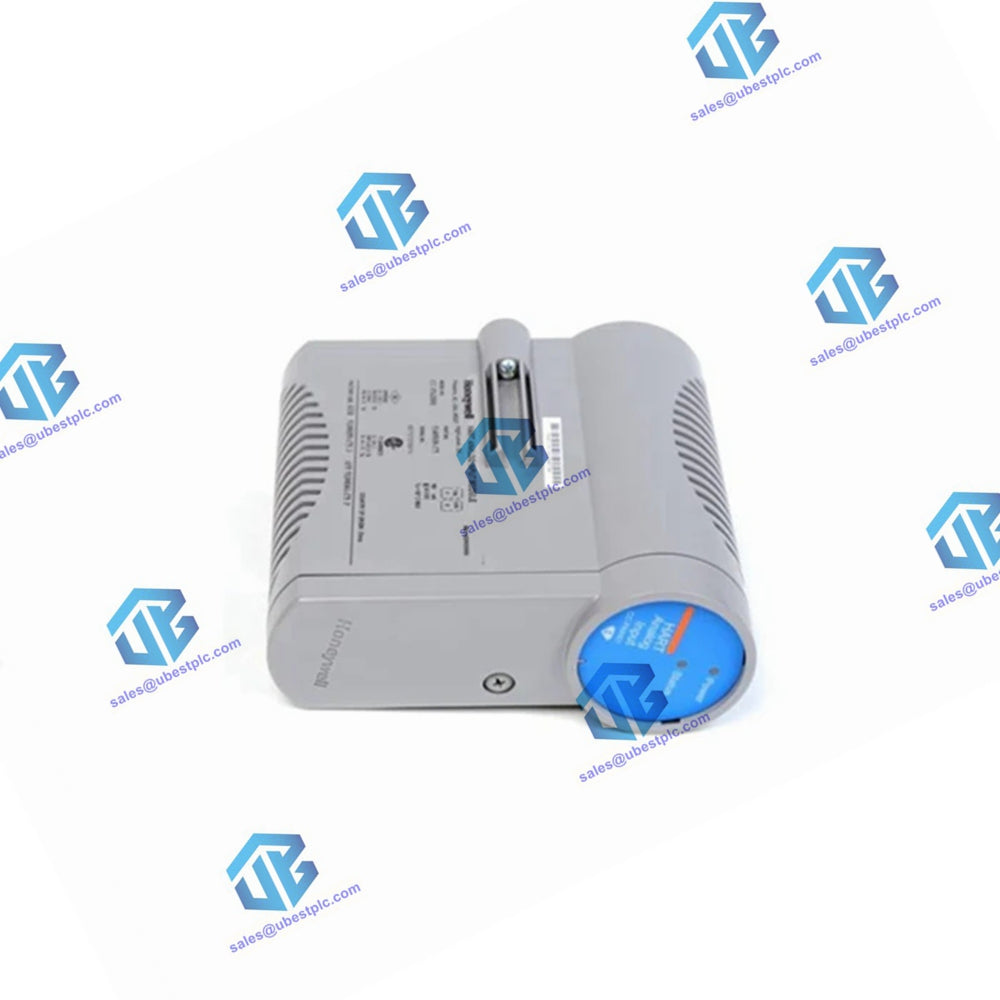

The CC-PFB401 is a Honeywell Fieldbus interface module designed to support the H1 FOUNDATION Fieldbus protocol. It is intended for use in industrial automation environments, providing reliable data communication and device control capabilities.

Specifications and Model Numbers

Series C Fieldbus Interface Module (FIM4)

Model Number:
CC-PFB401 (conformally coated)

Module Type:
Series C module

Physical Interface:
H1 FOUNDATION Fieldbus

Number of H1 Networks per FIM:
(Each network defined as a FOUNDATION Fieldbus 31.25 kbps H1 network)
4

Indicators on Module

• 24V Power
• Module & FTE Status LEDs
• Front display panel with module and link state information

Indicators on Carrier Board

• 4 H1 Link Status LEDs (1 per Link)

Configurations

• Non-redundant or Redundant (side-by-side)

Maximum Number of Fieldbus Devices per H1 Network:
16

Available Macrocycle Periods:
250 ms, 500 ms; 1, 2, 4, 8, 16, and 32 sec
