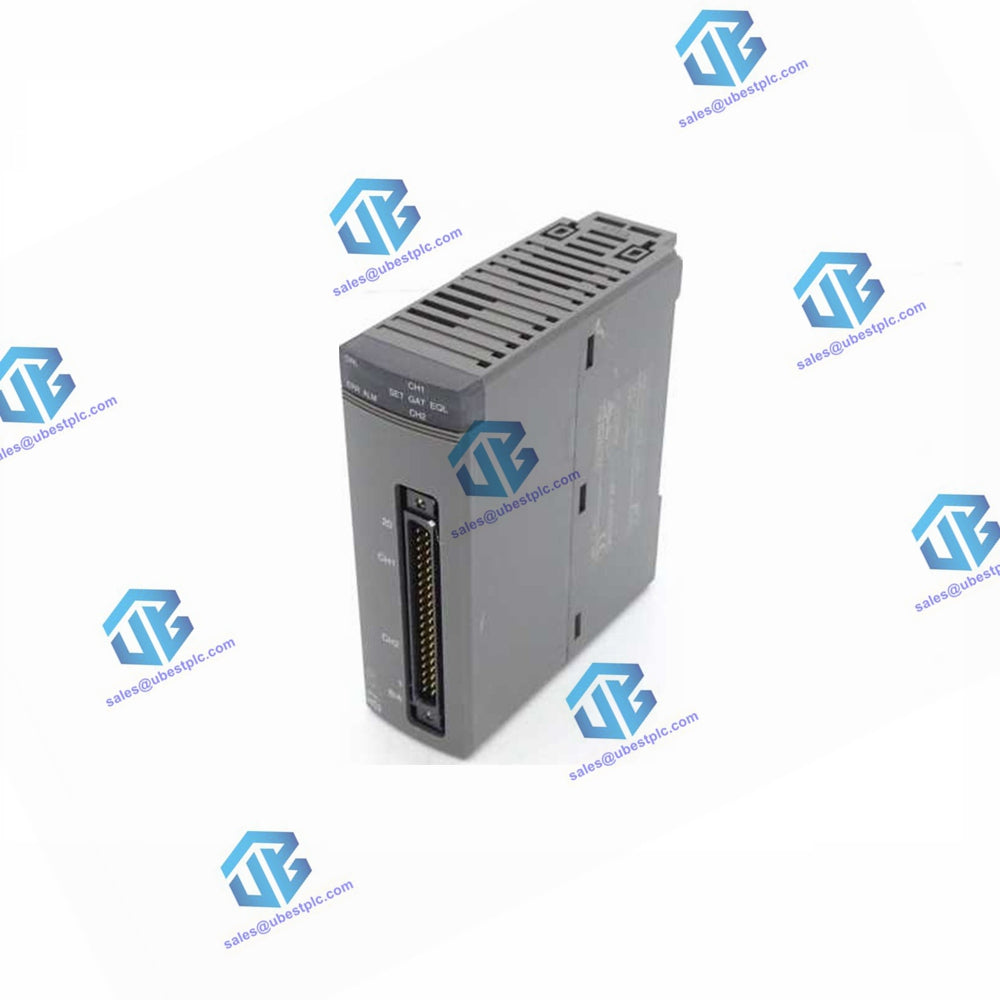

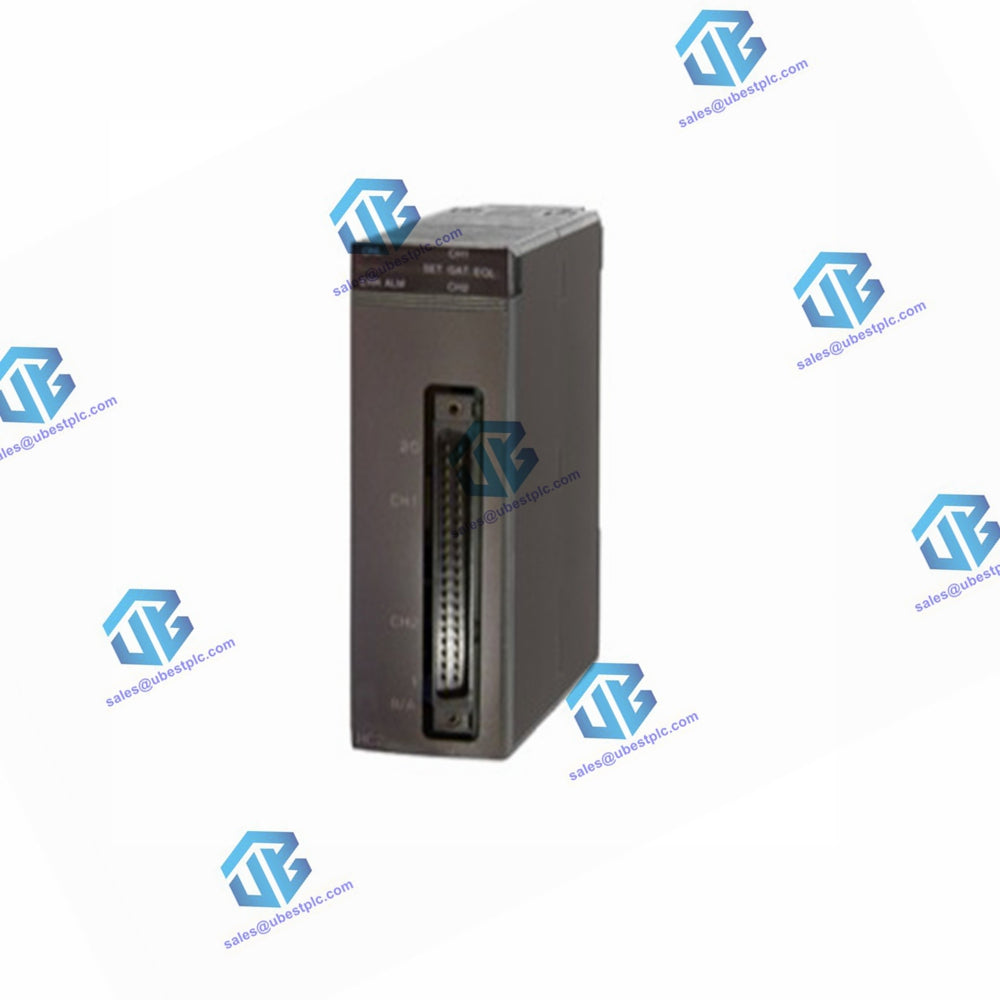

NP1F-HC2 FUJI High-Speed Counter Module

In stock
Manufacturer:
FUJI
Product No.:
NP1F-HC2
Condition:
In Stock
Product Type:
High-speed Counter Module
Product Origin:
JP
Weight:
200g
Shipping port:
Xiamen
Warranty:
12 months

UBEST – Trusted Global Automation Parts Supplier

We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

About Us | Contact

Technical Specifications

Parameter Specification
Manufacturer FUJI
Product Number NP1F-HC2
Product Type High-Speed Counter Module
Counting Speed 500 kHz max. per channel
Number of Channels 2 channels
Input Voltage
  • 24V DC: 85mA or less
  • 5V DC: Internal power supply
Counting Range -2,147,483,648 to 2,147,483,647 (32-bit signed integer, DINT type)
Counting Modes
  • x4 (2-phase signal only): Supports quadrature encoder signals
  • Single/Double/Quadruple count modes
Input Commands
  • External Input Signal
  • Soft Command
Comparator Function
  • Condition: (Counted value) ≥ (Compared value) triggers Output ON
  • Output Type: Open collector output (sink type), 24V DC
  • Rated Load: Max. 100mA per channel
  • Output Isolation: Photocoupler, 1500V AC for 1 minute between I/O connector pins and frame ground
  • Insulation Resistance: 10MΩ or more with 500V DC megger (between I/O connector pins and frame ground)
Memory Usage 16 words
Module Slots 1 slot
Power Consumption 24V DC, 85mA or less
Operating Temperature Range 0°C to +55°C (32°F to 131°F)
Storage Temperature Range -20°C to +70°C (-4°F to 158°F)
Humidity 5% to 95% RH, non-condensing
Dimensions Standard size for PLC modules
Weight Approx. 140g
