PLX32-EIP-PND Gateway: Seamless Data Exchange Between EtherNet/IP and PROFINET

Key Technical Specifications

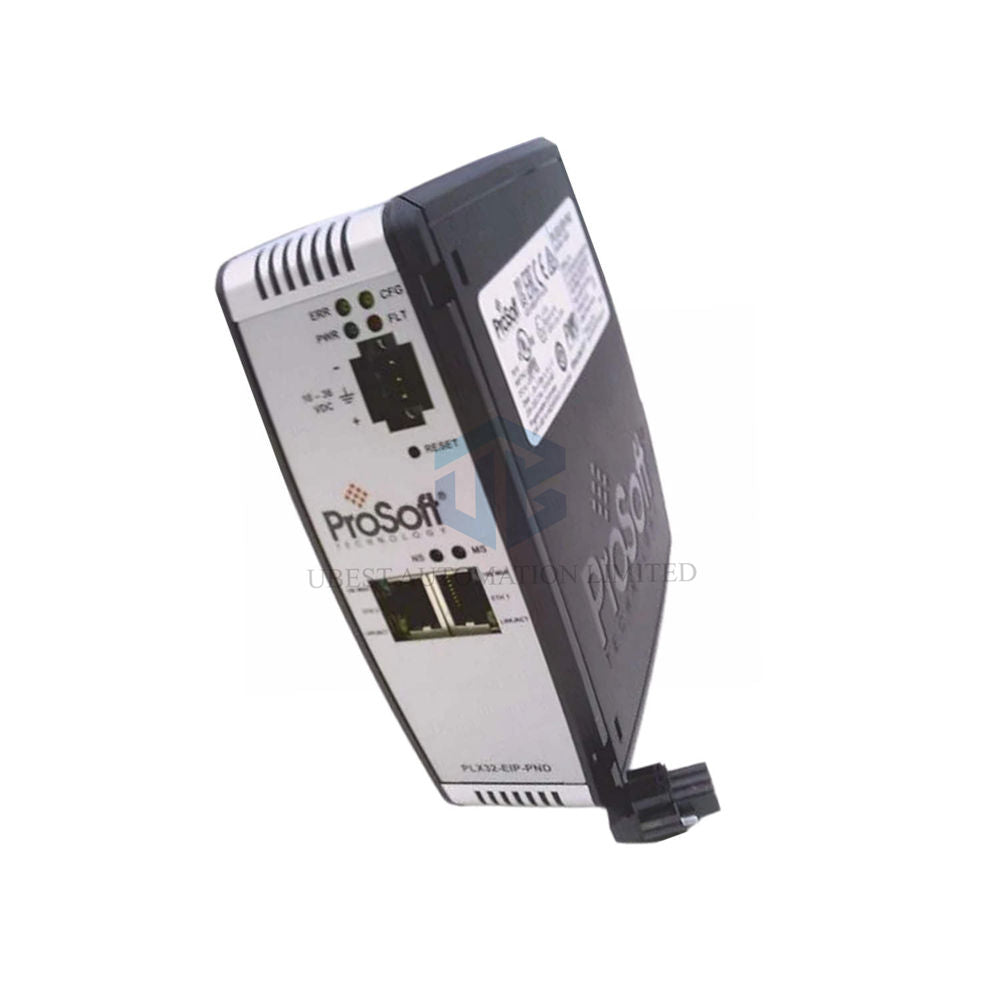

• Brand & Model: ProSoft Technology PLX32-EIP-PND EtherNet/IP to PROFINET I/O Gateway.
• Network Support: Bi-directional data between EtherNet/IP controllers and PROFINET I/O controller.
• Ethernet Ports: Two 10/100Mbit RJ45 ports – each port uses a different subnet.
• PROFINET Driver: Operates as a PROFINET Class A device (v2 certified).
• EtherNet/IP Driver: Supports Class 1 I/O connections or Class 3 Message instructions.
• Data Exchange Capacity: Up to 10,000 16-bit registers for large data amounts.
• I/O Connection Size: 496 bytes IN / 496 bytes OUT per connection. Max RPI time 5 ms.
• PROFINET I/O Data: 1440 bytes IN, 1440 bytes OUT.

Certifications & Compatibility

• ODVA Approved and PROFINET v2 certified for guaranteed interoperability.
• Field-tested with multiple PROFINET controllers from various vendors.
• Embedded EDS AOP allows seamless integration into Studio 5000 and RSLogix 5000.
• No ladder programming required when using EtherNet/IP I/O connections.
• Supports PLC2, PLC5, SLC, CLX, CMPLX, MICROLX PLC types.
• Supports PCCC and CIP message types.

Hardware & Environmental Specifications

• Power Supply: 24 VDC nominal (10 to 36 VDC allowed). Current draw: 300 mA @ 24V, 610 mA max.
• Operating Temperature: -25°C to 70°C (-13°F to 158°F). Storage: -40°C to 80°C.
• Relative Humidity: 5% to 95% RH, non-condensing.
• Shock & Vibration: Operational 15G @ 11ms; Non-operational 30G @ 18ms. Vibration 5G @ 10-150Hz.
• Dimensions (H x W x D): 5.38 x 1.99 x 4.38 in (13.67 x 5.05 x 11.13 cm).
• Electrical Isolation: 1500 Vrms for 60 seconds per IEC 60950.
• Ethernet Broadcast Storm Resiliency: ≤5000 ARP frames/sec for ≤5 minutes.

Frequently Asked Questions (FAQ)

• Q: Does the PLX32-EIP-PND require ladder logic programming?
  A: No. When using EtherNet/IP I/O connections, you do not need any ladder programming.
• Q: Can I use an SD card with this gateway?
  A: Yes. The onboard SD card slot accepts an optional SD card for configuration backup and recovery.
• Q: How many Class 1 I/O connections does the PLX32-EIP-PND support?
  A: It supports up to 8 Class 1 I/O connections with 496 bytes IN/OUT each.
• Q: What is the maximum RPI time per connection?
  A: The minimum RPI time is 5 ms per connection for fast cyclic data exchange.
• Q: Is this gateway compatible with Rockwell Automation controllers?
  A: Yes. The embedded EDS AOP provides seamless integration with Studio 5000 and RSLogix 5000.
• Q: What happens during an Ethernet broadcast storm?
  A: The PLX32-EIP-PND tolerates up to 5000 ARP frames per second for 5 minutes without failure.
