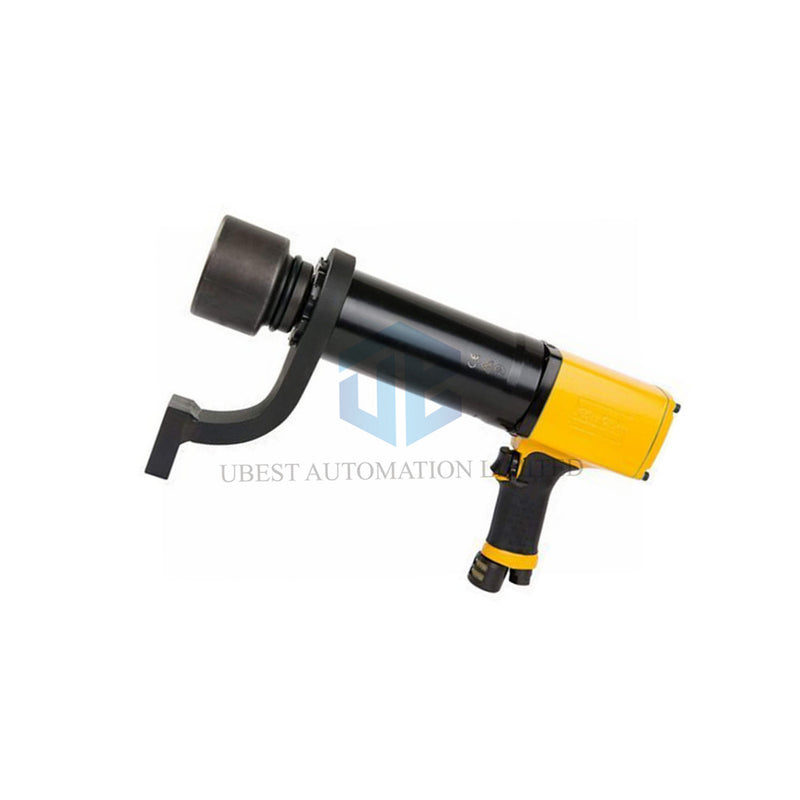

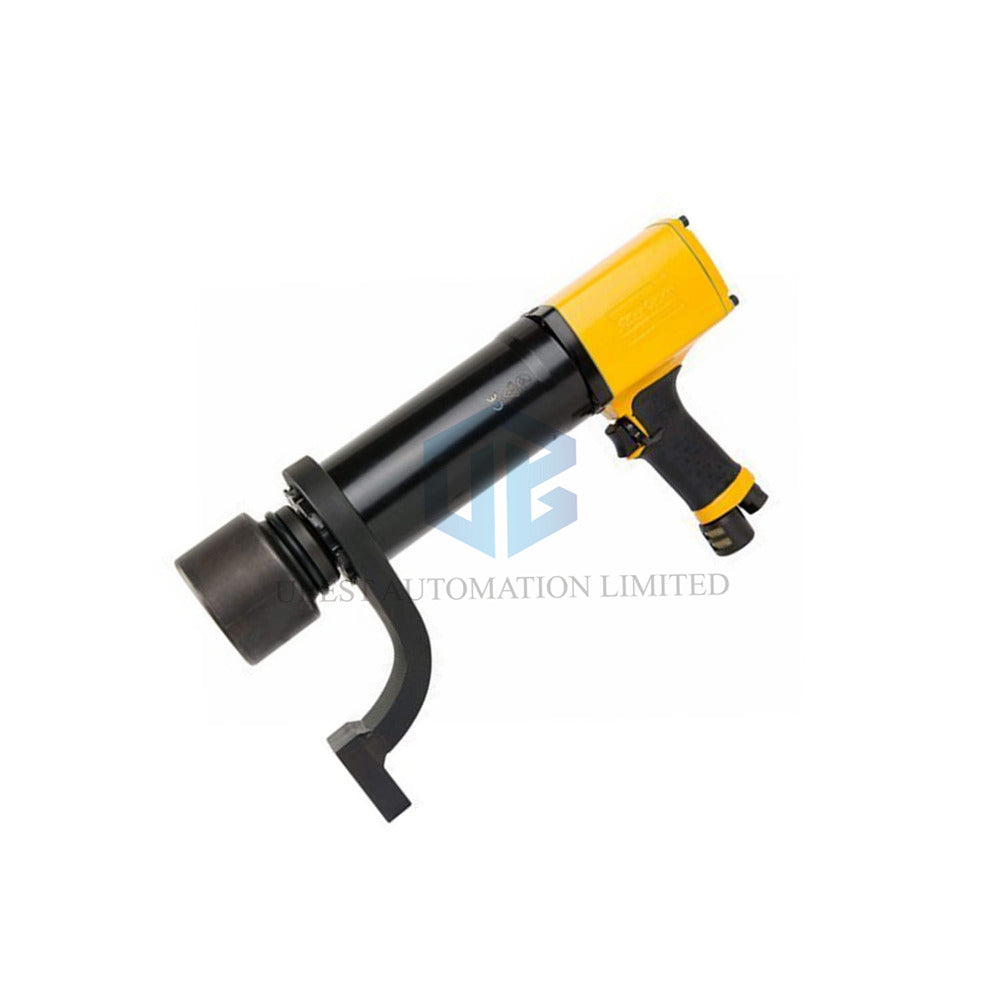

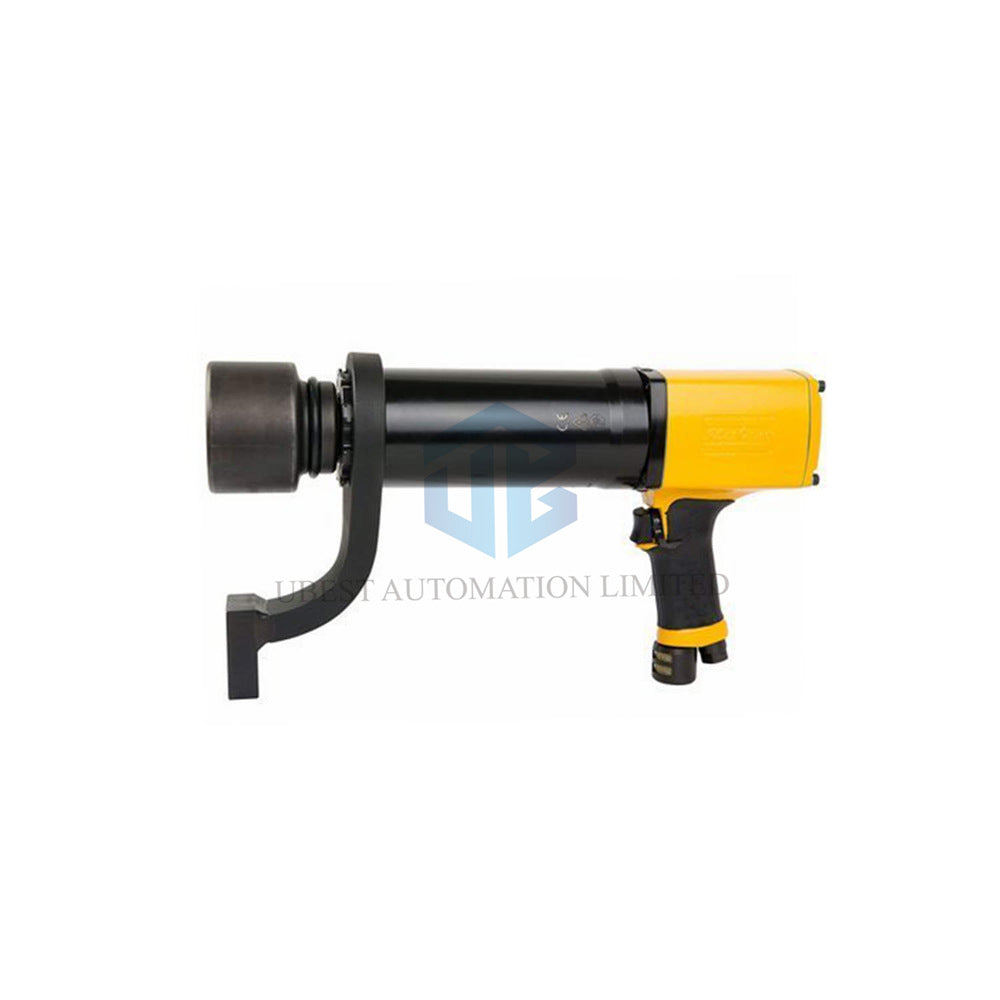

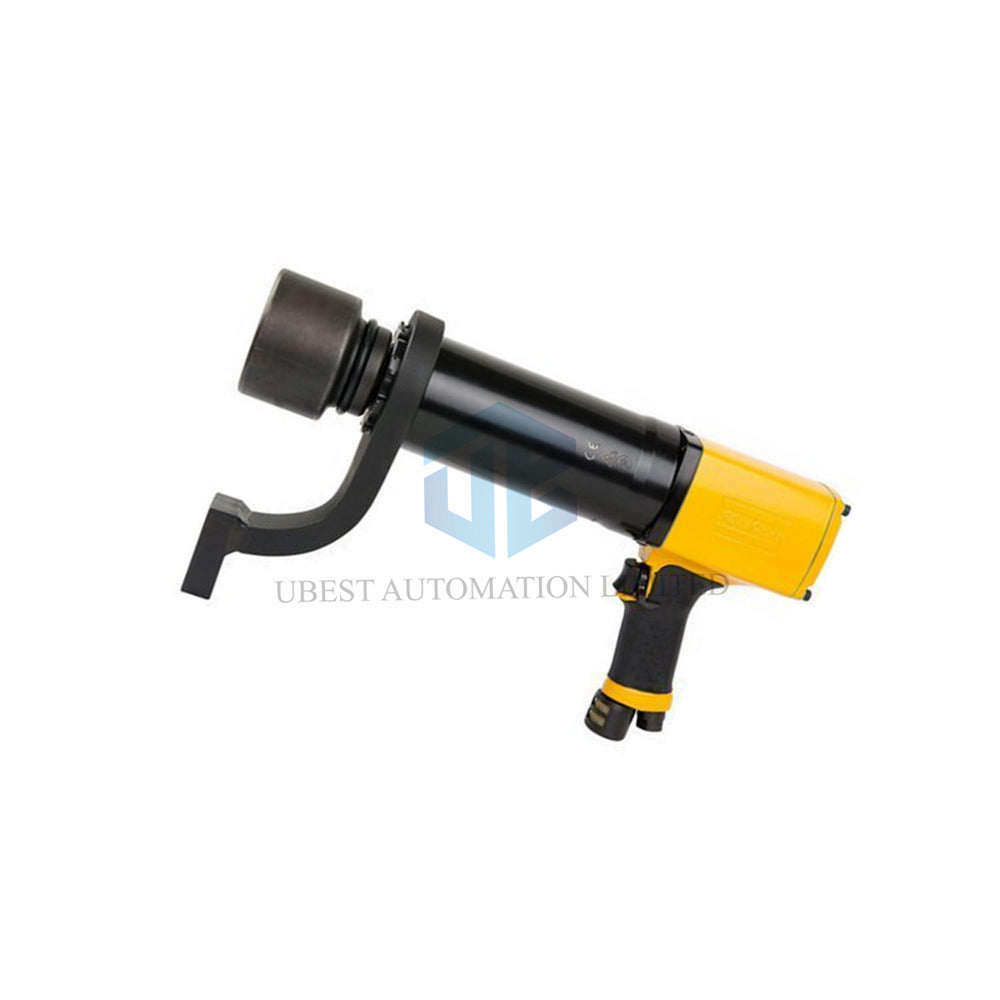

Atlas Copco RTP1300-HR20 Pistol Nutrunner: Precision Torque for Confined Bolting

• Model: RTP1300-HR20
• Origin: HU | Type: Pistol, reversible, no shut-off
• Torque range: 235 - 960 ft-lb (Min at 1.5 bar / Max at 6.3 bar)
• Free speed: 20 r/min | Spline type: 40
• Max working pressure: 91 psi | Air consumption: 48.7 cfm at free speed
• Bolt size capacity: 3/4 to 1 1/16 inch

Key Technical Specifications

• Square drive: 3/4 inch | Air inlet thread: 3/8 inch
• Recommended hose size: 1/2 inch | CS distance: 1 1/3 inch (incl. reaction bar)
• Tool dimensions: 97 inch (L) x 81 inch (H) | Tool weight: 8.15 lb
• Package dimensions: 34.7 x 28.5 x 11 cm | Package weight: 5.19 kg
• Vibration value: <2.5 m/s² (ISO28927-2) | Sound pressure: 90 dB(A)
• Sound power: 101 dB(A) with 3 dB uncertainty (ISO15744)
• Certifications: EAC, EU 2006/42/EC, UK S.I. 2008/1597 | Standards: ISO 11148-6

FAQ – RTP1300-HR20 Pneumatic Nutrunner

• Q: Can this nutrunner shut off automatically?
  A: No. The RTP1300-HR20 does not have a shut-off feature.
• Q: What is the minimum torque I can set?
  A: You can set torque from 235 ft-lb up to 960 ft-lb at 6.3 bar.
• Q: Is the tool reversible?
  A: Yes. It provides reversible rotation for tightening or loosening bolts.
• Q: Which standard does this nutrunner meet?
  A: It meets ISO 11148-6 for assembly power tools.
• Q: How do I maintain the RTP1300-HR20?
  A: Keep the air supply clean and lubricated. Follow the Ubest Automation manual.
