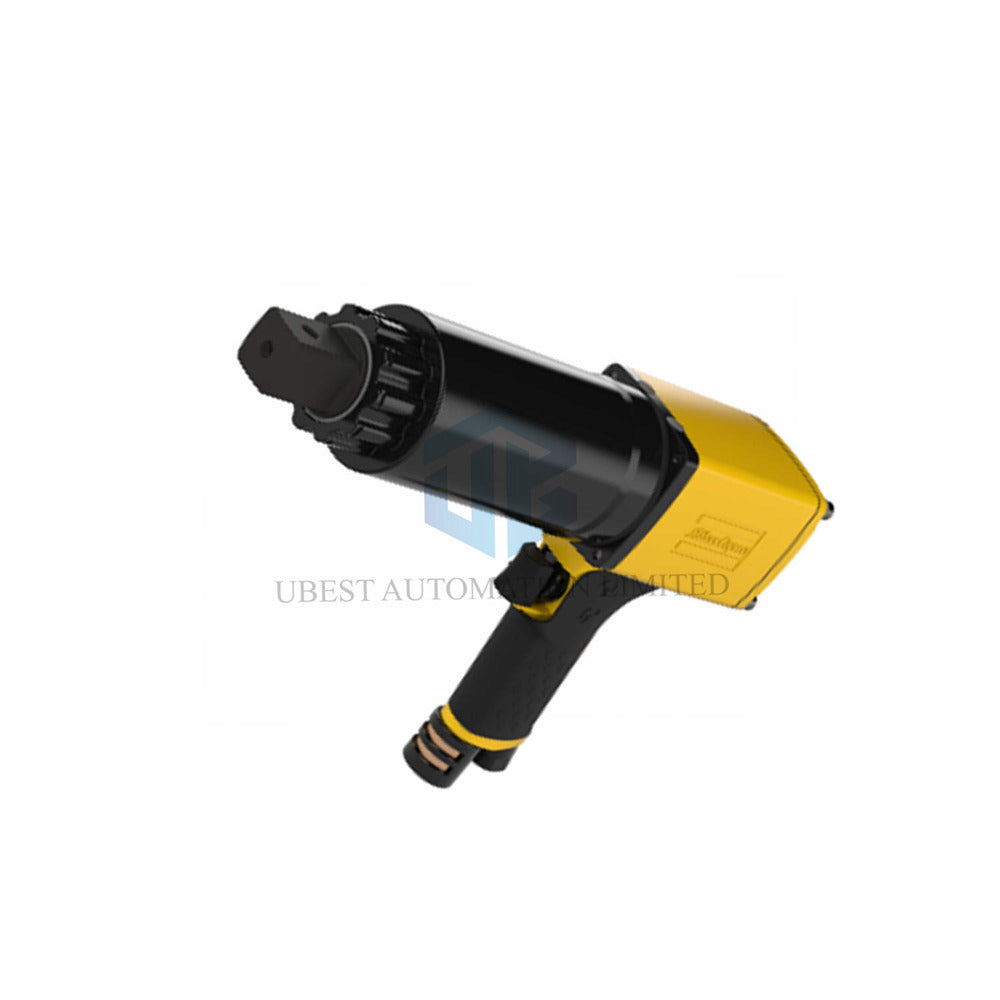

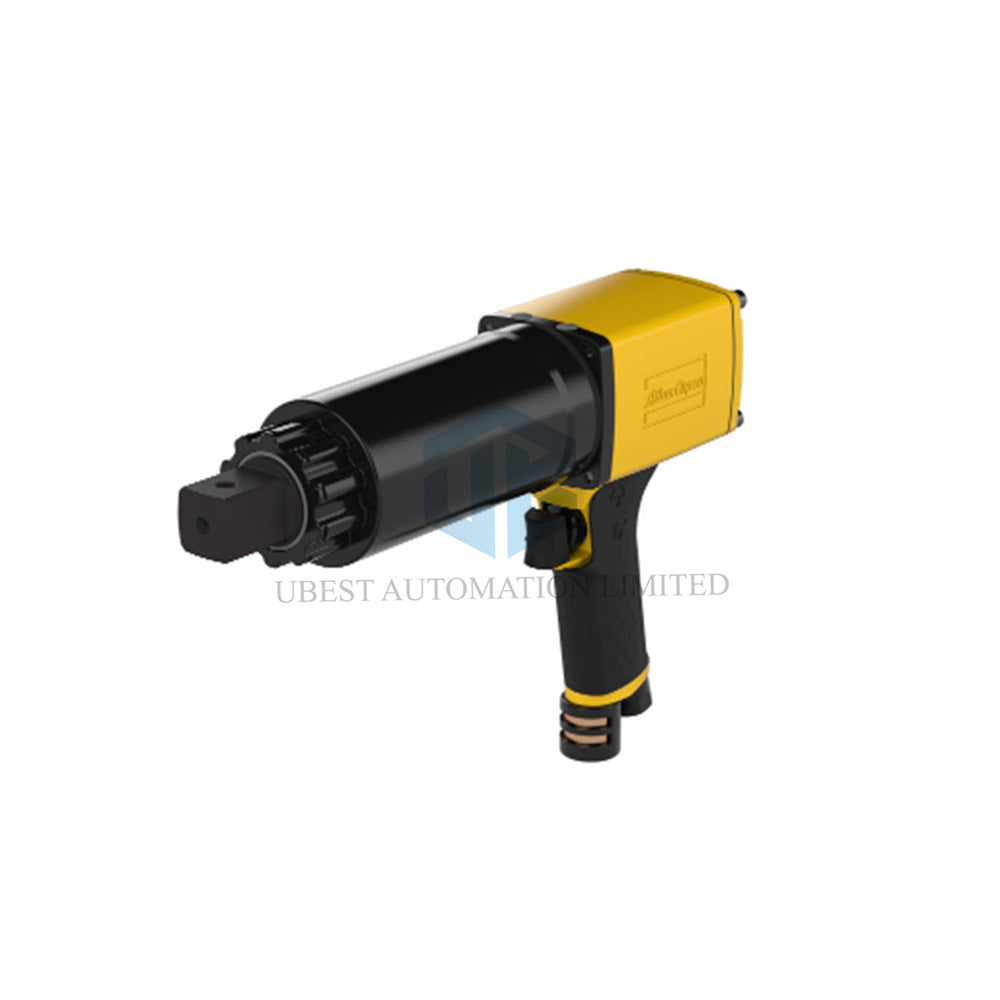

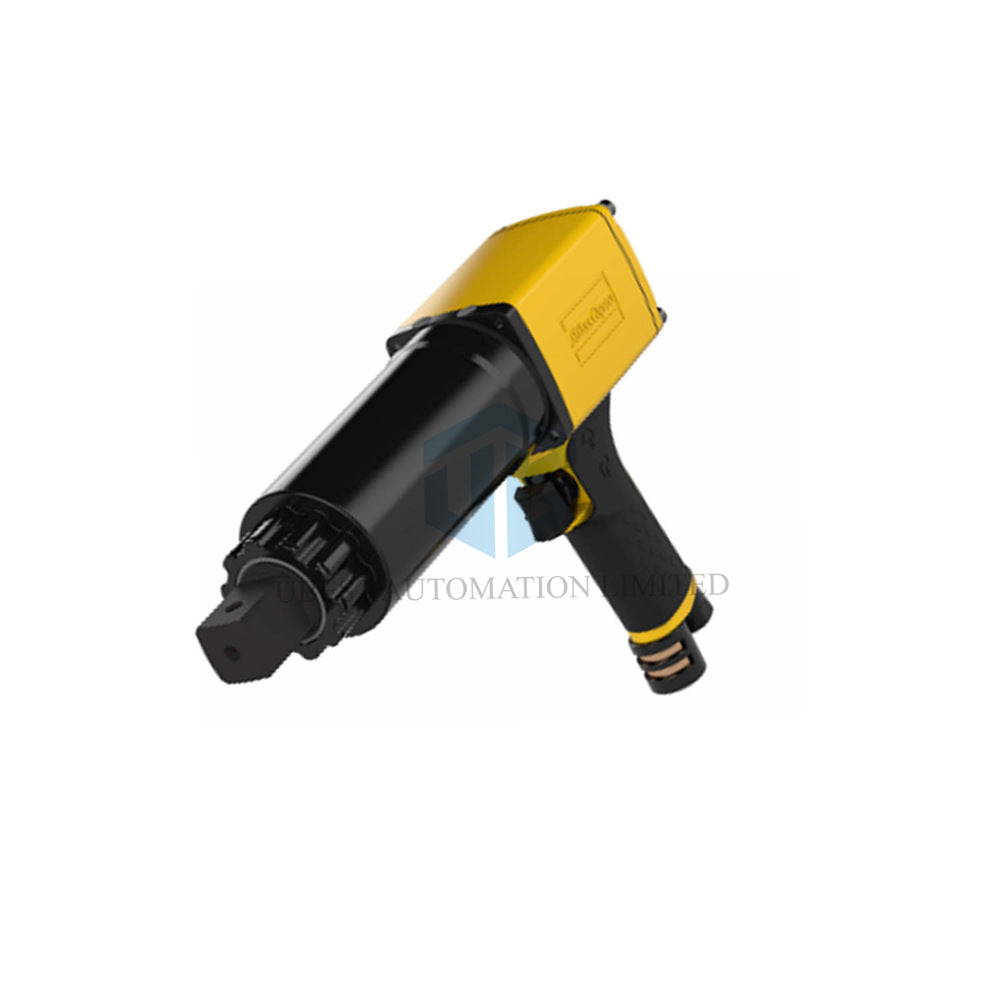

Atlas Copco RTP8100-GIR38 Pneumatic Screwdriver: Heavy-Duty Torque for Industrial Bolting

• Model: RTP8100-GIR38
• Type: Straight, reversible pneumatic screwdriver with no shut-off
• Torque range: 1,600 - 6,000 ft-lb (Min at 1.5 bar / Max at 6.3 bar)
• Max working pressure: 91 psi | Air consumption: 105 cfm at free speed
• Free speed: 10 r/min | Spline type: 72

Key Technical Specifications

• Square drive: 1 1/2 inch | Air inlet thread: 1/2 inch
• Recommended hose size: 1/2 inch | CS distance: 2 inch (incl. reaction bar)
• Dimensions: 17 inch (L) x 8 inch (H) | Weight: 30 lb (tool only)
• Package dimensions: 57.3 x 37.7 x 17.2 cm | Package weight: 18.97 kg
• Vibration value: <2.5 m/s² (ISO28927-2) | Sound pressure: 101 dB(A)
• Sound power: 111 dB(A) with 3 dB uncertainty (ISO15744)
• Certifications: EAC, EU 2006/42/EC, UK S.I. 2008/1597 | Standards: ISO 11148-6

FAQ – RTP8100-GIR38 Pneumatic Screwdriver

• Q: Can this screwdriver shut off automatically?
  A: No. The RTP8100-GIR38 does not have a shut-off mechanism.
• Q: What is the minimum torque I can set?
  A: You can set the torque from 1,600 ft-lb up to 6,000 ft-lb at 6.3 bar.
• Q: Is the tool reversible?
  A: Yes. It offers a reversible rotation direction for tightening or loosening.
• Q: Which standard does this tool meet?
  A: It meets ISO 11148-6 for assembly power tools.
• Q: How do I maintain the RTP8100-GIR38?
  A: Keep the air supply clean and lubricated. Follow the manual from Ubest Automation.
