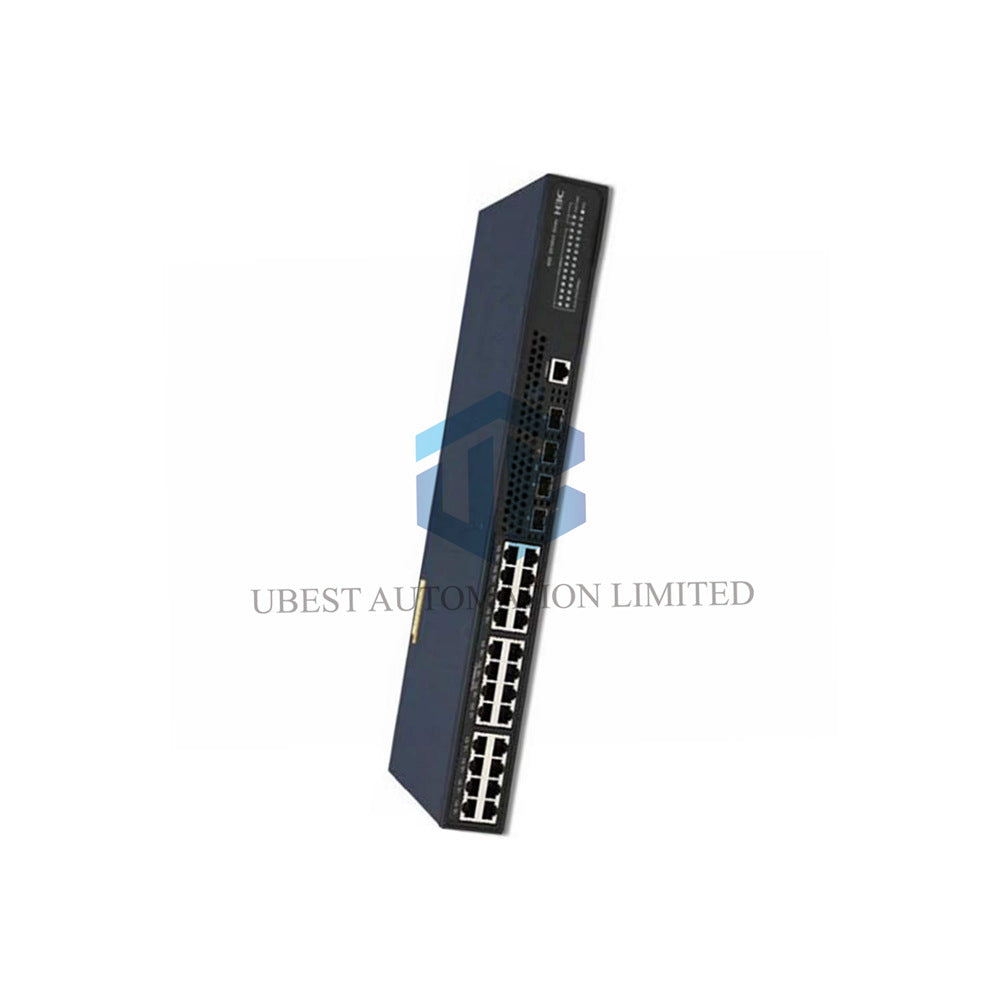

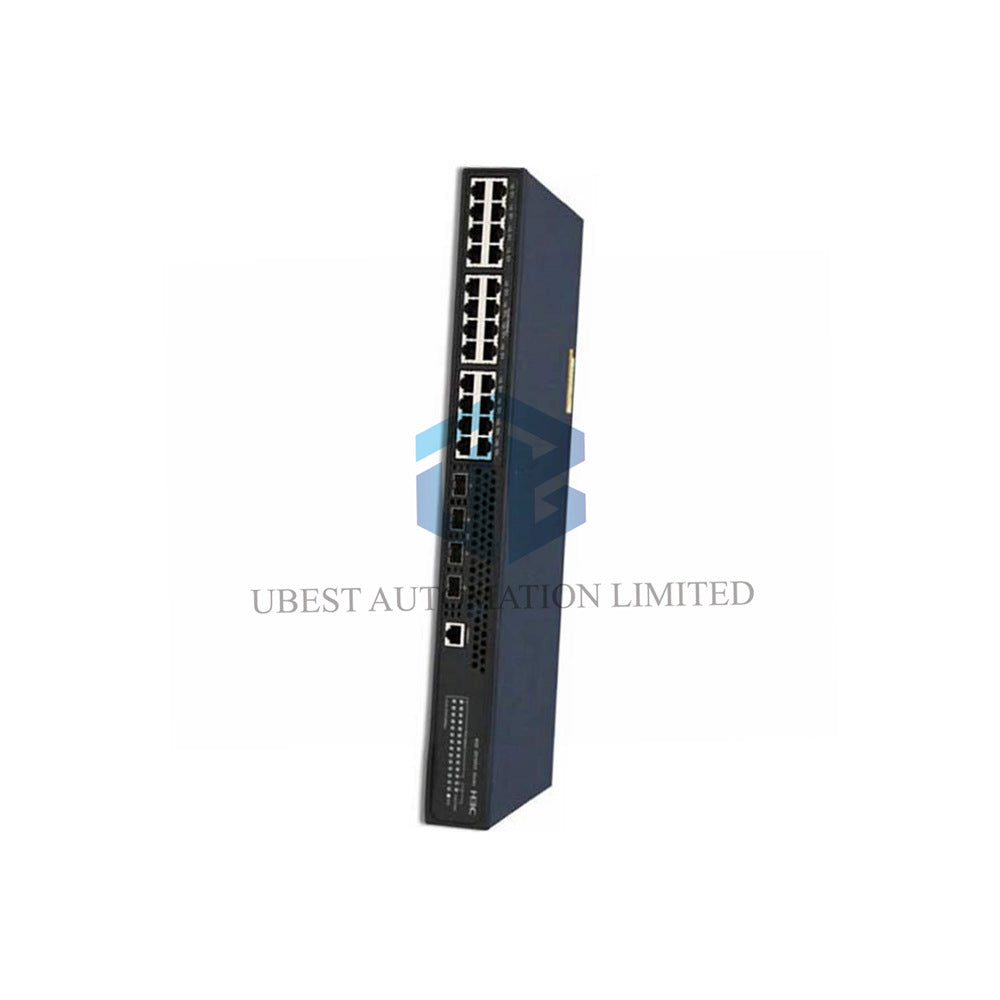

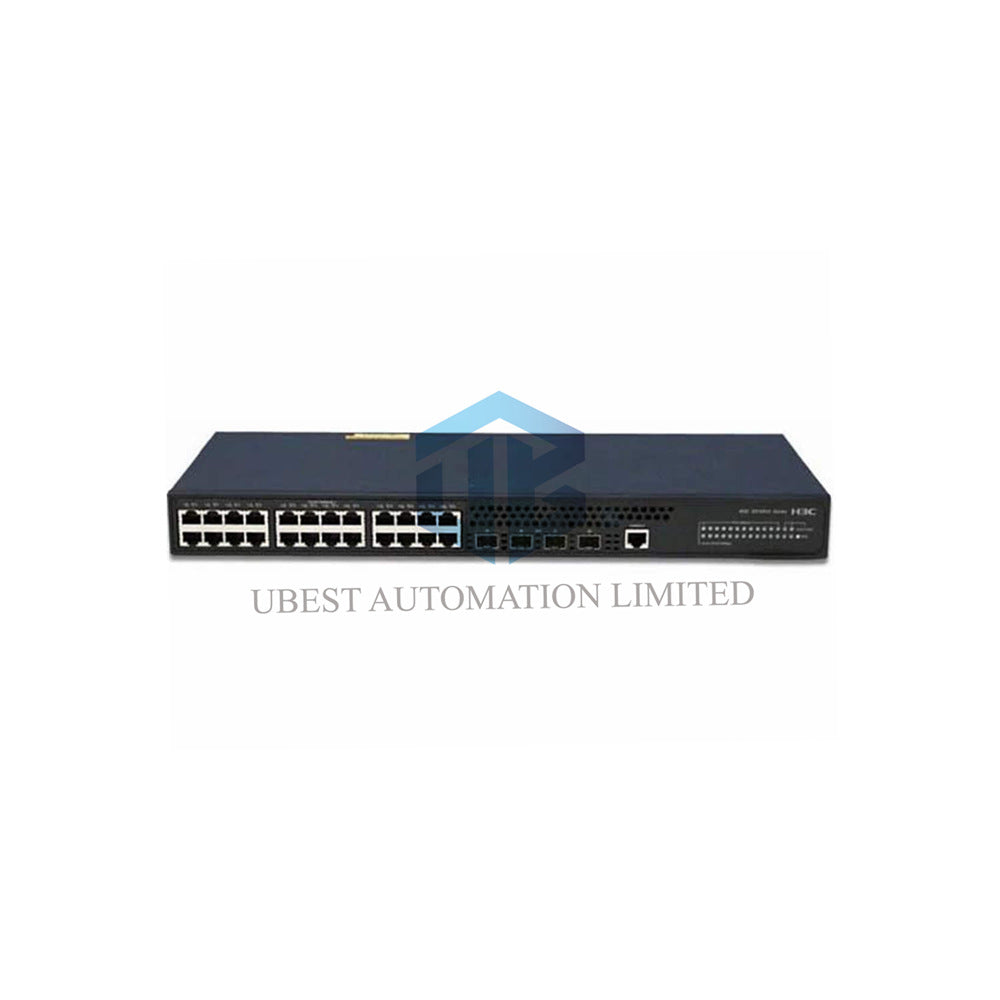

H3C S5130S-28S-SI Switch: High-Performance Enterprise Networking Solution

Overview and Key Capabilities

• H3C manufactures the S5130S-SI series to deliver reliable Gigabit access with high-speed 10-Gigabit uplinks for growing business networks.
• Network engineers deploy this managed switch to support advanced routing protocols, robust security policies, and high-density port configurations.
• Intelligent IRF2 architecture virtualizes multiple physical units into one logical system to maximize operational efficiency and bandwidth capacity.

Technical Specifications

• Brand: H3C
• Model: S5130S-28S-SI
• Service Ports: 24 x 10/100/1000TX Ethernet ports and 4 x SFP+ ports
• Switching Capacity: 336 Gbps / 3.36 Tbps
• Packet Forwarding Rate: 126 Mpps
• Dimensions: 440 x 160 x 43.6 mm
• Weight: Less than 2.5 kg
• Management Port: 1 x Console port
• Input Voltage: AC rated voltage range 100V to 240V AC at 50/60 Hz
• Power Consumption: Minimum 10W, Maximum 24W

Advanced Architecture and Resiliency

• Second-generation IRF2 technology combines multiple physical devices into a single logical network element.
• System administrators manage the entire virtual cluster through one IP address to reduce configuration complexity.
• Dynamic member replacement and hot-swappable units maintain continuous network uptime during hardware maintenance cycles.
• Distributed link aggregation replaces traditional spanning tree protocols to accelerate network convergence times.

Comprehensive Security Framework

• Built-in ARP detection mechanisms protect internal network segments against malicious spoofing and broadcast storms.
• Integrated EAD security checks isolate compromised client endpoints before network admission occurs.
• Multi-factor authentication protocols like 802.1X verify user identities at every network access layer.

Advanced Traffic Management and QoS

• Hardware-based access control lists filter incoming data packets across layers two through four seamlessly.
• Flexible queue scheduling algorithms prioritize mission-critical voice and video traffic without data loss.
• Bidirectional port mirroring allows network technicians to monitor live traffic patterns for rapid troubleshooting.

Installation Guide

• Mount the hardware unit securely inside a standard 19-inch server rack using included brackets.
• Connect the power cord to an approved alternating current source within the specified voltage range.
• Link the console port to a local workstation terminal for initial command line interface configuration.

Package Contents

• One H3C S5130S-28S-SI network switch unit
• One standard power supply cable
• One RJ45 to serial console management cable
• One set of rack mounting brackets with attachment screws

Frequently Asked Questions

• Does this hardware support standard layer three routing protocols? Yes, the device handles static routing, RIP, and OSPF configurations.
• What delivery carriers transport customer shipments? The supplier ships orders securely via FedEx, UPS, and DHL.

SEO Title 1: H3C S5130S-SI Managed Gigabit Switch

SEO Title 2: H3C S5130S-SI 10G Uplink Switch Specs

Meta Description: Discover the H3C S5130S-SI managed switch featuring 24 Gigabit ports, 10G uplinks, and IRF2 technology for enterprise networks.

Summary
Engineers choose the H3C S5130S-SI switch to build resilient, high-speed campus networks with advanced security and routing capabilities. This intelligent platform combines gigabit user access with ten-gigabit uplinks to eliminate network bottlenecks.
