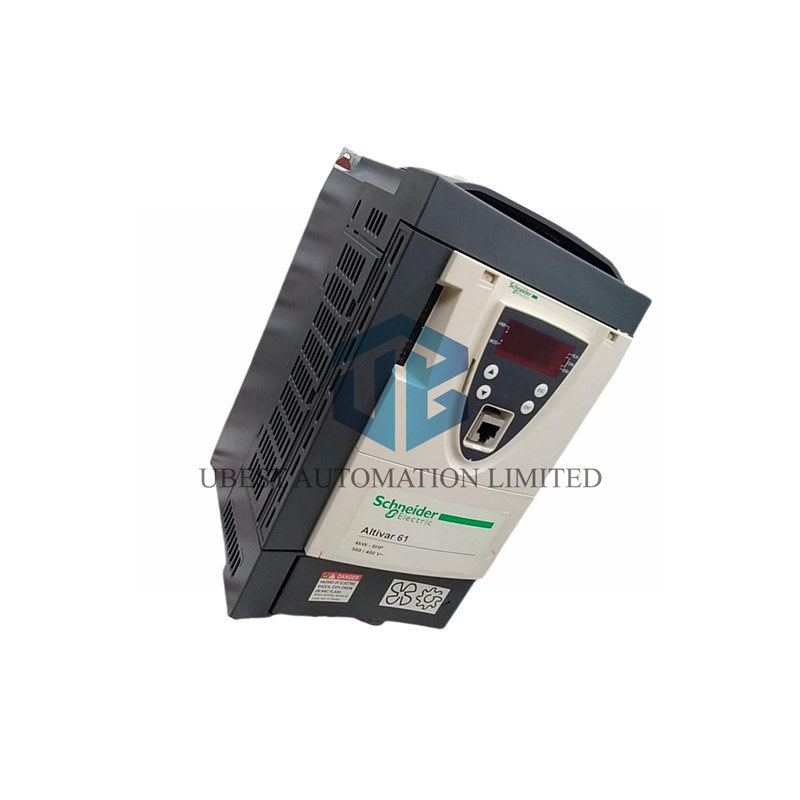

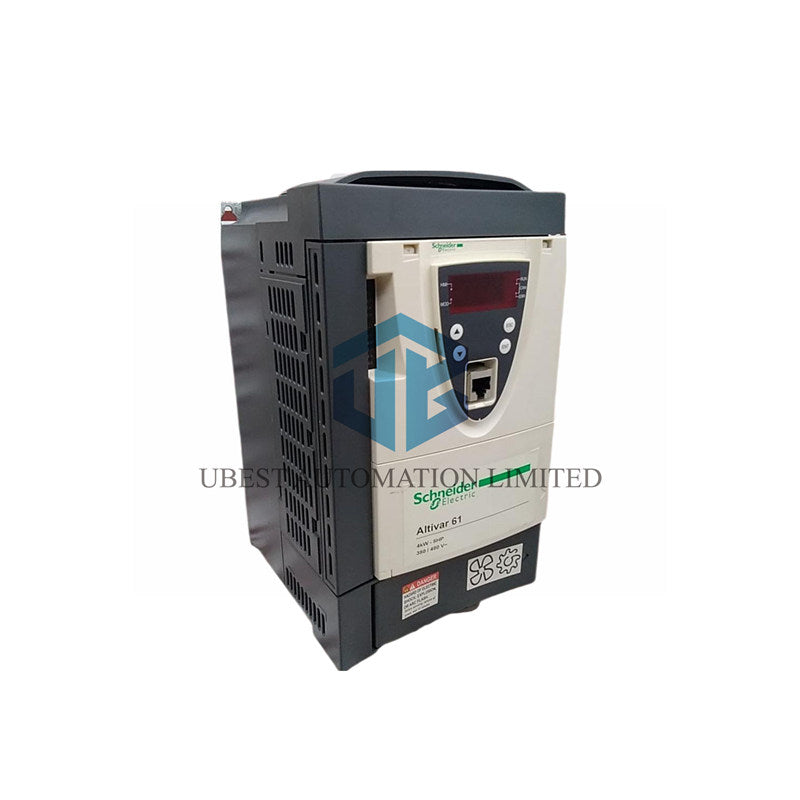

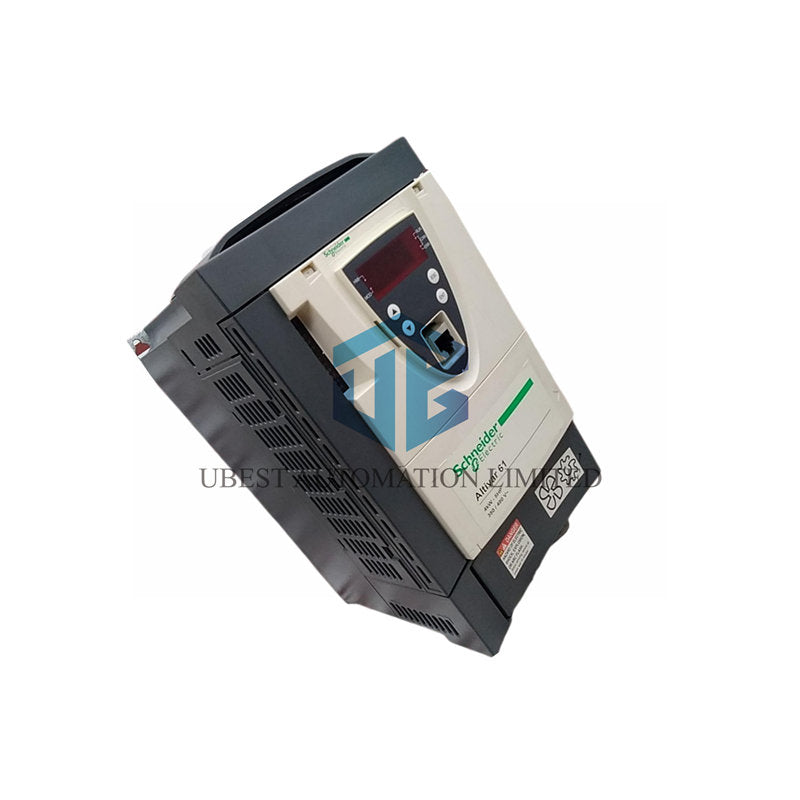

Schneider Electric Altivar 61 Drive: Precision Motor Control

The Schneider Electric ATV61HU40N4 variable speed drive delivers excellent performance for industrial motors. This ATV61HU40N4 model from the Altivar 61 series provides smooth speed control for your equipment. It handles 4 kW (5 HP) power with 380-480V supply. Perfect for pumps, fans, and conveyor systems.

Why Choose This Drive?

• Integrated EMC filter for clean power operation
• Adjustable switching frequency for optimal performance
• Compact design with built-in heat sink
• Easy installation and setup process
• Reliable overload protection included

Technical Specifications

• Brand: Schneider Electric
• Model: Altivar 61 ATV61HU40N4
• Power Rating: 4 kW / 5 HP
• Supply Voltage: 380-480V 3-phase
• Line Current: 5.4 A
• Maximum Current: 7.5 A (60 seconds)
• Apparent Power: 5.5 kVA
• Switching Frequency: 1-16 kHz adjustable
• Protection Rating: IP20
• Weight: 11.34 kg (25 lbs)
• Supply Frequency: 50/60 Hz
• EMC Filter: Integrated
• Cooling: Heat sink assembly

Frequently Asked Questions

What types of motors work with this drive?

It works with standard three-phase AC motors commonly used in industrial applications.

How does the EMC filter help my system?

It reduces electrical noise, preventing interference with other sensitive equipment nearby.

Can I adjust the motor speed precisely?

Yes, the variable frequency control allows smooth speed adjustment from zero to maximum.

What's the advantage of adjustable switching frequency?

You can optimize between motor noise and drive efficiency for your specific application.

Is this suitable for heavy-duty applications?

It handles short overloads well, making it suitable for most industrial applications.

Shipping & Warranty

We ship worldwide via FedEx, UPS, and DHL. Your purchase includes full 12-month warranty coverage.
