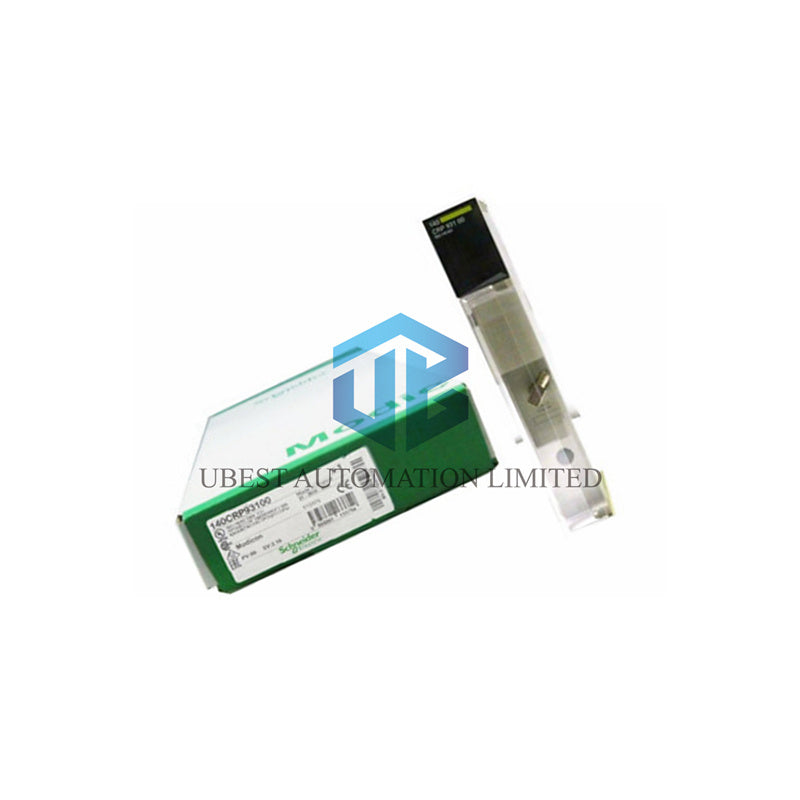

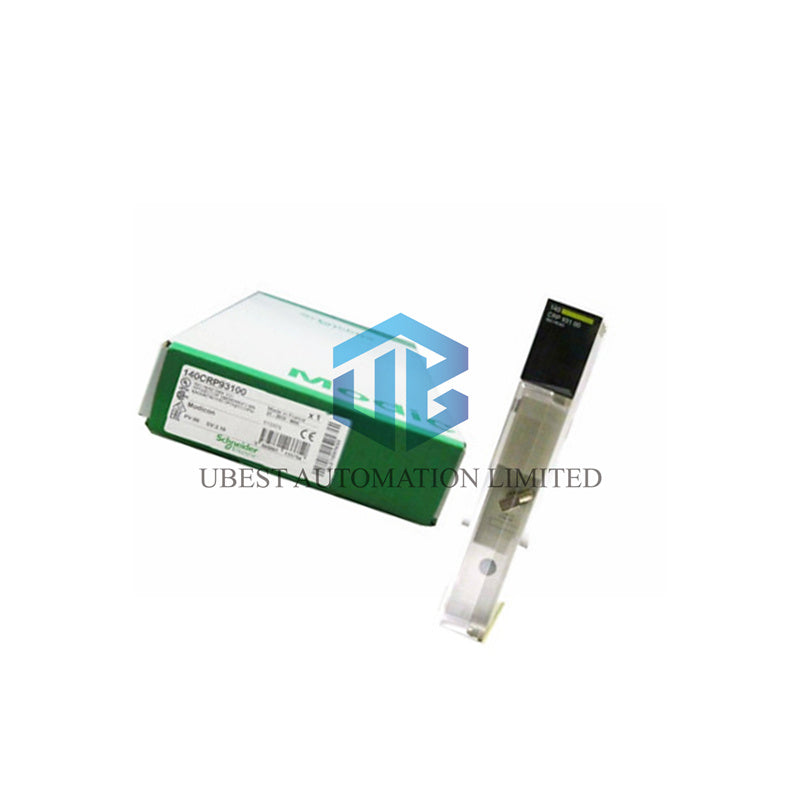

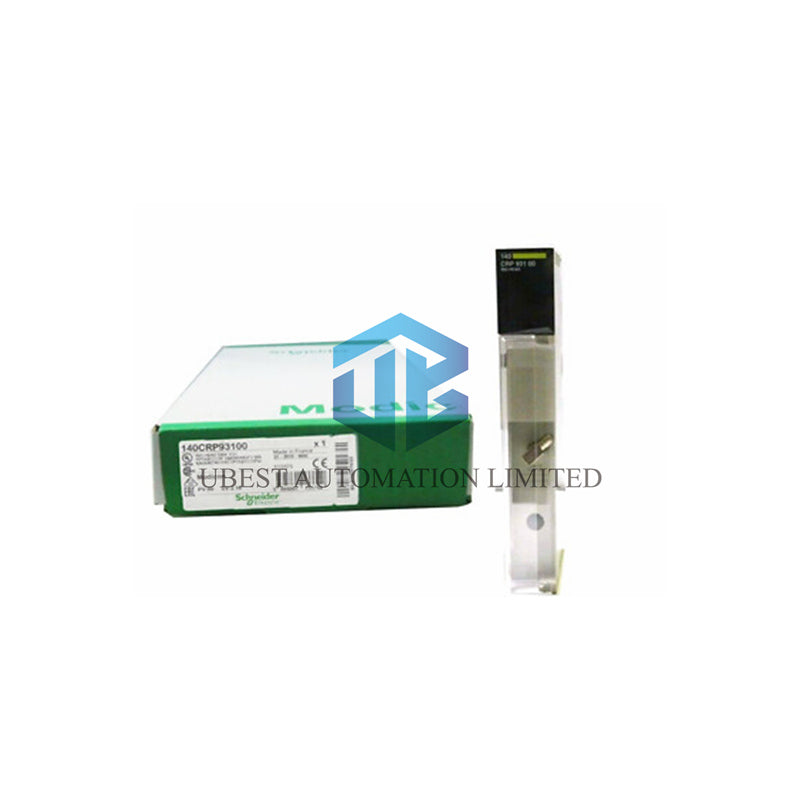

Schneider Electric 140CRP93100 RIO Adaptor Module

Connect your automation network with confidence:

• High-speed 1544 Mbit/s data transmission
• Supports up to 31 remote drops on network
• Robust 75 Ohm coaxial cable connection
• FM Class 1 Division 2 hazardous area certified
• Compatible with entire Quantum series family

Quick Overview

• Brand: Schneider Electric
• Model: 140CRP93100
• Series: Modicon Quantum Platform
• The 140CRP93100 connects remote I/O systems.
• It serves as a RIO head-end adaptor module.
• This device enables fast network communication.

Network Specifications

• Data Speed: 1544 Mbit/s maximum rate
• Cable Type: 75 Ohm coaxial required
• Max Drops: 31 remote stations supported
• I/O Capacity: 64 input/64 output words per drop
• Signal Range: 35 dB dynamic range capability
• Isolation: 500V DC coaxial to ground
• Response Time: <2ms typical scan cycle
• Noise Immunity: >1500V common mode rejection

Electrical Characteristics

• Power Consumption: 3 Watts maximum
• Bus Current: 600 mA at 5V DC
• Connector Type: F-type female elbow
• Voltage Rating: 500V working voltage
• Impedance: 75 Ohm matched system

Environmental Ratings

• Operating Temp: 0°C to +60°C range
• Storage Temp: -40°C to +85°C range
• Humidity: 95% non-condensing maximum
• Altitude: Up to 5000 meters operation
• ESD Protection: 4kV contact / 8kV air discharge
• EMC Immunity: 10V/m 80-1000MHz

Certifications & Standards

• FM Class 1 Division 2 approved
• UL 508 industrial standard compliant
• cUL certified for Canada
• CSA C22.2 No 142 met
• CE marked for European market

Physical Details

• Module Weight: 17.6 ounces (500g)
• Package Size: 12.36" x 6.42" x 1.69"
• Format: Standard Quantum module
• Single-unit packaging (1 PCE)
• Compact design saves panel space

Shipping & Service

• Express worldwide shipping available
• FedEx, UPS, DHL carrier options
• Professional protective packaging
• 12-month comprehensive warranty
• Easy returns accepted
• Technical support provided

Technical Questions

• What systems does this adaptor work with?
• It works with Quantum 200/500/800 series and Symax systems.
• What type of cable should I use?
• Use 75 Ohm coaxial cable for proper impedance matching.
• How many devices can connect to one module?
• You can connect up to 31 remote drops on the network.
• What diagnostics does the module provide?
• It performs power-up, memory, and LAN controller checks.
• Is this suitable for hazardous locations?
• Yes, it carries FM Class 1 Division 2 certification.
