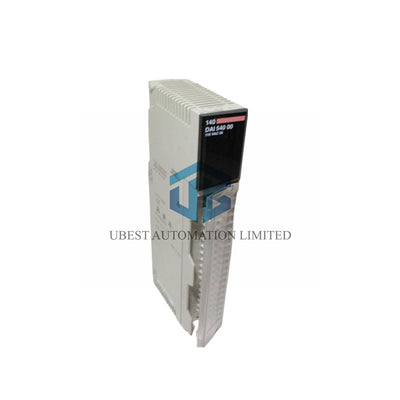

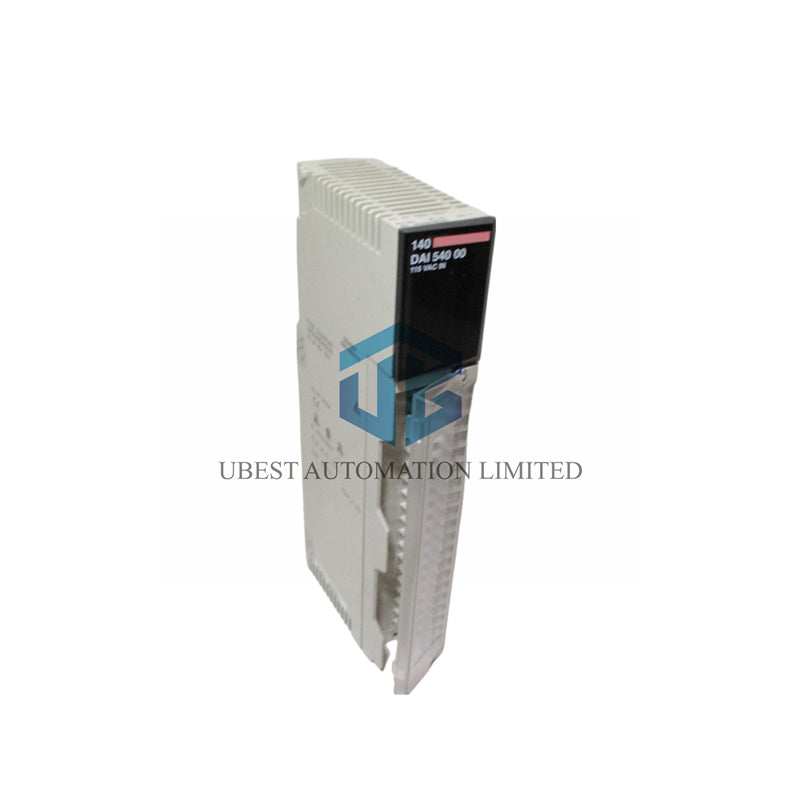

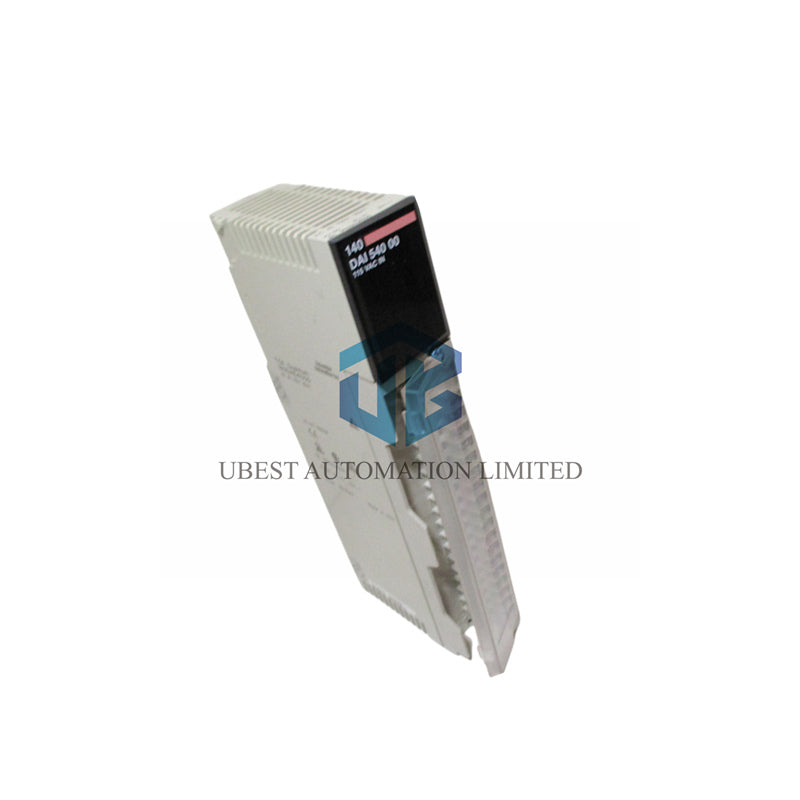

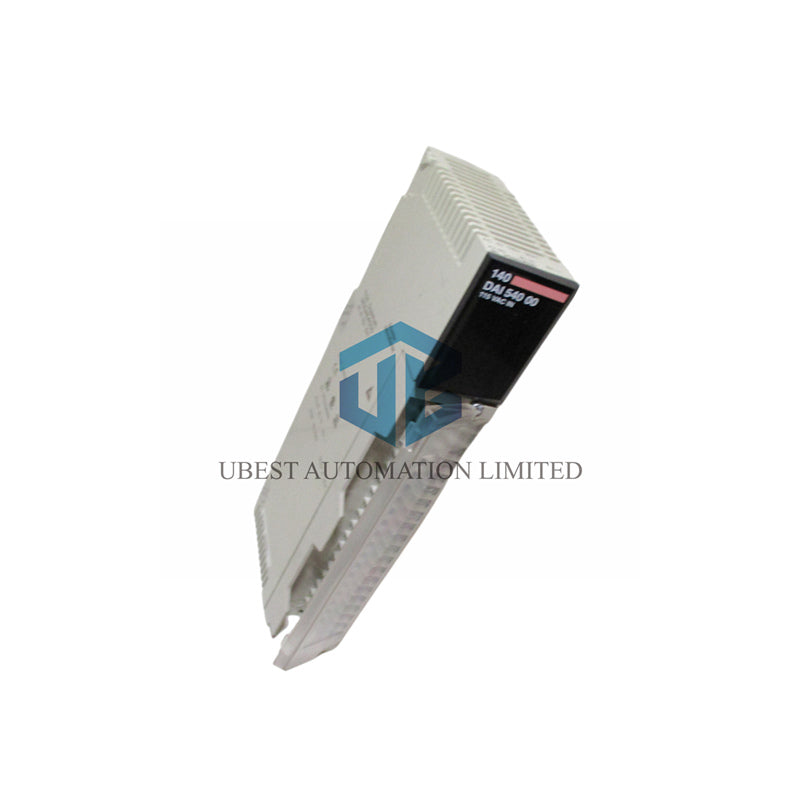

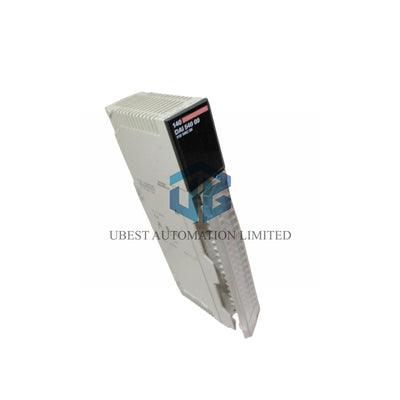

Schneider Electric 140DAI54000 AC Input Module
- Ready to Ship Today
- Original Schneider Electric Quality
- Free Configuration Support
- Best Price Guarantee
Compact AC Input Solution
The 140DAI54000 delivers reliable 115V AC input capability for your Quantum system. This 16-channel module provides industrial-grade signal acquisition in a compact design.
Core Advantages
16 isolated inputs - Individual channel separation
115V AC compatible - Standard industrial voltage
Visual status monitoring - 16 green LED indicators
High-voltage protection - 1780V isolation rating
Low power consumption - Only 180mA bus current
Performance Specifications
Manufacturer: Schneider Electric
Model Number: 140DAI54000
Input Channels: 16 points
Rated Voltage: 115V AC
Operating Range: 79-132V AC
Frequency Range: 47-63 Hz
Input Current: 11.1-13.2 mA per point
Response Time: 0.75ms OFF-ON, 12.3ms ON-OFF
Power Usage: 5.5W maximum
Isolation Voltage: 1780V RMS
Operating Temp: 0°C to 60°C
Product Weight: 0.31 kg
System Integration
Programming Software: Unity Pro, Concept, ProWORX 32
Backplane Power: 180 mA required
Memory Addressing: 1 input word
Mounting: Standard Quantum rack
What's Included
1 x 140DAI54000 Input Module
Installation documentation
Ordering Information
Express shipping via FedEx, UPS, DHL available
12-month warranty coverage
Return policy applies
Expert Answers
What is the main advantage of this module?
It provides 16 fully isolated AC input channels with individual status indicators for easy monitoring.
Can it handle voltage fluctuations?
Yes, it operates reliably from 79V to 132V AC and withstands surges up to 200V briefly.
How does it connect to my control system?
It installs directly into Quantum racks and requires only one input word of addressing space.
What maintenance is required?
The solid-state design needs no regular maintenance, with LED status lights for troubleshooting.
Is special wiring needed?
Standard industrial wiring practices apply, with 1780V isolation ensuring safe operation.
