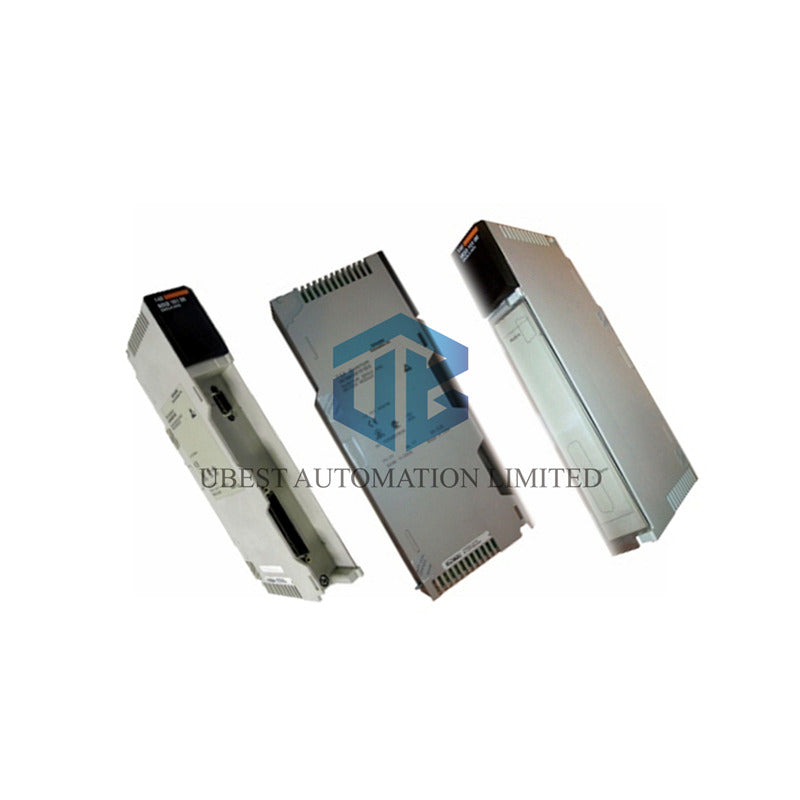

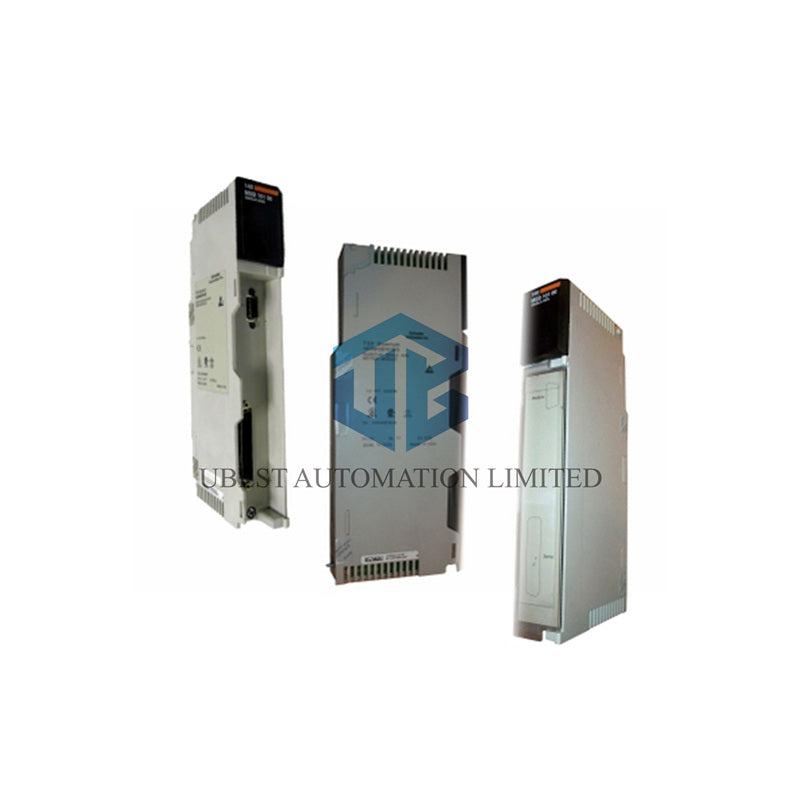

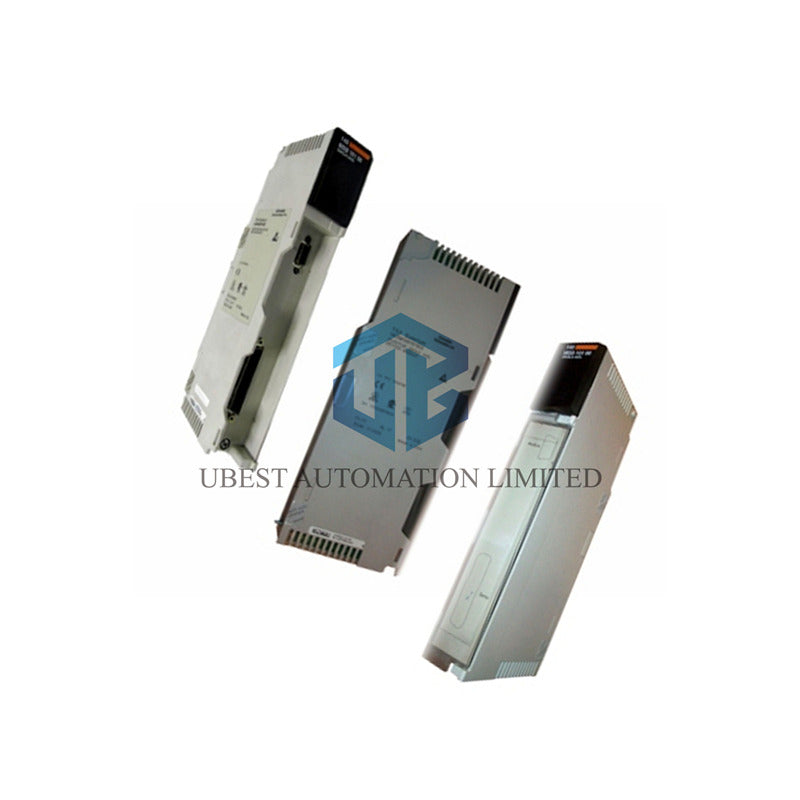

Schneider Electric 140MSB10100 Motion Control Module

Precision motion control for industrial automation:

• Single-axis control with remote synchronization capability
• High-speed 2000 kHz encoder input for accurate positioning
• 28 programmable motion sequences for complex operations
• Multiple safety certifications including CSA Class 1 Division 2
• Real-time position and speed control with 1ms updates

Product Overview

• Brand: Schneider Electric
• Model: 140MSB10100
• Series: Modicon Quantum Platform
• The 140MSB10100 provides precise motion control.
• It handles single-axis motion applications.
• This module supports differential encoder systems.

Motion Control Specifications

• Control Axes: 1 real axis + 1 remote axis
• Position Range: 4,294,967,296 points maximum
• Update Speed: 1ms position loop timing
• Speed Loop: 0.5ms update rate
• Accuracy: 0.5 arc-minutes typical
• Encoder Frequency: 2000 kHz maximum
• Program Storage: 650 flash memory commands
• Motion Types: 28 traversing programs available

Encoder & Input Specifications

• Encoder Type: Differential 5V compatible
• Encoder Impedance: 500 Ohm input resistance
• Voltage Tolerance: 5V ±20% operating range
• Digital Inputs: 7 auxiliary 24V inputs
• Analog Inputs: ±10-24V range available
• Capture Time: 250ms high-speed input

Output Capabilities

• Analog Output: ±10-24V bipolar signal
• Resolution: 11 bits + sign precision
• Drive Enable: 24V 500mA output capacity
• Auxiliary Outputs: 3 channels at 24V 150mA
• Discrete Outputs: ≤30V drive enable capability

Communication & Interface

• RS232 Port: SUB-D 9 connector Modbus slave
• Servo Interface: SUB-D 50 connector
• Baud Rate: 300-9600 bit/s configurable
• I/O Words: 3 input + 4 output words
• Status LEDs: 11 indicators for monitoring

Electrical Requirements

• Rack Power: 1000mA at 5V DC
• External Power: 500mA at 24V DC
• Power Consumption: 8W maximum total
• Isolation: 1500V AC input to output

Environmental Ratings

• Operating Temp: 0°C to +60°C range
• Storage Temp: -40°C to +85°C range
• Humidity: 95% non-condensing maximum
• Altitude: Up to 5000 meters operation
• EMC Immunity: 10V/m 80-1000MHz

Certifications & Standards

• UL 508 industrial standard
• CSA Class 1 Division 2 certified
• DNV, GL, LR marine approvals
• ABS, RINA marine certified
• GOST Russian standard
• C-Tick Australia compliant

Shipping & Service

• Worldwide express shipping available
• FedEx, UPS, DHL carrier options
• Secure professional packaging
• 12-month product warranty included
• Technical support available
• Quality assurance guaranteed

Technical Questions

• What types of motion can this module control?
• It controls linear, rotary, and continuous axis movements precisely.
• How many motion programs can I store?
• You can store up to 28 different traversing programs in memory.
• What encoder types are supported?
• It supports differential 5V encoders with 500 kHz base frequency.
• Can I use this in hazardous locations?
• Yes, it has CSA Class 1 Division 2 certification for safe use.
• What communication protocols are available?
• Modbus Serial RS232D protocol at 300-9600 bit/s rates.
