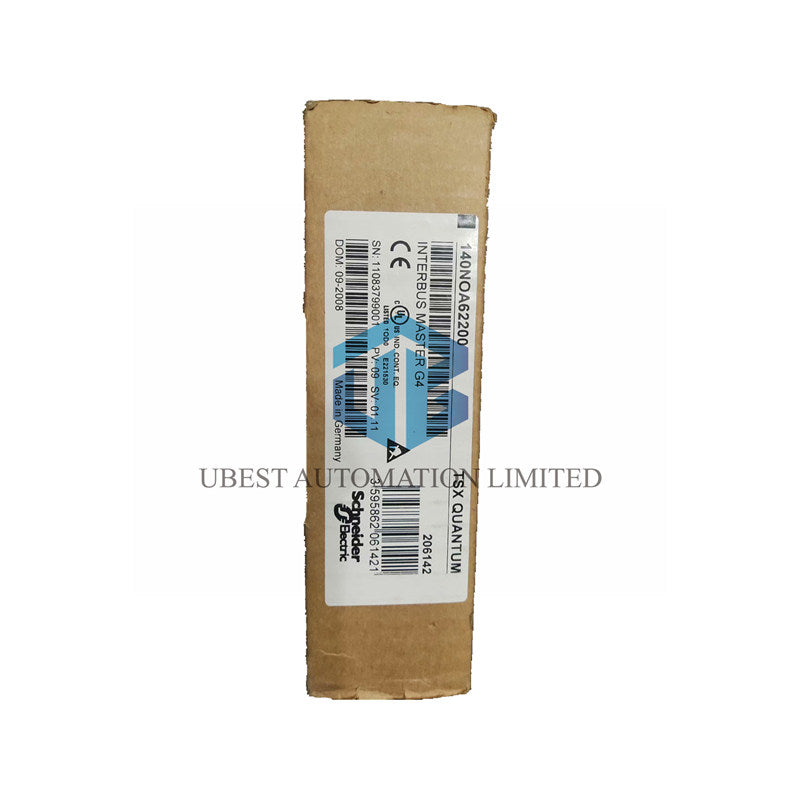

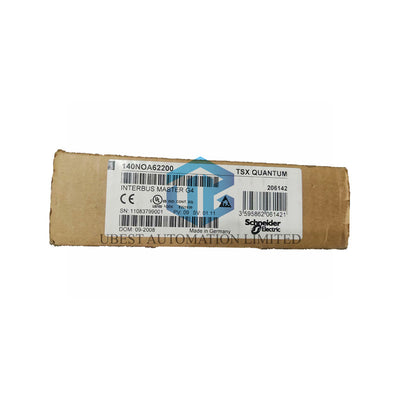

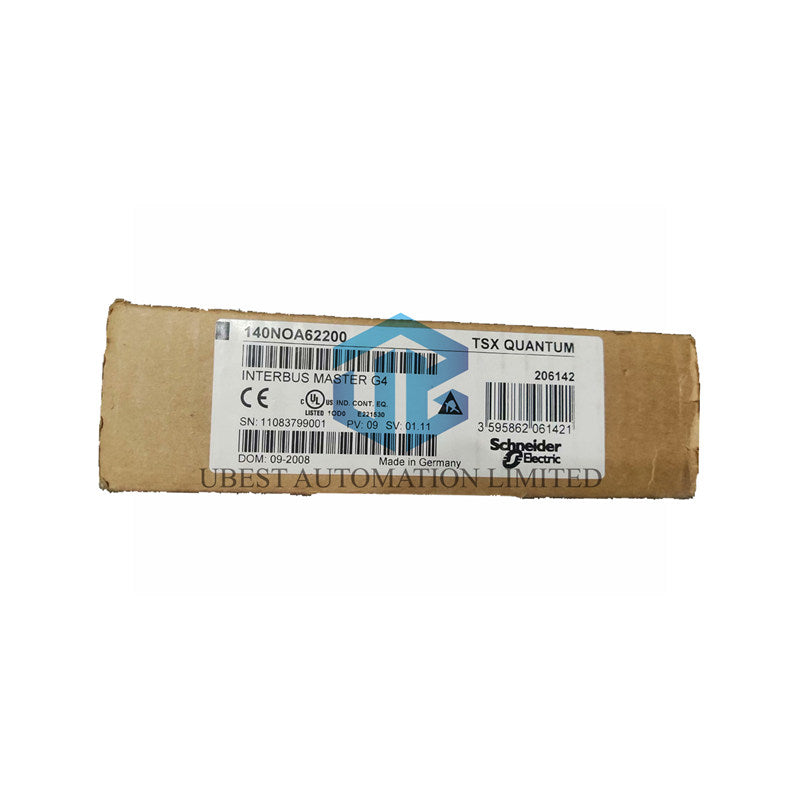

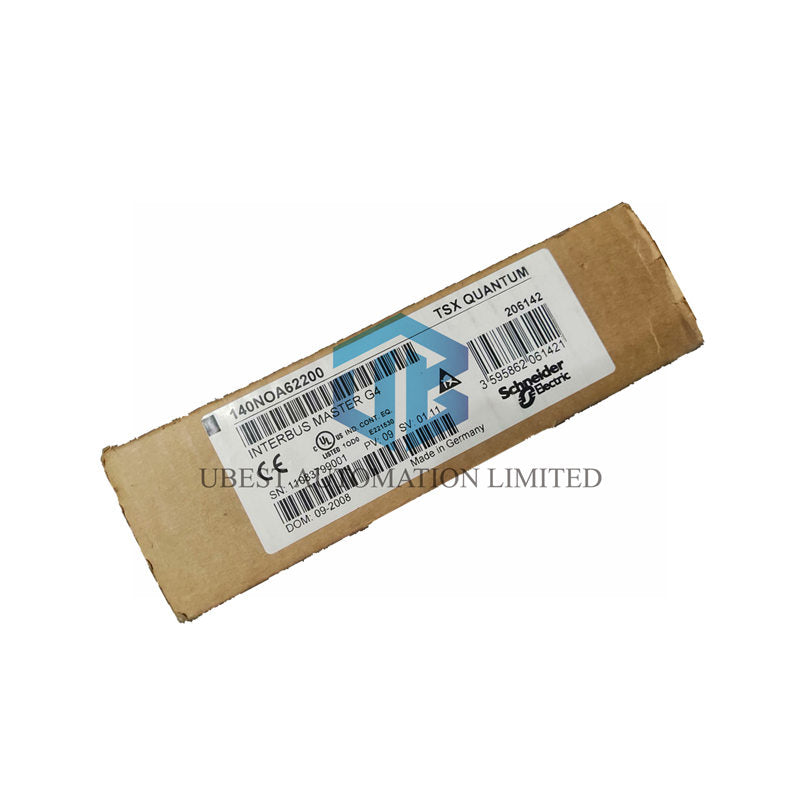

Schneider Electric 140NOA62200 Interbus Master Module

Advanced fieldbus communication for industrial networks:

• Fourth-generation Interbus master with PCP V2.0 profile
• High-speed 500 kbit/s RS485 communication
• Comprehensive diagnostic LEDs for easy troubleshooting
• Supports multiple Quantum CPU configurations
• Large memory capacity for complex applications

Product Overview

• Brand: Schneider Electric
• Model: 140NOA62200
• Series: Modicon Quantum Platform
• The 140NOA62200 manages Interbus networks.
• It serves as a fourth-generation master module.
• This device connects Quantum systems to Interbus.

Communication Specifications

• Protocol: Interbus RS485 isolated
• Data Speed: 500 kbit/s maximum rate
• Cable Type: Twisted pair required
• Max Distance: 65.6 feet between devices
• Connectors: Two SUB-D 9 ports
• Isolation: 1500V RS485 protection
• Node Capacity: 512 devices maximum
• Update Time: 2ms for 64 devices

Memory Configuration

• Firmware EPROM: 256KB capacity
• Data RAM: 288KB total available
• Dual-port RAM: 2KB for CPU communication
• Command EEPROM: 64KB for sequences
• Multi-port RAM: 64KB shared memory
• Backup Memory: 128KB additional storage

Compatibility & Configuration

• Supported CPUs: 140CPU11303, 140CPU43412A, 140CPU53414B
• Rack Type: Local rack configuration
• Max Local Racks: 6 with 140CPU11303
• Software Support: Concept and ProWORX 32
• Version Required: V2.5 SR2 minimum

Electrical Specifications

• Bus Current: 800 mA requirement
• Power Dissipation: 4 Watts maximum
• Voltage Range: 5V DC ±5% tolerance
• Signal Level: RS485 differential
• Termination: Built-in 120 ohm

Status Indicators

• Green ACTIVE LED for CPU communication
• Green RUN LED for module operation
• Green IS-B RUN LED for Interbus status
• Red FAULT LED for module errors
• Red INIT LED for initialization issues
• Red MASTER LED for master faults
• Red MODULE LED for module reports
• Red MEMORY LED for memory errors
• Red PERIPHERAL LED for bus faults
• Red PROCESSOR LED for CPU issues
• Red REMOTE LED for remote bus faults
• Yellow SEGMENT LED for shut down segments

Environmental Ratings

• Operating Temp: 0°C to +60°C range
• Storage Temp: -40°C to +85°C range
• Humidity: 95% non-condensing maximum
• Altitude: Up to 5000 meters operation
• ESD Protection: 4kV contact / 8kV air
• EMC Immunity: 10V/m 80-1000MHz

Certifications & Standards

• UL 508 industrial standard
• CSA certified for Canada
• CE marked for Europe
• DIN 66020 compliant
• RoHS compliant

Physical Details

• Module Weight: 2.0 pounds (0.9kg)
• Format: Standard Quantum module
• Dimensions: Fits single slot in rack
• German manufacturing origin

Service & Support

• Fast global shipping available
• FedEx, UPS, DHL express options
• Professional protective packaging
• 12-month product warranty included
• Technical support available
• Quality guaranteed satisfaction

Technical Questions

• What software programs support this module?
• It works with Concept and ProWORX 32 software versions.
• How many devices can connect to the Interbus network?
• You can connect up to 512 devices on the Interbus network.
• What do the different LED colors indicate?
• Green means normal operation, red indicates faults, yellow shows warnings.
• What is the maximum cable distance between devices?
• You can space devices up to 65.6 feet apart on the network.
• Which CPU models are compatible with this module?
• It works with 140CPU11303, 140CPU43412A, and 140CPU53414B processors.
