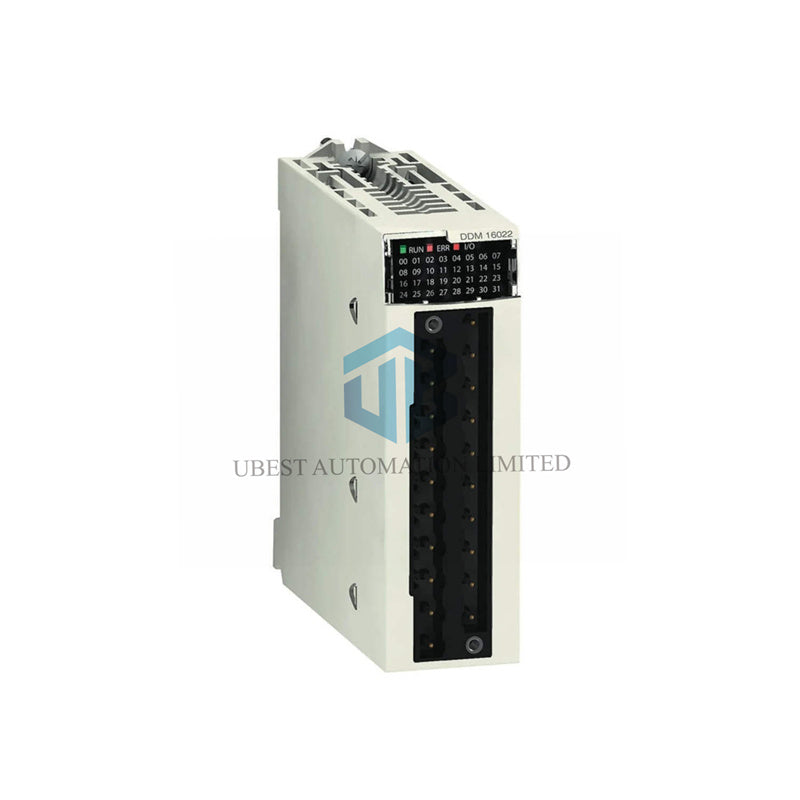

Schneider Electric BMXDDM16022: Compact 16-Channel Mixed I/O Module

Simplify your control panel with the Schneider Electric BMXDDM16022. This versatile discrete I/O module packs 8 digital inputs and 8 solid-state outputs into a single, compact unit for Modicon M340/M580 systems. Its fast 4 ms response time ensures quick system reactions, while the 24V DC voltage level is the industry standard. The module offers individual channel diagnostics for easy troubleshooting. It's an efficient solution for consolidating I/O points and saving space in your automation cabinet.

Core Technical Specifications

• Brand & Model: Schneider Electric BMXDDM16022
• Product Line: Modicon M340 / M580 (X80 Platform)
• I/O Configuration: 8 Inputs + 8 Outputs
• I/O Type: 24V DC Sink Inputs / 24V DC Solid-State Outputs
• Input Current: 3.5 mA
• Output Current: 0.5 A per channel
• Max Module Current: 5 A (total output)
• Response Time: 4 ms (typical)
• Output Parallel: Up to 2 channels can be paralleled
• Power Dissipation: 3.7 W
• Operating Temperature: 0°C to 60°C (up to 85°C storage)
• Protection Rating: IP20
• Communication: Integrated on Modicon X80 backplane
• MTBF: 450,000 hours
• Weight: 0.115 kg (approx. 0.254 lb)

Key Features & Benefits

Space-Saving Design: Combining 16 I/O points in one slim module optimizes rack space. This reduces the number of modules needed for small to medium machines, lowering cost and simplifying wiring.

Fast & Reliable Response: With a typical response time of 4 ms, the module quickly reads sensor states and updates outputs. This ensures precise timing for control sequences and rapid response to process changes.

Comprehensive Diagnostics: Each channel has a green status LED. Additional module-level LEDs (RUN, ERR, I/O FAULT) provide instant visual health checks, significantly reducing mean-time-to-repair (MTTR).

Robust Protection Features: Outputs are protected against short-circuits, overloads (electronic breaker), and overvoltage. Inputs and outputs have reverse polarity protection, guarding against wiring errors.

High Reliability: A calculated MTBF of 450,000 hours and a wide operating temperature range (0-60°C) ensure dependable, long-term operation in industrial environments, minimizing unplanned downtime.

Typical Applications

• Consolidating I/O for machine sections like clamping, ejection, or tool changers.
• Controlling small banks of solenoid valves, indicator lights, and relays.
• Reading groups of push buttons, selector switches, and proximity sensors.
• Ideal for applications where a balanced mix of inputs and outputs is needed in a localized area.

Reliable Support & Fast Delivery

This module is covered by our standard 12-month warranty. To support rapid machine builds and repairs, we offer reliable express shipping worldwide via FedEx, UPS, and DHL.

Frequently Asked Questions

What does "current sink" input mean?

For the BMXDDM16022, "sink" means the input circuit is connected to 24V+. The sensor completes the circuit by switching the input terminal to 0V (DC Common). This is a common wiring standard.

Can the 0.5A outputs drive a small relay directly?

Yes. The solid-state outputs are perfect for directly driving relays, small contactor coils, solenoid valves, and indicator lamps that fall within the 0.5A per channel and 5A total module limits.

What is required for short-circuit protection?

Each group of outputs requires a single external 2A fast-blow fuse, as specified. The module's internal electronic breaker provides overload protection, but the external fuse is critical for short-circuit safety.

How are the 8 inputs and 8 outputs electrically grouped?

Inputs and outputs are in separate, isolated groups. All 8 inputs share one common. The 8 outputs are also grouped with their own common. This prevents interference between input and output circuits.

Is this a Modbus module?

It communicates over the native X80 backplane bus of the Modicon M340/M580 PLC. It is not a standalone Modbus device. The PLC CPU then communicates to the network (Ethernet, Modbus, etc.).
