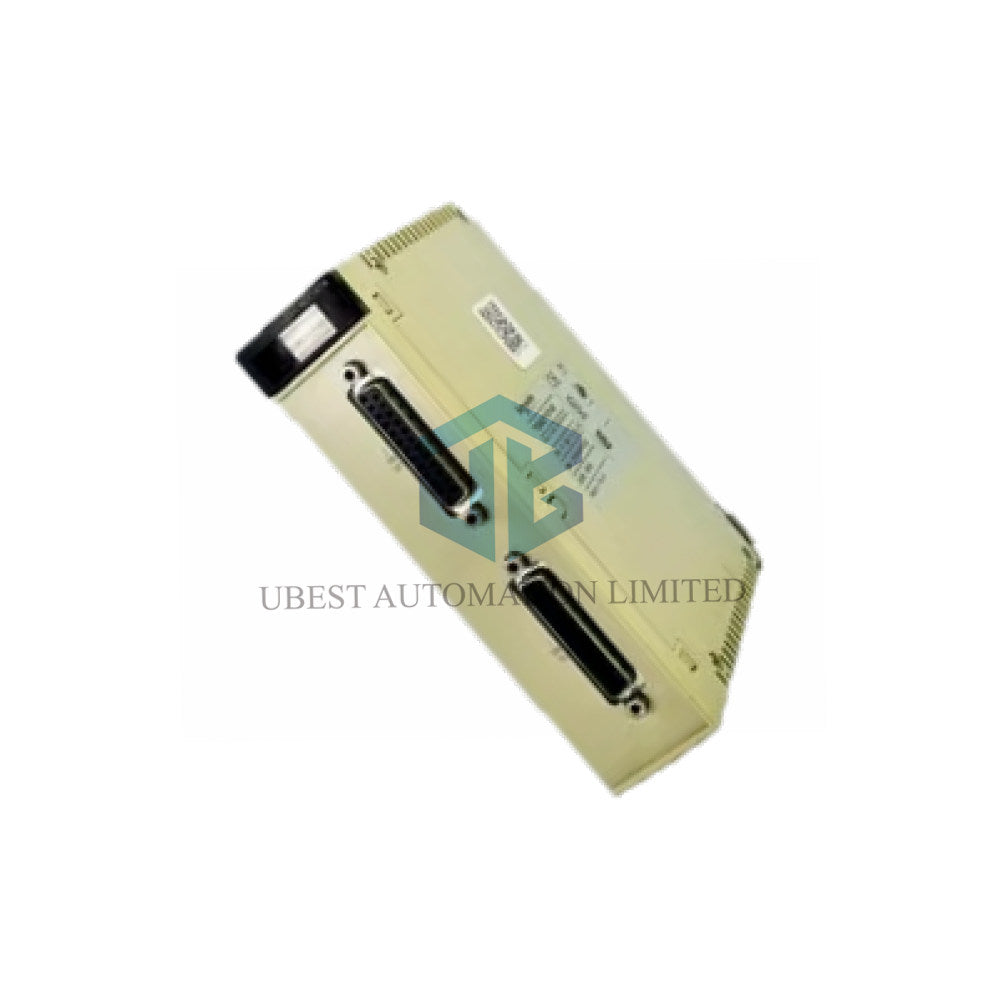

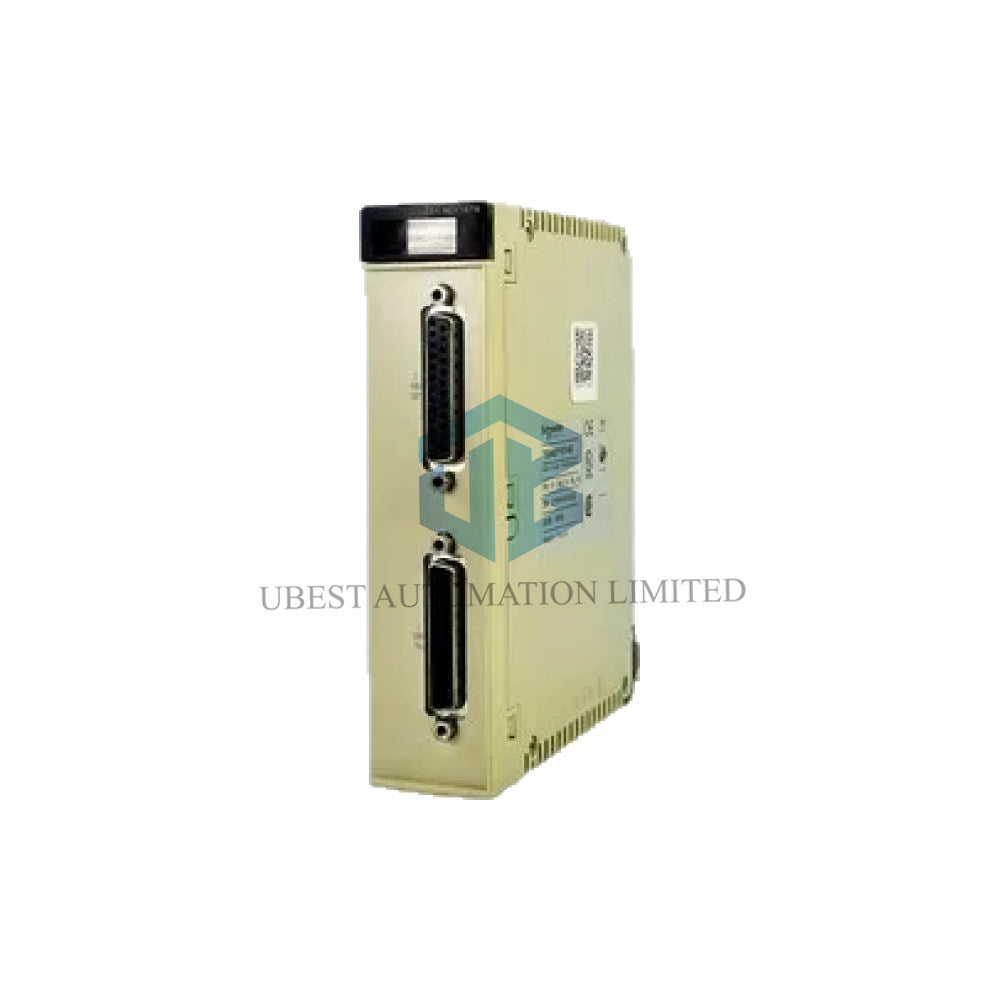

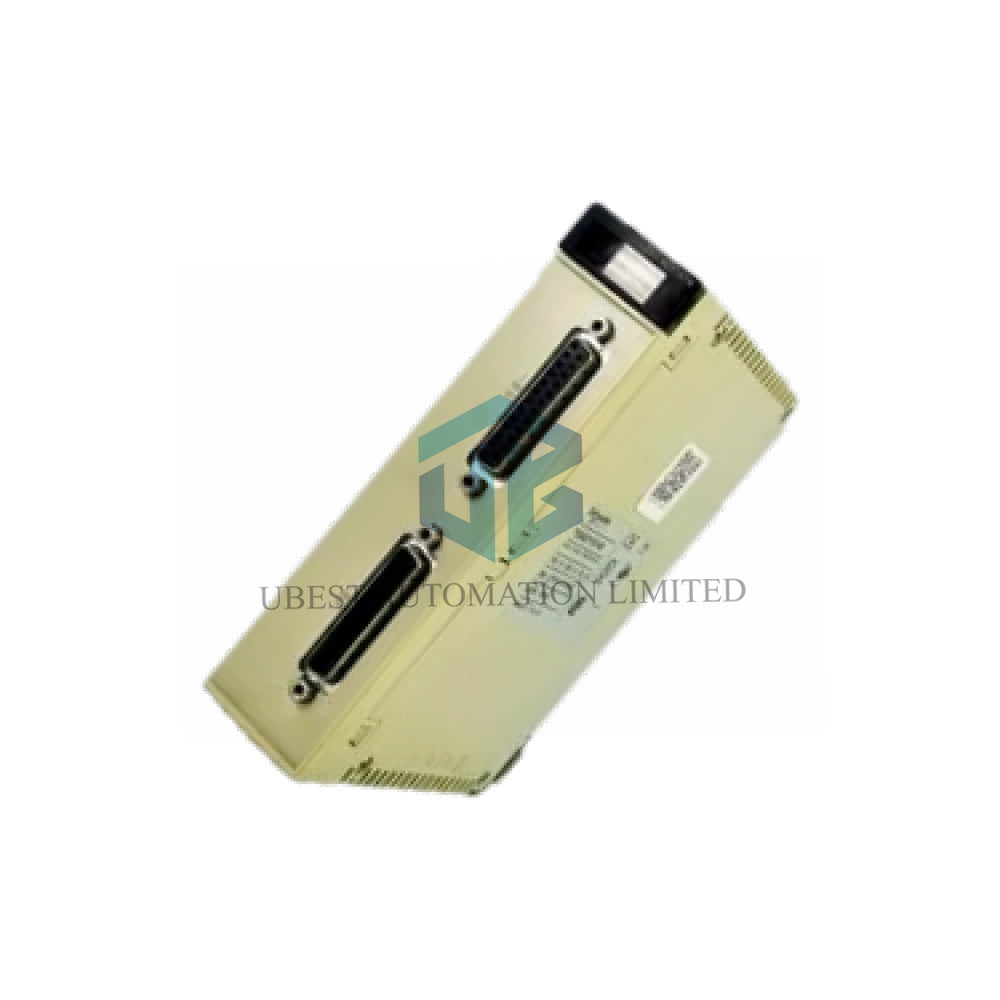

Schneider Electric TSXAEY1614 | 16-Channel Analog Input Module for Thermocouples & Voltage

Acquire precise temperature and voltage data with the Schneider Electric TSXAEY1614 Analog Input Module. Designed for the Modicon Premium/TSX platform, this module offers 16 high-resolution input channels. It supports a wide range of thermocouple types (B, E, J, K, etc.) and +/- 80mV voltage inputs, making it ideal for complex process monitoring and control.

Technical Data

Brand: Schneider Electric
Model: TSXAEY1614
Product Line: Modicon Premium / TSX Micro
Type: Analog Input Module
Input Channels: 16
Input Types: Thermocouples (B, E, J, K, L, N, R, S, T, U), Voltage (+/- 80 mV)
Conversion Resolution: 16 bits
Nominal Read Time: 70 ms per channel
Typical Accuracy (e.g., Type K): 1°C at 25°C
Isolation: 1000 Vrms (Channels/Bus & Channels/Ground)
-Common Mode Voltage: 250 V AC / 280 V AC (between channels)
Electrical Connection: 2 x SUB-D 25-pin connectors
Power Consumption: 300 mA @ 5V DC
Operating Temperature: 0°C to 60°C
Storage Temperature: -25°C to 70°C
Protection Rating: IP20
Weight: Approx. 0.35 kg

Installation Guide

1. Mount the module on a DIN rail in your TSX/Premium rack.
2. Ensure system power is OFF.
3. Connect thermocouple or voltage signal wires to the appropriate SUB-D 25 connectors. Use correct polarity and shielding.
4. Ensure proper grounding and separation of high-voltage wiring to maintain signal integrity.
5. Configure the input type (thermocouple type or voltage range) and scaling in your PLC programming software (e.g., Unity Pro).
6. Refer to the official Schneider Electric manual for detailed wiring diagrams, cold junction compensation, and calibration procedures.

Compatibility

This module is designed for the Schneider Electric Modicon Premium and TSX Micro automation platforms. It is compatible with the corresponding PLC racks and controllers. Ensure your backplane and software support this analog module.

Packaging List

1 x Schneider Electric TSXAEY1614 Analog Input Module.
Documentation may be included.

Warranty & Support

This product is covered by a 12-month warranty from the date of purchase.

Shipping

We ship worldwide via FedEx, UPS, and DHL.

Note: For optimal accuracy, use recommended thermocouple wire and follow proper installation practices to minimize electrical noise. Configuration must be performed by qualified personnel.
