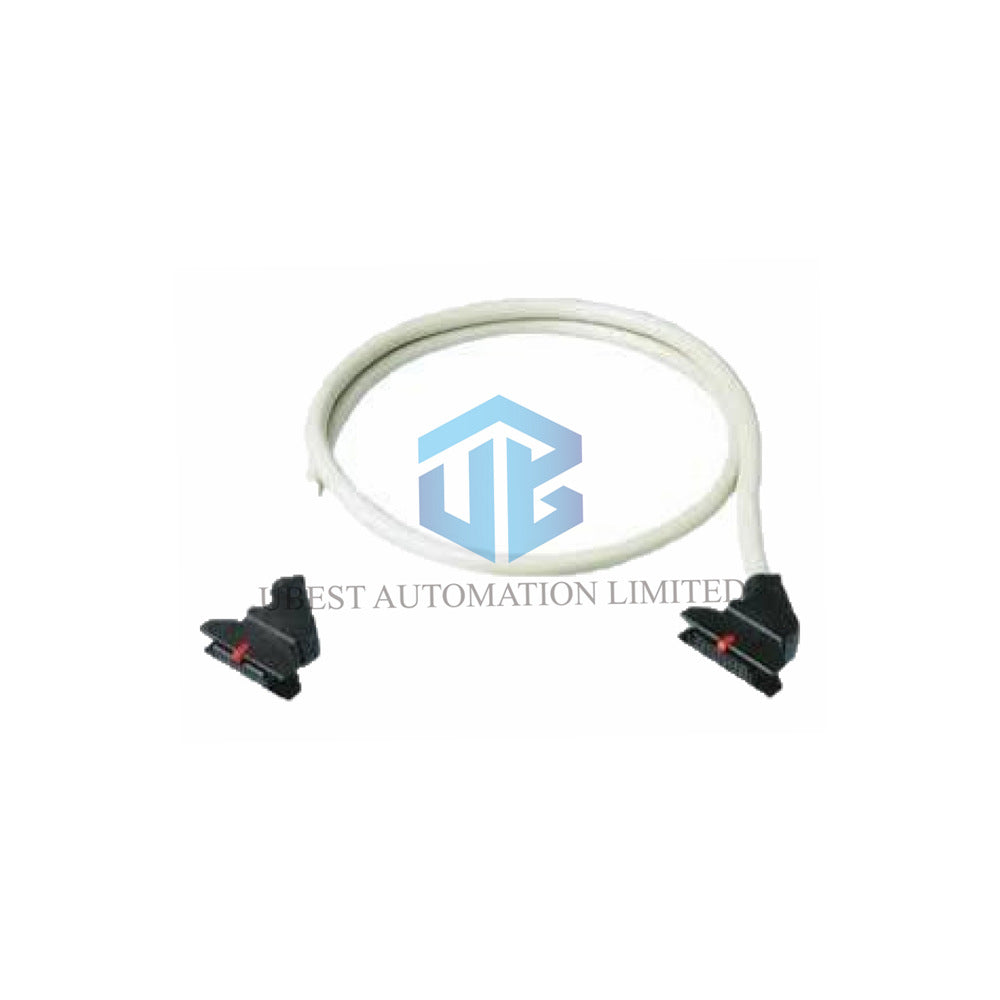

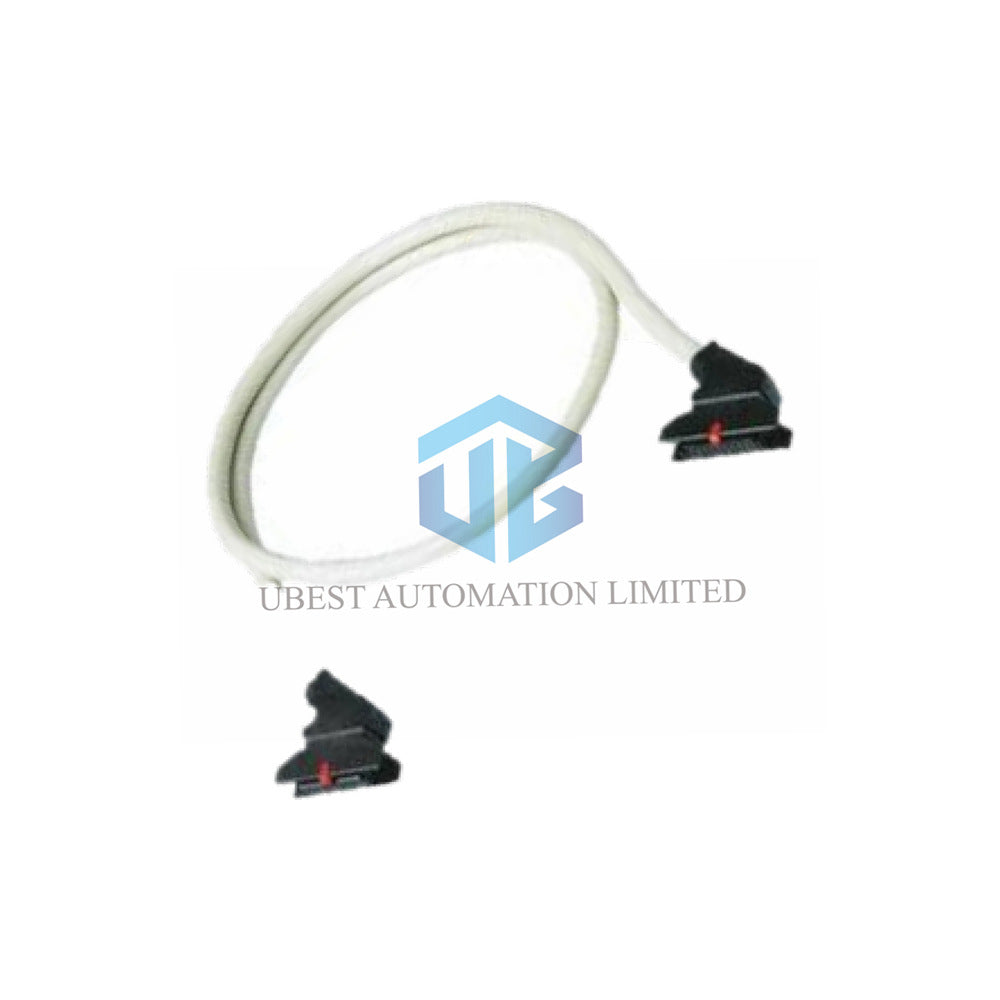

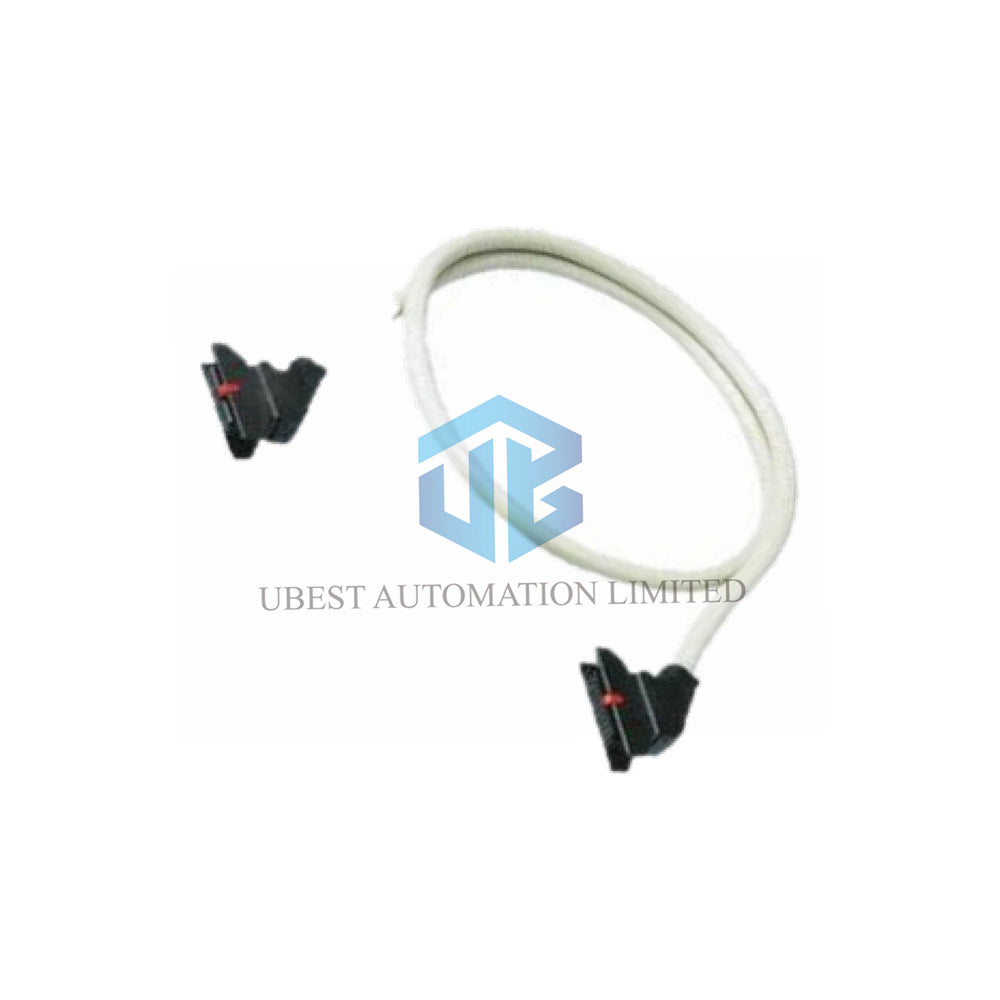

Schneider Electric TSXCDP203: Reliable 2m HE10 Connecting Cable

Ensure a secure and standard connection with the Schneider Electric TSXCDP203. This 2-meter connecting cable is a vital accessory for Modicon Premium and ABE7 systems. It features durable HE10 connectors on both ends for a foolproof link between I/O sub-bases and PLCs or other modules. The unshielded design is perfect for standard panel environments. Its specific length helps maintain organized cabinet wiring. Keep your system modular and serviceable with this essential link.

Core Technical Specifications

• Brand & Model: Schneider Electric TSXCDP203
• Product Line: Modicon / Premium Series Accessory
• Type: HE10 Connecting Cable
• Cable Length: 2 meters (6.6 ft)
• Connectors: HE10, 20-way (one module side, one PLC side)
• Wire Gauge: 0.324 mm² (AWG 22)
• Voltage Rating: 250V AC
• Current Rating: Max 5A
• Shielding: Unshielded
• Operating Temperature: -10°C to +60°C
• Operating Humidity: Up to 80% RH (non-condensing)
• Compatible Sub-base: ABE7H16R20 (and other ABE7 series)
• Unit Weight: 0.28 kg (approx. 0.62 lb)

Key Features & Benefits

Standardized & Secure Connection: The keyed HE10 connectors prevent incorrect mating, ensuring error-free installation between compatible modules. This eliminates wiring mistakes and guarantees reliable signal transmission.

Optimized Panel Organization: The fixed 2-meter length is ideal for neatly routing cables within standard control panels, connecting racks or banks of I/O that are in close proximity, reducing clutter and improving airflow.

Broad System Compatibility: This cable is specifically designed for use with the ABE7H16R20 sub-base and a range of Modicon Premium modules (like TSXCFY11, TSXCAY, etc.), making it a versatile spare part for maintaining existing systems.

Industrial Grade Durability: Rated for operation from -10°C to 60°C and up to 80% humidity, the cable is suitable for the environment inside an industrial control cabinet, offering long-term reliability.

Packaging Information

• Standard Unit: Sold individually (1 piece per package).
• Package Dimensions (Unit): 25 cm x 25 cm x 4 cm.
• Package Weight (Unit): 325 grams.
• Bulk Option: Also available in a pack of 10 (S02 package).

Reliable Support & Fast Delivery

This genuine accessory is covered by our 12-month warranty. For quick replacements to minimize downtime, we ship via express services like FedEx, UPS, and DHL.

Frequently Asked Questions

What is the primary use of this cable?

The TSXCDP203 is used to connect a passive I/O sub-base (like the ABE7H16R20) to an electronic "head" module or processor. It carries power and signals between the terminal blocks and the controlling electronics.

Is this a shielded cable?

No, this specific model (TSXCDP203) is unshielded. It is intended for use inside a control panel where electromagnetic interference is minimal. For noisy environments, a shielded version would be required.

Can I use it to extend the distance between two devices?

While it creates a connection, the 2m length is fixed. It is not designed as an extension cable. For longer distances, you would typically use a network cable or remote I/O solution, not multiple HE10 cables daisy-chained.

Are the connectors male or female?

The HE10 connector is a standard type. This cable has one male connector (with pins) and one female connector (with sockets), designed to mate with the corresponding ports on the module and sub-base.

What happens if I need a different length?

You must order the specific Schneider Electric part number for the required length. Using a non-standard or handmade cable can void warranties and risks connection faults or system damage.
