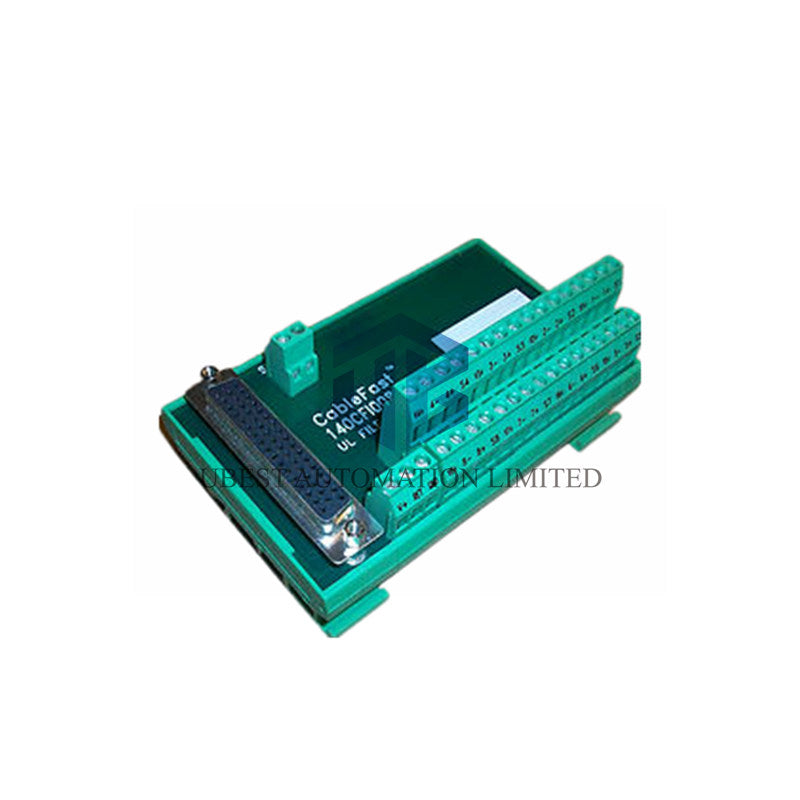

Schneider Electric 140CFI00800 Analog Input Terminal Block

The Schneider Electric 140CFI00800 delivers specialized connectivity for analog signals within the Modicon Quantum platform. This non-fused terminal block ensures reliable signal integrity for precise analog measurements.

Technical Specifications & Features

• Brand: Schneider Electric
• Model: 140CFI00800
• Product Series: Modicon Quantum Automation Platform
• Terminal Type: CableFast Non-Fused Analog Block
• Connection Points: 8 analog input channels
• Terminals per Point: 4 dedicated terminals each
• Electrical Rating: Suitable for 0-10V and 4-20mA signals
• Interface: 1 x female SUB-D 50-pin connector
• Wiring: Captive screw terminal design
• Mounting: Standard 35mm DIN rail
• Temperature Range: -25°C to +60°C operating
• Signal Integrity: Separate shield connections

Compatible Module Integration

• Works seamlessly with 140AVI03000 analog voltage input module
• Direct compatibility with 140ACI03000 analog current input module
• Supports both field and loop power configurations
• Provides dedicated power supply interfaces

Installation & Connection Details

• Mount quickly on standard DIN rail systems
• Use captive screws for secure wire termination
• Connect plus, minus, shield and power supply lines
• Ensure proper grounding for optimal noise immunity
• Maintain signal separation between channels

Packaging & Delivery Information

• Package Unit: Individual piece (PCE)
• Quantity per Package: 1 terminal block
• Package Dimensions: 10.63" × 7.09" × 4.53"
• Shipping Weight: 14.3 ounces (405 grams)
• Carrier Options: FedEx, UPS, DHL express shipping
• Warranty Coverage: 12 months comprehensive protection

Professional FAQ

• What analog signals does the 140CFI00800 support?
• This terminal block handles standard industrial signals including 4-20mA current loops and 0-10V voltage inputs with high accuracy.
• How does it maintain signal quality?
• It provides separate shield connections for each channel and dedicated power supply interfaces to minimize electrical noise interference.
• What is the purpose of four terminals per point?
• The four terminals accommodate positive signal, negative signal, shield ground, and power supply connections for complete analog interface solutions.
• Which power configurations does it support?
• The block supports both field power and loop power configurations for maximum flexibility in various automation applications.
• What environmental conditions can it withstand?
• This robust component operates reliably in industrial environments within a temperature range of -25°C to +60°C with strong EMI resistance.
