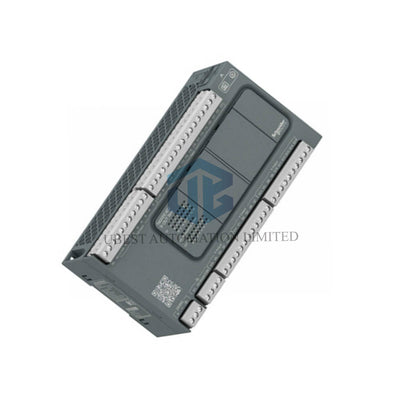

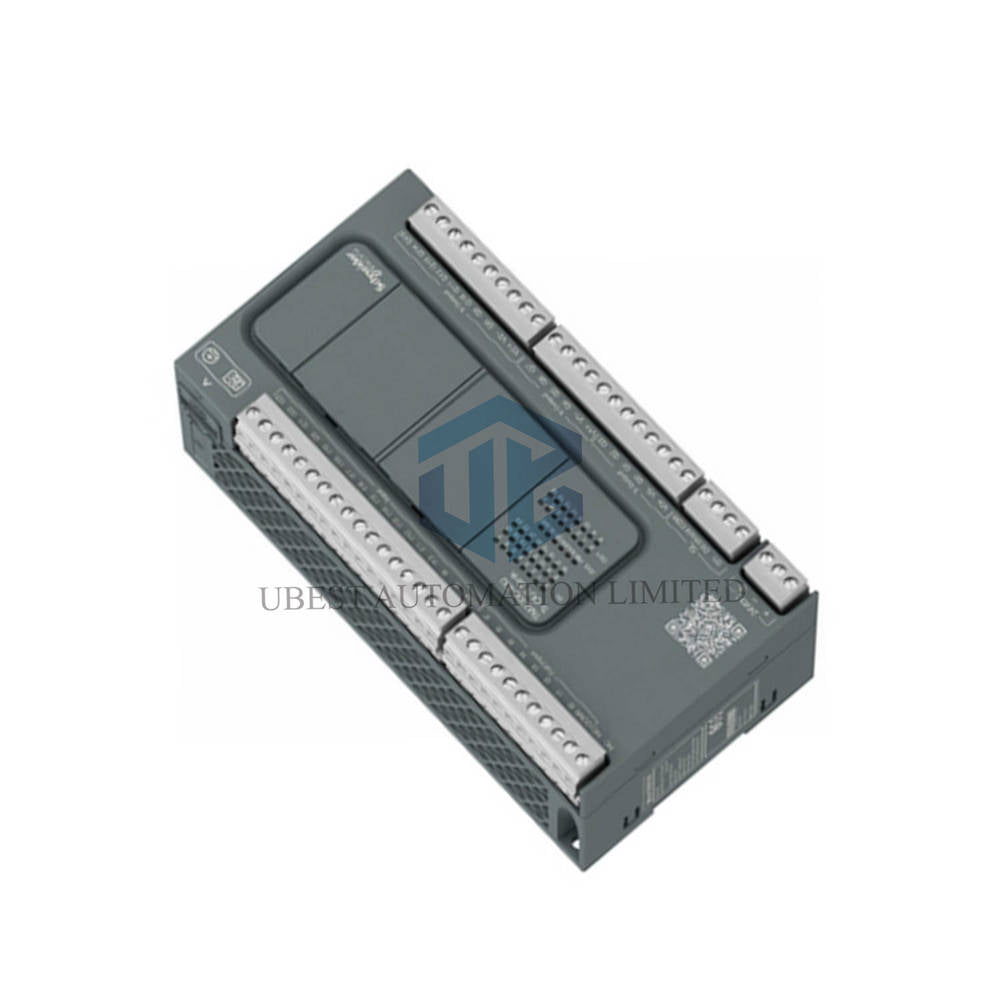

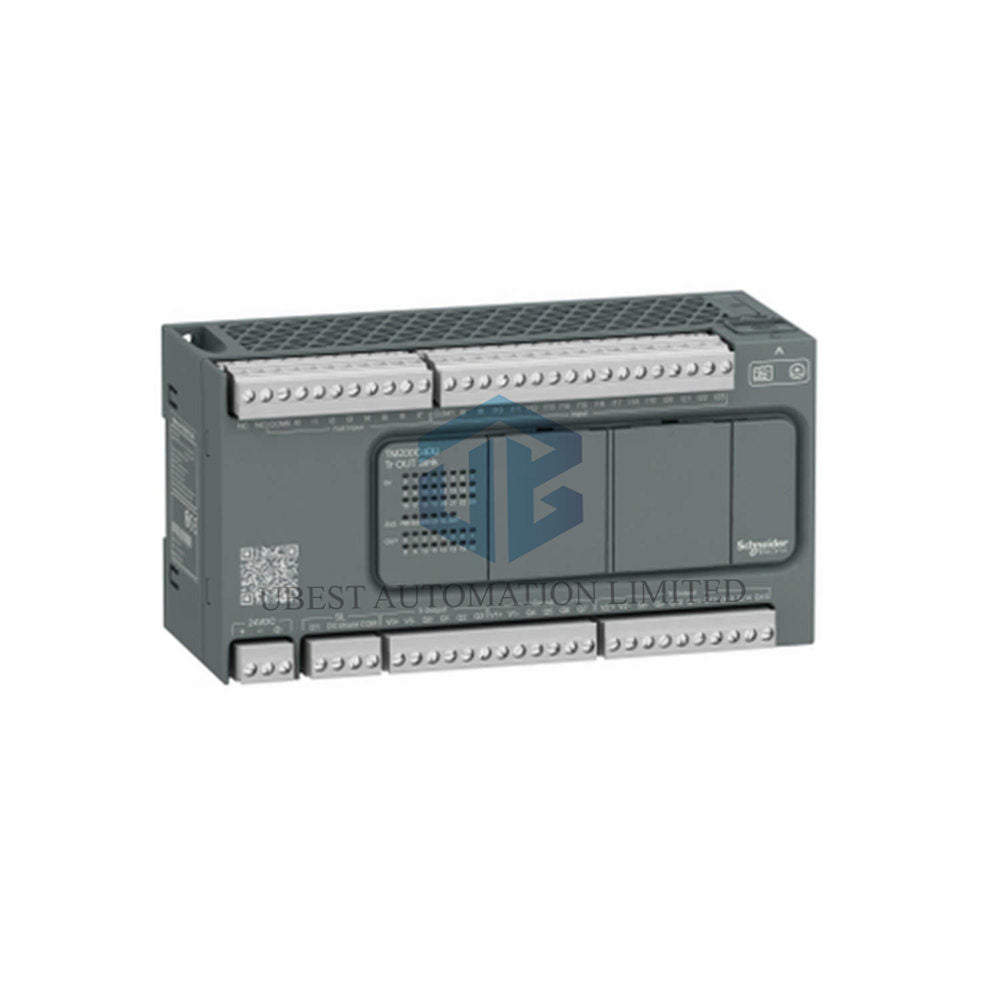

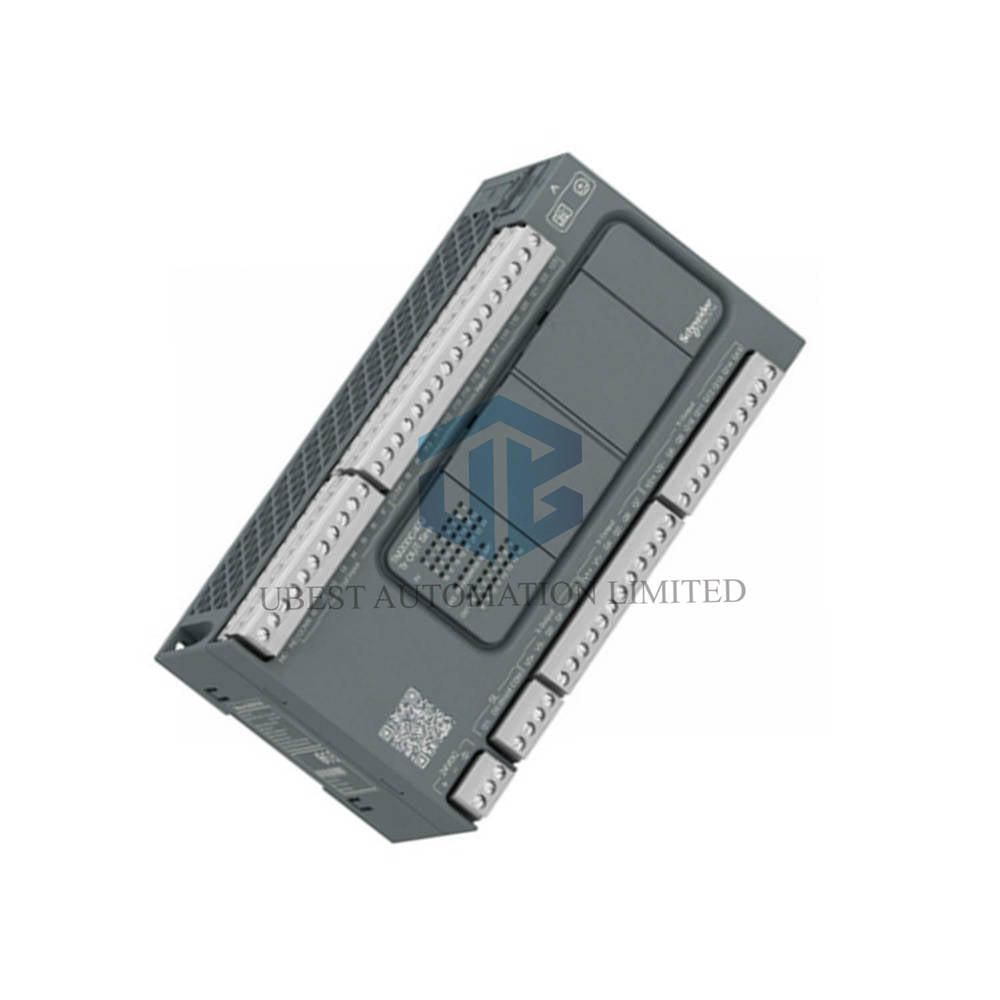

TM200C40U Logic Controller: 40 I/O Transistor Sink Controller from Schneider Electric

The TM200C40U belongs to the Easy Modicon M200 range from Schneider Electric. This logic controller delivers 40 discrete I/O points on a 24 V DC supply. It combines fast counting inputs, high-speed transistor outputs and integrated serial links. Engineers use it for compact machine control, packaging equipment and small automation cells. The controller supports up to four expansion modules for flexible scaling.

Summary

• The TM200C40U offers 40 discrete I/O with 24 V DC transistor sink outputs.
• Four fast inputs and four high-speed inputs reach 100 kHz for HSC mode.
• Two fast outputs support PWM, PLS and PTO modes at 100 kHz.
• Dual serial links cover RS485 and RS232/RS485 with Modbus RTU/ASCII.
• Schneider Electric builds this M200 controller for DIN rail mounting.

Technical Specifications

• Brand: Schneider Electric
• Model: TM200C40U
• Series: Easy Modicon M200
• Product type: Logic controller with 40 discrete I/O
• Rated supply: 24 V DC, operating range 20.4 to 28.8 V
• Discrete inputs: 4 fast (I2–I5), 4 high-speed (I0, I1, I6, I7), 16 regular (I8–I23)
• Input voltage and current: 24 V DC, 7 mA per input, 3.3 kOhm impedance
• Input logic: Sink or source, type 1 per EN/IEC 61131-2
• Discrete outputs: 2 fast (Q0–Q1), 14 transistor (Q2–Q15)
• Output rating: 24 V DC, 0.5 A per output, negative logic (sink)
• Output frequency: 100 kHz in PWM/PLS mode on Q0–Q1
• Response time: 1 ms turn-on and turn-off for Q0–Q15
• Input response: 5 µs high-speed, 35/100 µs fast, 35/125 µs regular
• Configurable filtering: 0 ms, 3 ms or 12 ms per input
• Common current: 2 A at COM 0, 2 A at COM 1, 4 A at COM 2
• Protection: Overload and short-circuit at 3.8 A with 1 s automatic reset
• Leakage and drop: 0.1 mA maximum leakage, under 1 V voltage drop
• Tungsten load: Under 12 W for outputs and fast outputs
• Backup memory: 512 byte internal flash, optional 32 GB micro SD card
• Battery: BR2032 Li-CFx, 5-year life, 3-year backup at 25 °C
• Execution speed: 0.2 µs per Boolean instruction, 0.3 ms per 1 K instructions
• Event task response: 60 µs, clock drift within 90 s/month at 25 °C
• Regulation: Adjustable PID with up to 14 simultaneous loops
• Positioning: PWM/PLS on 2 channels at 100 kHz
• Counting: 4 HSC inputs at 100 kHz, 32 bits, quadrature x1/x2/x4, pulse/direction, CW/CCW
• Integrated ports: USB mini B 2.0, serial 1 RS485, serial 2 RS232/RS485
• Transmission rate: 1.2 to 115.2 kbit/s serial, 12 Mbit/s USB
• Protocols: Modbus master/slave RTU/ASCII, SoMachine-Network
• Local signalling: LEDs for PWR, RUN, ERR, SD, BAT, SL1 and I/O state
• Expansion: 4 modules, up to 64 relay outputs or 144 transistor outputs
• Power consumption: 10 W at 24 V DC with maximum I/O
• Inrush current: 35 A
• Insulation: 500 V AC between input and logic, 500 V DC between supply and logic
• Cable distance: Under 50 m unshielded input, under 10 m shielded fast input, under 150 m output
• Mounting: TH35-15 or TH35-7.5 DIN rail per IEC 60715, or panel with fixing kit
• Dimensions: 90 mm height, 70 mm depth, 175 mm width
• Net weight: 0.468 kg
• Protection degree: IP20 with protective cover in place
• Operating temperature: 0 to 55 °C horizontal installation
• Storage temperature: -25 to 70 °C
• Relative humidity: 10 to 95 % without condensation
• Operating altitude: 0 to 2000 m, storage up to 3000 m
• Pollution degree: 2 or lower
• Shock resistance: 15 gn for 11 ms and 30 gn for 6 ms
• Vibration resistance: 3.5 mm at 5–8.4 Hz, 1 gn at 8.4–150 Hz on rail
• Immunity to microbreaks: 2 ms
• EMC immunity: 8 kV air and 6 kV contact discharge per EN/IEC 61000-4-2
• Field immunity: 10 V/m from 80 MHz to 3 GHz per EN/IEC 61000-4-3
• Burst immunity: 2 kV power lines, 1 kV I/O and serial link per EN/IEC 61000-4-4
• Surge immunity: 1 kV DC lines, 1 kV I/O per EN/IEC 61000-4-5
• Conducted RF: 10 V from 0.15 to 80 MHz per EN/IEC 61000-4-6
• Emission: Class A radiated and conducted per EN/IEC 55011
• Standards: EN/IEC 61131-2, EN/IEC 61010-2-201
• Certifications: CE, RCM, IACS E10, CSA, CULus

Installation Guide

• Mount the controller on a TH35-15 or TH35-7.5 DIN rail per IEC 60715.
• Use the fixing kit when you choose panel mounting instead of rail mounting.
• Connect 24 V DC supply to the removable 3-terminal screw block.
• Wire inputs to the removable screw terminal block and keep polarity per sink or source logic.
• Wire outputs to the removable screw terminal block and respect the COM common current limits.
• Keep shielded cable under 10 m for fast and high-speed inputs.
• Keep unshielded input cable under 50 m and output cable under 150 m.
• Connect serial 1 to RS485 and serial 2 to RS232 or RS485 through the 4-terminal block.
• Use the mini B USB 2.0 port for the programming terminal.
• Insert an optional 32 GB micro SD card for data storage.
• Verify the PWR, RUN and ERR LEDs after you power up the controller.
• Respect the 0 to 55 °C ambient range for horizontal installation.

Package List

• 1 x Schneider Electric TM200C40U logic controller
• 1 x set of removable screw terminal blocks for inputs and outputs
• 1 x 3-terminal screw block for the 24 V DC supply
• 1 x 4-terminal screw block for the serial link
• 1 x fixing kit for panel mounting
• 1 x protective cover for IP20 protection
• 1 x quick start documentation

Shipping

• We ship orders by FedEx, UPS or DHL according to your delivery preference.
• We pack each controller with shock protection for safe transport.
• We confirm the tracking number after dispatch so you can follow the shipment.

FAQ

• Q: How many I/O points does the TM200C40U provide?
  A: It provides 24 discrete inputs and 16 discrete outputs for a total of 40 points.
• Q: Does the controller support high-speed counting?
  A: Yes, four HSC inputs reach 100 kHz with 32-bit counting in quadrature, pulse/direction or CW/CCW mode.
• Q: Which output mode do the fast outputs use?
  A: Q0 and Q1 run in PWM, PLS or PTO mode at 100 kHz.
• Q: Can I expand the I/O capacity?
  A: Yes, you can add four expansion modules for up to 64 relay outputs or 144 transistor outputs.
• Q: Which serial protocols does it support?
  A: It supports Modbus master/slave RTU/ASCII and SoMachine-Network over RS485 and RS232/RS485.
• Q: What is the operating temperature range?
  A: The controller operates from 0 to 55 °C in horizontal installation.
• Q: How do I request a quotation?
  A: Email sales@ubestplc.com or message us on WhatsApp at +86 86 180 3000 5825.
