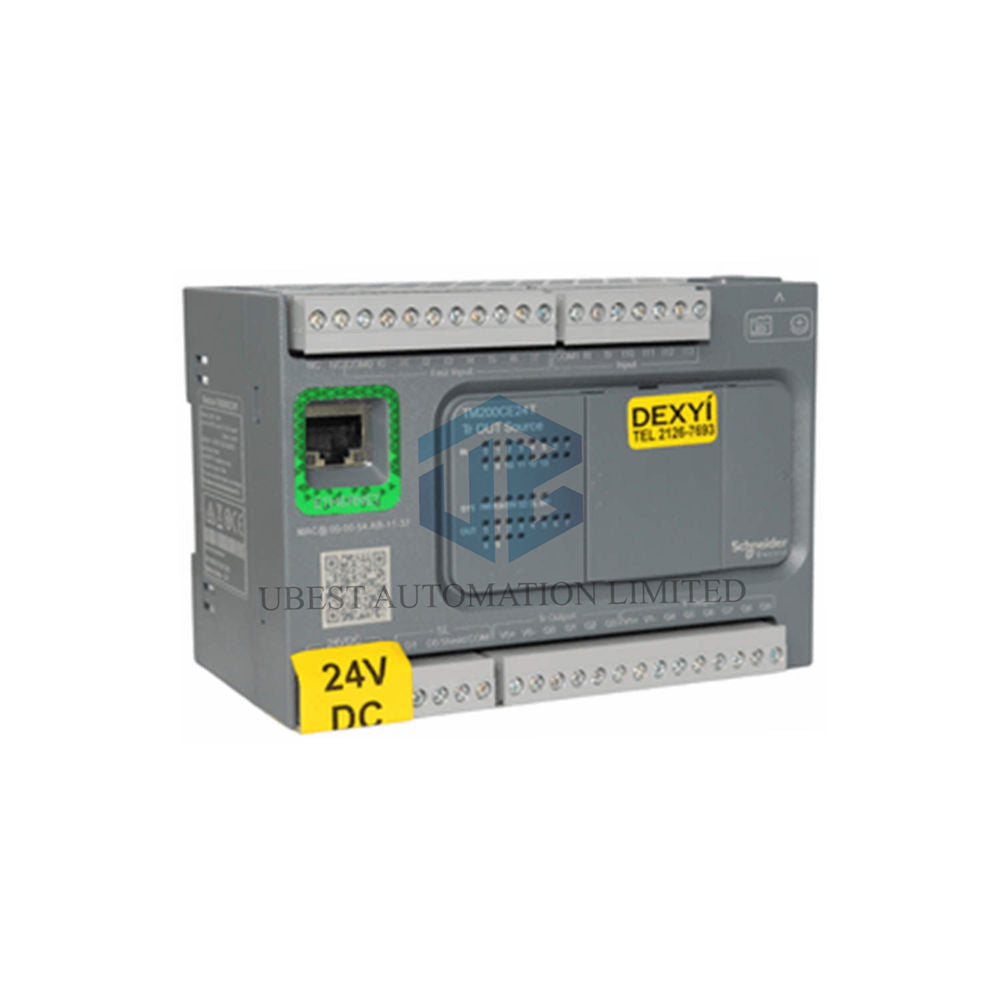

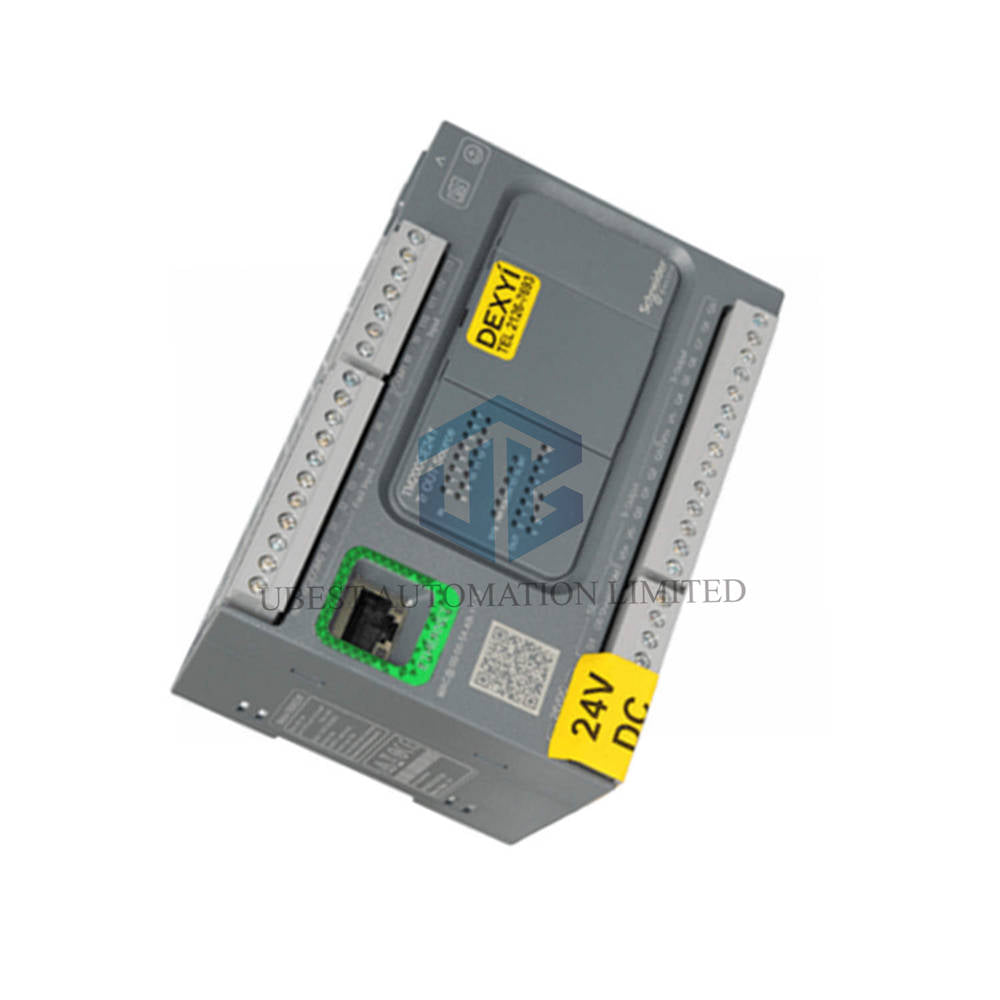

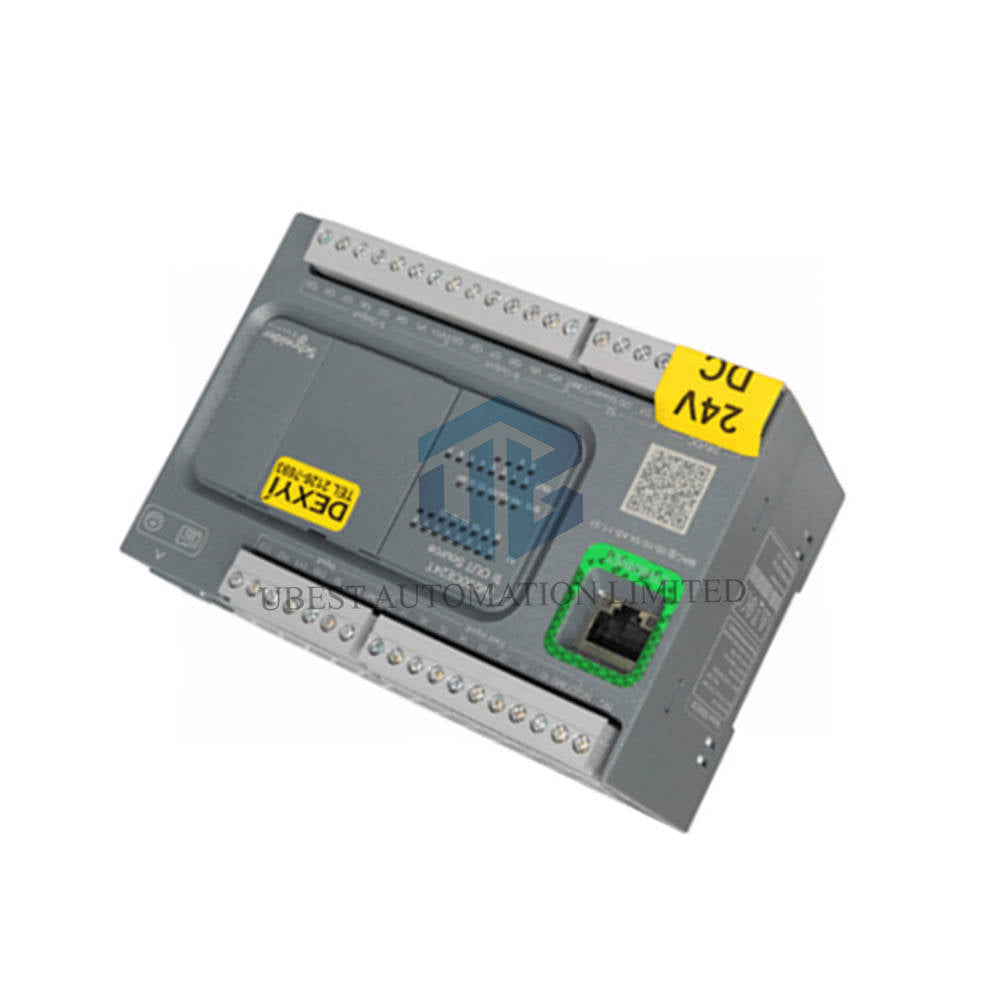

TM200CE24T Modicon M200 Logic Controller – 24 I/O Transistor Source, Ethernet

The TM200CE24T belongs to the Easy Modicon M200 range from Schneider Electric. This logic controller runs on 24 V DC supply and provides 24 discrete I/O points. It combines fast counting inputs, PWM/PLS outputs, and built-in Ethernet Modbus TCP/IP communication. Engineers choose the TM200CE24T for compact machines that need precise motion control and reliable network connectivity.

Summary

• The TM200CE24T delivers 24 V DC transistor source outputs with 0.5 A per channel.
• Four high-speed inputs reach 100 kHz for single-phase, quadrature, CW/CCW, and Pulse/Direction modes.
• Two fast outputs support PWM and PLS modes at 100 kHz for positioning tasks.
• Integrated Ethernet Modbus TCP/IP, USB mini B, RS485, and RS232/RS485 serial links simplify integration.
• Adjustable PID regulation handles up to 14 simultaneous loops for process control.

Technical Specifications

• Brand: Schneider Electric
• Model: TM200CE24T
• Series: Easy Modicon M200
• Product type: Logic controller
• Rated supply voltage: 24 V DC (limits 20.4…28.8 V)
• Discrete I/O number: 24 (14 inputs, 10 outputs)
• Input configuration: I0, I1, I6, I7 high-speed; I2…I5 fast; I8…I13 regular
• Input voltage and current: 24 V DC, 7 mA per input, 3.3 kOhm impedance
• Input logic: Sink or source, type 1 per EN/IEC 61131-2
• Output type: Transistor, positive logic (source)
• Output current: 0.5 A per channel; 2 A at COM 0; 3 A at COM 1
• Response time: 1 ms on/off for Q0…Q9; 5 µs for high-speed inputs
• Filtering time: Configurable 0 ms, 3 ms, or 12 ms
• Output frequency: 100 kHz PWM/PLS on Q0…Q1
• Protection: Overload and short-circuit at 2 A with 1 s automatic reset
• Memory: 512 byte internal flash for program backup
• Data storage: 32 GB micro SD card (optional)
• Battery: BR2032 Li-CFx, 5-year life, 3-year backup at 25 °C
• Execution time: 0.2 µs per Boolean instruction; 0.3 ms per 1 KInstruction
• Regulation loop: Adjustable PID up to 14 simultaneous loops
• Positioning: PWM/PLS 2 channels at 100 kHz
• Counting inputs: 4 fast inputs at 100 kHz, 32 bits
• Integrated connections: USB mini B 2.0; serial 1 RS485; serial 2 RS232/RS485; Ethernet RJ45 10/100BASE-T
• Transmission rate: 1.2…115.2 kbit/s serial; 12 Mbit/s USB; 10/100 Mbit/s Ethernet
• Communication protocols: Modbus TCP/IP client/server; Modbus master/slave RTU/ASCII; SoMachine-Network
• Local signalling: LEDs for PWR, RUN, ERR, SD, BAT, SL1, I/O state, and LK/ACT
• Insulation: 500 V AC between input/output and internal logic; 500 V DC between supply and logic
• Mounting: Top hat rail TH35-15 or TH35-7.5 per IEC 60715; panel with fixing kit
• Dimensions: 90 mm height, 70 mm depth, 130 mm width
• Net weight: 0.424 kg
• Operating temperature: 0…55 °C horizontal installation
• Storage temperature: -25…70 °C
• Relative humidity: 10…95 % without condensation
• Pollution degree: ≤ 2
• Operating altitude: 0…2000 m; storage 0…3000 m
• IP degree: IP20 with protective cover in place
• Standards: EN/IEC 61131-2, EN/IEC 61010-2-201
• Shock resistance: 15 gn for 11 ms; 30 gn for 6 ms
• Vibration resistance: 3.5 mm at 5…8.4 Hz; 1 gn at 8.4…150 Hz on rail
• Immunity to microbreaks: 2 ms

Electromagnetic Compatibility and Interference Resistance

• Electrostatic discharge immunity reaches 8 kV air and 6 kV contact per EN/IEC 61000-4-2.
• Electromagnetic field susceptibility holds 10 V/m across 80 MHz…3 GHz per EN/IEC 61000-4-3.
• Electrical fast transient immunity reaches 2 kV on power lines and 1 kV on I/O per EN/IEC 61000-4-4.
• Surge immunity reaches 1 kV on DC power lines and 1 kV on I/O per EN/IEC 61000-4-5.
• Conducted RF disturbance immunity holds 10 V across 0.15…80 MHz per EN/IEC 61000-4-6.
• Radiated emission meets 40 dBμV/m QP class A at 10 m per EN/IEC 55011.

Installation Guide

• Mount the controller on a TH35-15 or TH35-7.5 top hat rail per IEC 60715.
• Use the panel fixing kit when you install the unit on a flat plate.
• Connect 24 V DC power to the removable 3-terminal screw block.
• Wire inputs to the removable screw terminal block and keep unshielded cable under 50 m.
• Keep shielded cable under 10 m for fast and high-speed input signals.
• Route output cable with unshielded wire under 150 m to avoid signal loss.
• Plug the RJ45 connector into the Ethernet port for Modbus TCP/IP access.
• Use the mini B USB 2.0 port for a programming terminal connection.
• Insert an optional 32 GB micro SD card for program backup and data storage.
• Maintain 0…55 °C ambient air and 10…95 % relative humidity without condensation.

Package List

• 1 × TM200CE24T logic controller unit
• 1 × removable screw terminal block for inputs
• 1 × removable screw terminal block for outputs
• 1 × 3-terminal screw block for 24 V DC power supply
• 1 × 4-terminal screw block for serial link 1
• 1 × protective cover for IP20 protection
• 1 × product documentation set

Shipping

• We ship orders through FedEx, UPS, and DHL worldwide.
• Each unit weighs 0.424 kg net and 620 g gross in package 1.
• Package 1 measures 13.6 cm height, 9.0 cm width, and 13.8 cm length.
• We dispatch in-stock items within 1–2 business days after payment confirmation.

FAQ

• Q: How many I/O points does the TM200CE24T offer?
  A: It provides 24 discrete I/O points with 14 inputs and 10 transistor outputs.
• Q: Does the TM200CE24T support Ethernet communication?
  A: Yes, it includes an RJ45 Ethernet port for Modbus TCP/IP client and server roles.
• Q: What is the maximum output current per common?
  A: COM 0 handles 2 A and COM 1 handles 3 A per output common.
• Q: Can I expand the I/O of this controller?
  A: Yes, you can add up to 4 expansion modules with 64 relay or 138 transistor outputs.
• Q: How fast are the high-speed inputs on the TM200CE24T?
  A: Four high-speed inputs reach 100 kHz with 32-bit counting resolution.
• Q: What battery does the controller use for backup?
  A: It uses a BR2032 Li-CFx battery with 5-year life and 3-year backup at 25 °C.
• Q: Which mounting rail suits this logic controller?
  A: It fits TH35-15 or TH35-7.5 top hat rail per IEC 60715, or a panel with kit.
