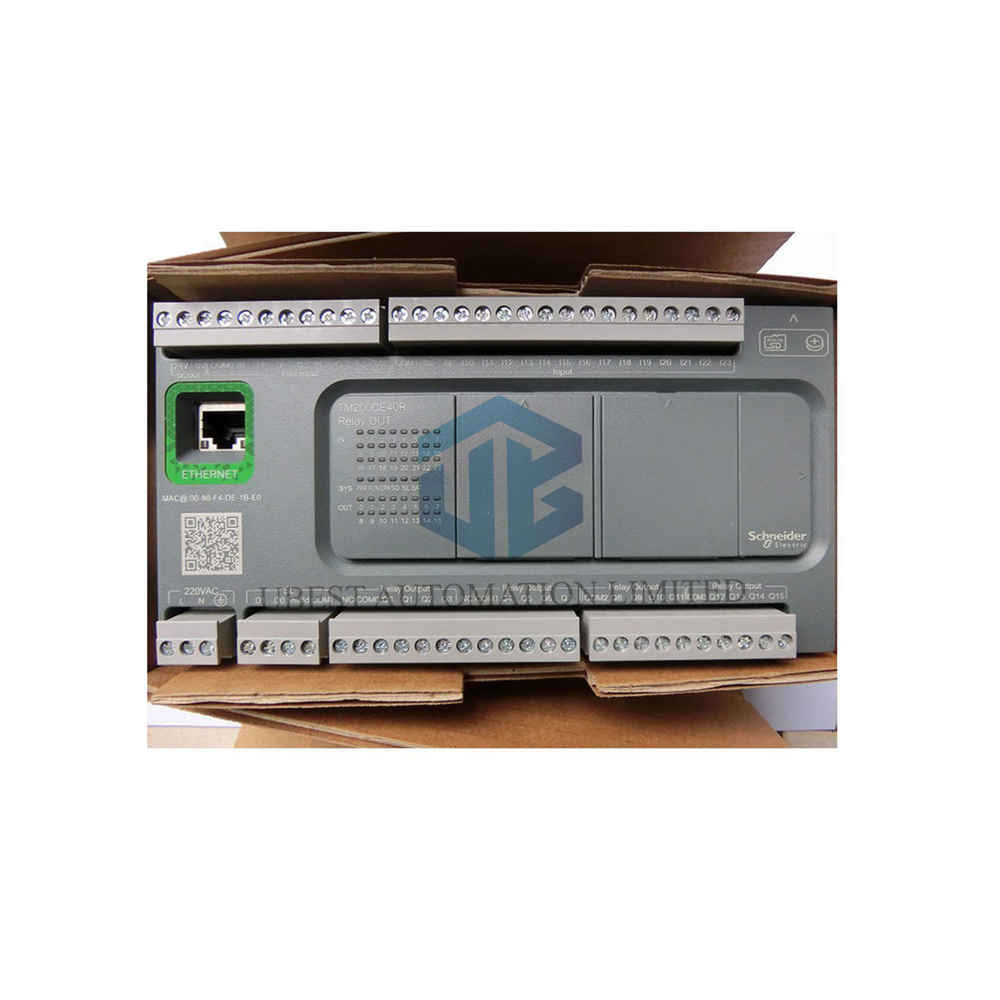

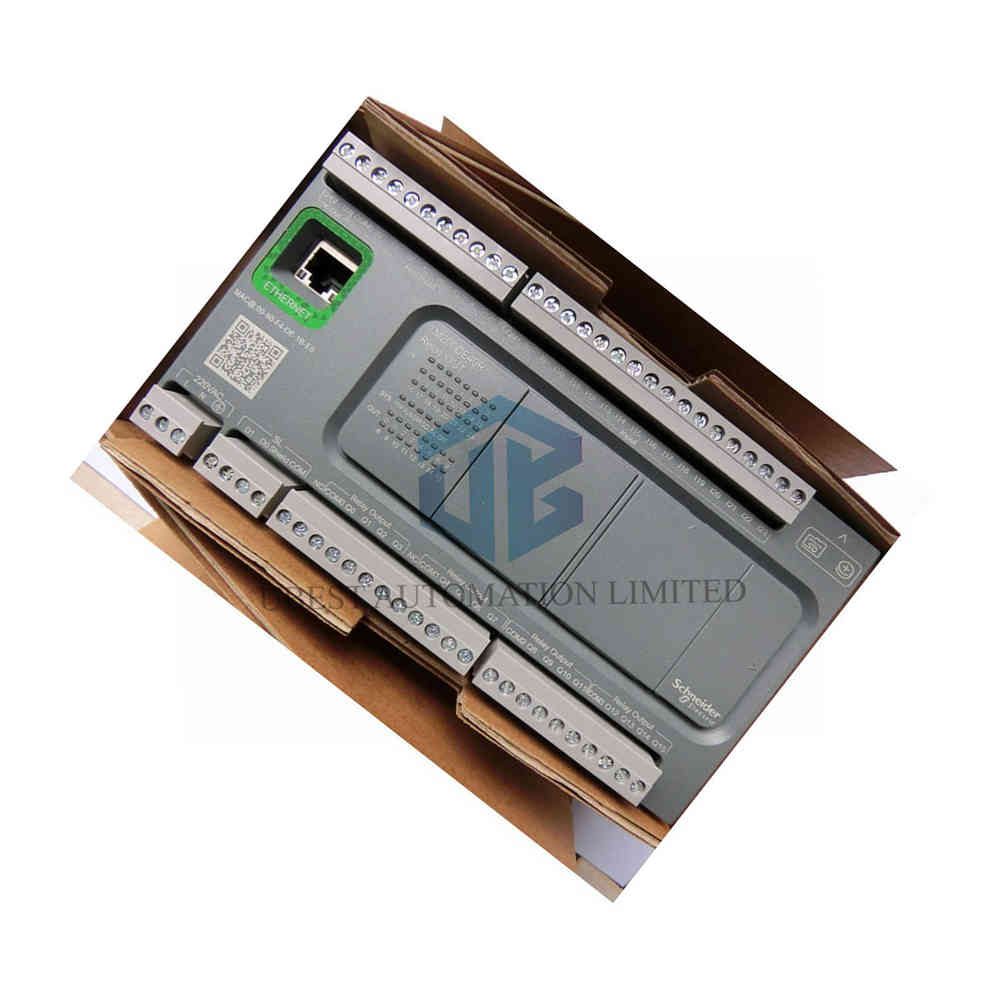

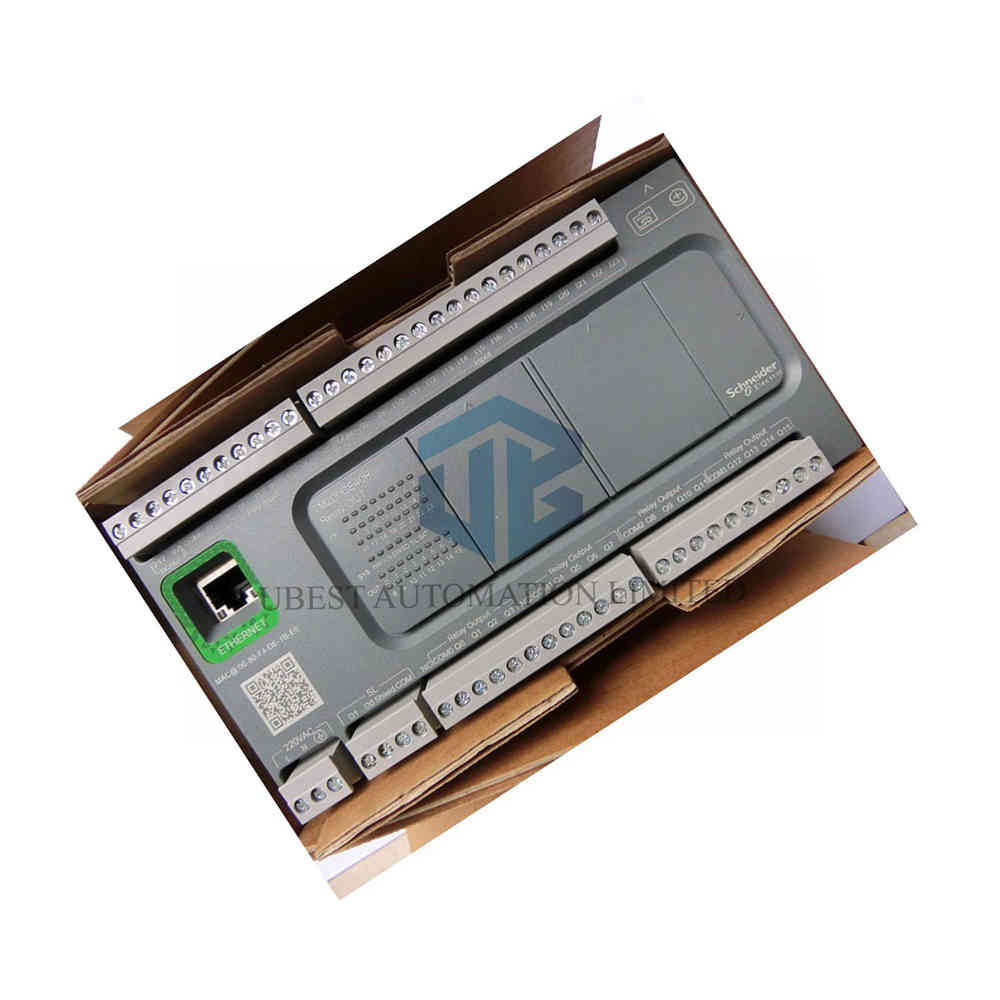

Schneider Easy Modicon M200 TM200CE40R Logic Controller — 40 I/O Relay + Ethernet

The TM200CE40R from Schneider Electric belongs to the Easy Modicon M200 range. This logic controller combines 40 discrete I/O with relay outputs and integrated Ethernet. It targets machine control, building automation, and small process skids. Engineers choose the TM200CE40R for its 100–240 V AC supply, fast counting inputs, and Modbus TCP/IP connectivity. The controller runs on a compact 175 mm DIN-rail housing and delivers deterministic scan performance.

Summary

• The TM200CE40R provides 24 discrete inputs and 16 relay outputs in one compact unit.
• Four high-speed inputs reach 100 kHz for single-phase, quadrature, and pulse/direction counting.
• Integrated Ethernet supports Modbus TCP/IP client and server operation at 10/100 Mbit/s.
• Two serial links cover RS485 and RS232/RS485 for Modbus RTU/ASCII and SoMachine-Network.
• The PID regulator handles up to 14 simultaneous loops for temperature and flow control.
• A 32 GB micro SD card slot and BR2032 battery protect programs and retentive data.

Technical Specifications

• Brand: Schneider Electric
• Model: TM200CE40R
• Range: Easy Modicon M200
• Product type: Logic controller with 40 discrete I/O
• Supply voltage: 100…240 V AC, 50/60 Hz, 59…69 VA at maximum I/O load
• Supply limits: 85…264 V AC with 50 A inrush current
• Discrete inputs: 24 total — 4 fast (I2…I5), 4 high-speed (I0, I1, I6, I7), 16 regular (I8…I23)
• Input voltage and current: 24 V DC, 7 mA per channel, 3.3 kOhm impedance
• Input logic: Sink or source, type 1 per EN/IEC 61131-2
• Input thresholds: State 1 ≥ 15 V, state 0 ≤ 5 V
• Response time (high-speed): 5 µs turn-on and turn-off on I0, I1, I6, I7
• Response time (fast): 35 µs turn-on, 100 µs turn-off on I2…I5
• Response time (regular): 35–55 µs turn-on, 100–125 µs turn-off on I8…I23
• Configurable filtering: 0 ms, 3 ms, or 12 ms per input
• Discrete outputs: 16 relay, normally open
• Output rating: 2 A per channel, 4 A per common (COM 0…COM 3)
• Output voltage: 24 V DC and 220 V AC, limits 30 V DC / 250 V AC
• Output response: 10 ms turn-on and turn-off on Q0…Q15
• Electrical durability: 100,000 cycles at AC-12 240 V 480 VA and DC-12 24 V 48 W
• Mechanical durability: 20,000,000 cycles, minimum load 10 mA at 5 V DC
• Switching frequency: 0.1 Hz at maximum load
• Counting inputs: 4 HSC channels at 100 kHz, 32-bit, quadrature x1/x2/x4, pulse/direction, CW/CCW
• Expansion capacity: 4 modules, up to 128 transistor outputs or 80 relay outputs
• Memory: 512 bytes internal flash for program backup
• Data storage: 32 GB micro SD card (optional)
• Battery: BR2032 Li-CFx, 5-year life, 3-year backup at 25 °C
• Execution speed: 0.2 µs per Boolean instruction, 0.3 ms per 1 K instructions
• Event task response: 60 µs
• Clock drift: ≤ 90 s per month at 25 °C
• Regulation: Adjustable PID, up to 14 simultaneous loops
• Ethernet: 1 RJ45 port, 10/100BASE-T, Modbus TCP/IP client/server
• Serial links: Serial 1 RS485 (non-isolated), Serial 2 RS232/RS485 (isolated RS485)
• USB: Mini B USB 2.0, 12 Mbit/s, SoMachine-Network protocol
• Baud rates: 1.2…115.2 kbit/s, 15 m RS485 bus, 3 m RS232 bus
• Sensor supply: 24 V DC at 300 mA from the controller
• Insulation: 1780 V AC output-to-logic, output group-to-group, supply-to-logic; 500 V AC input-to-logic
• LED signalling: PWR, RUN, ERR, SD, BAT, SL1, per-channel I/O state, LK/ACT 10/100
• Mounting: TH35-15 or TH35-7.5 DIN rail, or panel with fixing kit per IEC 60715
• Dimensions: 90 mm height, 70 mm depth, 175 mm width
• Net weight: 0.512 kg
• Protection degree: IP20 with protective cover in place
• Ambient temperature: 0…55 °C operating (horizontal), −25…70 °C storage
• Relative humidity: 10…95 %, without condensation, operating and storage
• Pollution degree: ≤ 2
• Operating altitude: 0…2000 m; storage altitude 0…3000 m

Environmental Resistance and EMC

• Electrostatic discharge immunity reaches 8 kV air and 6 kV contact per EN/IEC 61000-4-2.
• Radiated field immunity holds 10 V/m across 80 MHz to 3 GHz per EN/IEC 61000-4-3.
• Fast transient burst immunity reaches 2 kV on power lines and relay outputs.
• Surge immunity reaches 2 kV on AC power lines and relay outputs per EN/IEC 61000-4-5.
• Conducted RF immunity holds 10 V across 0.15…80 MHz per EN/IEC 61000-4-6.
• Radiated emission meets 40–47 dBμV/m QP class A at 10 m per EN/IEC 55011.
• Shock resistance reaches 15 gn for 11 ms and 30 gn for 6 ms.
• Vibration resistance reaches 3.5 mm at 5…8.4 Hz and 1 gn at 8.4…150 Hz on rail.
• Microbreak immunity holds 10 ms without reset.
• Product certifications include CE, RCM, IACS E10, CSA, and CULus.

Cable and Wiring Guidance

• Route unshielded input cable below 50 m and shielded fast input cable below 10 m.
• Route unshielded output cable below 150 m for reliable switching.
• Terminate inputs and outputs on removable screw terminal blocks.
• Connect the 100–240 V AC supply on the 3-terminal removable block.
• Use the RJ45 port for Ethernet and the Mini B port for programming.

Installation Guide

• Mount the controller horizontally on a TH35-15 or TH35-7.5 DIN rail.
• Keep 0…55 °C ambient air and avoid condensing humidity above 95 %.
• Wire 24 V DC sensor supply from the built-in 300 mA source.
• Set input filtering to 0 ms, 3 ms, or 12 ms to match signal noise.
• Assign high-speed inputs I0, I1, I6, I7 to HSC or event tasks.
• Insert a 32 GB micro SD card before first download for program backup.
• Install the BR2032 battery to retain data during power interruption.
• Verify 1780 V AC isolation between output groups and internal logic.

Package List

• 1 × Schneider TM200CE40R logic controller
• 1 × removable screw terminal block for inputs
• 1 × removable screw terminal block for outputs
• 1 × 4-terminal removable block for serial link 1
• 1 × 3-terminal removable block for 100–240 V AC supply
• 1 × BR2032 Li-CFx battery
• 1 × protective cover for IP20 protection
• 1 × quick start documentation

Shipping

• FedEx, UPS, and DHL handle worldwide delivery with tracking.
• Orders ship within 1–3 business days after payment confirmation.
• Packaging measures 13.8 × 18.4 × 9.0 cm at 7.4 kg gross weight.
• Contact sales@ubestplc.com for expedited freight quotes.

FAQ

• Q: How many high-speed inputs does the TM200CE40R offer?
  A: Four inputs (I0, I1, I6, I7) reach 100 kHz for HSC and event tasks.
• Q: Can the relay outputs switch both DC and AC loads?
  A: Yes, the 16 relay outputs rated 2 A handle 24 V DC and 220 V AC.
• Q: Which communication protocols does the controller support?
  A: Modbus TCP/IP over Ethernet plus Modbus RTU/ASCII and SoMachine-Network over serial.
• Q: How many expansion modules can I connect?
  A: Up to 4 modules, reaching 128 transistor outputs or 80 relay outputs.
• Q: What backup protects programs during power loss?
  A: A 512-byte flash plus BR2032 battery gives 3-year backup at 25 °C.
• Q: What supply voltage does the TM200CE40R require?
  A: 100…240 V AC at 50/60 Hz, with limits of 85…264 V AC.
