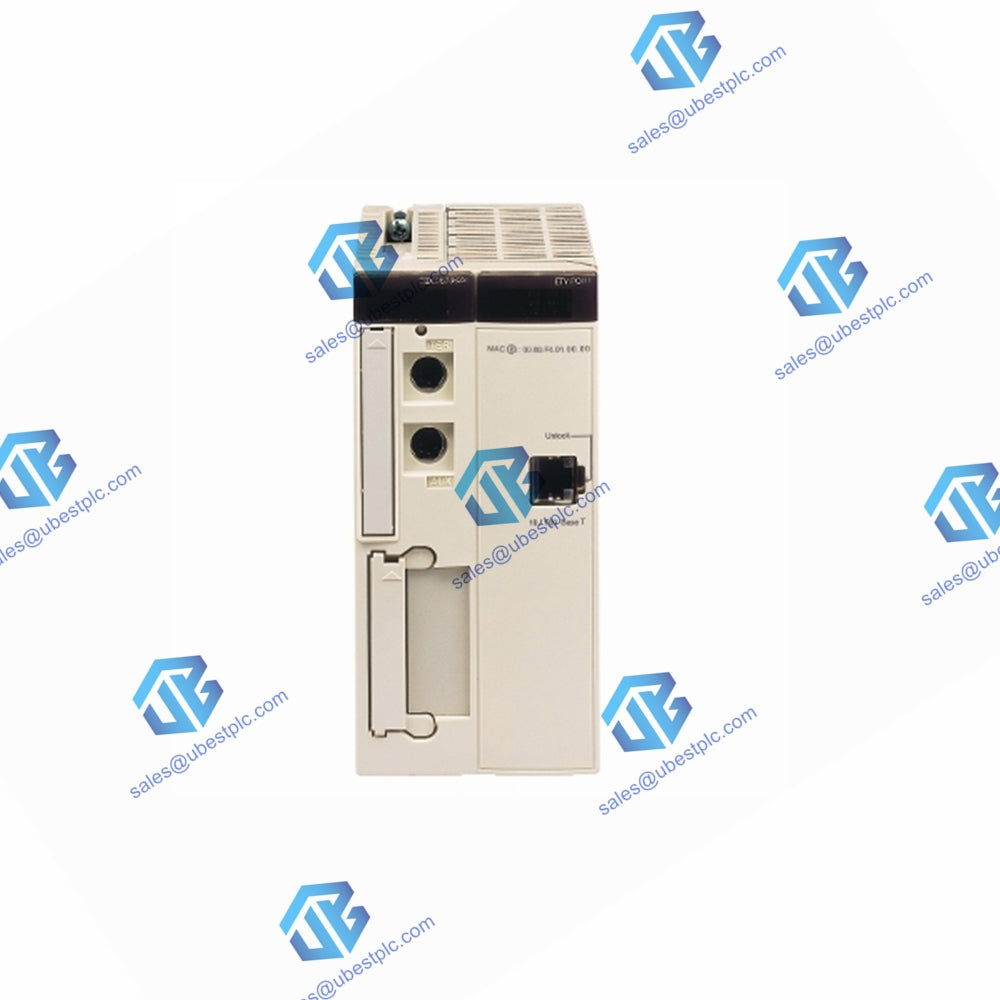

Schneider TSXP572623M | Double-format PL7 processor
Manufacturer:
Schneider
Product No.:
TSXP572623M
Condition:
In Stock
Product Type:
Double-format PL7 processor
Product Origin:
USA
Weight:
760g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
SchneiderTechnical Specifications - TSXP572623M
| Attribute | TSXP572623M Specifications |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Double-format PL7 processor |
| Number of Racks | 16 (4/6/8 slots) / 8 (12 slots) |
| Number of Slots | 64 / 96 / 128 |
| Discrete I/O Processor Capacity | 1024 I/O |
| Analogue I/O Processor Capacity | 80 I/O |
| Number of Application Specific Channel | 24 |
| Number of Process Control Channel | 10 up to 30 simple loops |
| Integrated Connection Type | Non-isolated serial link (2 female mini DIN, 19.2 kbit/s), Ethernet TCP/IP RJ45 (10/100 Mbit/s) |
| Communication Module Processor Capacity | 1 fieldbus module (none if CANopen used), 4 AS-Interface bus modules, 1 CANopen |
| Memory Description | Internal RAM (with PCMCIA card): 48 Kwords data Internal RAM (without PCMCIA card): 48 Kwords program and data PCMCIA card: 160 Kwords program PCMCIA card: 2688 Kwords additional data storage |
| Maximum Size of Object Areas | 30.5 %MWi internal words located internal data 32 %KWi constant words located internal data 8132 %Mi located internal bits |
| Application Structure | 1 master task, 1 fast task, 64 event tasks |
| Execution Time per Instruction | 0.19 µs Boolean without PCMCIA card 0.21 µs Boolean with PCMCIA card 0.25 µs word or fixed-point arithmetic without PCMCIA card 0.42 µs word or fixed-point arithmetic with PCMCIA card 2.6 µs floating points with PCMCIA card 2.6 µs floating points without PCMCIA card |
| Number of Instructions per ms | 2.5 Kinst/ms (65 % Boolean + 35 % fixed arithmetic with PCMCIA card) 3.57 Kinst/ms (65 % Boolean + 35 % fixed arithmetic without PCMCIA card) 3.7 Kinst/ms (100 % Boolean with PCMCIA card) 4.76 Kinst/ms (100 % Boolean without PCMCIA card) |
| System Overhead | 0.35 ms fast task, 1 ms master task |
| Marking | CE |
| Local Signalling | For Ethernet TCP/IP port ready (RUN): 1 LED (green) For processor running (RUN): 1 LED (green) For collision detection (COL): 1 LED (red) For Ethernet TCP/IP port fault (ERR): 1 LED (red) For I/O module or configuration fault (I/O): 1 LED (red) For processor or system fault (ERR): 1 LED (red) For activity on the terminal port (TER): 1 LED (yellow) For Ethernet link diagnostics (STS): 1 LED (yellow) For reception activity (RX): 1 LED (yellow) For transmission activity (TX): 1 LED (yellow) |
| Current Consumption | 1110 mA 5 V DC |
| Module Format | Double |
| Net Weight | 1.68 lb(US) (0.76 kg) |
| Standards | CSA C22.2 No 142 IEC 61131-2 CSA C22.2 No 213 Class I Division 2 Group D 73/23/EEC CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group B 93/68/EEC 92/31/EEC UL 508 89/336/EEC CSA C22.2 No 213 Class I Division 2 Group C |
| Product Certifications | BV, DNV, RMRS, ABS, GL, LR, RINA |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation, 5…95 % without condensation for storage |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Protective Treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
| Discount Schedule | PC22 |
| GTIN | 3595862058469 |
| Returnability | No |
| Country of Origin | FR |
| Packing Units | Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 3.7 in (9.5 cm) Package 1 Width: 7.09 in (18.0 cm) Package 1 Length: 10.2 in (26.0 cm) Package 1 Weight: 26.8 oz (759.0 g) |
