General Description

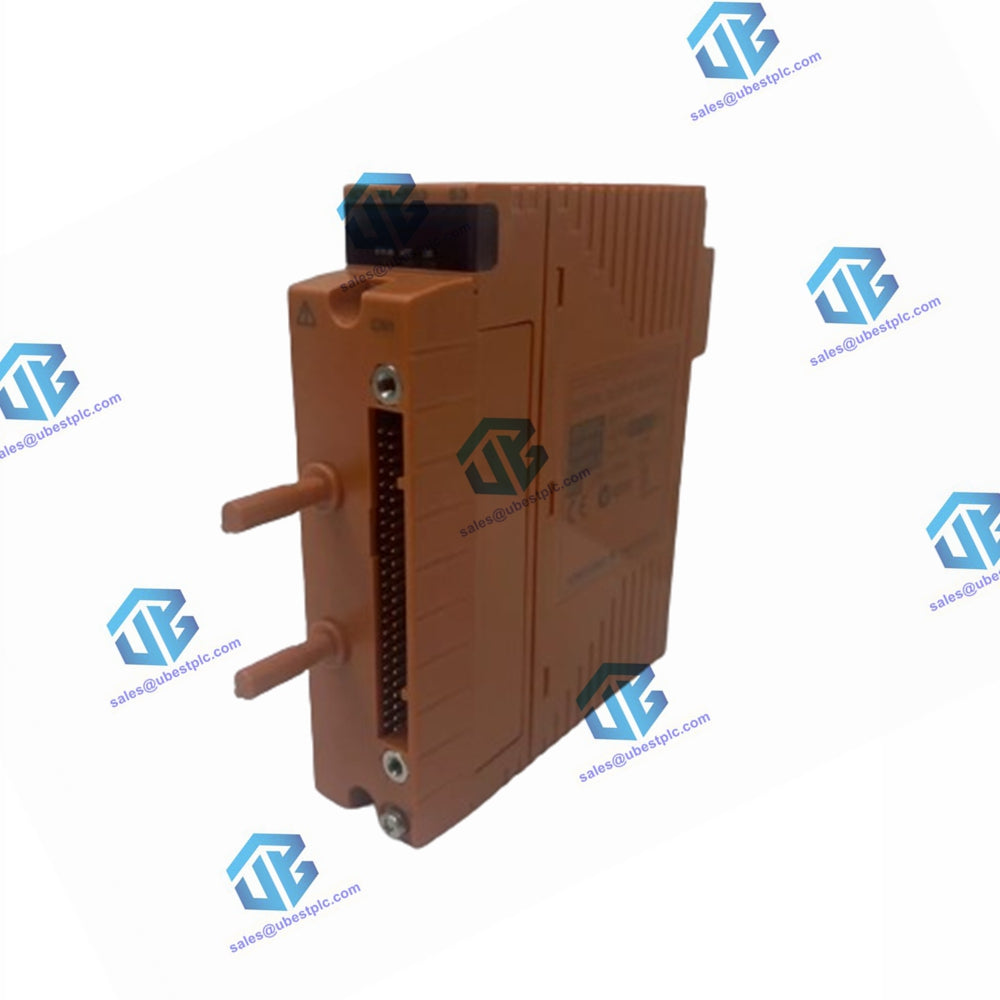

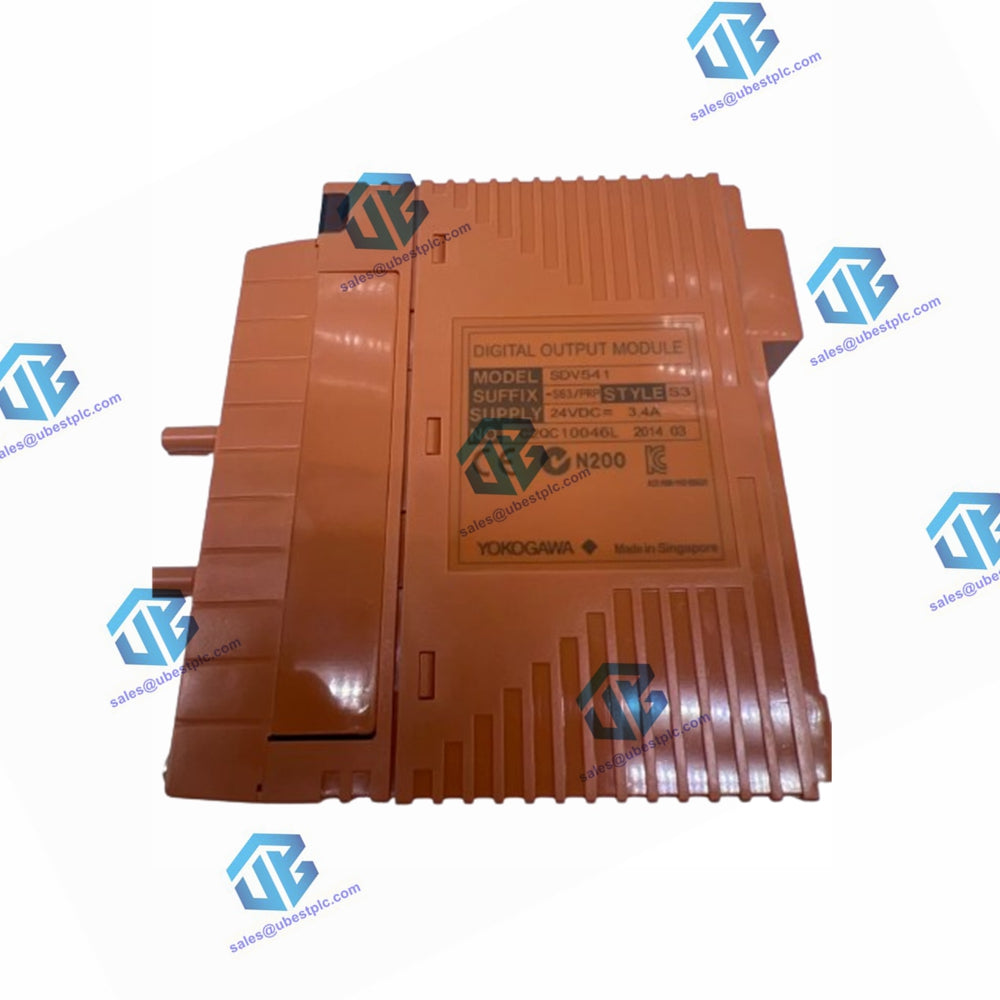

The SDV541-S63 Digital Output Module is designed by Yokogawa for various industrial applications requiring digital signal output. This module is a part of the ProSafe-RS safety system, which integrates seamlessly into Safety Control Units (SCUs) and Safety Node Units (SNUs). The SDV541-S63 supports a variety of configurations, ensuring flexibility and reliability in different operational environments.

Technical Specifications

Model: SDV541-S63

Number of Outputs: 16-channel, module isolation

Output Voltage: 24 V DC

Output Voltage Drop: 1 V maximum

External Power Supply Rating:

• Voltage: 24 V DC, 3.4 A minimum
• Tolerance: +20% / -10%

Output Specifications:

• Output Format: Current source
• Maximum Load Current: 0.2 A/output line (3.2 A in total output lines)
• Minimum Load Current: 35 mA
• Load Resistance Range: 120 to 685 Ω
• Maximum Leak Current at Output Off Status: 1.6 mA
• Output Response Time: 30 ms maximum

Electrical Isolation and Withstand Voltage:

• Isolation: Module isolation
• Withstand Voltage: 2 kV AC between output signal lines and system for 1 minute, 16-point input lines collectively connected (negative lines)

Current Consumption:

• 5 V DC Supply: 300 mA maximum
• 24 V DC Supply: 150 mA maximum

Physical Characteristics:

• Weight:
  • Approx. 0.29 kg (For pressure clamp terminal block or MIL cable)
  • Approx. 0.31 kg (With dedicated signal cable interface adapter)

Suffix Codes

• -S: Standard type
• 6: With signal cable interface adapter and no explosion protection (*1)
• 3: With ISA Standard G3 and temperature (-20 to 70 °C)
