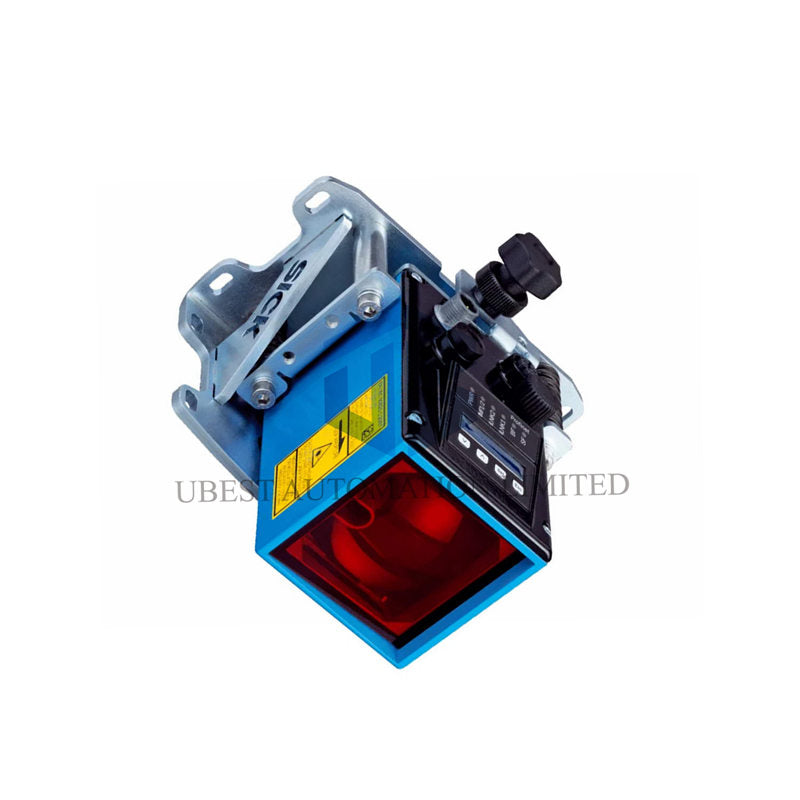

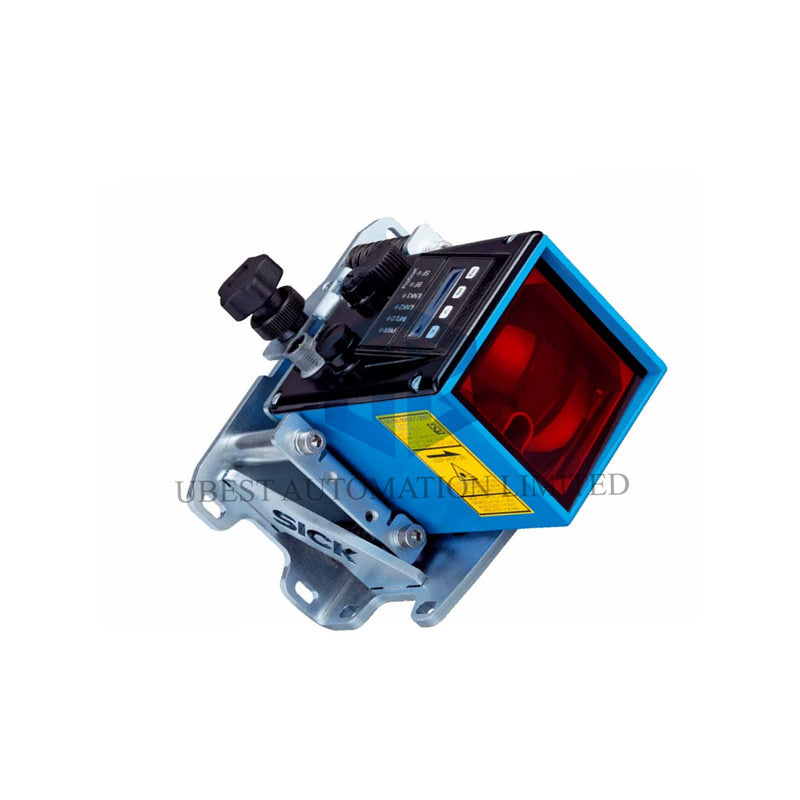

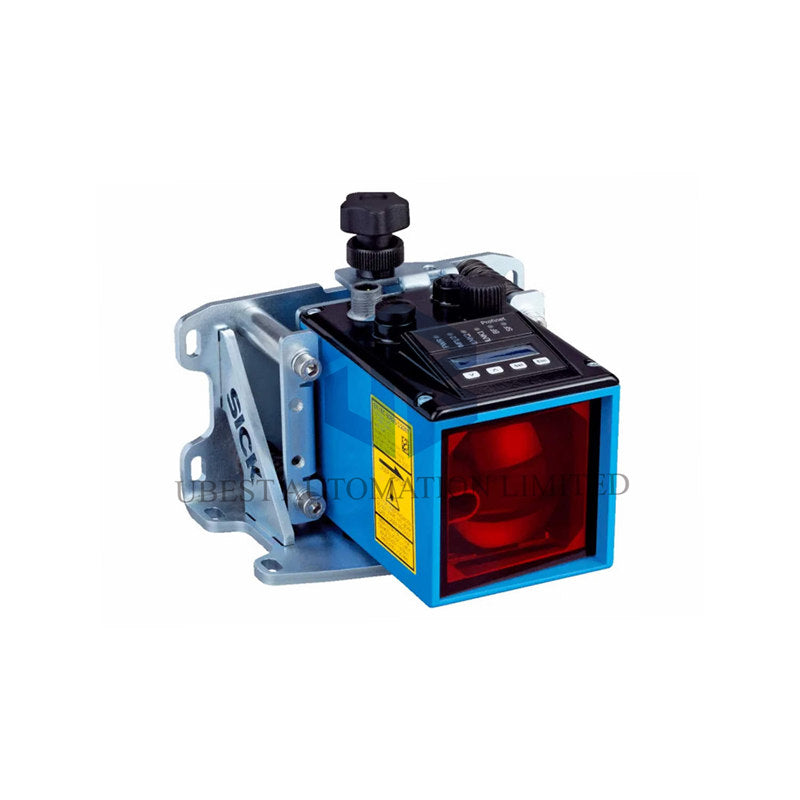

SICK DL100-21AA2212 Dx100: Extreme Range, Extreme Precision

Top Performance Specifications

• Huge Measuring Range: Covers an impressive 0.15 to 100 meters using a standard reflector.
• Extreme Accuracy: Achieves a measurement accuracy of ±2 mm across its entire range.
• Blazing Fast Speed: Features a ultra-fast 1 ms measurement cycle and 2 ms response time.
• High Resolution: Provides adjustable resolution down to a fine 0.1 mm for detailed tracking.
• Excellent Repeatability: Ensures consistent measurements with 0.5 mm repeatability.
• Robust Connectivity: Integrates easily with PROFINET and offers two digital switching outputs.
• Superior Reliability: Built with a metal housing, rated IP65, and has a high MTTFD of 101 years.

Key Product Advantages

• Measure moving targets at speeds up to 15 meters per second without losing accuracy.
• Operate in tough conditions from -20°C to +55°C; use a cooling case for up to +75°C.
• Resist bright ambient light with immunity up to 100,000 lux for stable outdoor use.
• Benefit from high reliability with a very long mission time for reduced maintenance needs.


Expert FAQs

• What target surface works best? For the full 100m range, use "diamond grade" reflective tape. It works on other surfaces at shorter ranges.
• How stable is it in changing temperatures? It has very low drift, typically 0.1 mm per degree Celsius, ensuring stable readings.
• Can I use it for high-speed positioning? Yes, its fast 1 ms cycle time is perfect for dynamic positioning and speed measurement up to 15 m/s.
• What is the laser class, and is it safe? It uses a Class 2 visible red laser, which is eye-safe under normal operating conditions.
• How does the multifunctional input work? The MF1 input can trigger measurements, teach-in distances, or reset the sensor remotely.
