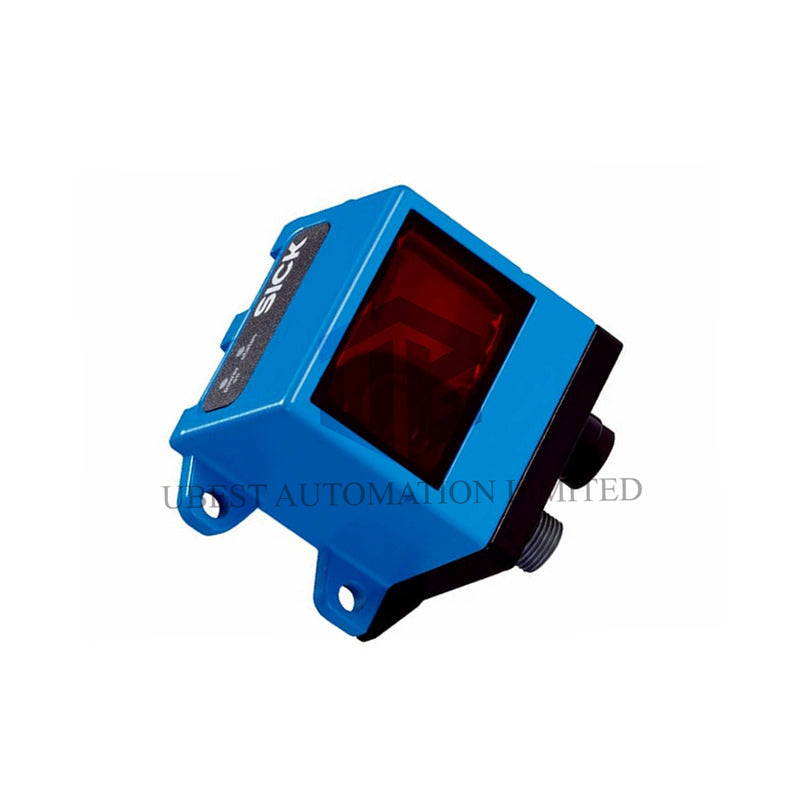

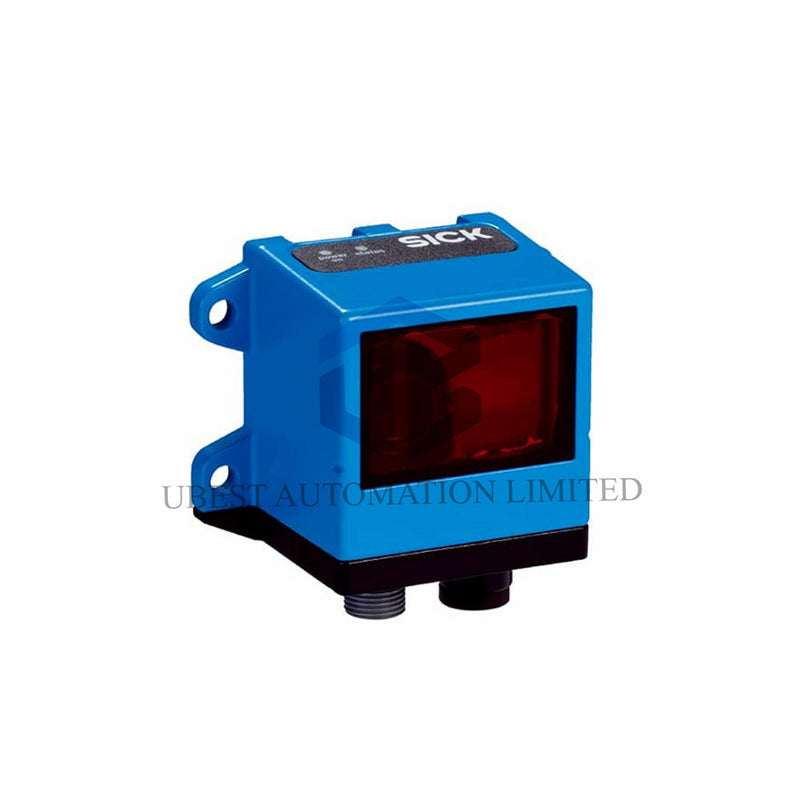

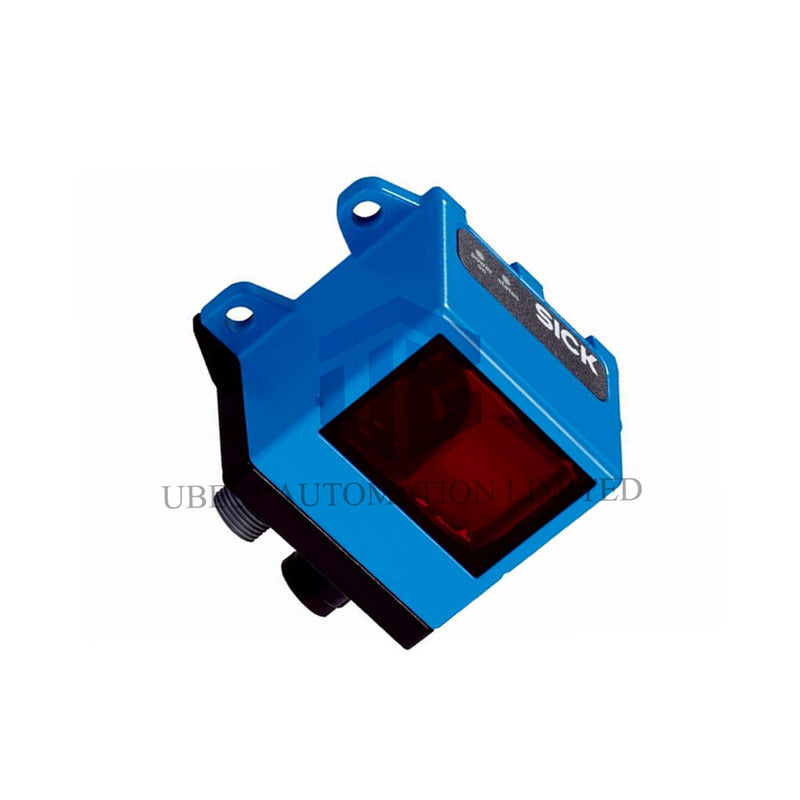

SICK OLM200-1009 Linear Measurement Sensor
Manufacturer:
SICK
Product No.:
OLM200-1009
Condition:
In Stock
Product Type:
Linear Measurement Sensor
Product Origin:
USA
Weight:
291g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Discover the SICK OLM200-1009 Linear Measurement Sensor
Core Technical Specifications
- Brand & Model: SICK OLM200 / OLM200-1009
- Measuring Range: An extensive range from 0 meters up to 10,000 meters.
- High Resolution: Configurable resolution options from 0.1 mm to 100 mm.
- Repeatability: Excellent repeatability of 0.15 mm for consistent results.
- High Speed: Tracks movement speeds up to 7 meters per second.
- Reading Distance: Optimal reading distance is 100 mm, with a ±20 mm tolerance.
- Light Source: Uses a durable, long-life red LED for illumination.
Electrical Data & Interfaces
- Supply Voltage: Operates on a standard 18-30 V DC power supply.
- Key Interface: Integrated PROFINET interface for seamless network communication.
- Digital Output: One configurable PNP/NPN output for signals like position or error status.
- Power Consumption: Energy-efficient with a consumption of less than 5.5 Watts.
- Response Time: Fast 10 ms response time for real-time control.
Robust Design & Environmental Ratings
- Enclosure Rating: Robust IP65 housing protects against dust and water jets.
- Temperature Range: Operates reliably in temperatures from -30 °C to +60 °C.
- Vibration & Shock: Resists vibration and shock per DIN/EN 60068-2 standards.
- EMC Compliance: Meets EN 61000-6-2 and EN 61000-6-4 for electromagnetic compatibility.
- Ambient Light: High immunity to ambient light, up to 5,000 lux typically.
Frequently Asked Questions (FAQ)
- What is the maximum measurement length? The sensor can measure positions along a barcode tape up to 10 kilometers long.
- Can it withstand outdoor conditions? Yes, its IP65 rating and wide temperature range make it suitable for tough environments.
- What communication protocols does it support? The primary industrial network protocol supported is PROFINET.
- How fast can the target move? The sensor can accurately read the barcode tape at speeds up to 7 meters per second
